Road Stream Crossing Site BSAB_BS77

Big Sable River Watershed, Tributary of Big Sable River
Alexander Rd
Grant Twp, Mason County
Information collected by:
Site Location
GPS Coordinates: 44.08504 , -86.31033
T20N R17W Sec 35
Owned by Private
Fish Passability 0
Perch Height: 0.3 ft.
Total Erosion: 3.7576 tons/year
Severity: Severe
Year Inventoried: 2011

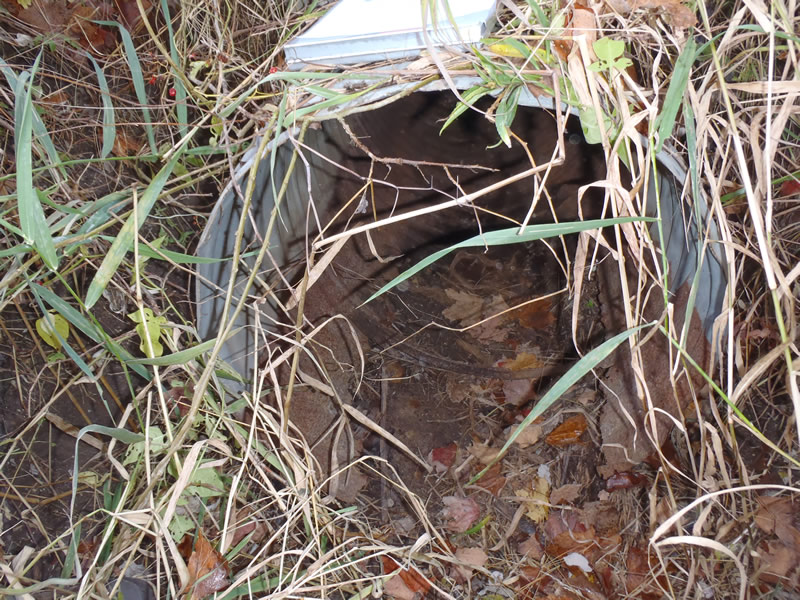

Inlet

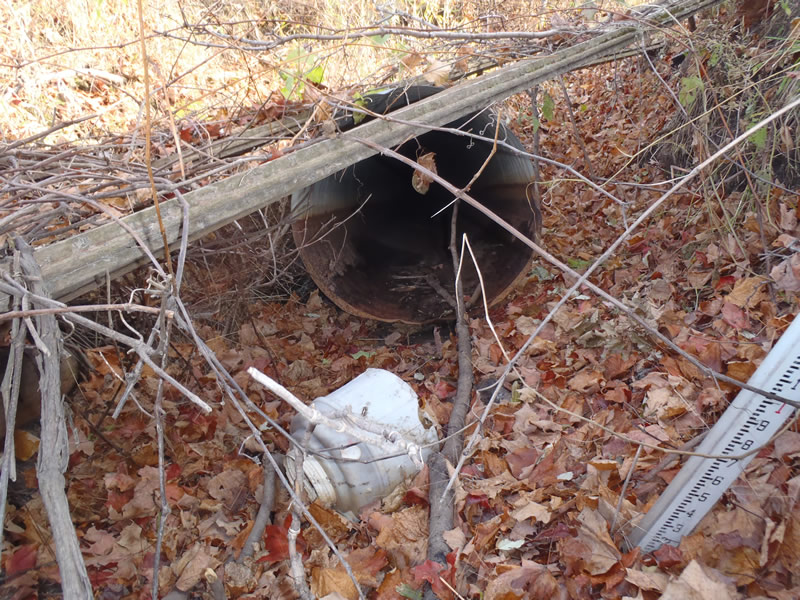

Outlet

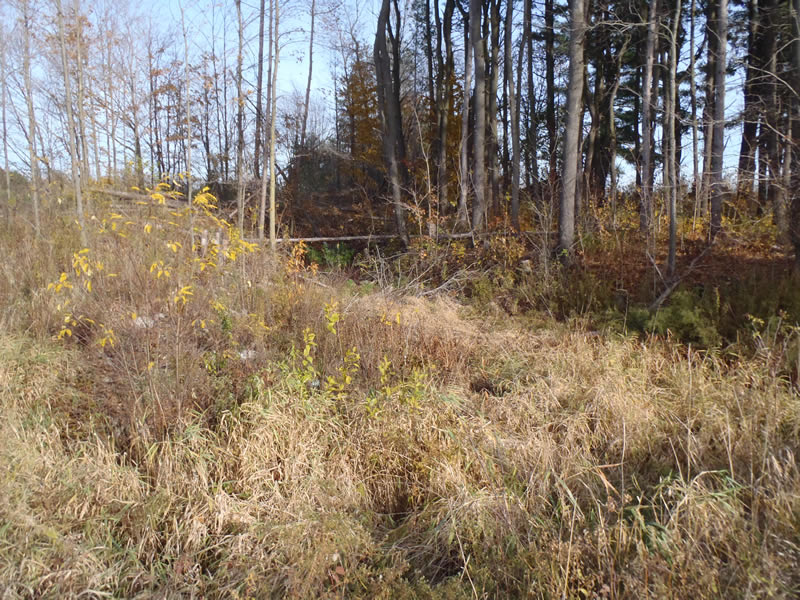

Upstream Conditions

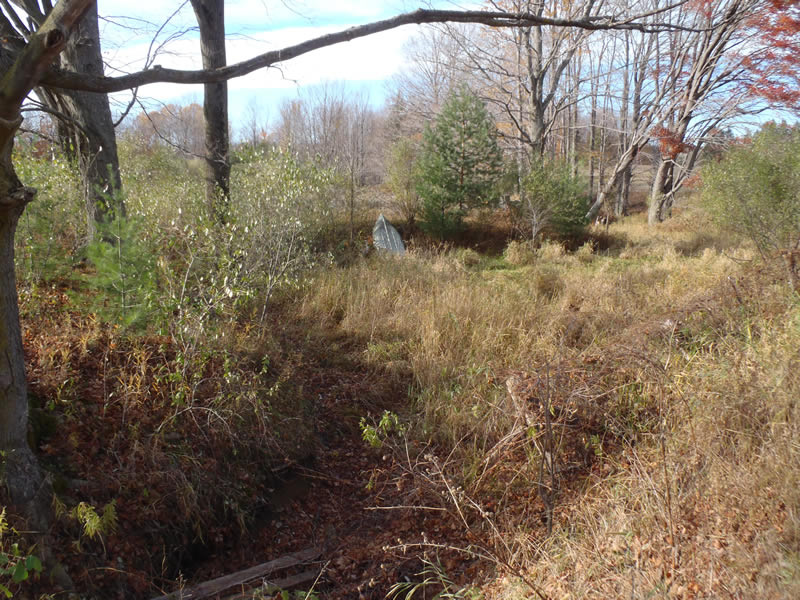

Downstream Conditions

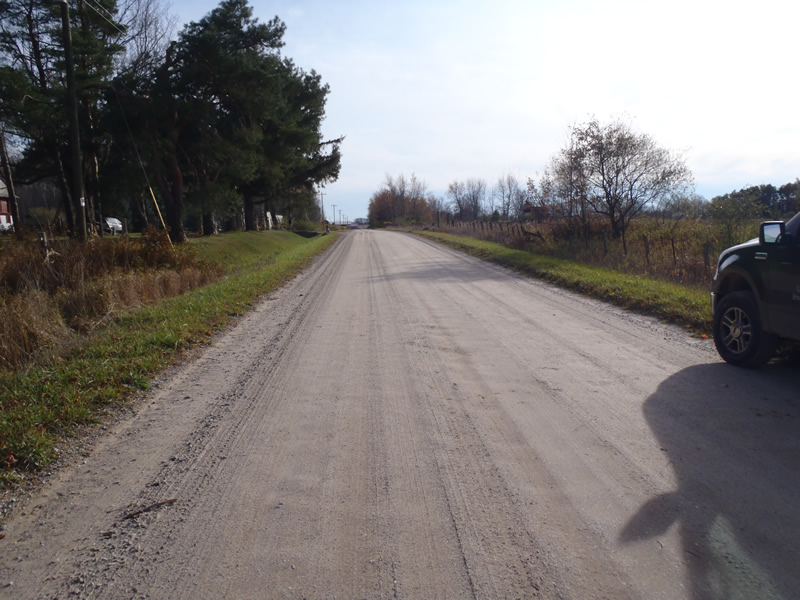

Road Approach - Left

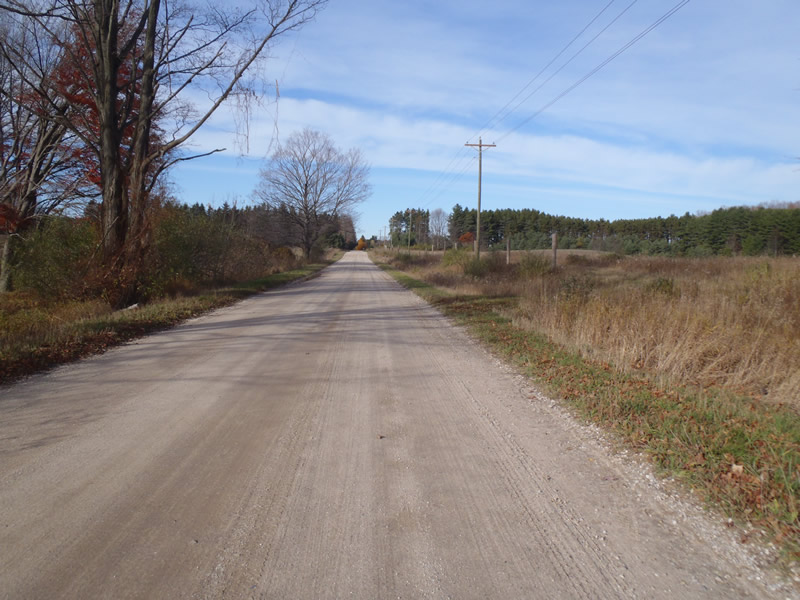

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Poor
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 60 ft. , Width 2 ft. , Height 2 ft.
Perch Height: 0.3 ft.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface (with Meter)
Additional Comments
1) Intermittent stream dry at the time of data collection 2) inlet is 0.4 ft above stream grade
Stream Information
Stream Flow: None
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 7 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 4.9 ft.
Slope: Vertical
Downstream
Fill Depth: 5.2 ft.
Slope: Vertical
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 3.4545 tons/year
Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.303 tons/year
Erosion Information
Total Erosion at Crossing: 3.7576 tons/year
Extent of Erosion: Minor
Erosion is occurring and corrective actions can be installed to address the problem.
Notes: Minor embankment erosion due to road runoff
Summary Information
Fish Passability 0
