Road Stream Crossing Site BSAB_BS23
Big Sable River Watershed, Tributary of Muckwa Creek
NF-5023
Elk Twp,
Lake County
Information collected by:
Site Location
GPS Coordinates: 44.08306
, -86.03783
T20N
R14W
Sec 31
Owned by Federal
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.1752 tons/year
Severity: Minor
Year Inventoried: 2011

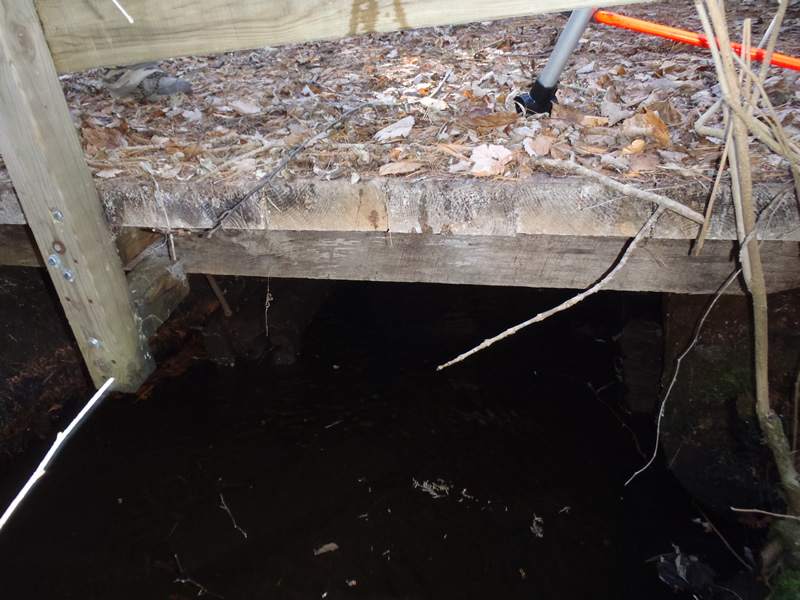

Inlet

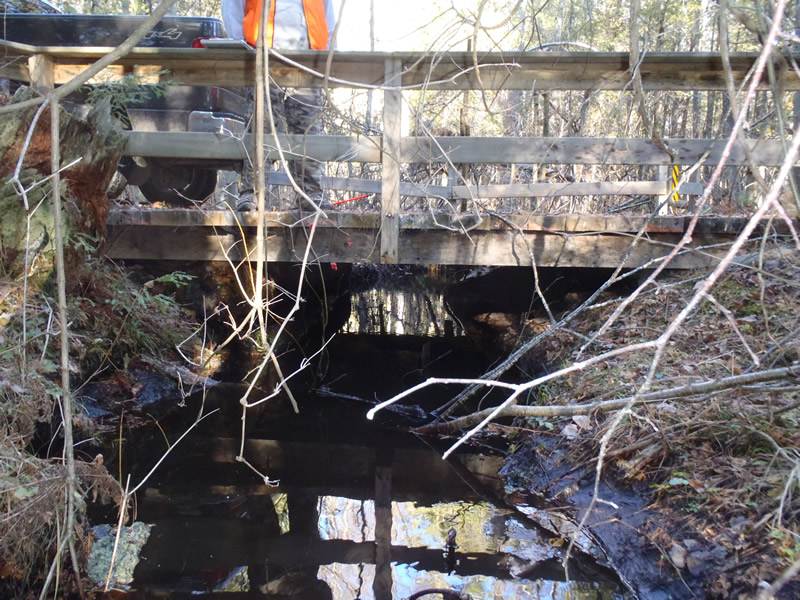

Outlet

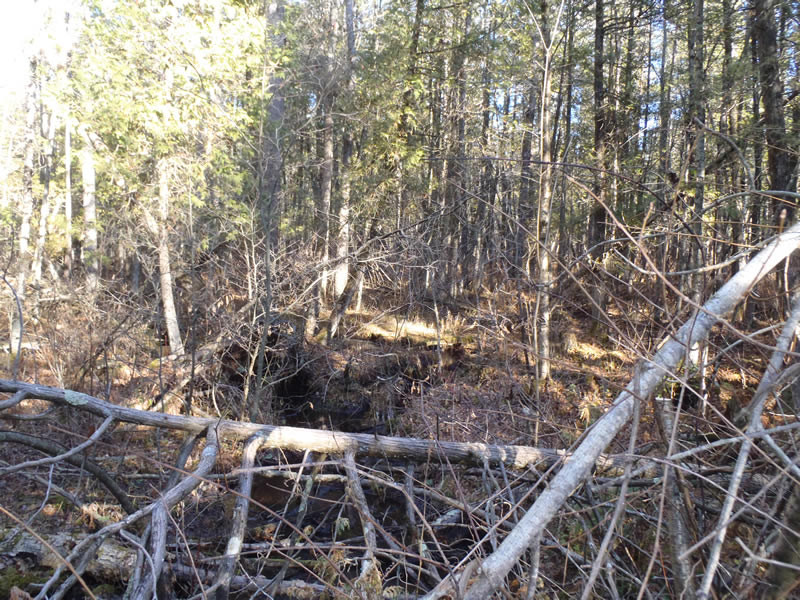

Upstream Conditions

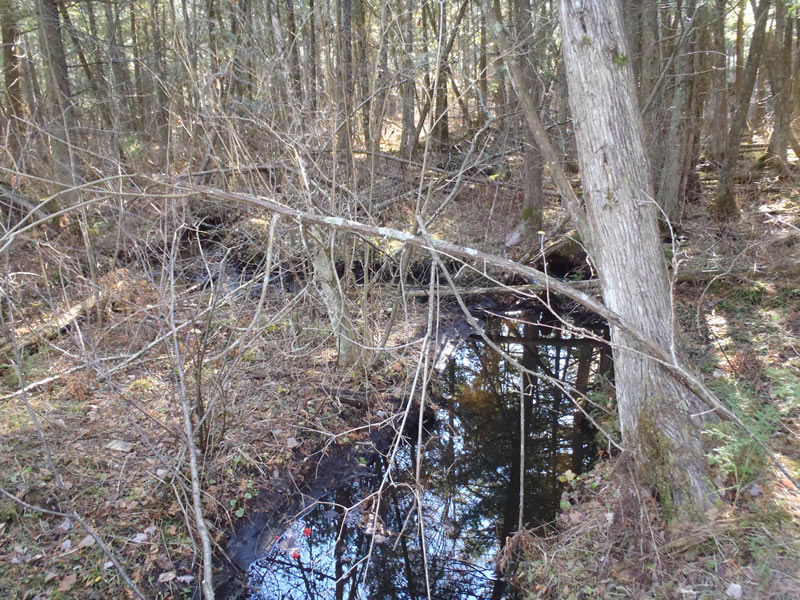

Downstream Conditions

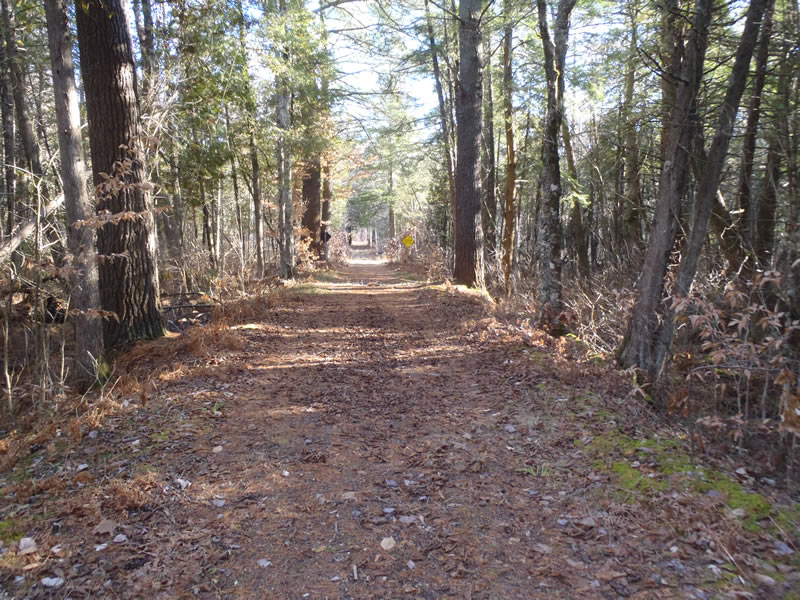

Road Approach - Left

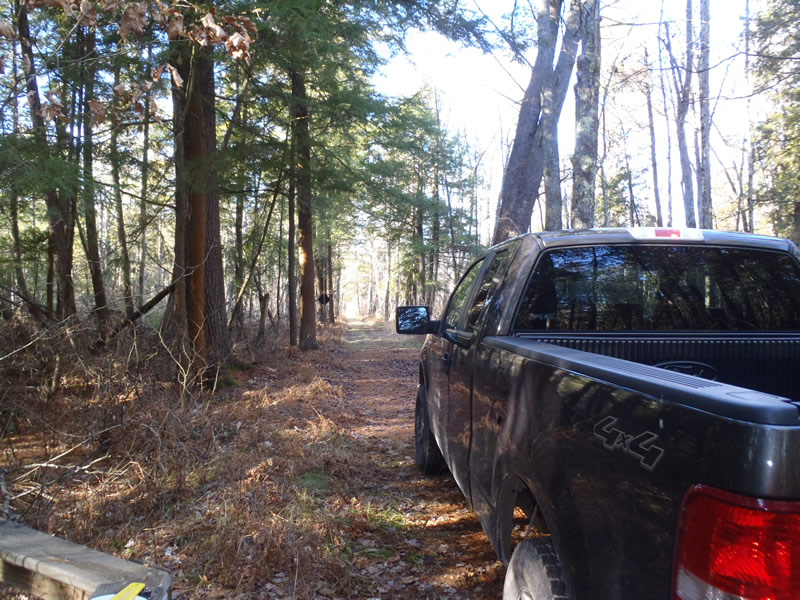

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Other
Outlet Type: At Stream Grade
Structure Material: Wood
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 12 ft.
, Width 14 ft.
, Height 3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.44 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 0.82 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.27 ft. below Surface
(with Meter)
Additional Comments
Wooden footers showing signs of rotting
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 9.6 ft.
Wetted Width: 5.6 ft.
Water Velocity: 0.7 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Native Surface
State Road
Road Condition: Good
Road Width at Culvert: 12 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: More than 1:2
Fill Depth: 0 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 60 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0099 tons/year
Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.1653 tons/year
Erosion Information
Total Erosion at Crossing: 0.1752 tons/year
Summary Information
Fish Passability 1
