Road Stream Crossing Site BSAB_BS59
Big Sable River Watershed, Tributary of Big Sable River
Freeman Rd
Freesoil Twp,
Mason County
Information collected by:
Site Location
GPS Coordinates: 44.09336
, -86.26921
T20N
R16W
Sec 30
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.0381 tons/year
Severity: Moderate
Year Inventoried: 2011
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round

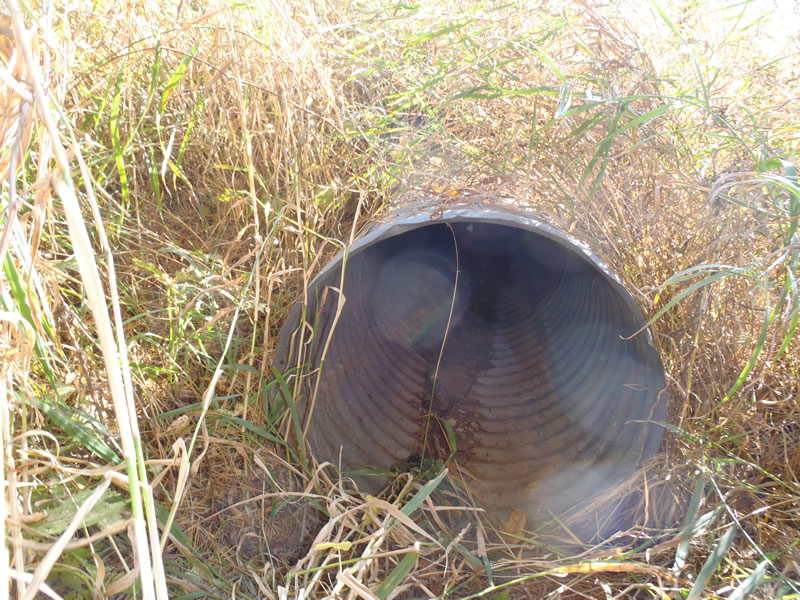

Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Poor
Structure Interior: corrugated
Dimensions of Structure: Length 60 ft.
, Width 2 ft.
, Height 2 ft.
Percentage Crushed:

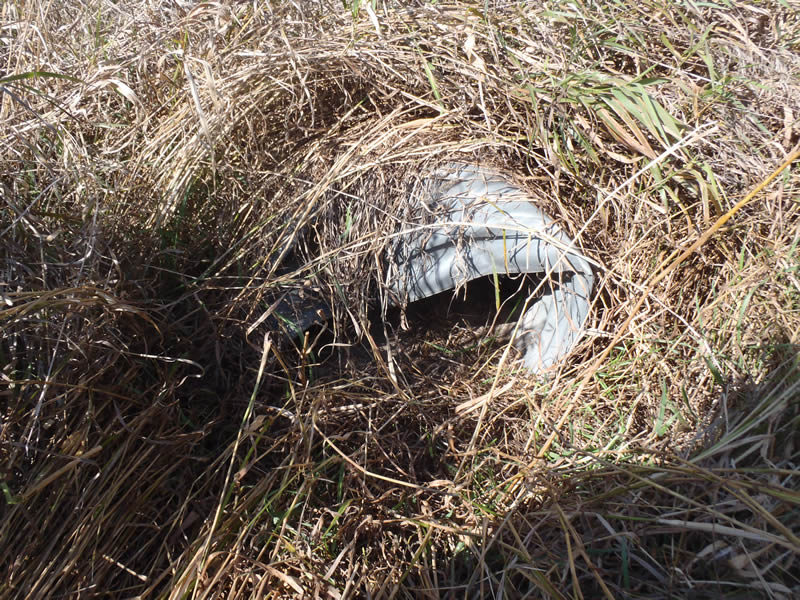

Outlet: 51% to 75%
Structure is NOT Perched
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Additional Comments
Intermittent stream dry at the time of data collection
Stream Information
Stream Flow: None
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 5.8 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Fair
Road Width at Culvert: 25 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments

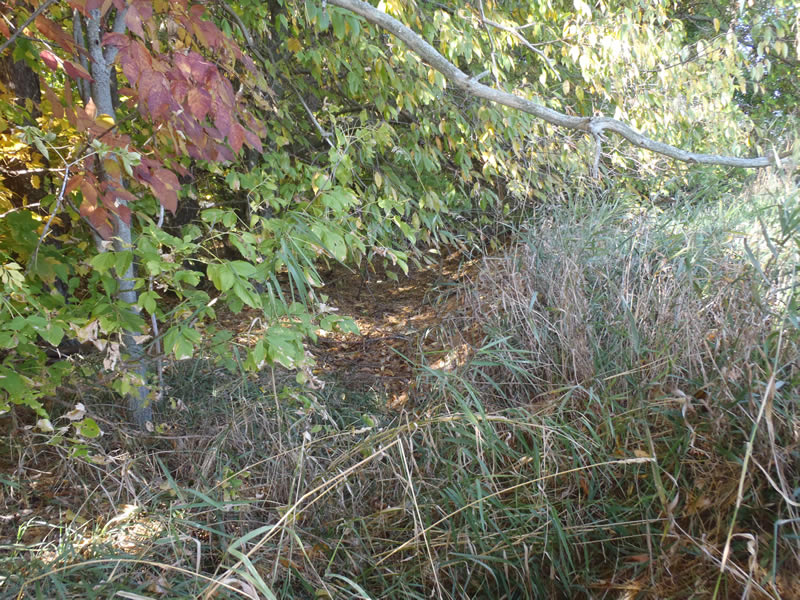

Upstream
Fill Depth: 3.4 ft.
Slope: More than 1:2

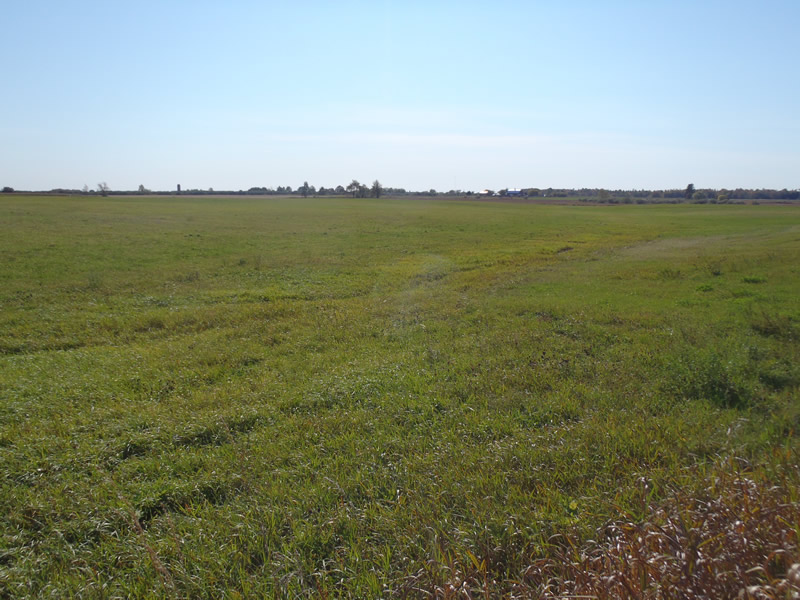

Downstream
Fill Depth: 3.6 ft.
Slope: 1:2
Approaches

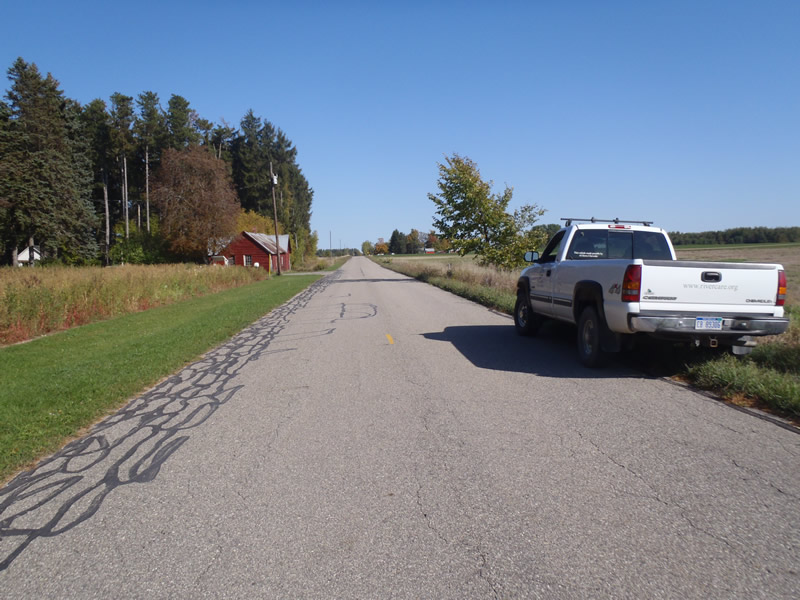

Left Approach
Length: 384 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0159 tons/year

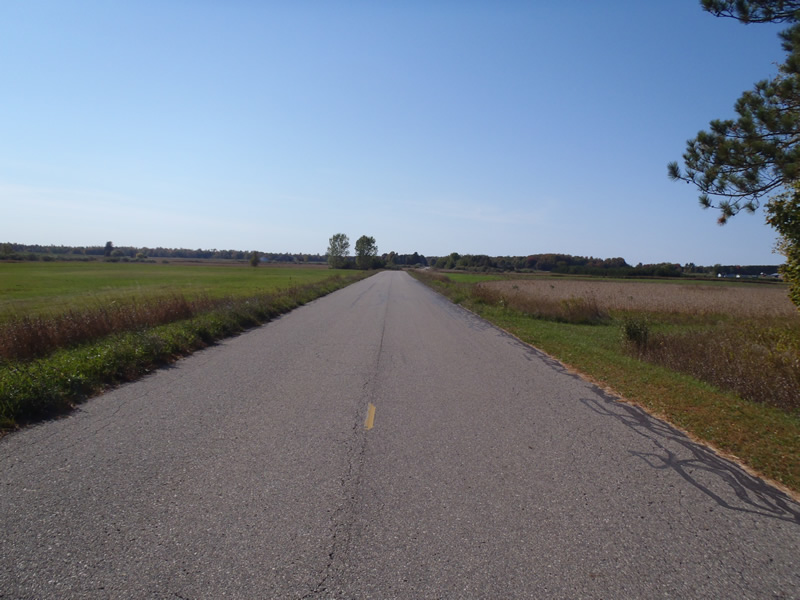

Right Approach
Length: 537 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0222 tons/year
Erosion Information
Total Erosion at Crossing: 0.0381 tons/year
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Knapweed
