Road Stream Crossing Site RIF_OG63
Rifle River Watershed, Campbell Creek
Campbell Rd
West Branch Twp,
Ogemaw County
Information collected by:
Site Location
GPS Coordinates: 44.30159
, -84.14562
T22N
R2E
Sec 13
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.3533 tons/year
Severity: Moderate
Year Inventoried: 2012
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 64 ft.
, Width 5.3 ft.
, Height 3.4 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.2 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Additional Comments
livestock in stream
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 6 ft.
, Width 5 ft.
, Depth 0.2 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 7.5 ft.
Wetted Width: 5.8 ft.
Water Velocity: 0.6 ft./sec.
(Measured with Float Test)
Dominant Substrate: Gravel
Road Information
Paved
County Road
Road Condition: Fair
Road Width at Culvert: 21 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.4 ft.
Slope: 1:2
Downstream
Fill Depth: 3 ft.
Slope: 1:2
Approaches

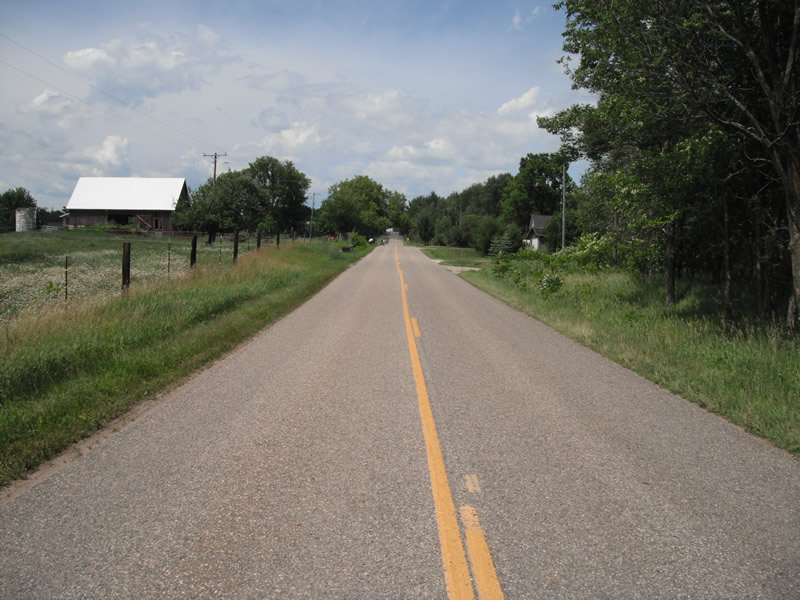

Left Approach
Length: 444 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.489
Erosion: 0.1507 tons/year

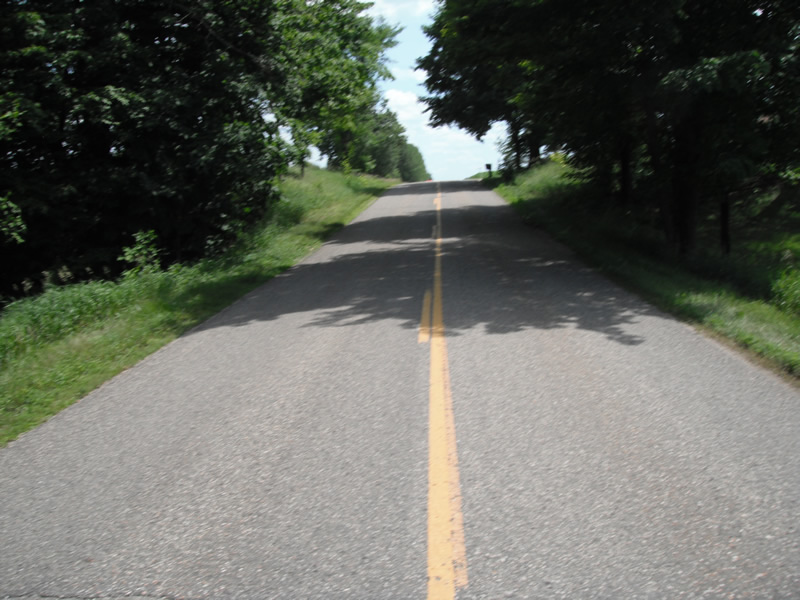

Right Approach
Length: 228 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.28
Erosion: 0.2027 tons/year
Erosion Information
Total Erosion at Crossing: 0.3533 tons/year
Extent of Erosion: Stabilized
Notes: stabilized
Summary Information
Fish Passability 0.5
Erosion is an area of concern for this site.
ag site
A future visit to this site is recommended. cattle in stream
