Road Stream Crossing Site RIF_OG53
Rifle River Watershed, Klacking Creek
Peters Rd
West Branch Twp,
Ogemaw County
Information collected by:
Site Location
GPS Coordinates: 44.33473
, -84.15426
T22N
R2E
Sec 2
Fish Passability 1
Structure is NOT Perched
Total Erosion: 8.7844 tons/year
Severity: Severe
Year Inventoried: 2012

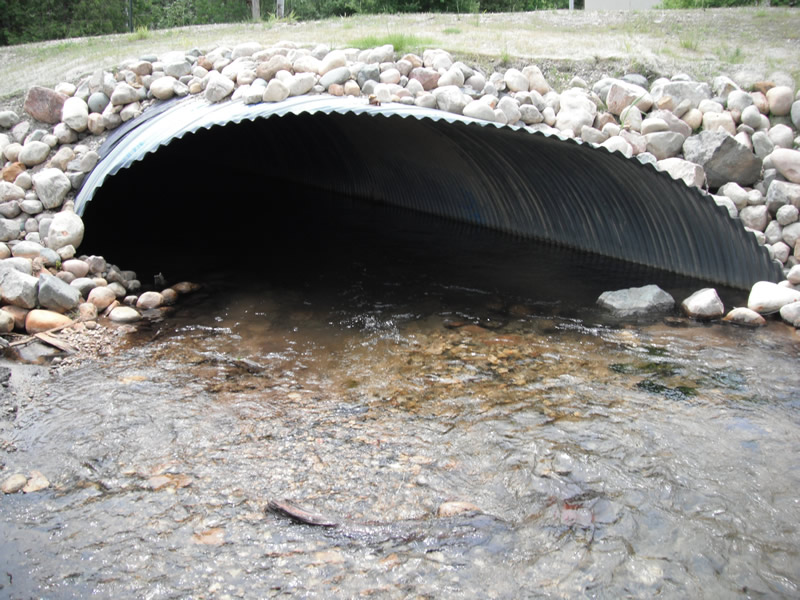

Inlet

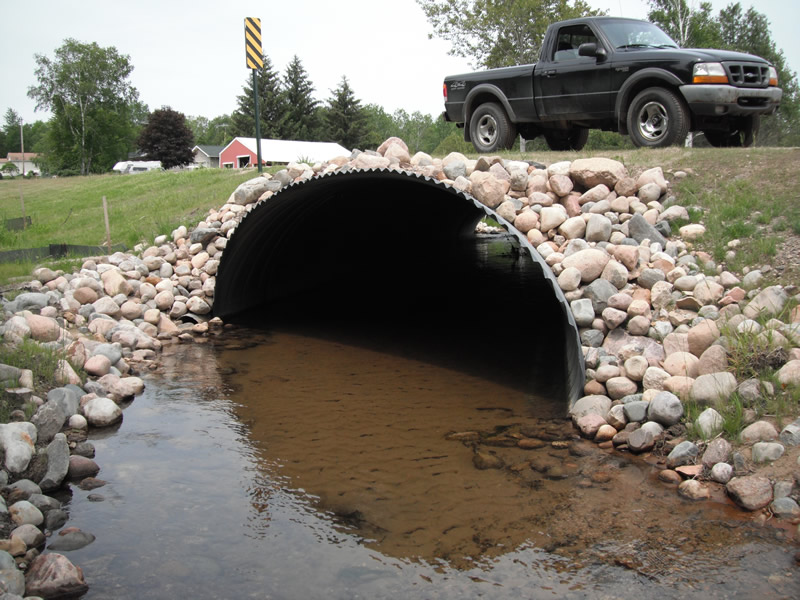

Outlet

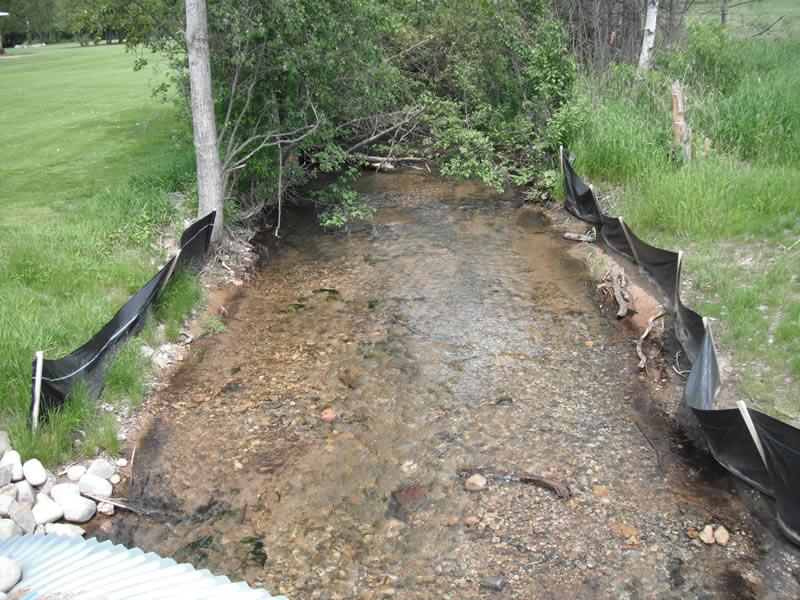

Upstream Conditions

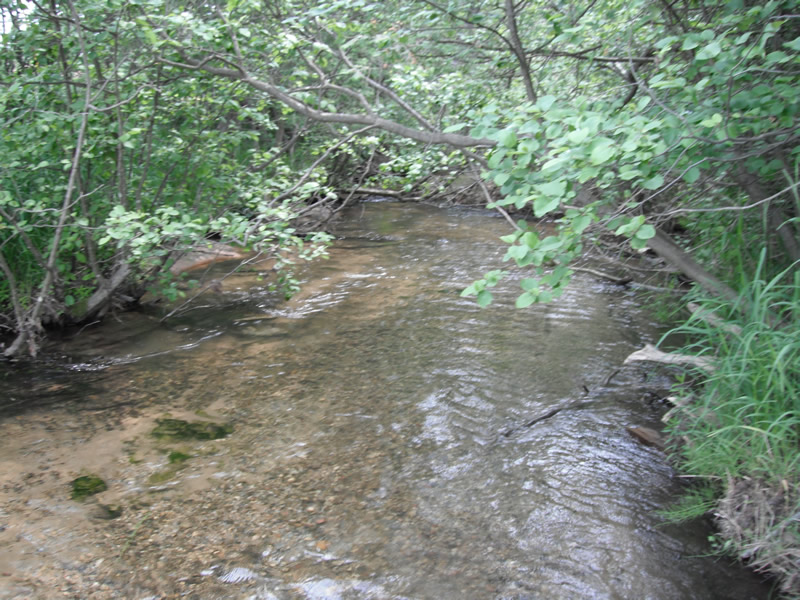

Downstream Conditions

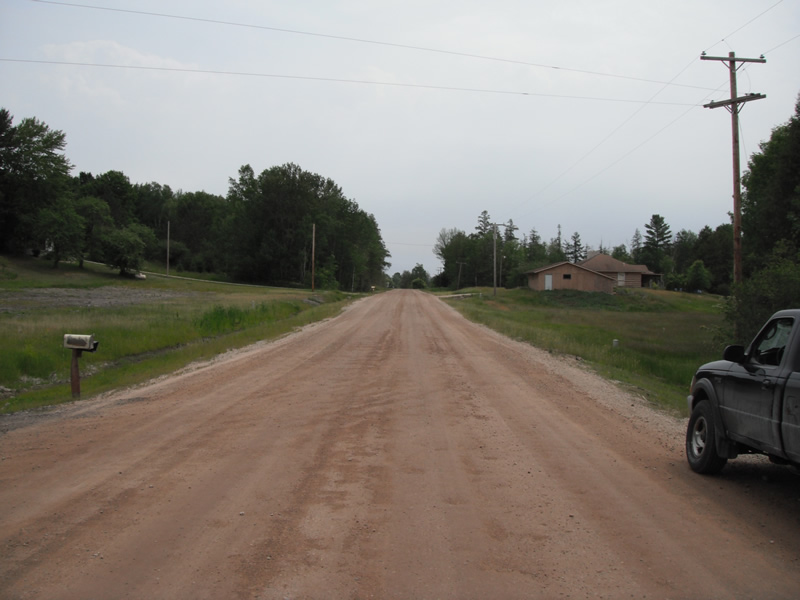

Road Approach - Left

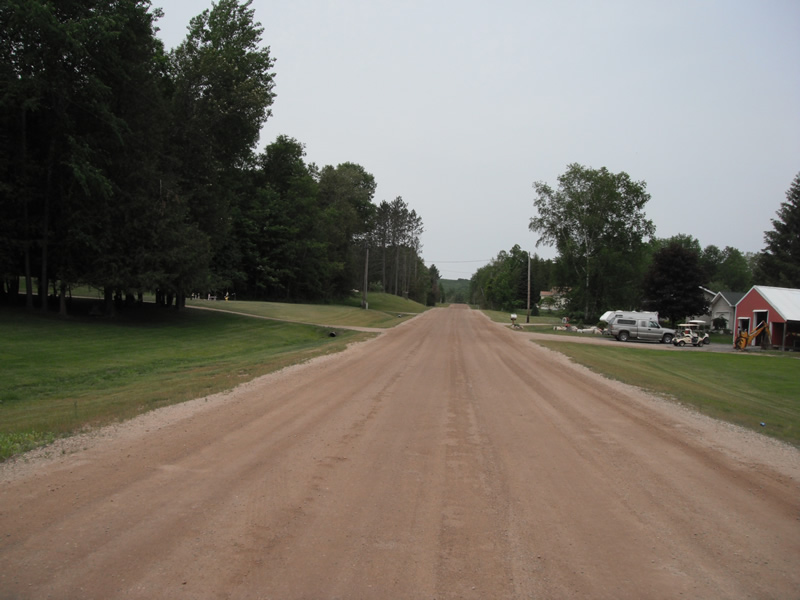

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: New
Structure Interior: corrugated
Dimensions of Structure: Length 81 ft.
, Width 17.5 ft.
, Height 8 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 2.4 ft.
Embedded Depth of Structure: 1.4 ft.
Water Velocity*: 1.3 ft./sec.
Structure Outlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 1.9 ft.
Water Velocity*: 1.3 ft./sec.
(with Float Test)
Additional Comments
was replaced in the fall of 2010- according to landowner
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 14.3 ft.
Wetted Width: 12.9 ft.
Water Velocity: 1 ft./sec.
(Measured with Float Test)
Dominant Substrate: Gravel
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2 ft.
Slope: 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.8
Erosion: 5.2893 tons/year
Right Approach
Length: 729 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.725
Erosion: 3.4951 tons/year
Erosion Information
Total Erosion at Crossing: 8.7844 tons/year
Extent of Erosion: Stabilized
Notes: rock rip rap and neww grass plantings
Summary Information
Fish Passability 1
