Road Stream Crossing Site RIF_OG14
Rifle River Watershed, Mayhue Creek
Heath Rd
Rose Twp,
Ogemaw County
Information collected by:
Site Location
GPS Coordinates: 44.43579
, -84.06449
T24N
R3E
Sec 34
Fish Passability 0
Structure is NOT Perched
Severity: Severe
Year Inventoried: 2012
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 55 ft.
, Width 3 ft.
, Height 3 ft.
Structure is NOT Perched

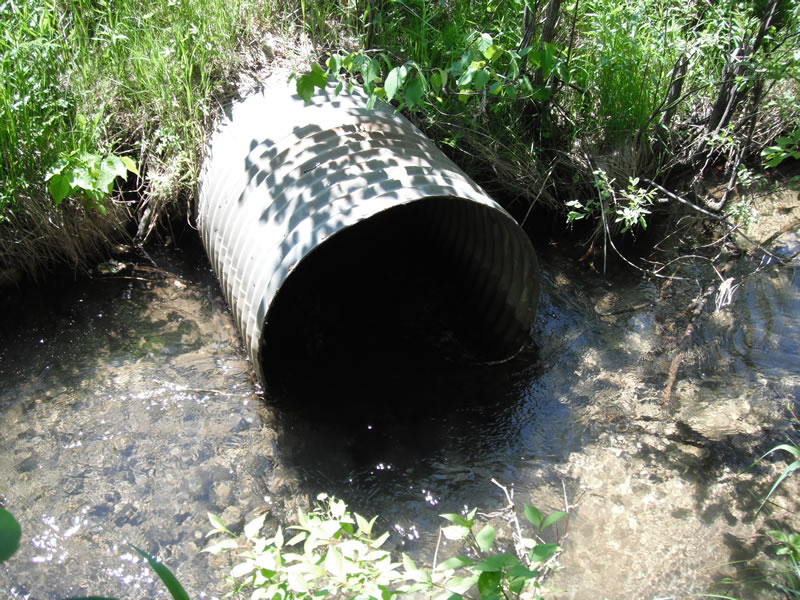

Structure Inlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 3.5 ft./sec.

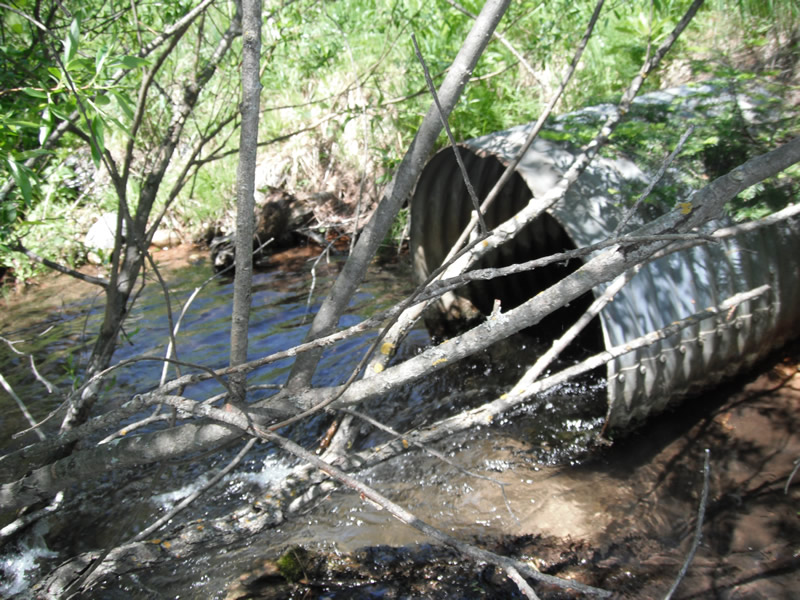

Structure Outlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 7 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 22.8 ft.
, Width 17.3 ft.
, Depth 2.5 ft.
Upstream Pond: Length 11.5 ft.
, Width 10 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 9.2 ft.
Wetted Width: 8.7 ft.
Water Velocity: 2.1 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel

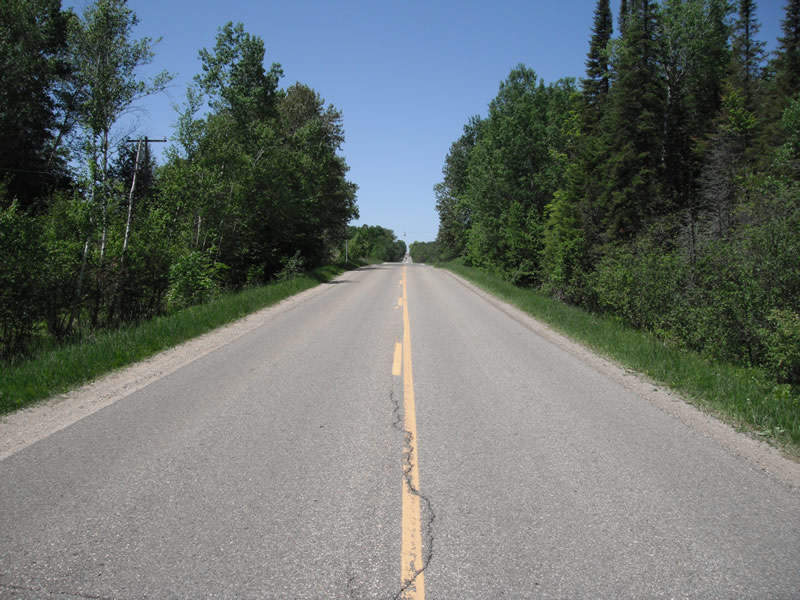

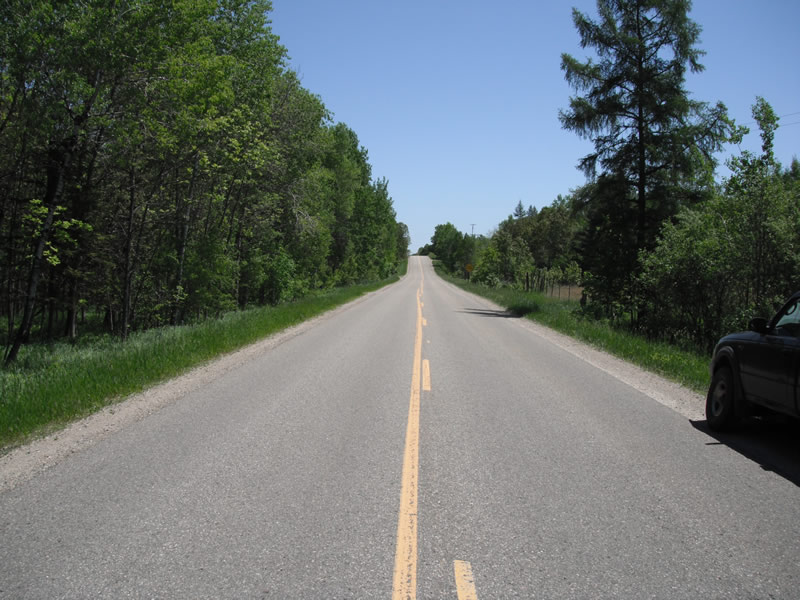

Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 21 ft.
Location of Low Point: Other
Embankments
Upstream
Fill Depth: 3.1 ft.
Slope: 1:2
Downstream
Fill Depth: 4 ft.
Slope: 1:2
Vegetation: Heavy
Length: 321 ft.
Slope: 1% to 5%
Vegetation: Heavy
Erosion Information
Extent of Erosion: Minor
Notes: just on the sides of the pipe
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Total Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | |
Left Upstream |
2.4 ft. |
1.6 ft. |
1.4 ft. |
yes |
Sand |
0.0037 |
Right Downstream |
3.6 ft. |
7.9 ft. |
0.5 ft. |
yes |
Gravel |
0.0018 |
Left Downstream |
2.4 ft. |
2.3 ft. |
1 ft. |
yes |
Gravel |
0.0024 |
Summary Information
Fish Passability 0
Fish Passage is an area of concern for this site.
hoh velocity is to high
A future visit to this site is recommended. fish passage
