Road Stream Crossing Site RIF_OG21

Rifle River Watershed, Andrews Creek
Rose City Rd
Rose Twp, Ogemaw County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.42149 , -84.05788
T24N R3E Sec 34
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.0899 tons/year
Severity: Moderate
Year Inventoried: 2012

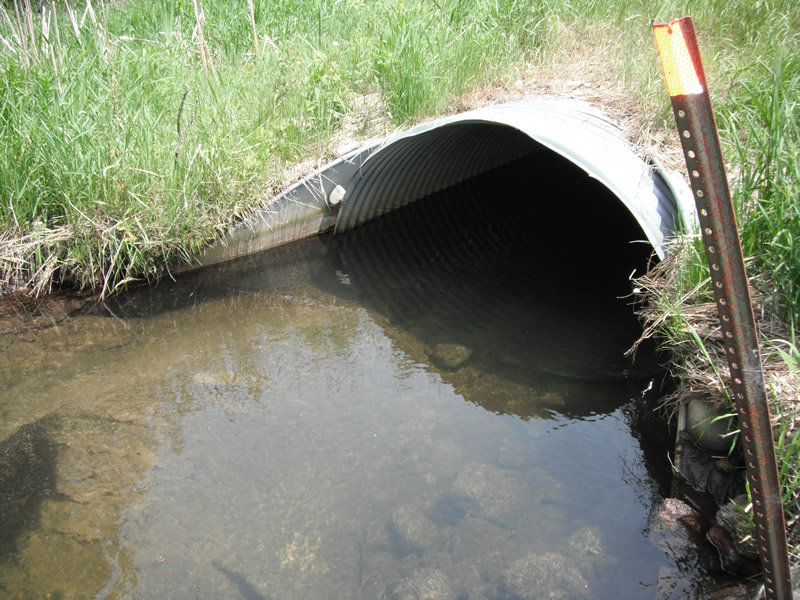

Inlet

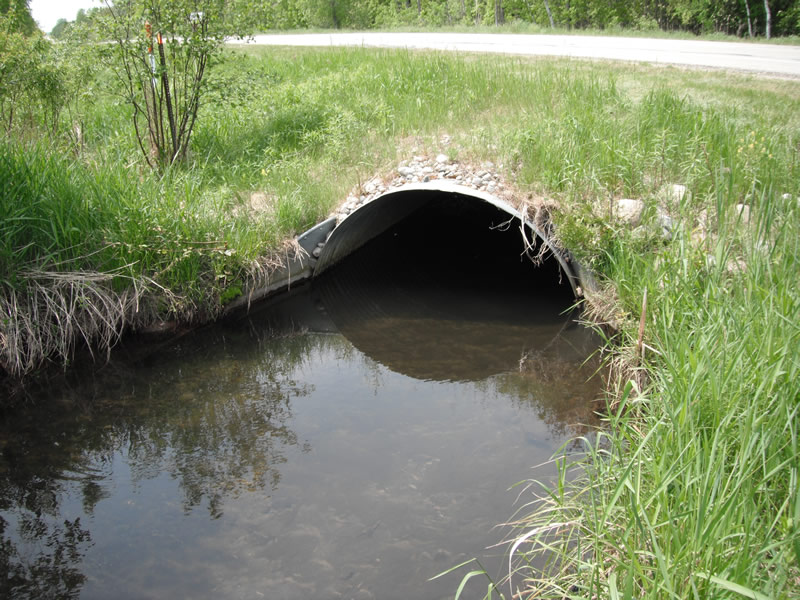

Outlet

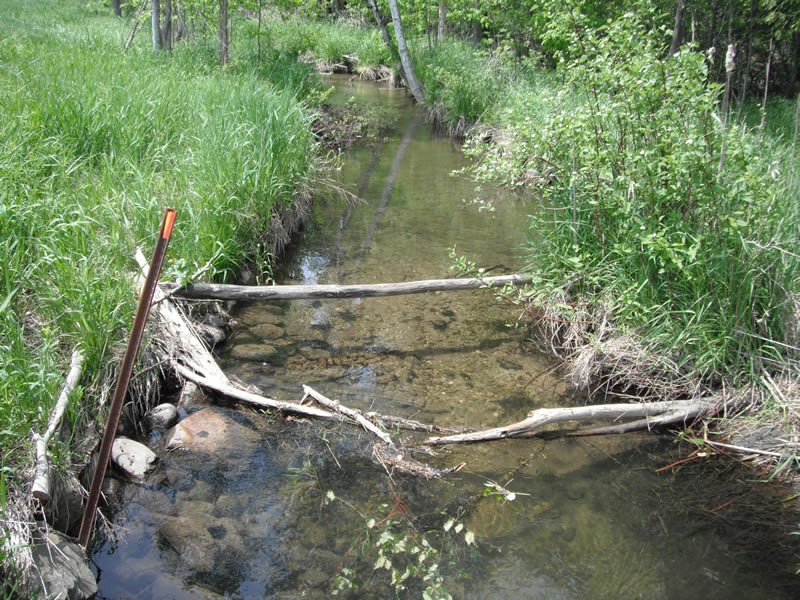

Upstream Conditions

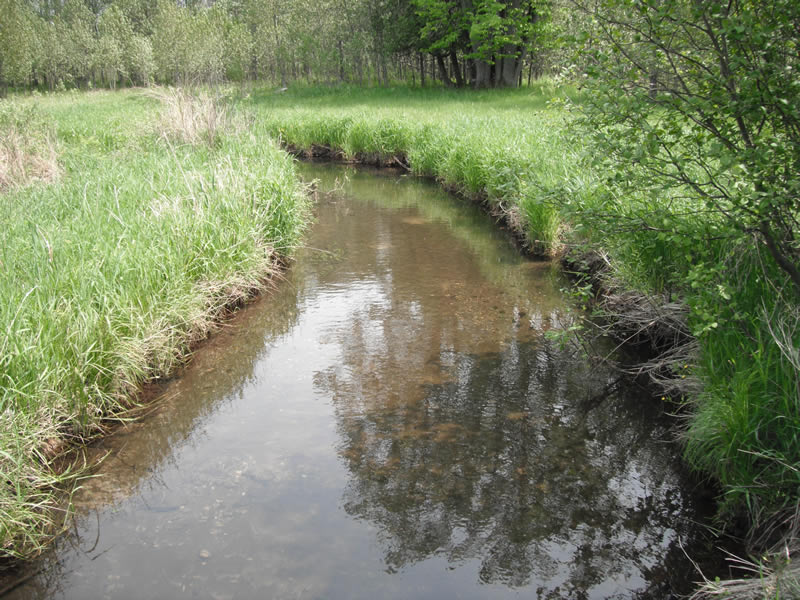

Downstream Conditions

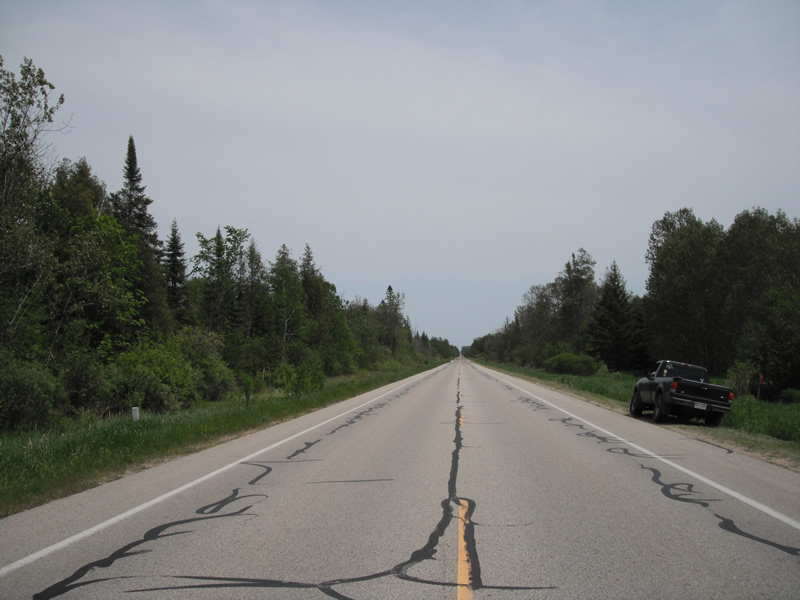

Road Approach - Left

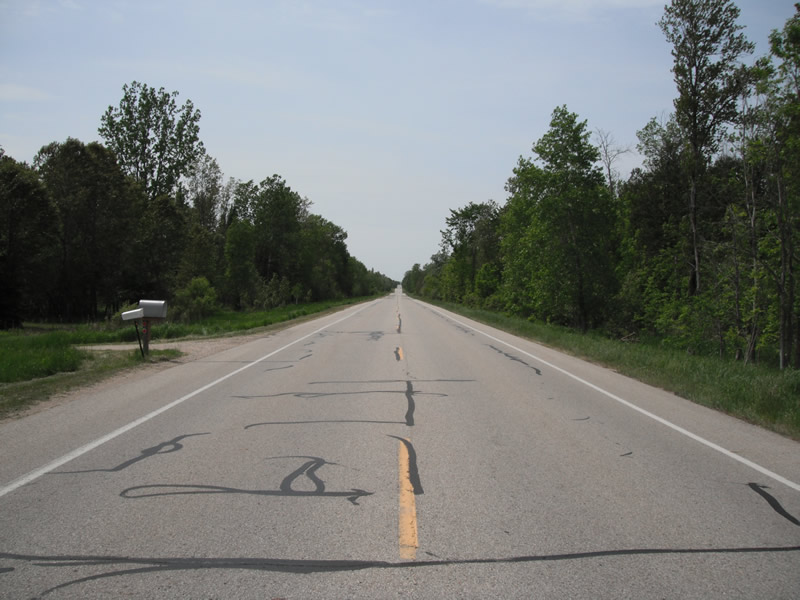

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Apron
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 96 ft. , Width 6.6 ft. , Height 5.1 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 2.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.5 ft./sec.
Structure Outlet
Water Depth: 2.5 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 0.4 ft./sec.
*Water Velocities were measured 1.2 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 13.3 ft. , Width 13.3 ft. , Depth 2.5 ft.
Upstream Pond: Length 16.8 ft. , Width 11.8 ft. , Depth 0 ft.
Riffle Information
Water Depth: 1.5 ft.
Bankfull Width: 11.8 ft.
Wetted Width: 10.7 ft.
Water Velocity: 0.7 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0397 tons/year
Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0397 tons/year
Erosion Information
Total Erosion at Crossing: 0.0899 tons/year
Extent of Erosion: Minor
Location of Erosion
Erosion Dimensions
Eroded Material
Material Eroded
Total Erosion
facing downstream
Length
Width
Depth
Reaching Stream?
(tons/year)
Right Upstream
4.2 ft.
3.4 ft.
2.3 ft.
no
Sand
0.0106
Summary Information
Fish Passability 0.9
