Road Stream Crossing Site RIF_OG28
Rifle River Watershed
Campbell Rd
Klacking Twp,
Ogemaw County
Information collected by:
Site Location
GPS Coordinates: 44.39858
, -84.14661
T23N
R2E
Sec 12
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.7559 tons/year
Severity: Moderate
Year Inventoried: 2012

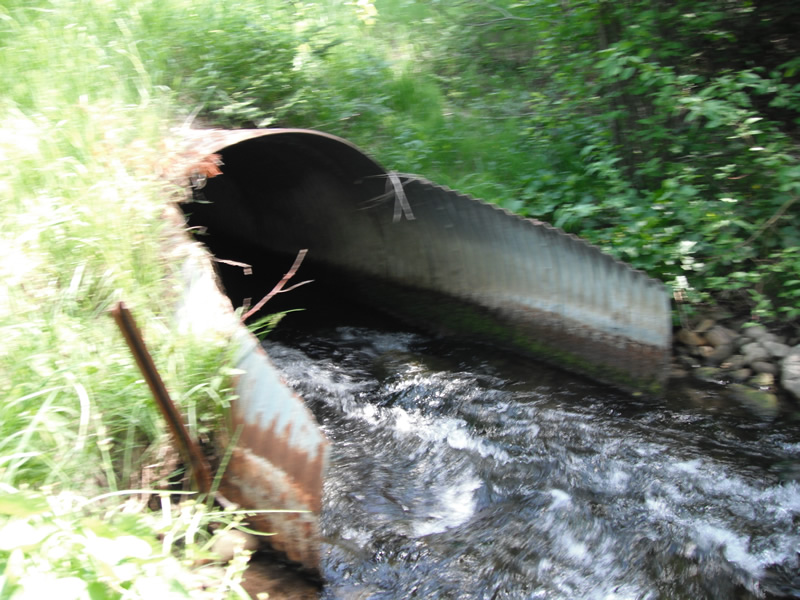

Inlet

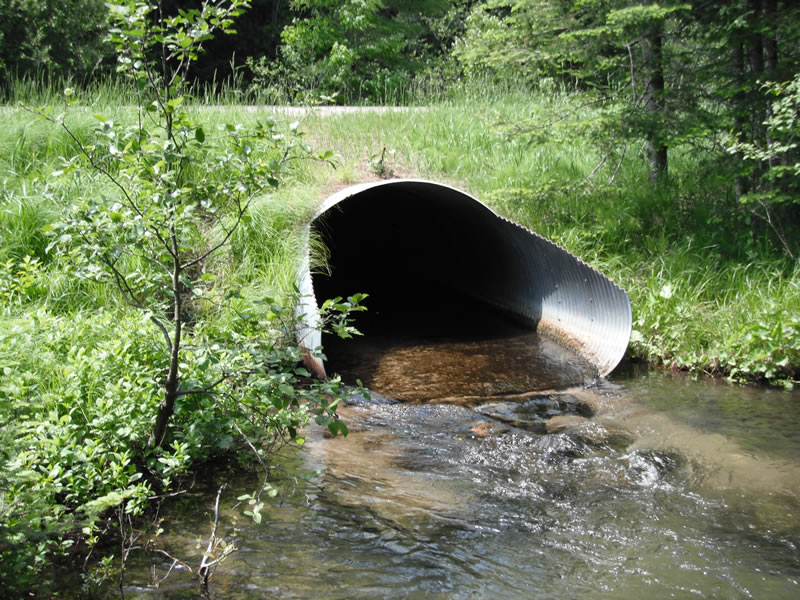

Outlet

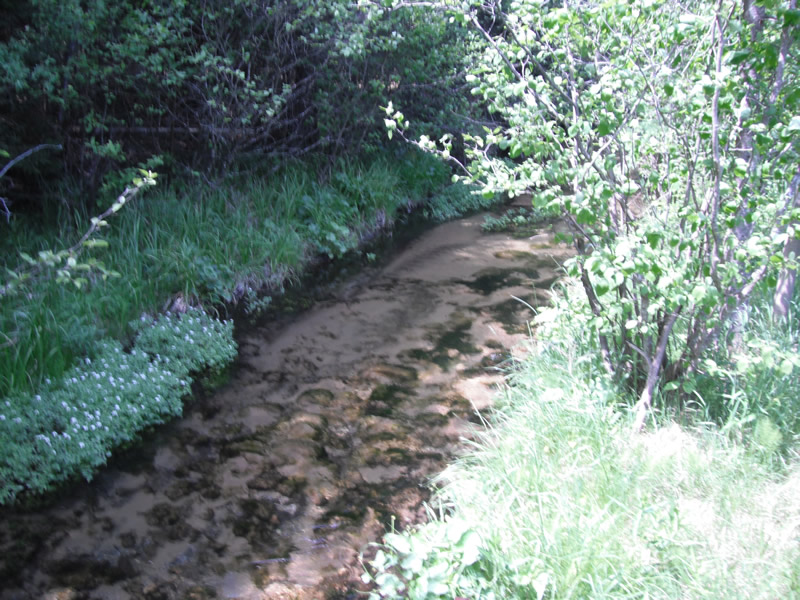

Upstream Conditions

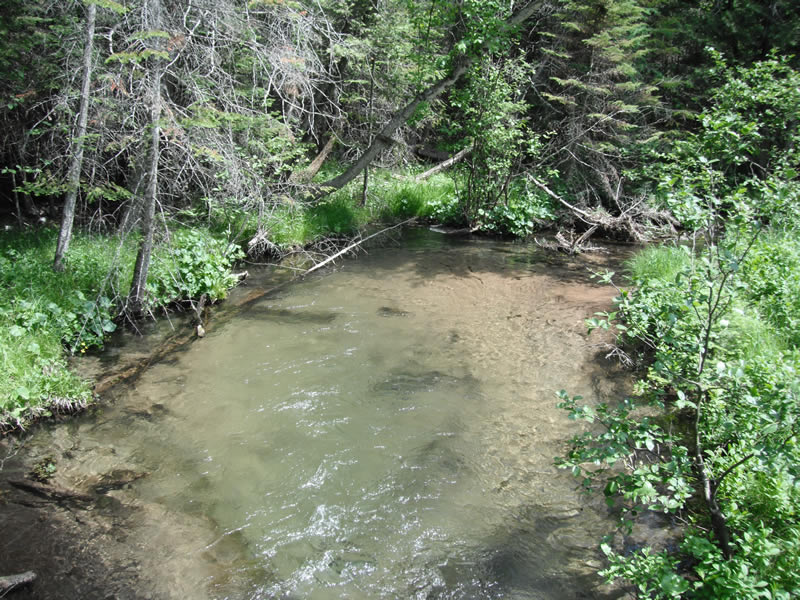

Downstream Conditions

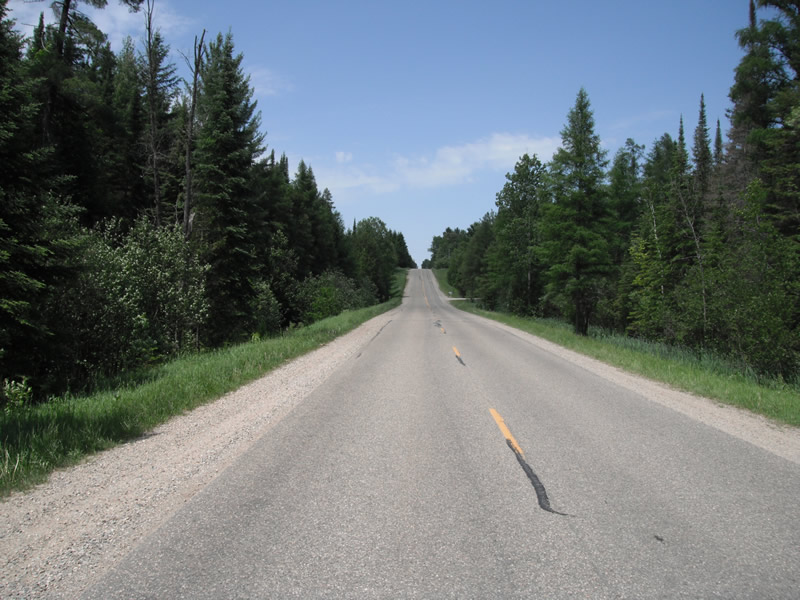

Road Approach - Left

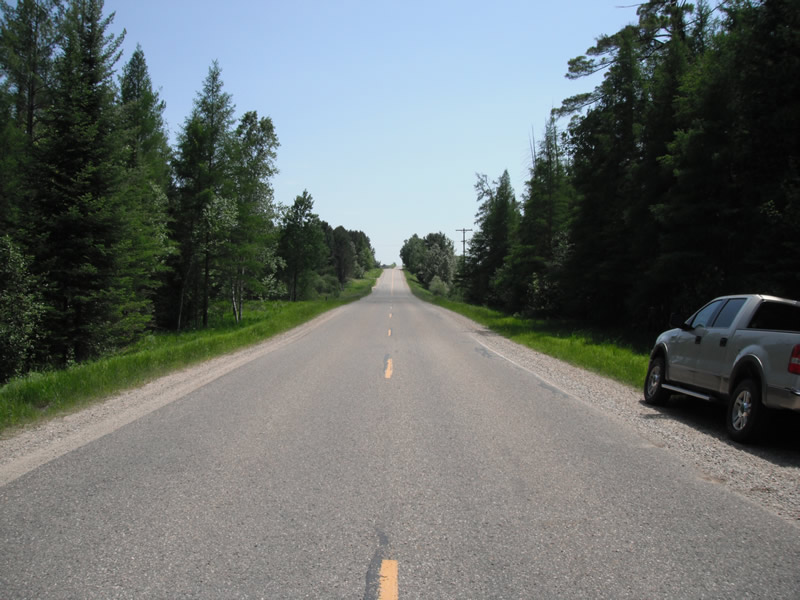

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Rock
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 65 ft.
, Width 6.6 ft.
, Height 5 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 1 ft.
Water Velocity*: 1.3 ft./sec.
Structure Outlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.3 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 27 ft.
, Width 21 ft.
, Depth 4 ft.
Upstream Pond: Length 11.9 ft.
, Width 15.9 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.9 ft.
Bankfull Width: 11.2 ft.
Wetted Width: 10 ft.
Water Velocity: 0.8 ft./sec.
(Measured with Float Test)
Dominant Substrate: Sand
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 20 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.3769 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.3769 tons/year
Erosion Information
Total Erosion at Crossing: 0.7559 tons/year
Extent of Erosion: Minor
Notes: the erosion is on top of downstream pipe
Location of Erosion | Erosion Dimensions | Eroded Material | Material Eroded | Total Erosion | ||
facing downstream | Length | Width | Depth | Reaching Stream? | (tons/year) | |
Right Downstream |
7.3 ft. |
5.3 ft. |
0.3 ft. |
no |
Gravel |
0.0022 |
Summary Information
Fish Passability 0.9
