Road Stream Crossing Site RIF_OG29
Rifle River Watershed, Prior Creek/Outflow From Prior Lake
Esmond Rd
Klacking Twp,
Ogemaw County
Information collected by:
Site Location
GPS Coordinates: 44.37832
, -84.15226
T23N
R2E
Sec 14
Fish Passability 0.9
Structure is NOT Perched
Severity: Minor
Year Inventoried: 2012

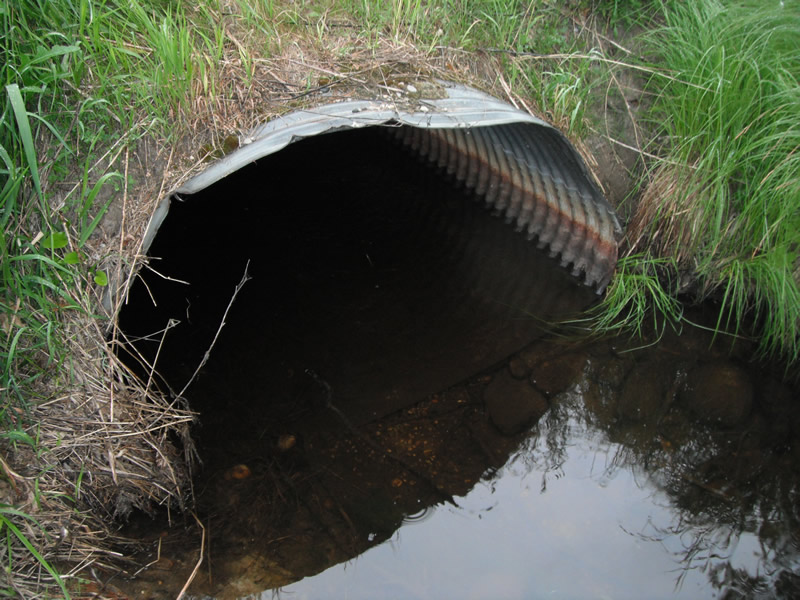

Inlet

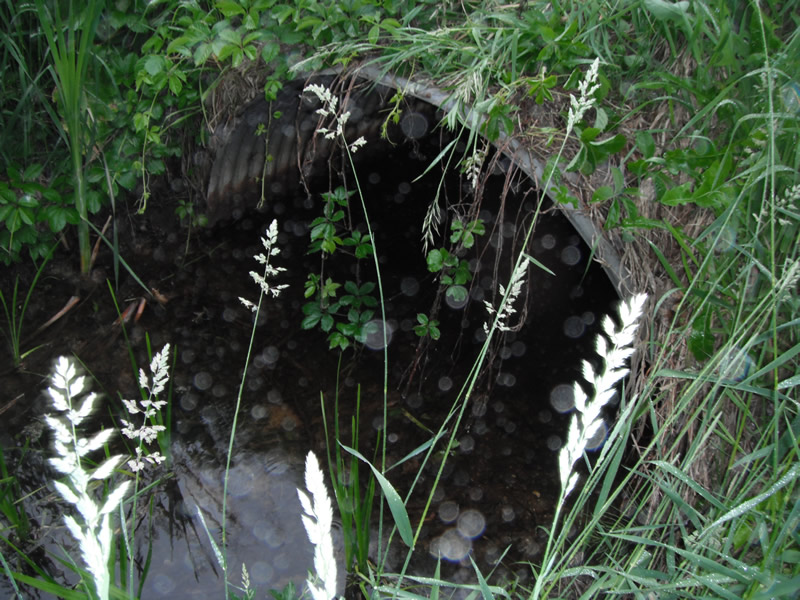

Outlet

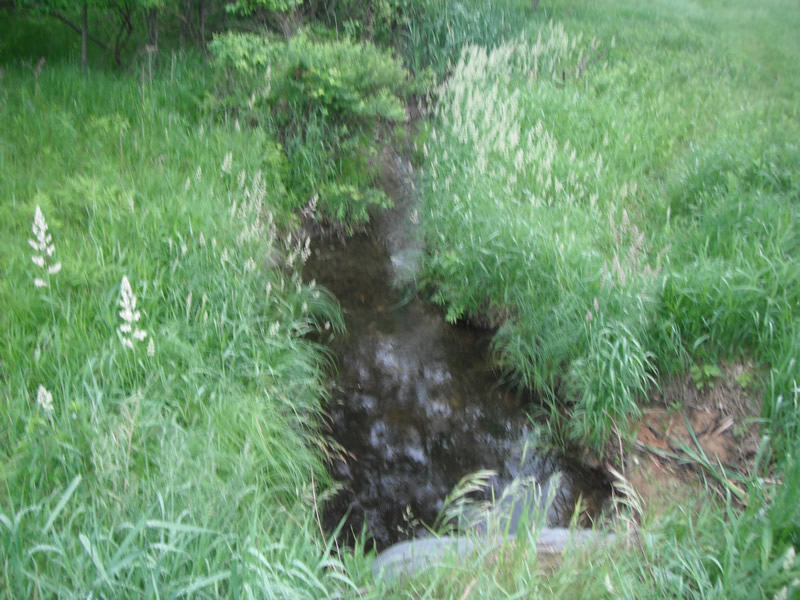

Upstream Conditions

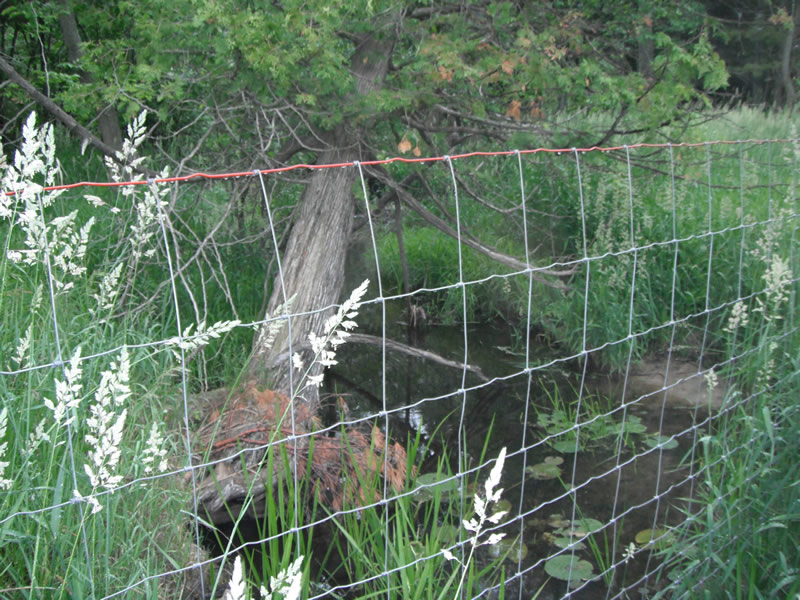

Downstream Conditions

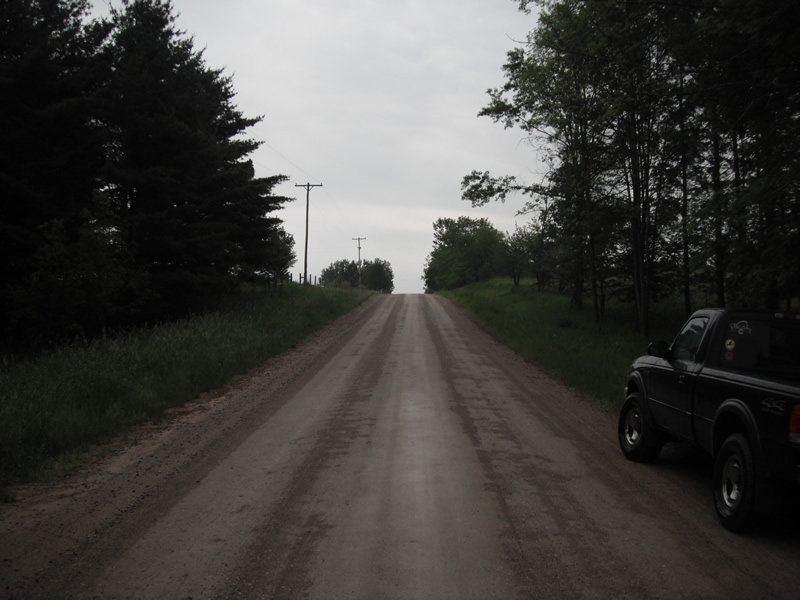

Road Approach - Left

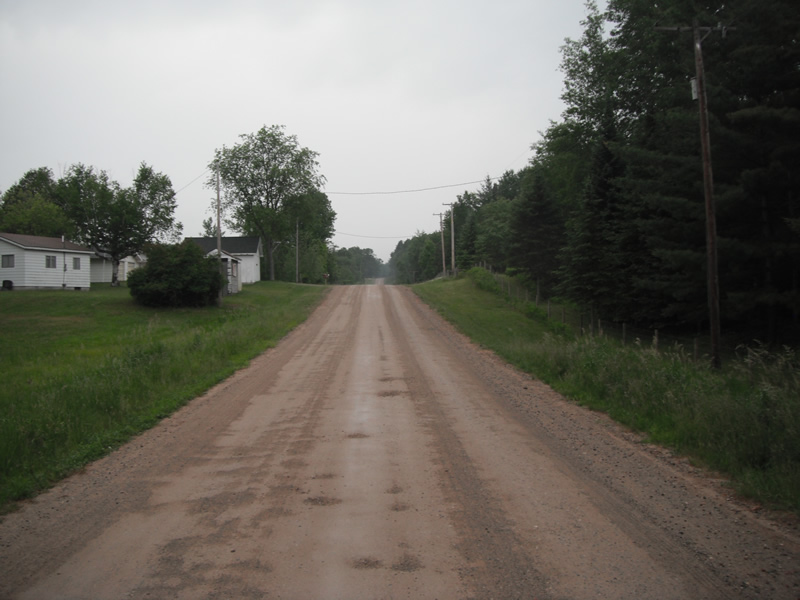

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 41 ft.
, Width 6 ft.
, Height 3.6 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Additional Comments
dam at site
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 8.2 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 18 ft.
, Width 9.8 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 8.2 ft.
Wetted Width: 3.4 ft.
Water Velocity: 1 ft./sec.
(Measured with Float Test)
Dominant Substrate: Sand
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 18 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.3 ft.
Slope: 1:2
Downstream
Fill Depth: 2 ft.
Slope: 1:2
Length: 676 ft.
Vegetation: Heavy
Length: 321 ft.
Vegetation: Heavy
Erosion Information
Extent of Erosion: Stabilized
Summary Information
Fish Passability 0.9
