Road Stream Crossing Site RIF_OG51

Rifle River Watershed, Klacking Creek
Campbell Rd / Peters
West Branch Twp, Ogemaw County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.3348 , -84.1461
T22N R2E Sec 1
Fish Passability 1
Structure is NOT Perched
Severity: Minor
Year Inventoried: 2012

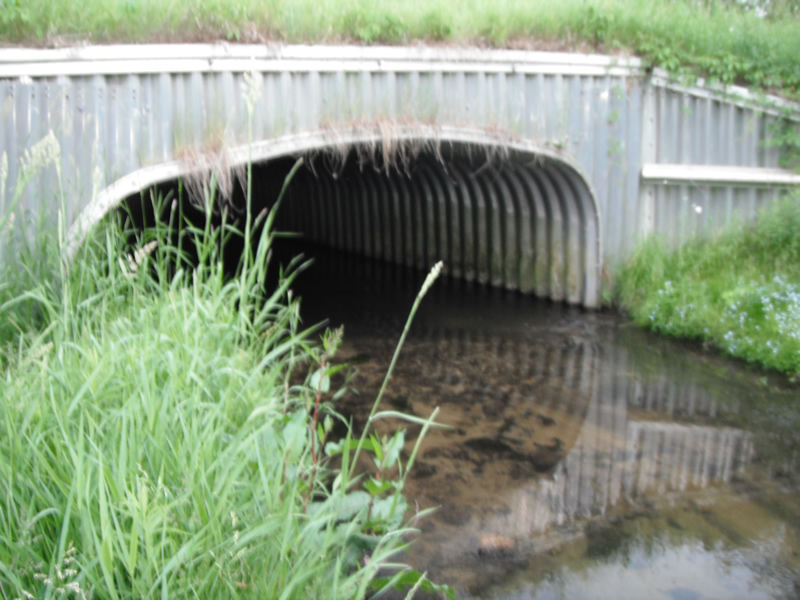

Inlet

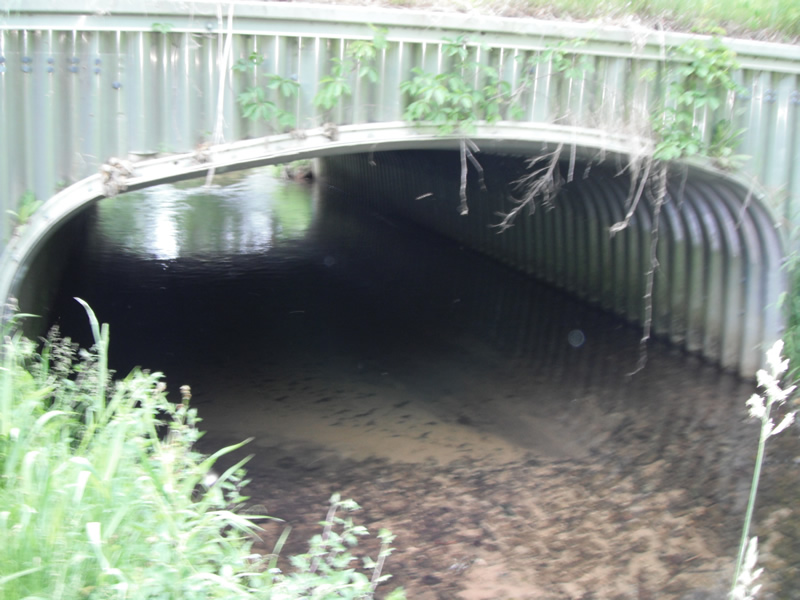

Outlet

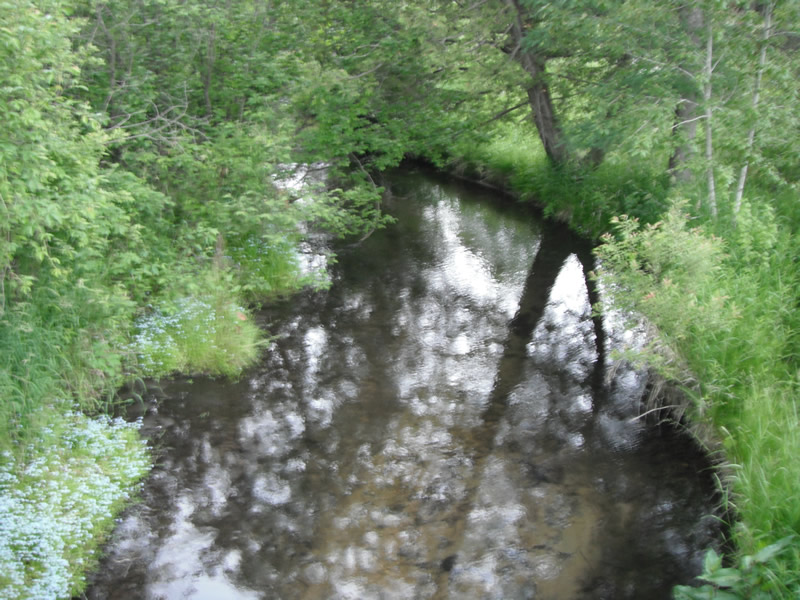

Upstream Conditions

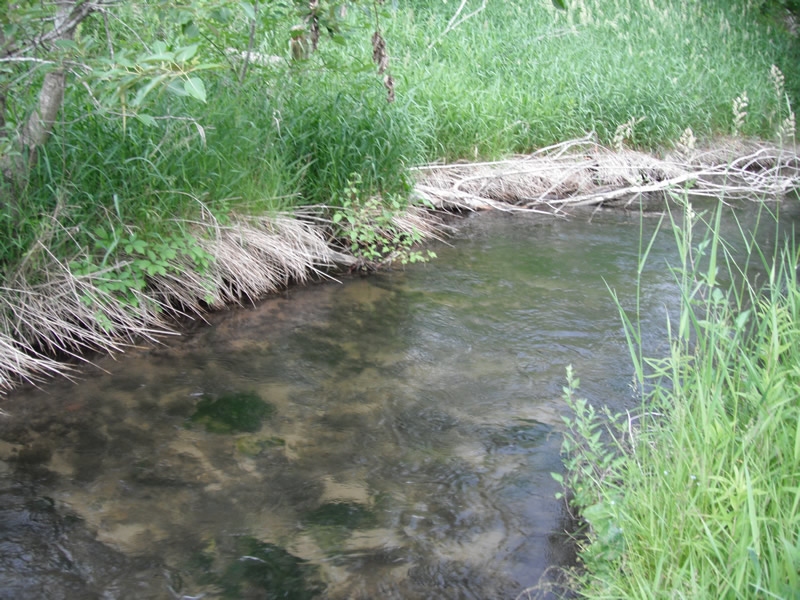

Downstream Conditions

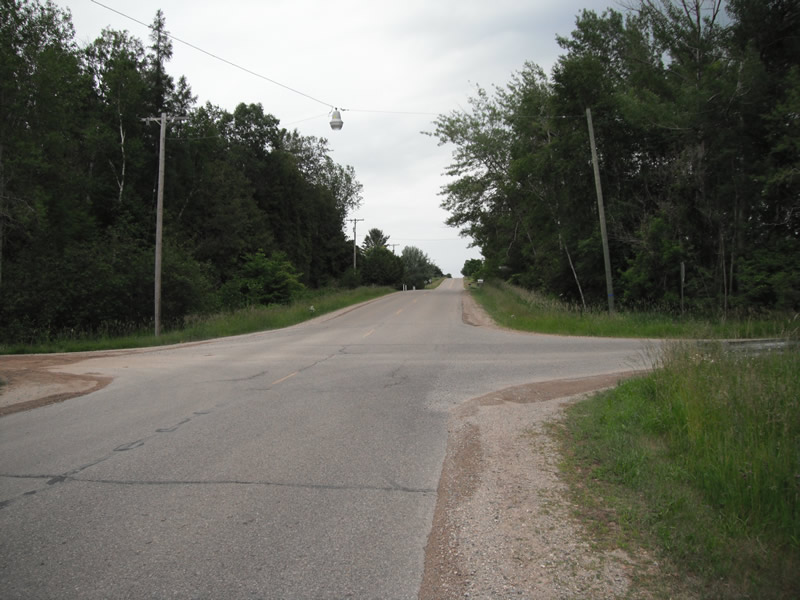

Road Approach - Left

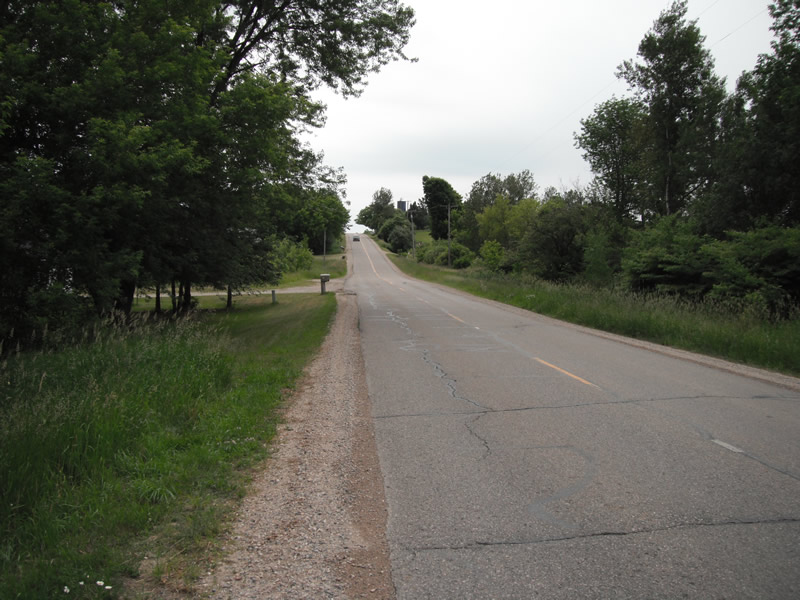

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 50 ft. , Width 16.3 ft. , Height 7.2 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.7 ft.
Water Velocity*: 1.1 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Water Velocity*: 1.1 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 1.2 ft.
Bankfull Width: 14.4 ft.
Wetted Width: 15.5 ft.
Water Velocity: 1 ft./sec. (Measured with Float Test)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Fair
Road Width at Culvert: 21 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3.7 ft.
Slope: Vertical
Downstream
Fill Depth: 4 ft.
Slope: Vertical
Length: 342 ft.
Slope: 1% to 5%
Vegetation: Heavy
Vegetation: Heavy
Erosion Information
Extent of Erosion: Stabilized
Erosion is occurring and corrective actions can be installed to address the problem.
Summary Information
Fish Passability 1
