Road Stream Crossing Site RIF_OG204

Rifle River Watershed, Tributary of Houghton Creek
Campbell Rd
Rose Twp, Ogemaw County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.42739 , -84.14697
T24N R2E Sec 35
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.9421 tons/year
Severity: Moderate
Year Inventoried: 2012

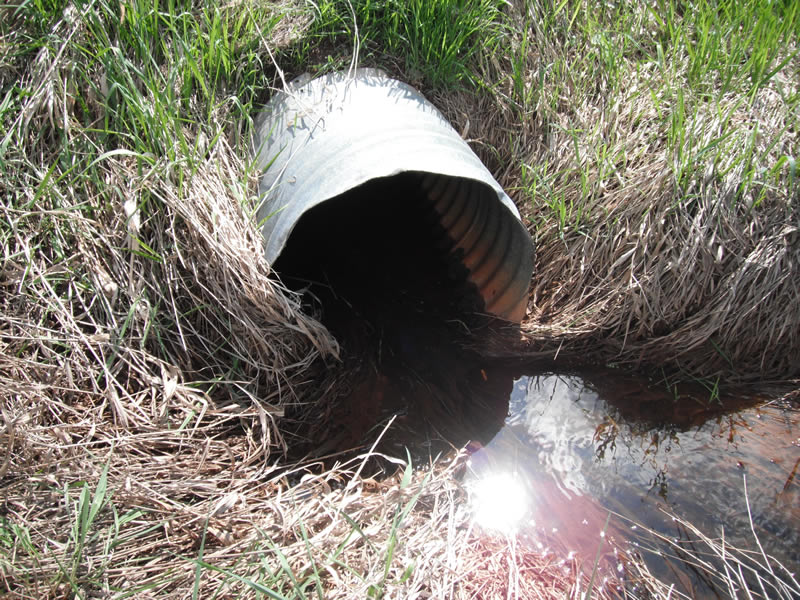

Inlet

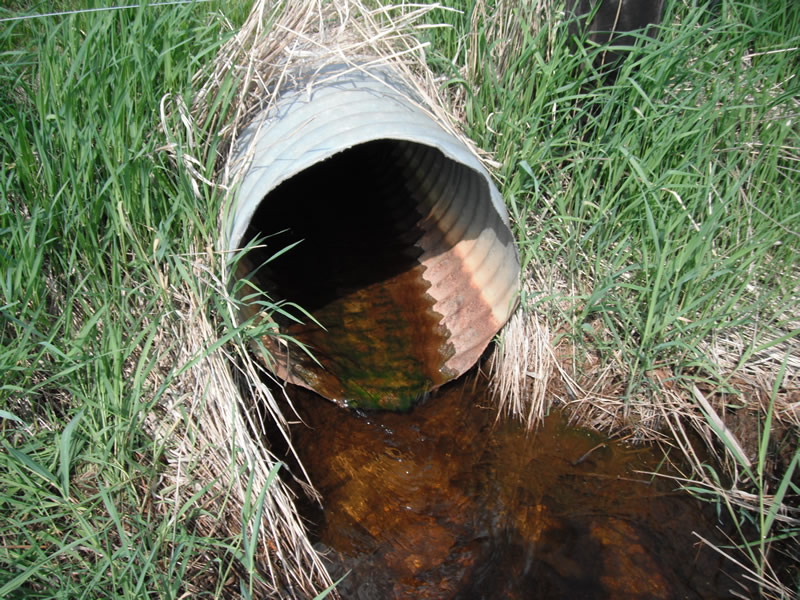

Outlet

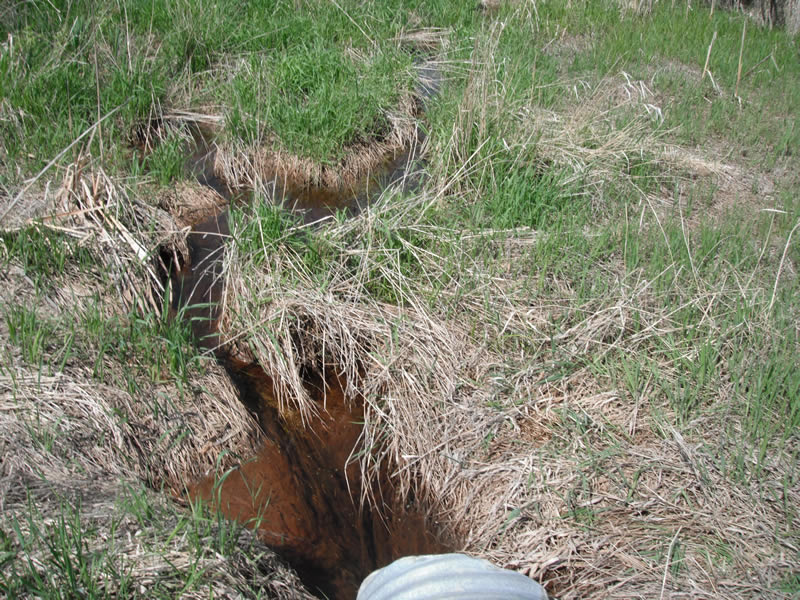

Upstream Conditions

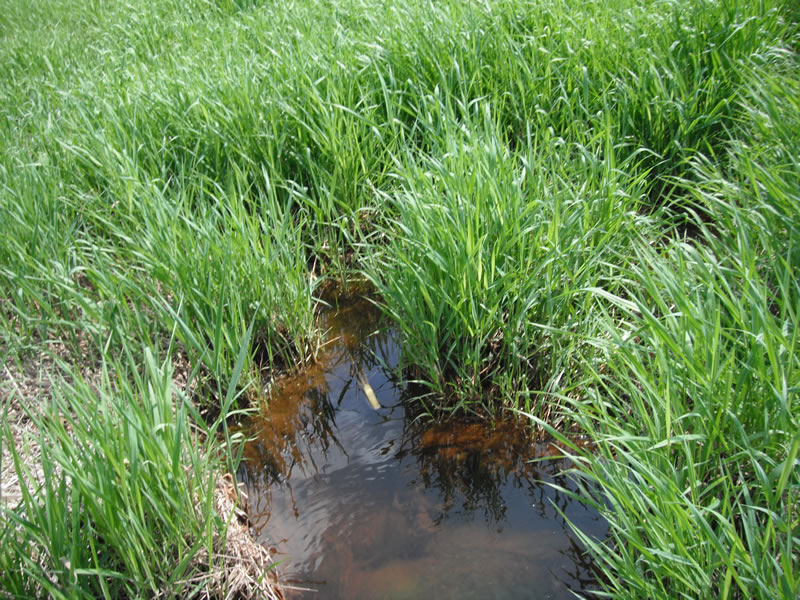

Downstream Conditions

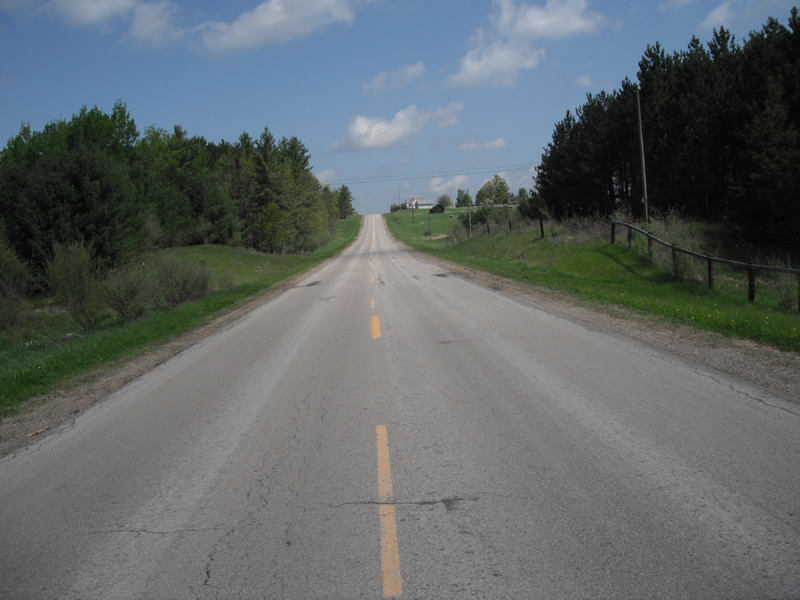

Road Approach - Left

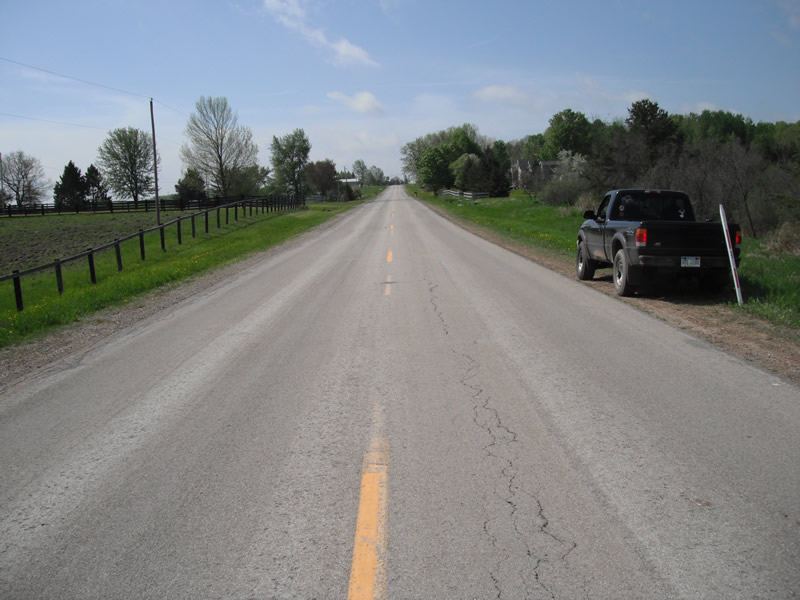

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 82 ft. , Width 2 ft. , Height 2 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.9 ft./sec.
Structure Outlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2 ft./sec.
*Water Velocities were measured 0.1 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 5.3 ft. , Width 4.3 ft. , Depth 0.9 ft.
Upstream Pond: Length 4.9 ft. , Width 3.8 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.7 ft.
Bankfull Width: 2 ft.
Wetted Width: 1.3 ft.
Water Velocity: 0.2 ft./sec. (Measured with Meter)
Dominant Substrate: Organics
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 25 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 6 ft.
Slope: More than 1:2
Downstream
Fill Depth: 6 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.4711 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.4711 tons/year
Erosion Information
Total Erosion at Crossing: 0.9421 tons/year
Extent of Erosion: Stabilized
Summary Information
Fish Passability 0.5
