Road Stream Crossing Site RIF_OG208

Rifle River Watershed, Bixby Creek
Grand Jean Rd
Rose Twp, Ogemaw County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.43476 , -84.11657
T24N R3E Sec 31
Fish Passability 0.5
Structure is NOT Perched
Severity: Moderate
Year Inventoried: 2012
Inlet
Outlet

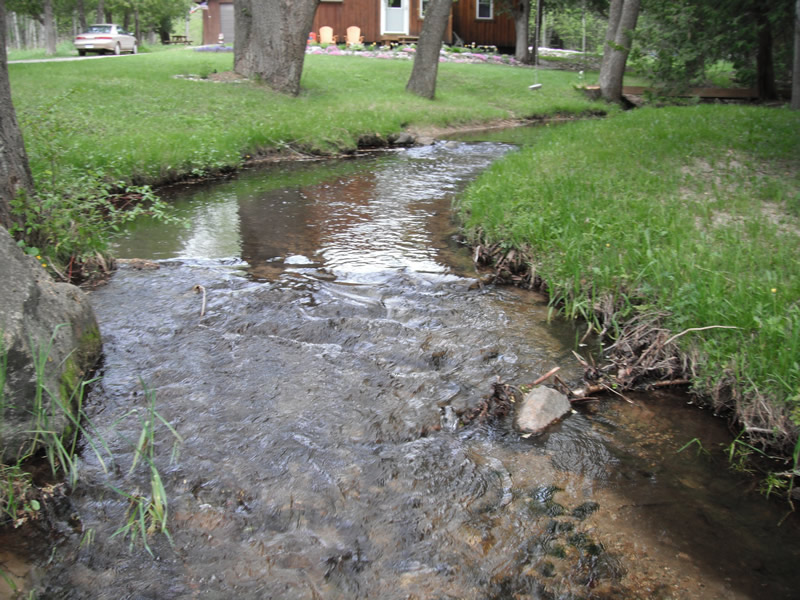

Upstream Conditions

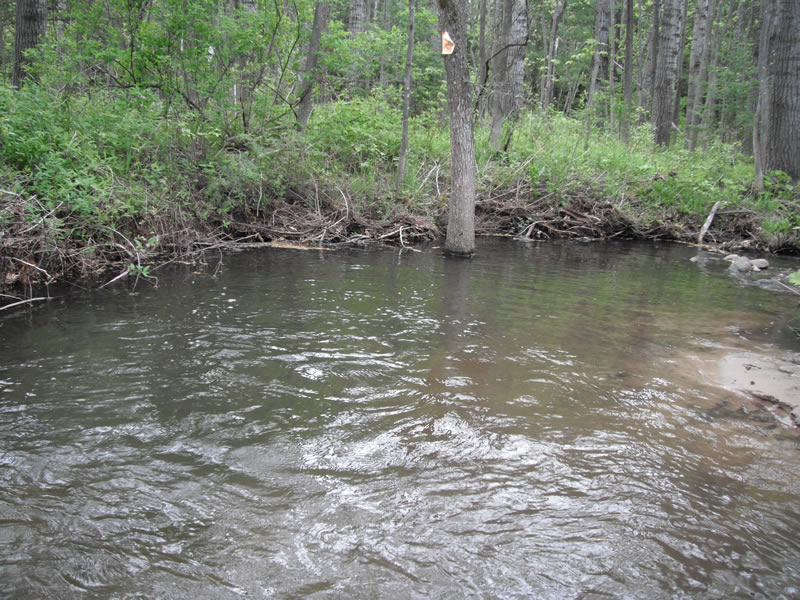

Downstream Conditions

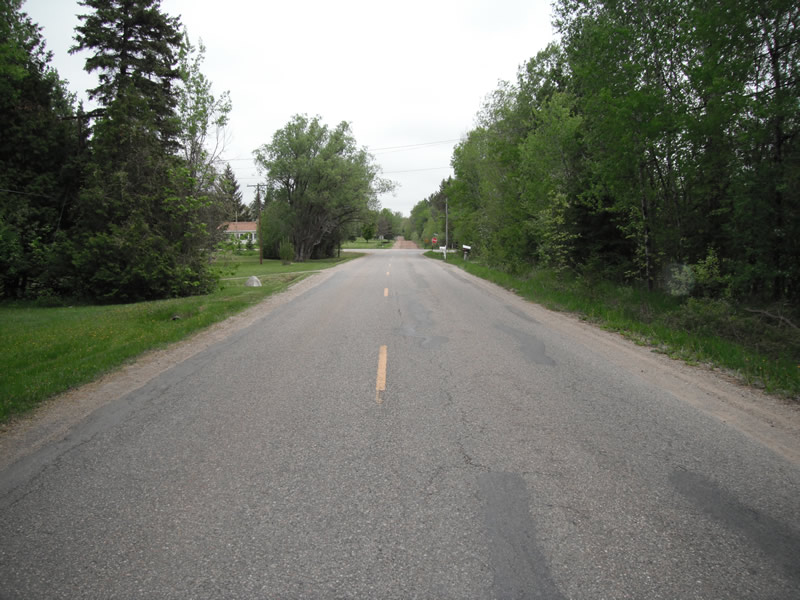

Road Approach - Left

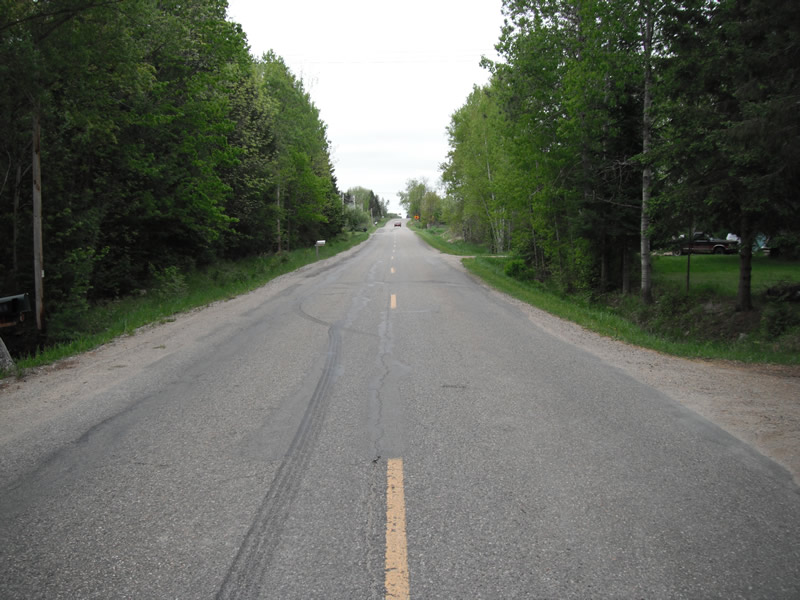

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 38 ft. , Width 7 ft. , Height 4.7 ft.
Structure is NOT Perched

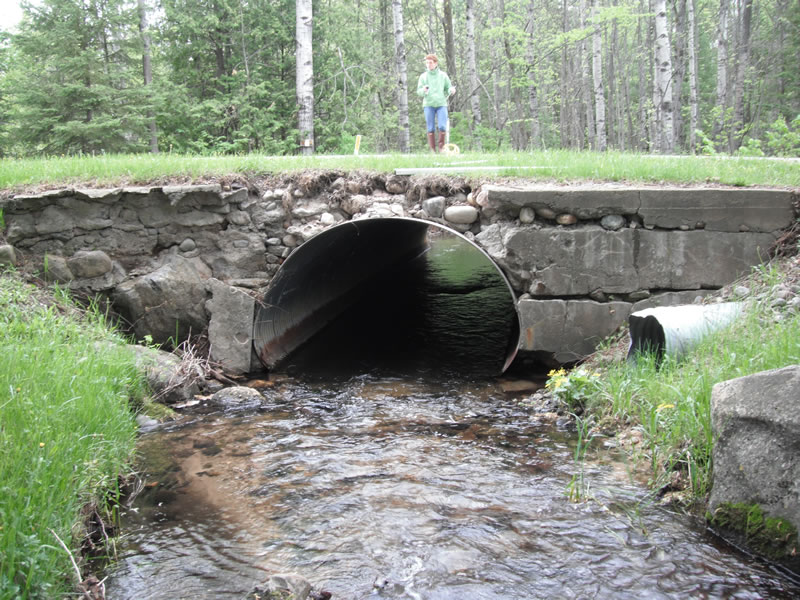

Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.3 ft./sec.

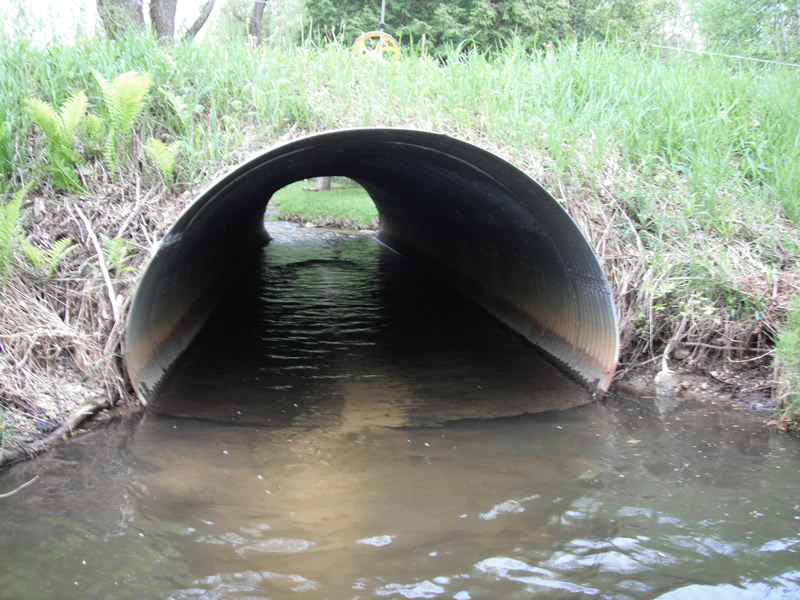

Structure Outlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 14.6 ft. , Width 12.8 ft. , Depth 2.4 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 14.5 ft.
Wetted Width: 11.7 ft.
Water Velocity: 2.4 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved County Road
Road Condition: Fair
Road Width at Culvert: 20 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.3 ft.
Slope: Vertical
Downstream
Fill Depth: 2 ft.
Slope: 1:2
Length: 138 ft.
Slope: 1% to 5%
Vegetation: Heavy
Vegetation: Heavy
Erosion Information
Extent of Erosion: Minor
Notes: the bottom erosion site is on the headwall and concrete is fall into the stream
Location of Erosion
Erosion Dimensions
Eroded Material
Material Eroded
Total Erosion
facing downstream
Length
Width
Depth
Reaching Stream?
(tons/year)
Left Upstream
6.4 ft.
2.2 ft.
1.6 ft.
yes
Gravel
0.0102
Summary Information
Fish Passability 0.5
