Road Stream Crossing Site RIF_OG220

Rifle River Watershed, Gamble Creek
Lupton Rd
Rose Twp, Ogemaw County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.42392 , -84.02568
T24N R3E Sec 35
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.84 tons/year
Severity: Moderate
Year Inventoried: 2012

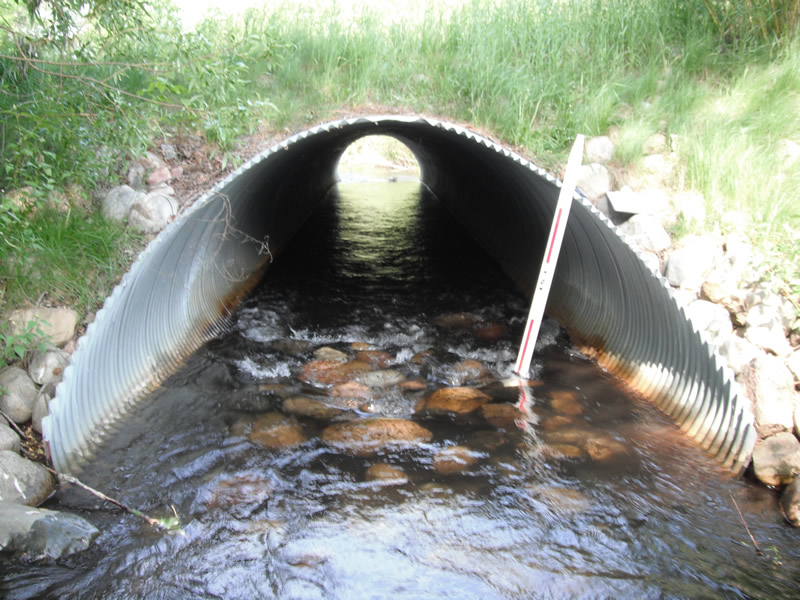

Inlet

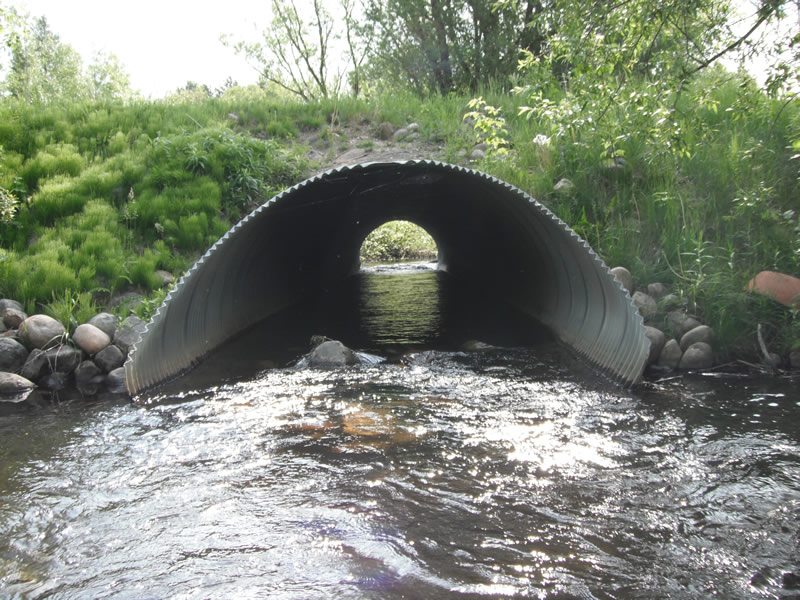

Outlet

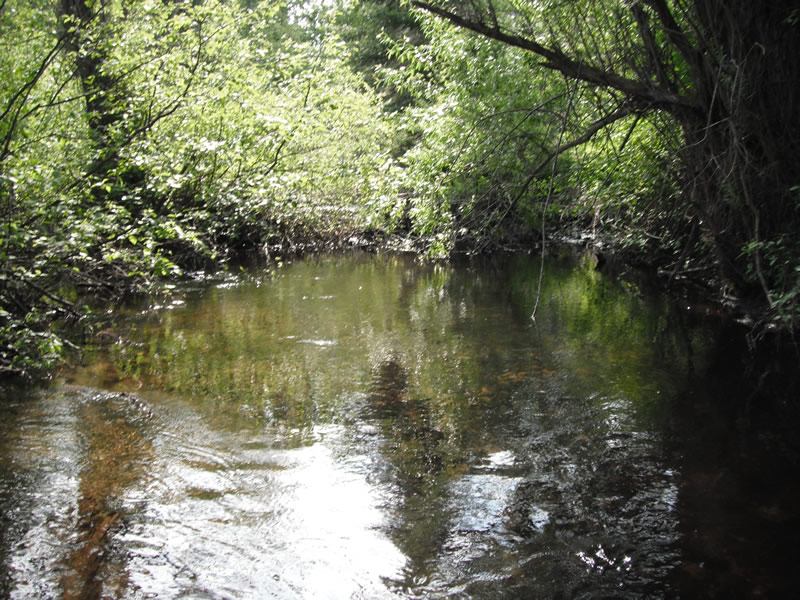

Upstream Conditions

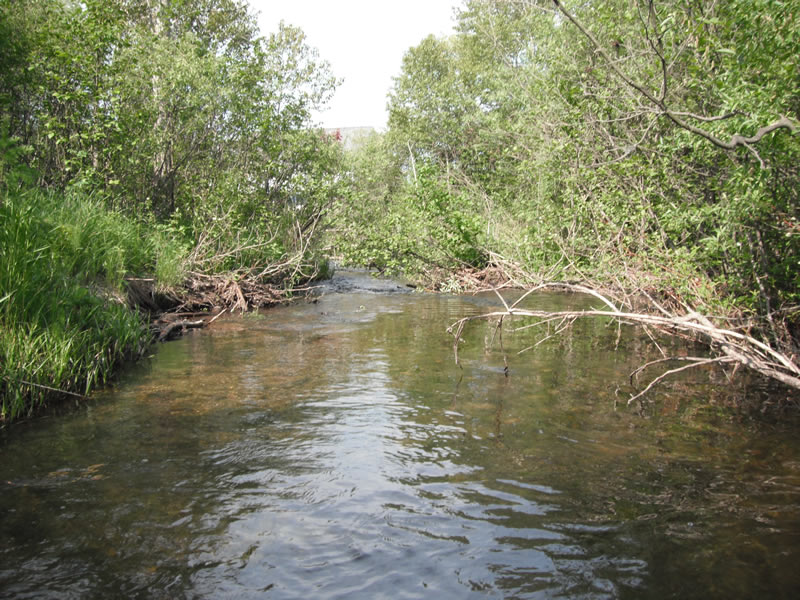

Downstream Conditions

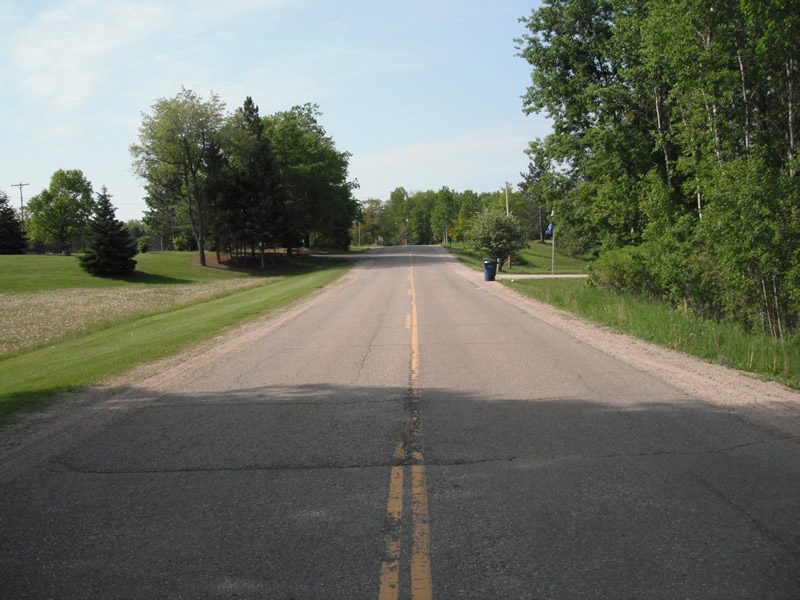

Road Approach - Left

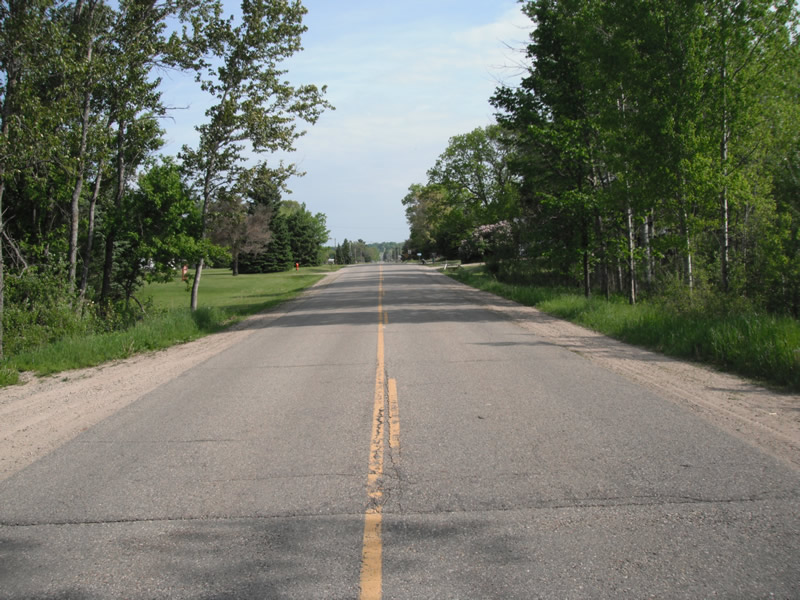

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Ellipse
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Rock
General Conditions: New
Structure Interior: corrugated
Dimensions of Structure: Length 62 ft. , Width 8.3 ft. , Height 6 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.5 ft.
Embedded Depth of Structure: 1.5 ft.
Water Velocity*: 2.1 ft./sec.
Structure Outlet
Water Depth: 1.5 ft.
Embedded Depth of Structure: 1.5 ft.
Water Velocity*: 1.7 ft./sec.
*Water Velocities were measured 0.7 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 24 ft. , Width 22 ft. , Depth 3.6 ft.
Upstream Pond: Length 36 ft. , Width 18.2 ft. , Depth 0 ft.
Riffle Information
Water Depth: 1 ft.
Bankfull Width: 15.2 ft.
Wetted Width: 13.3 ft.
Water Velocity: 1.8 ft./sec. (Measured with Meter)
Dominant Substrate: Cobble
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: At Stream
Embankments
Upstream
Fill Depth: 2.5 ft.
Slope: 1:2
Downstream
Fill Depth: 3 ft.
Slope: 1:2
Approaches
Left Approach
Length: 382 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.507
Erosion: 0.4186 tons/year
Right Approach
Length: 384 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 1.509
Erosion: 0.4215 tons/year
Erosion Information
Total Erosion at Crossing: 0.84 tons/year
Extent of Erosion: Minor
Erosion is occurring and corrective actions can be installed to address the problem.
Notes: erosion is happening on top of pipeo the downstream side
Summary Information
Fish Passability 0.5
