Road Stream Crossing Site RIF_OG228

Rifle River Watershed, Unnamed Creek
Scribner
Klacking Twp, Ogemaw County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.39256 , -84.12868
T23N R2E Sec 13
Fish Passability 0.9
Structure is NOT Perched
Severity: Moderate
Year Inventoried: 2012
Inlet
Outlet

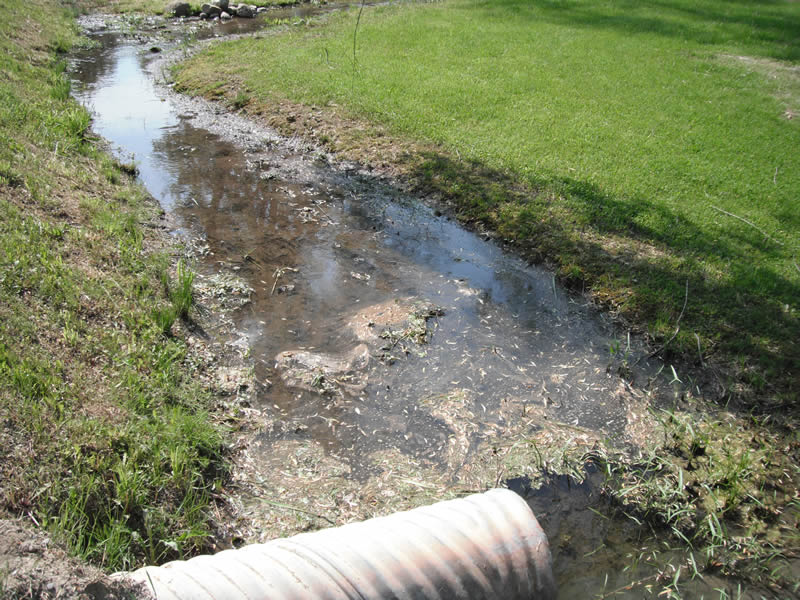

Upstream Conditions

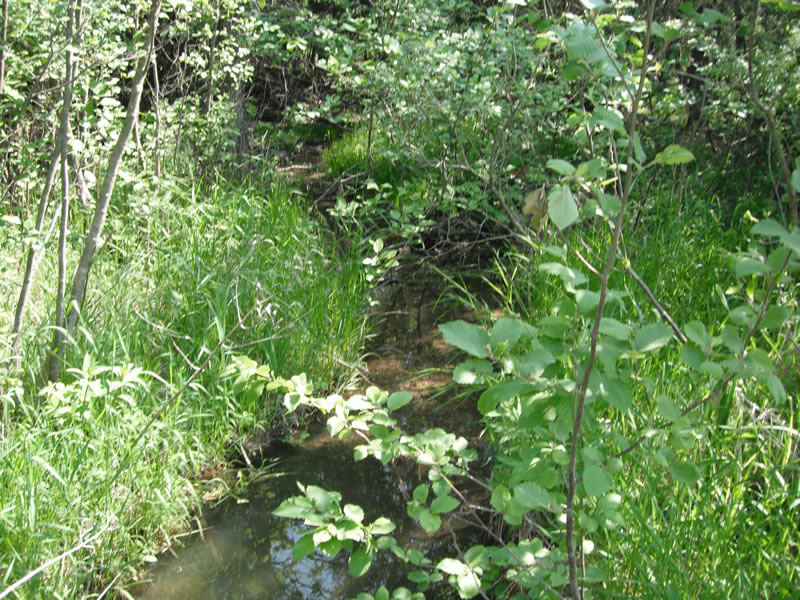

Downstream Conditions

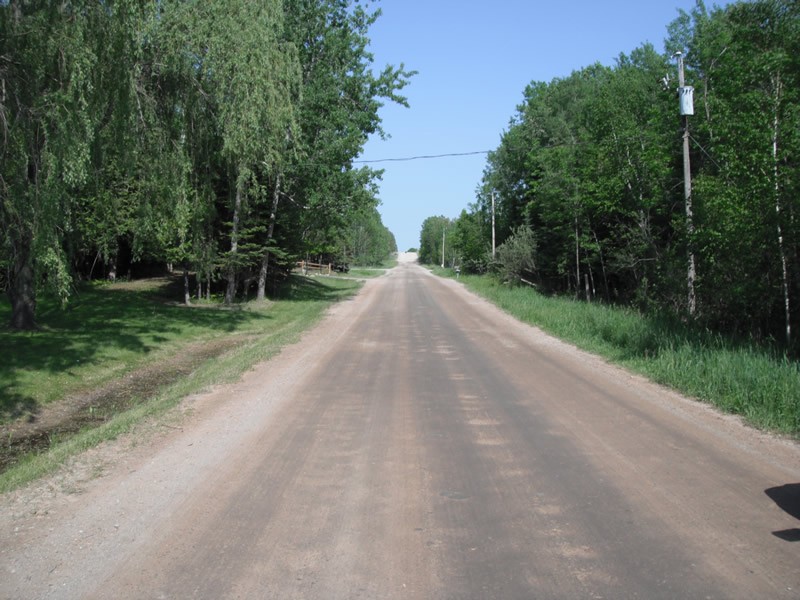

Road Approach - Left

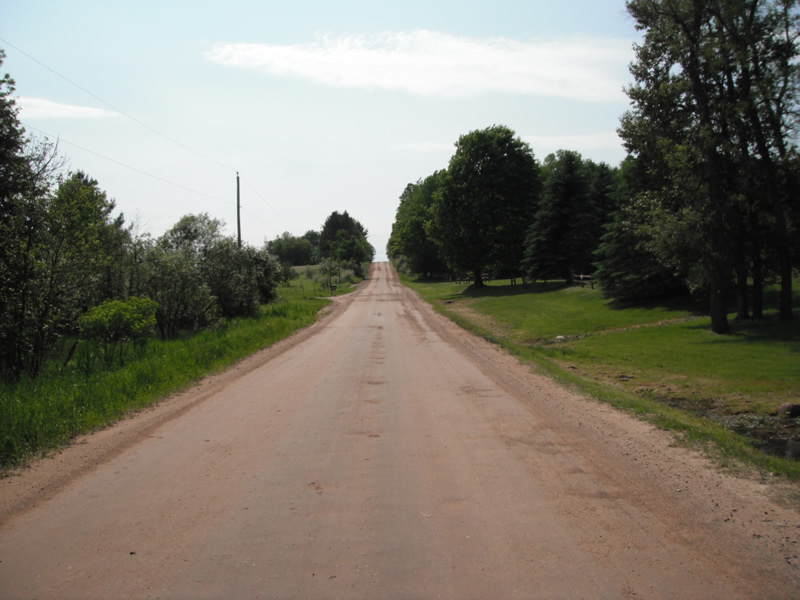

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Poor
Structure Interior: corrugated
Dimensions of Structure: Length 36 ft. , Width 1.5 ft. , Height 1.5 ft.
Structure is NOT Perched

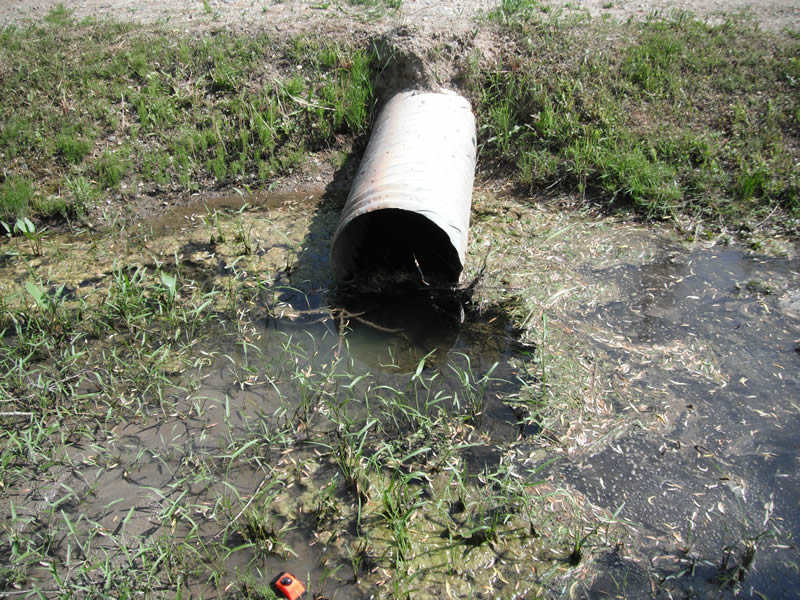

Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 0.5 ft./sec.

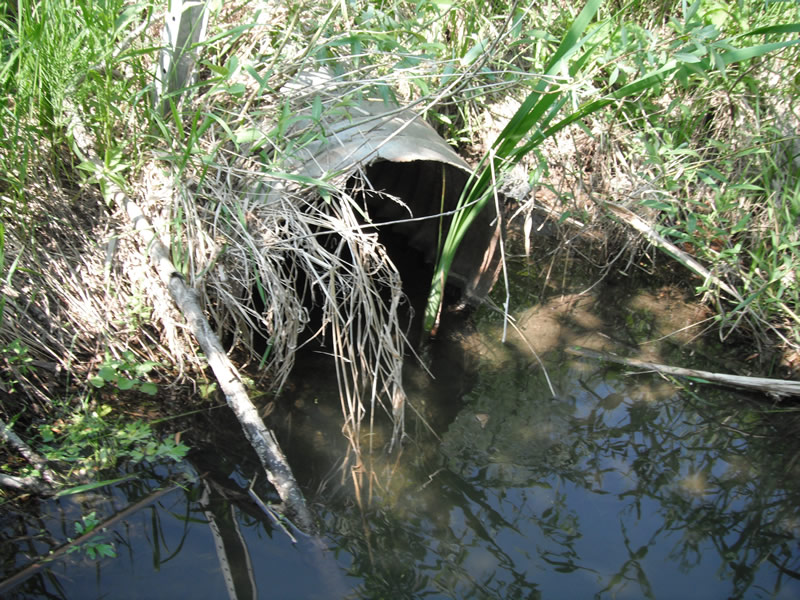

Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.5 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 11.9 ft. , Width 6.3 ft. , Depth 1.1 ft.
Upstream Pond: Length 5 ft. , Width 2.7 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 4.3 ft.
Wetted Width: 3.2 ft.
Water Velocity: 0.5 ft./sec. (Measured with Float Test)
Dominant Substrate: Gravel
Road Information
Gravel County Road
Road Condition: Fair
Road Width at Culvert: 19 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.8 ft.
Slope: Vertical
Downstream
Fill Depth: 1 ft.
Slope: 1:1.5
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
Vegetation: Heavy
Erosion Information
Extent of Erosion: Minor
Notes: on top of downstream pipe
Summary Information
Fish Passability 0.9
