Road Stream Crossing Site RIF_OG236
Rifle River Watershed, Tributary of Prior Creek
W Sage Lake Rd
Klacking Twp,
Ogemaw County
Information collected by:
Site Location
GPS Coordinates: 44.36372
, -84.13908
T23N
R2E
Sec 25
Fish Passability 0.9
Structure is NOT Perched
Severity: Minor
Year Inventoried: 2012

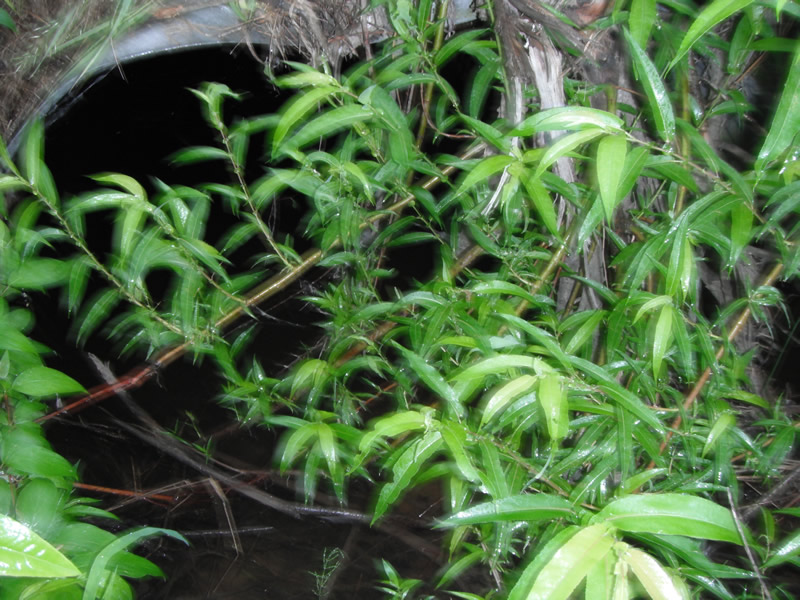

Inlet

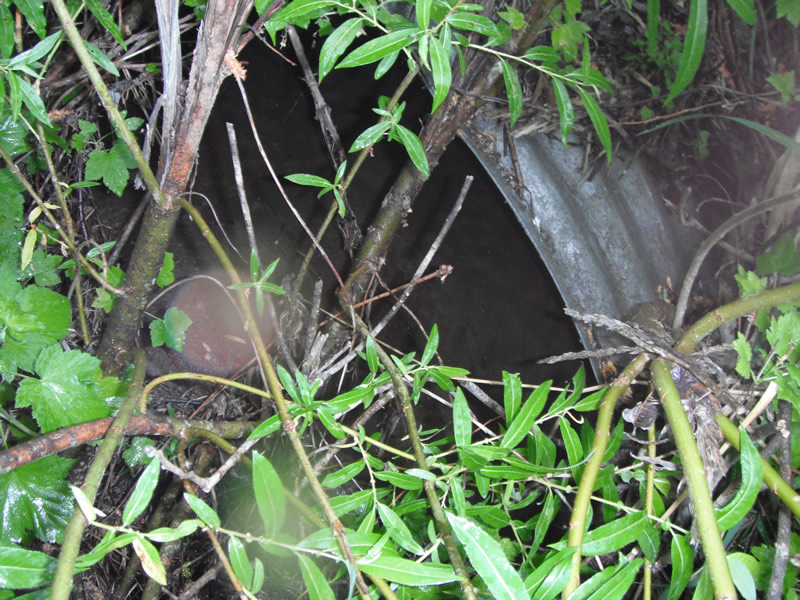

Outlet

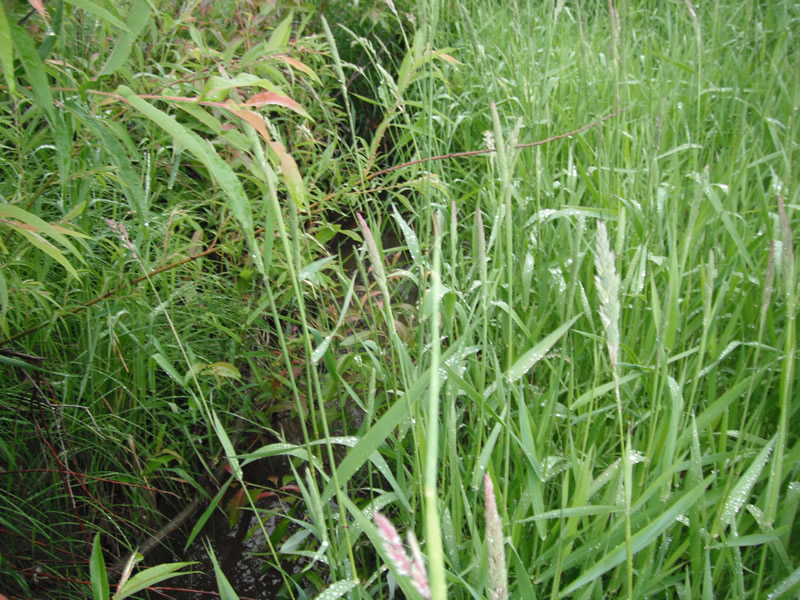

Upstream Conditions

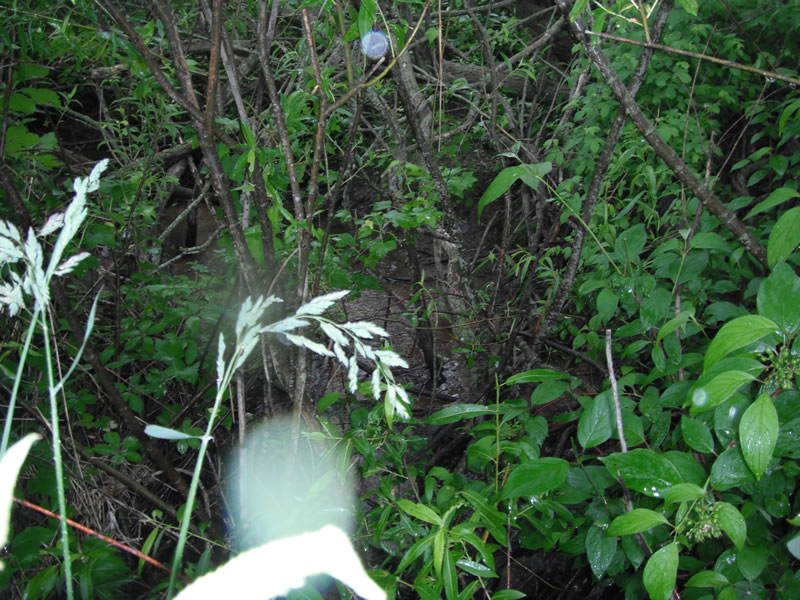

Downstream Conditions

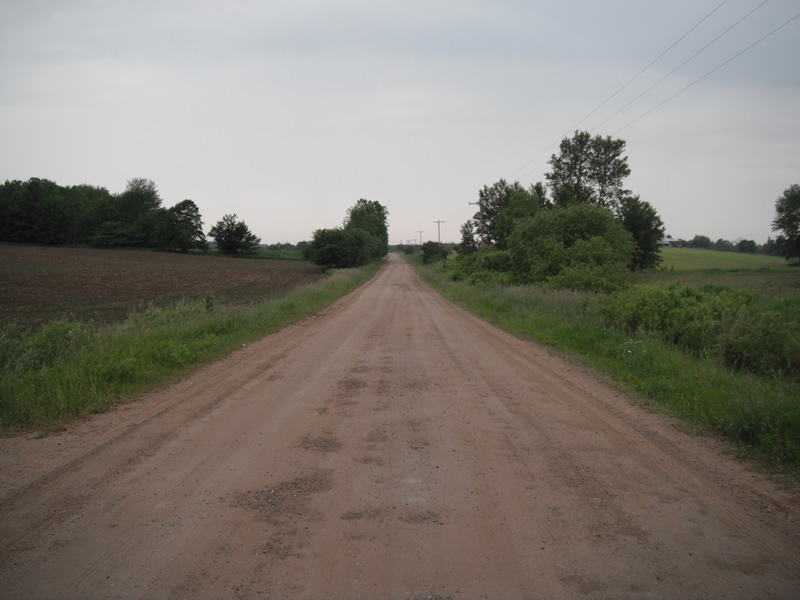

Road Approach - Left

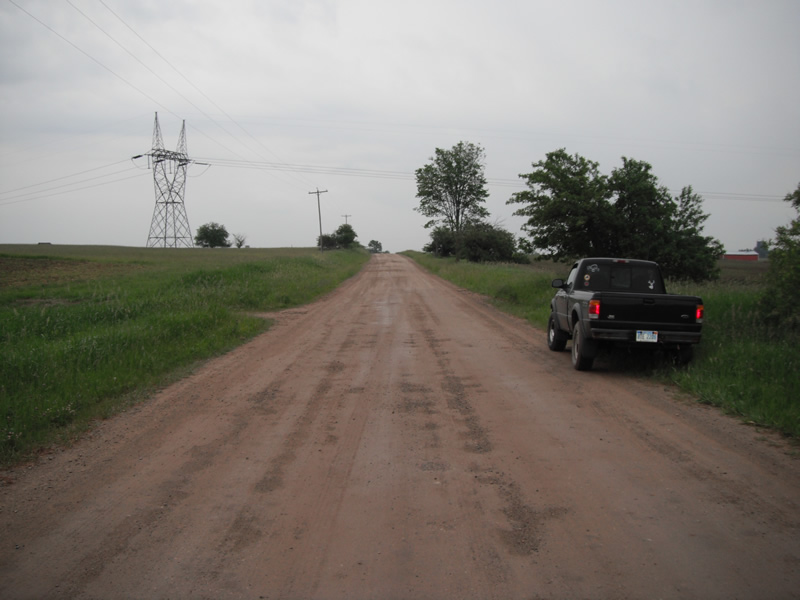

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
2 |
5.5 ft. |
4.7 ft. |
2.8 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 47 ft.
, Width 5.5 ft.
, Height 2.8 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0.5 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 1 ft.
Water Velocity*: 1 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 6.1 ft.
, Width 5.5 ft.
, Depth 0.2 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 4.5 ft.
Wetted Width: 3.9 ft.
Water Velocity: 0.7 ft./sec.
(Measured with Float Test)
Road Information
Gravel
County Road
Road Condition: Poor
Road Width at Culvert: 47 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.1 ft.
Slope: 1:2
Downstream
Fill Depth: 1 ft.
Slope: 1:2
Length: 703 ft.
Slope: 1% to 5%
Vegetation: Heavy
Vegetation: Heavy
Erosion Information
Extent of Erosion: Stabilized
Erosion is occurring and corrective actions can be installed to address the problem.
Notes: no erosion very heavy vegetated
Summary Information
Fish Passability 0.9
A future visit to this site is recommended. yes, second culvert is plugged and half of #1
