Road Stream Crossing Site RIF_AR8

Rifle River Watershed, Fritz Creek
Knight Rd
Clayton Twp, Arenac County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.09831 , -83.98481
T20N R4E Sec 34
Fish Passability 1
Structure is NOT Perched
Total Erosion: 3.4831 tons/year
Severity: Severe
Year Inventoried: 2012

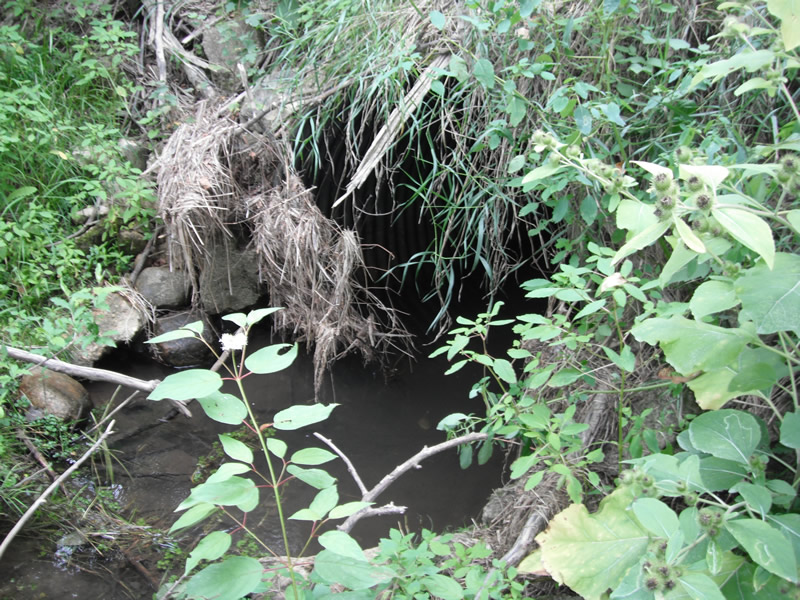

Inlet

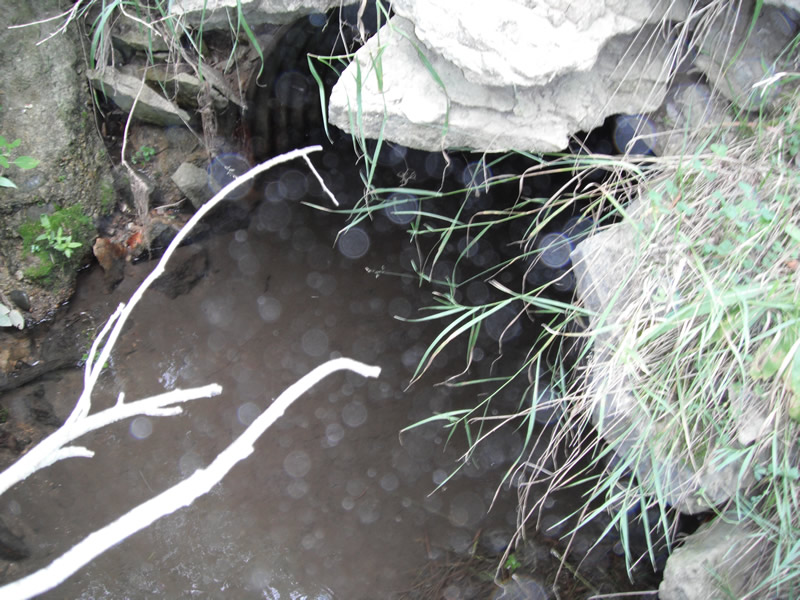

Outlet

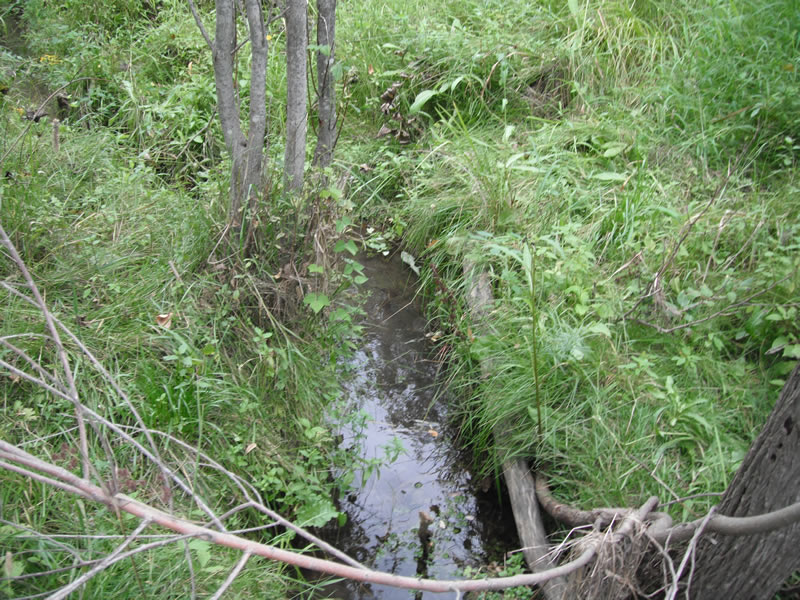

Upstream Conditions

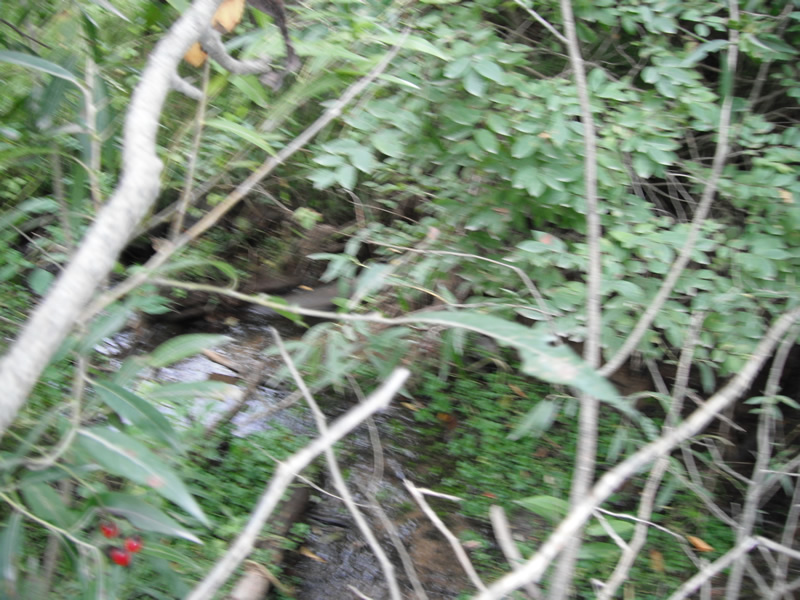

Downstream Conditions

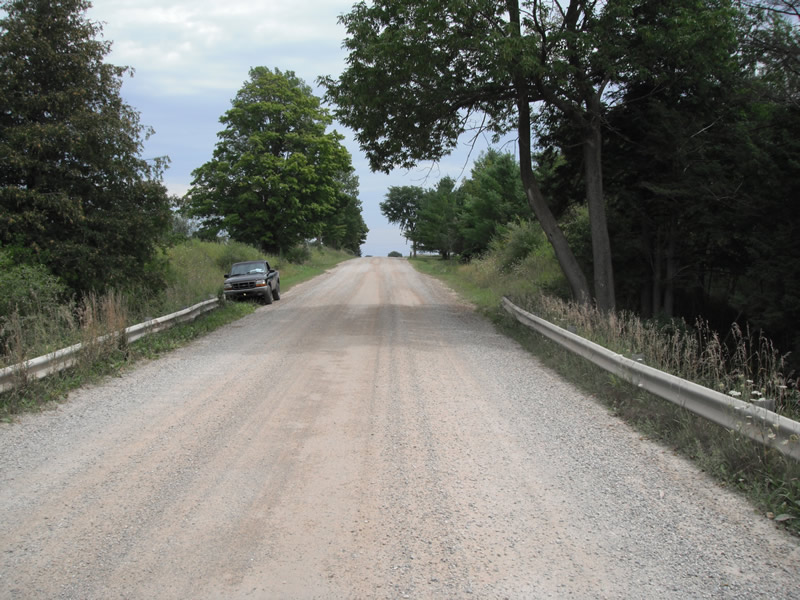

Road Approach - Left

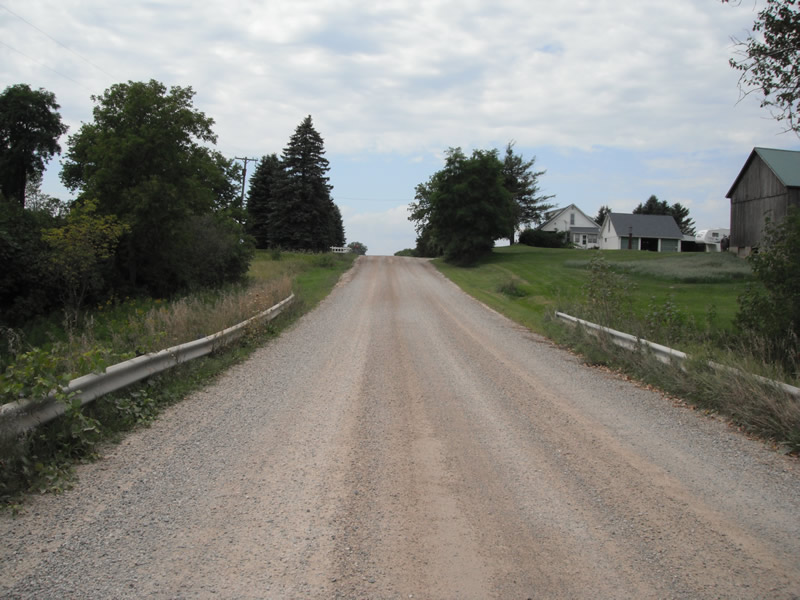

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Poor
Dimensions of Structure: Length 42 ft. , Width 5.4 ft. , Height 5.4 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0.5 ft.
Water Velocity*: 0.2 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 2.3 ft.
Wetted Width: 2.2 ft.
Water Velocity: 0.5 ft./sec. (Measured with Float Test)
Dominant Substrate: Sand
Road Information
Gravel County Road
Road Condition: Poor
Road Width at Culvert: 21 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 16 ft.
Slope: 1:1.5
Downstream
Fill Depth: 16 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 720 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.538
Erosion: 2.2409 tons/year
Right Approach
Length: 440 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.488
Erosion: 1.2422 tons/year
Erosion Information
Total Erosion at Crossing: 3.4831 tons/year
Extent of Erosion: Stabilized
Erosion is occurring and corrective actions can be installed to address the problem.
Notes: riprap installed
Summary Information
Fish Passability 1
