Road Stream Crossing Site RIF_AR26

Rifle River Watershed, Tributary of Savevine Creek
Huscak
Deep River Twp, Arenac County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.04721 , -83.94736
T19N R4E Sec 13
Fish Passability 1
Structure is NOT Perched
Severity: Minor
Year Inventoried: 2012
Site ID

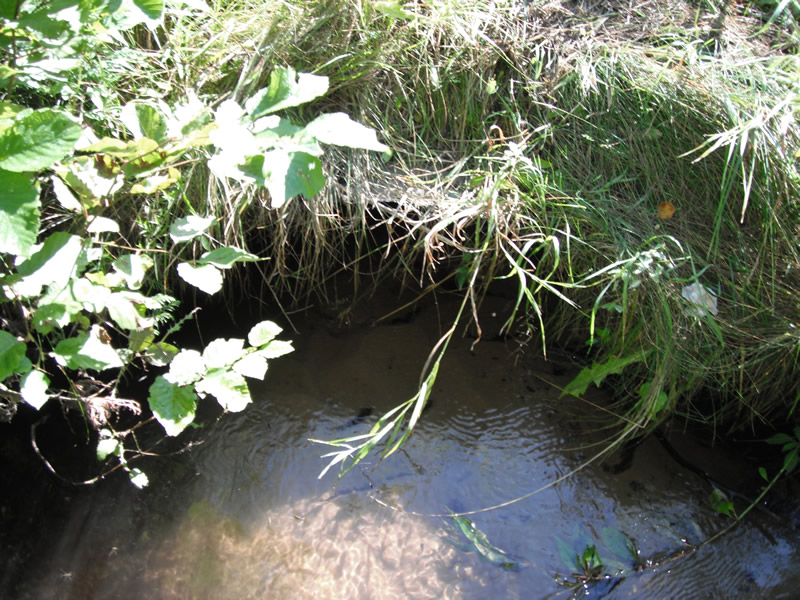

Inlet

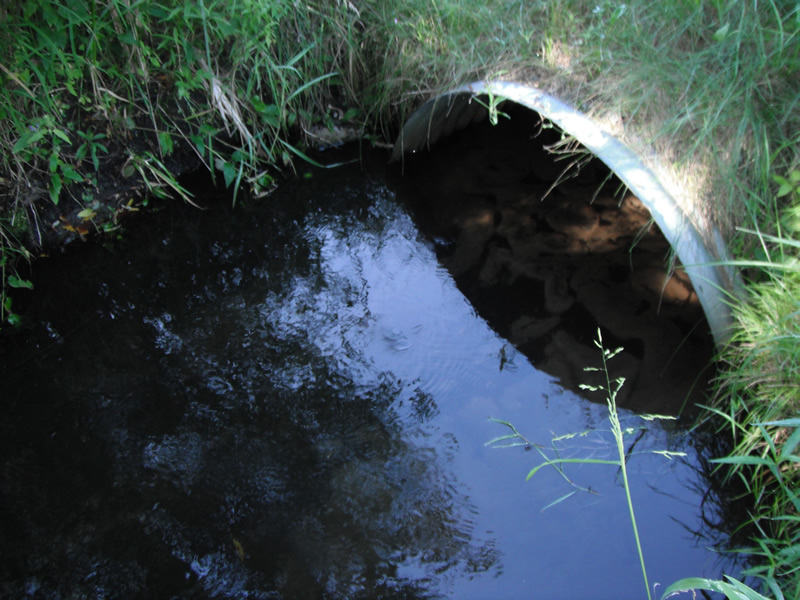

Outlet

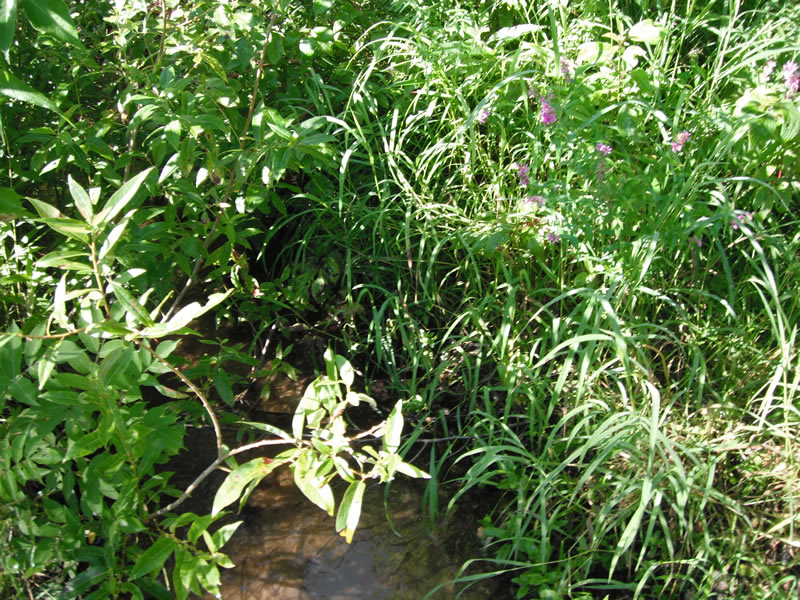

Upstream Conditions

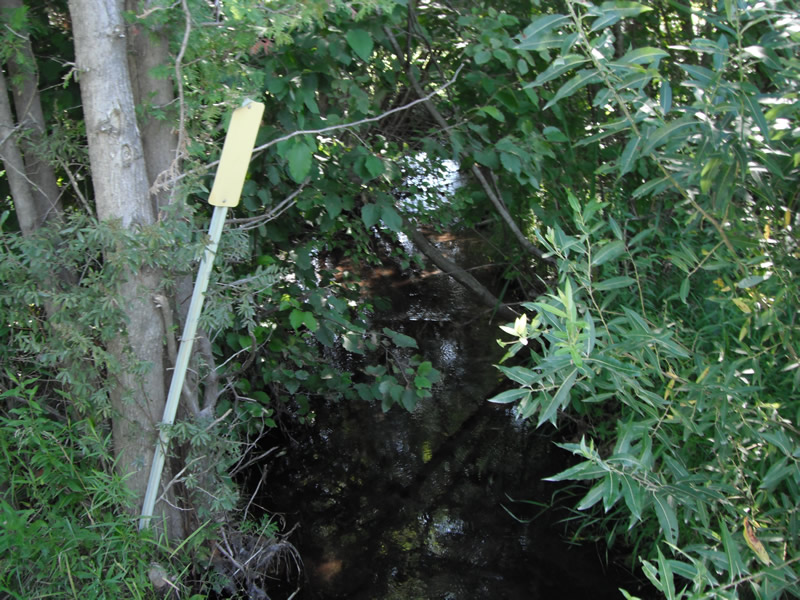

Downstream Conditions

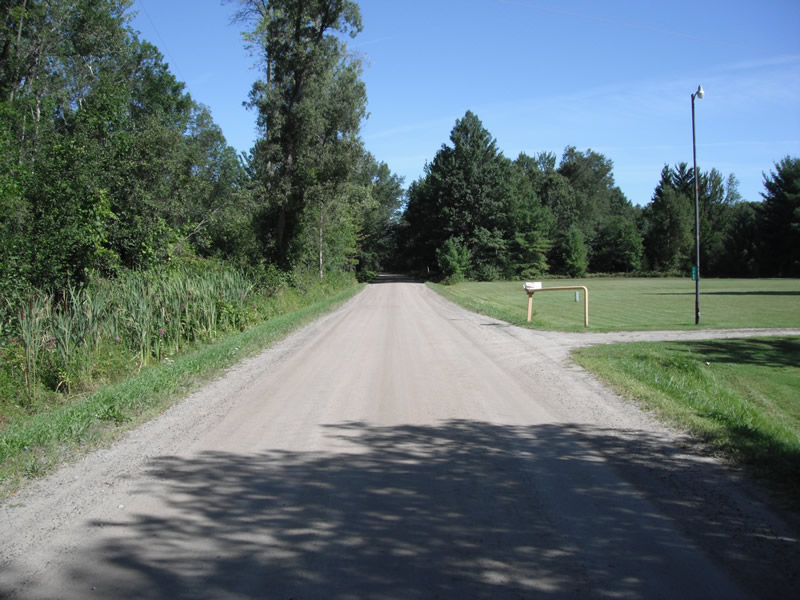

Road Approach - Left

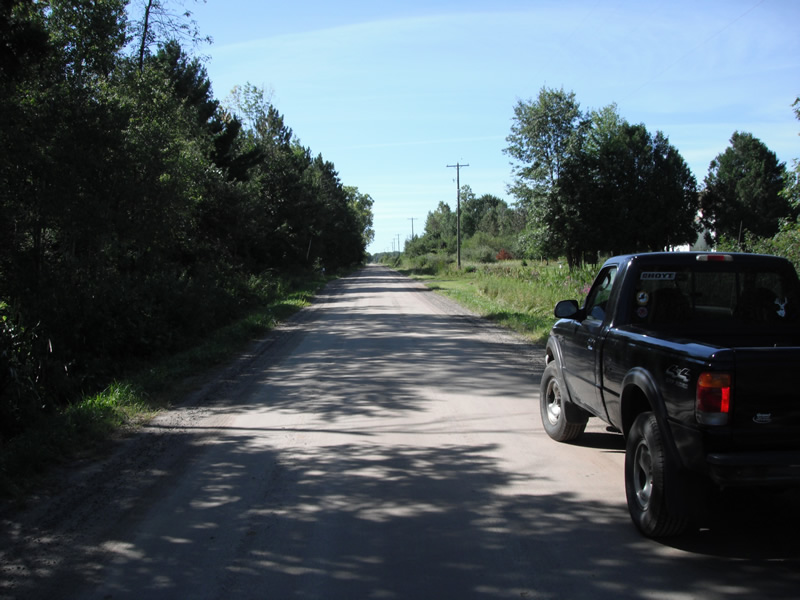

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
Structure Interior: corrugated
Dimensions of Structure: Length 31 ft. , Width 4 ft. , Height 4 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 2.6 ft.
Water Velocity*: 1.5 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 2.4 ft.
Water Velocity*: 1 ft./sec.
*Water Velocities were measured at the Surface (with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 4.9 ft.
Wetted Width: 4.4 ft.
Water Velocity: 1 ft./sec. (Measured with Float Test)
Dominant Substrate: Sand
Road Information
Gravel County Road
Road Condition: Fair
Road Width at Culvert: 15 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.5 ft.
Downstream
Fill Depth: 2 ft.
Length: 1000 ft.
Slope: Less Than 1%
Length: 1000 ft.
Slope: Less Than 1%
Erosion Information
Extent of Erosion: Stabilized
Notes: heavy vegtation
Summary Information
Fish Passability 1
A future visit to this site is recommended. purple loosestrife

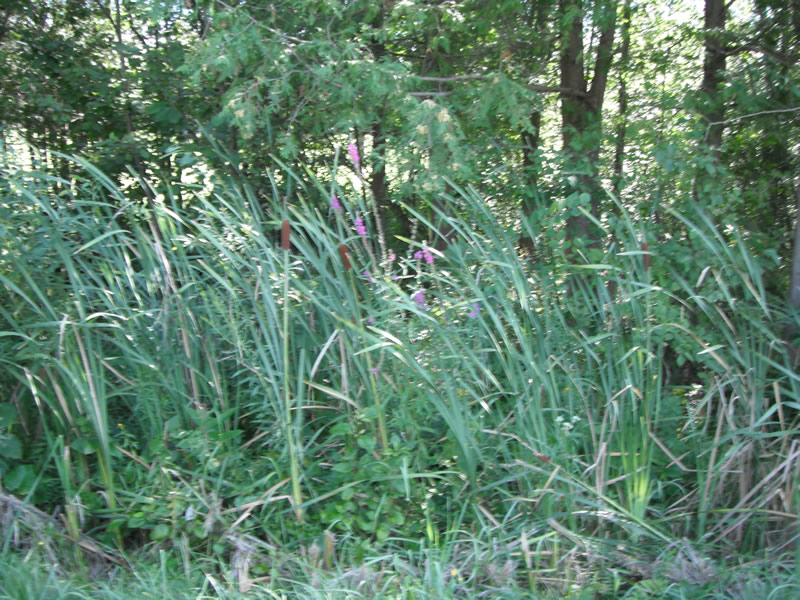

These non-native species were observerd at this site: Purple Loosestrife
