Road Stream Crossing Site RIF_AR38
Rifle River Watershed, Unnamed Creek
Wyatt Rd
Arenac Twp,
Arenac County
Information collected by:
Site Location
GPS Coordinates: 44.0115
, -83.86572
T19N
R5E
Sec 34
Fish Passability 0.5
Structure is NOT Perched
Severity: Moderate
Year Inventoried: 2012

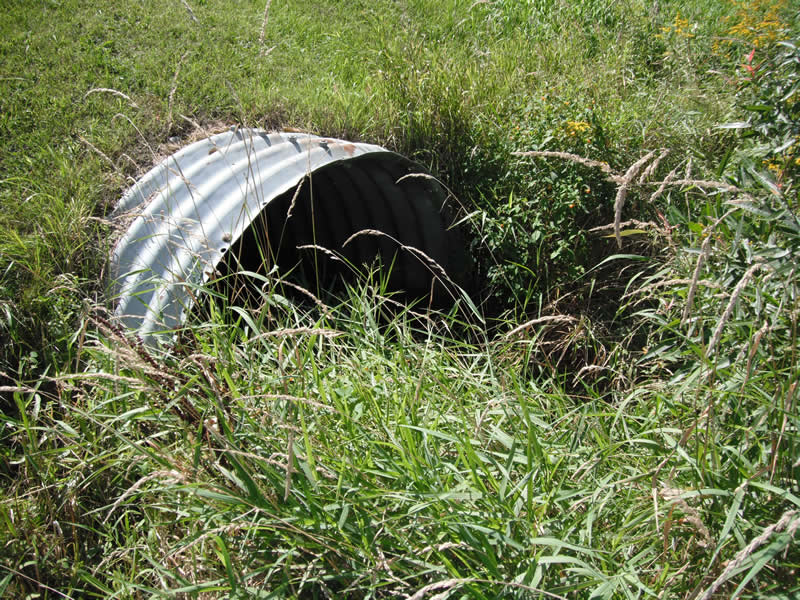

Inlet

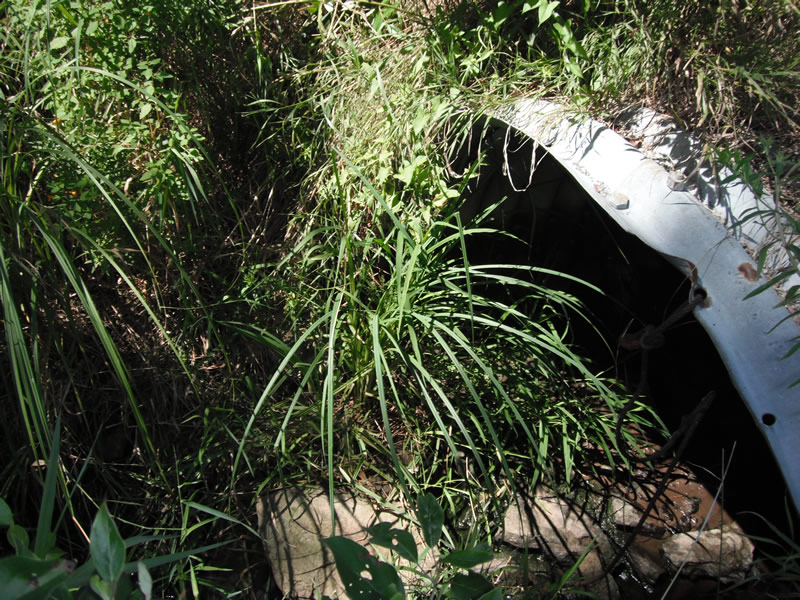

Outlet

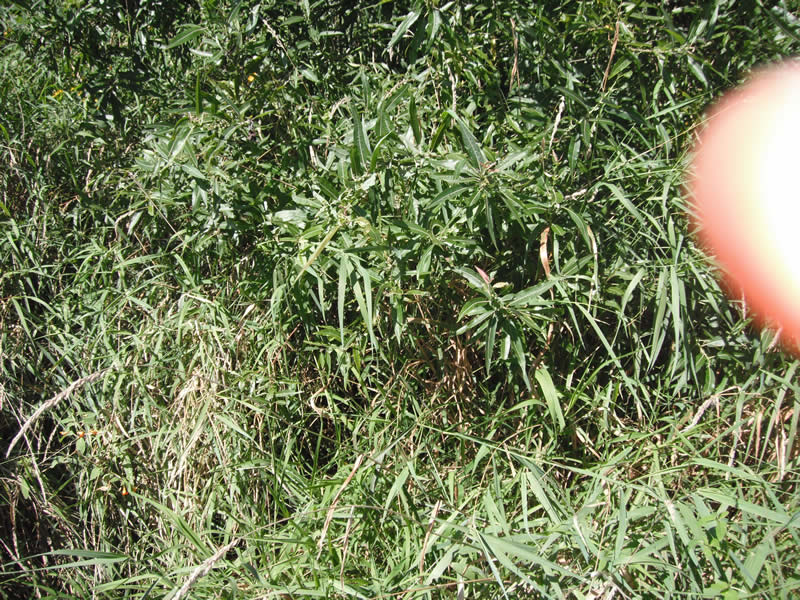

Upstream Conditions

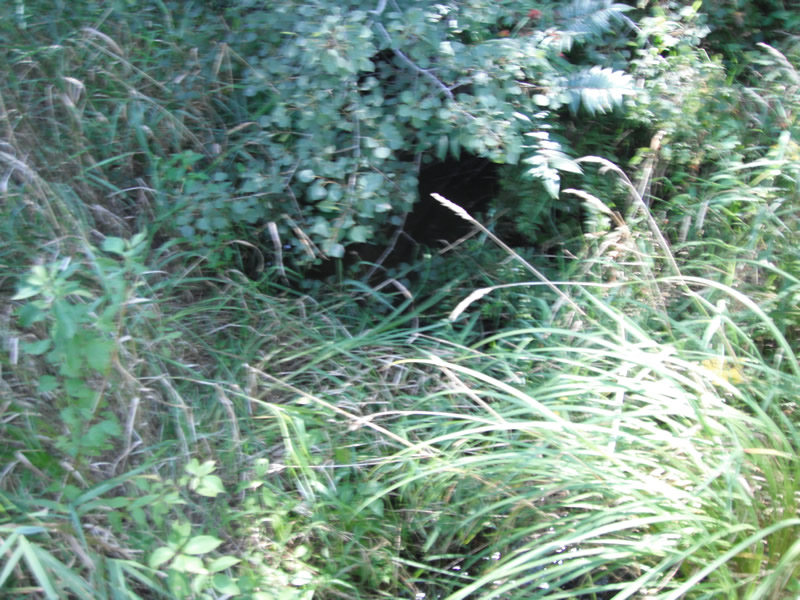

Downstream Conditions

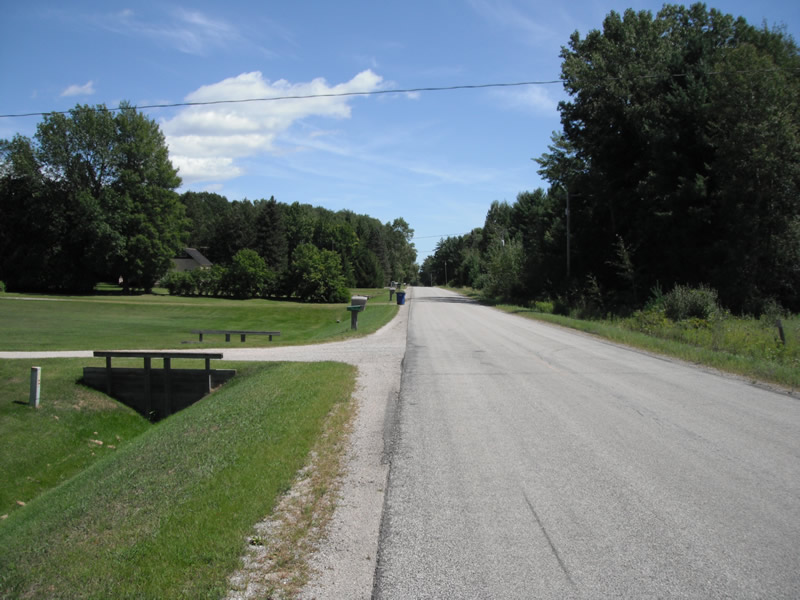

Road Approach - Left

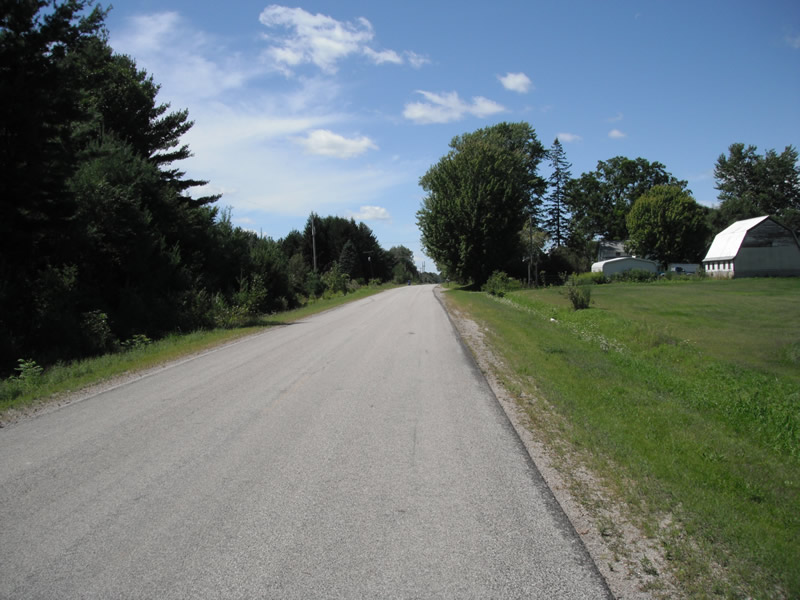

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 49 ft.
, Width 7.8 ft.
, Height 4.9 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.1 ft.
Bankfull Width: 6.5 ft.
Wetted Width: 2.4 ft.
Water Velocity: 0 ft./sec.
(Measured with Float Test)
Dominant Substrate: Sand
Road Information
County Road
Road Condition: Fair
Road Width at Culvert: 21 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.8 ft.
Slope: 1:2
Downstream
Fill Depth: 3 ft.
Slope: 1:2
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
Erosion Information
Extent of Erosion: Stabilized
Summary Information
Fish Passability 0.5
