Road Stream Crossing Site RIF_AR120
Rifle River Watershed, Wells Creek
M-76
Moffatt Twp,
Arenac County
Information collected by:
Site Location
GPS Coordinates: 44.11753
, -84.11753
T20n
R3E
Sec 21
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.5879 tons/year
Severity: Minor
Year Inventoried: 2012
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Wingwall 10-30 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Poor
Structure Interior: smooth
Dimensions of Structure: Length 98 ft.
, Width 23 ft.
, Height 9 ft.
Structure is NOT Perched

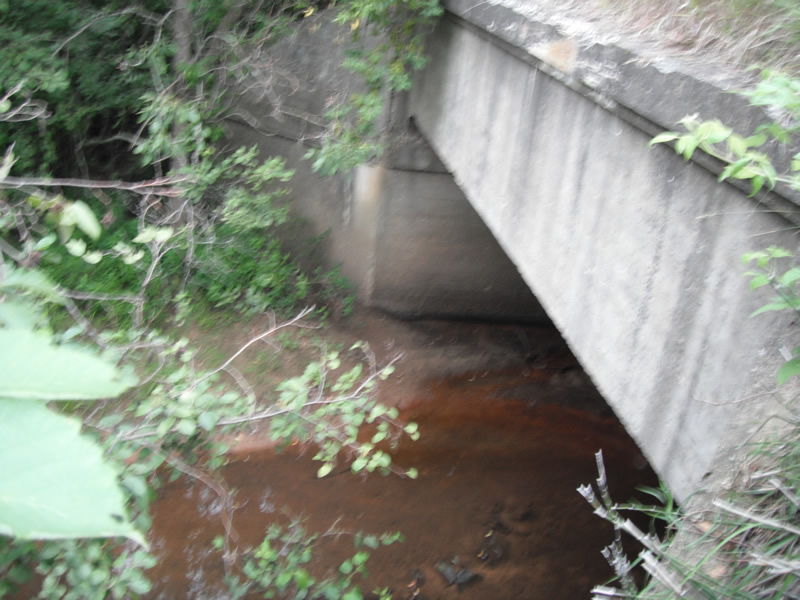

Structure Inlet
Water Depth: 0.4 ft.
Water Velocity*: 0.5 ft./sec.

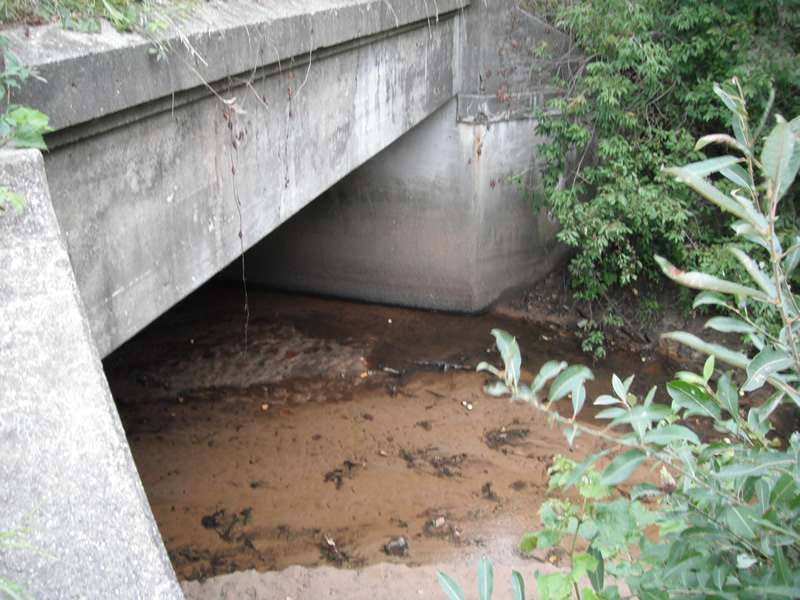

Structure Outlet
Water Depth: 0.3 ft.
Water Velocity*: 1 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)

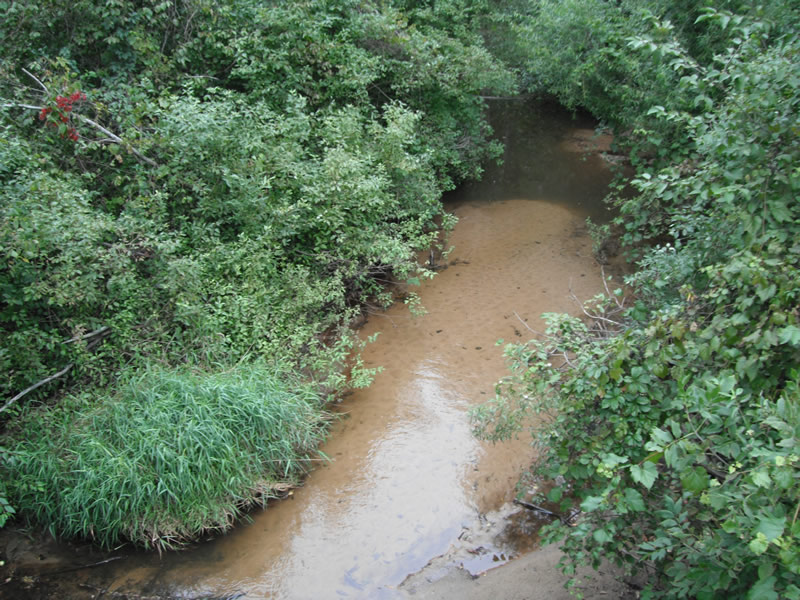

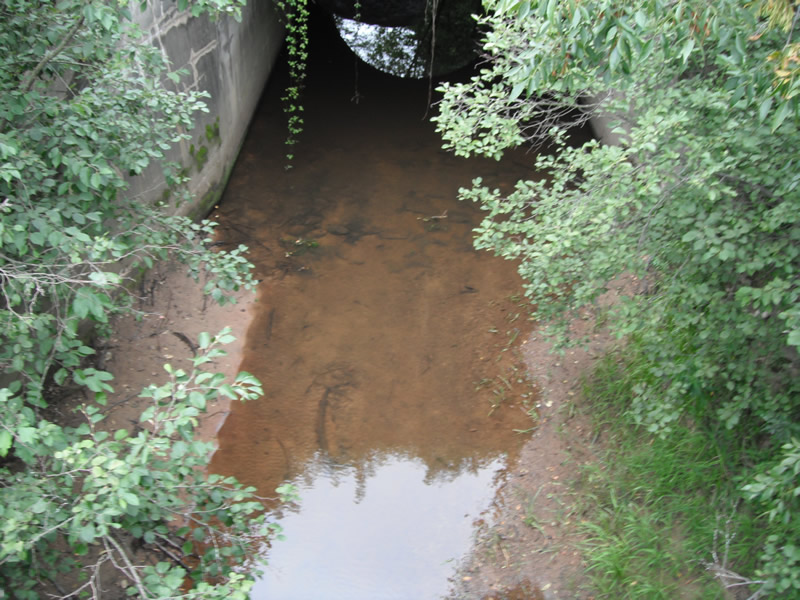

Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 15.6 ft.
Wetted Width: 12.4 ft.
Water Velocity: 0.5 ft./sec.
(Measured with Float Test)
Dominant Substrate: Sand
Road Information
Paved
State Road
Road Condition: Fair
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 9.5 ft.
Slope: Vertical
Downstream
Fill Depth: 10 ft.
Slope: Vertical
Approaches

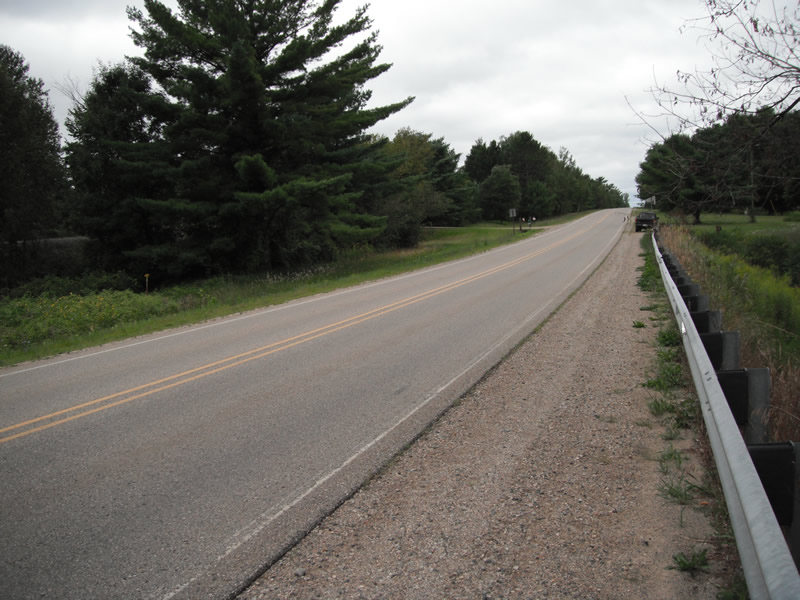

Left Approach
Length: 846 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.555
Erosion: 0.3723 tons/year

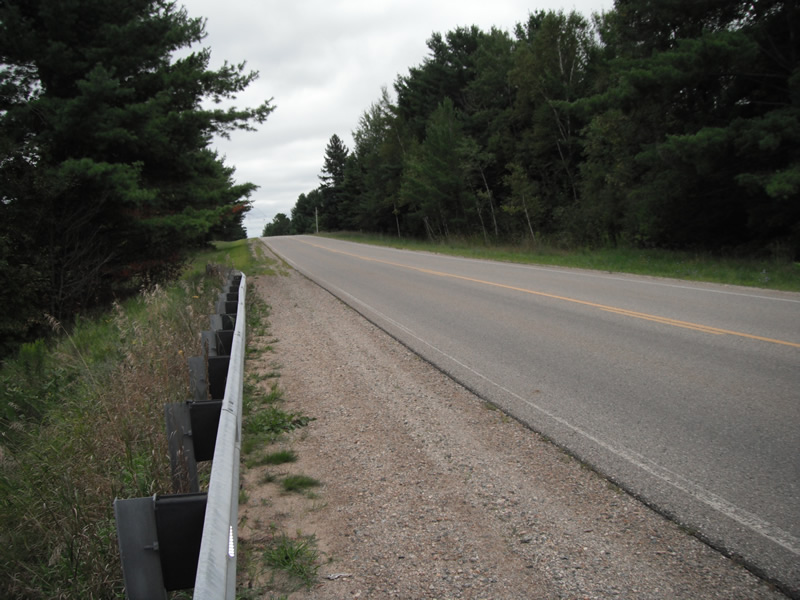

Right Approach
Length: 536 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.507
Erosion: 0.2157 tons/year
Erosion Information
Total Erosion at Crossing: 0.5879 tons/year
Extent of Erosion: Stabilized
Summary Information
Fish Passability 1
