Road Stream Crossing Site AUS_OS188
Au Sable River Watershed, Tributary of Cherry Creek
M-33
Comins Twp,
Oscoda County
Information collected by:
Site Location
GPS Coordinates: 44.70783
, -84.13036
T27N
R03E
Sec 25,30
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.8385 tons/year
Severity: Moderate
Year Inventoried: 2012

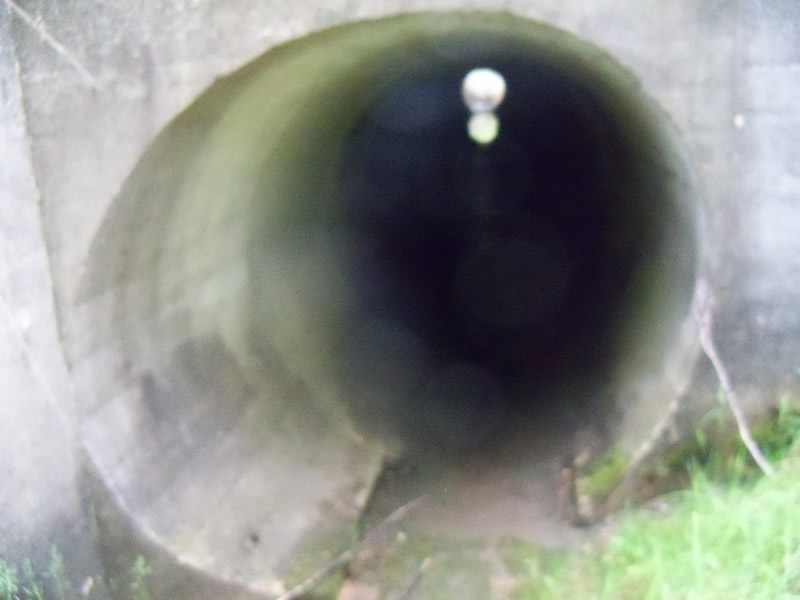

Inlet

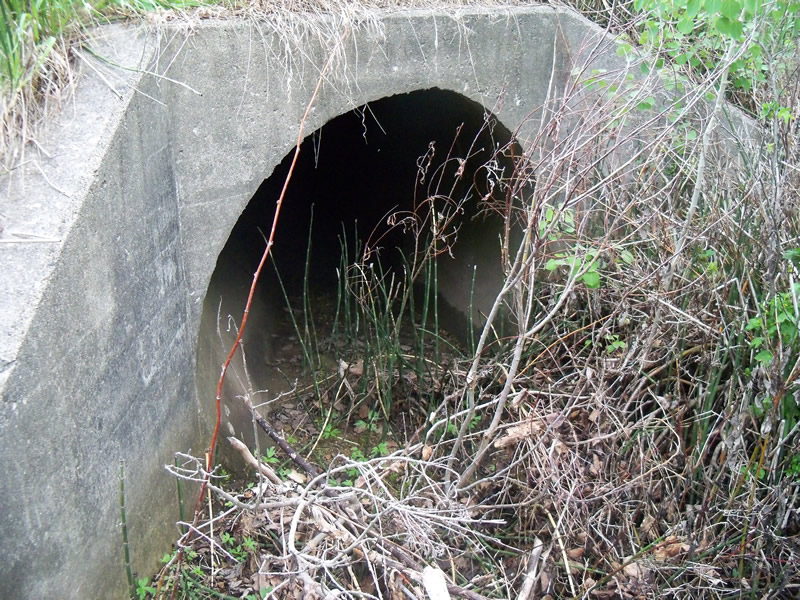

Outlet

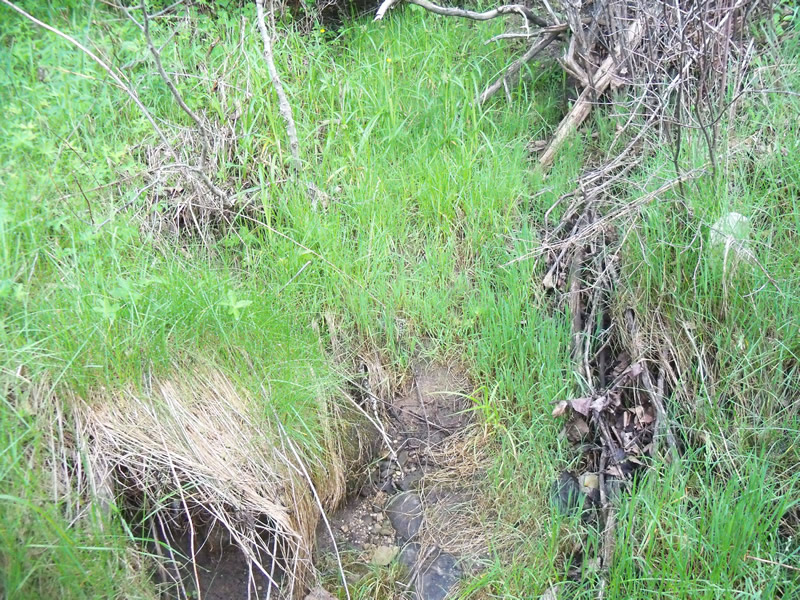

Upstream Conditions

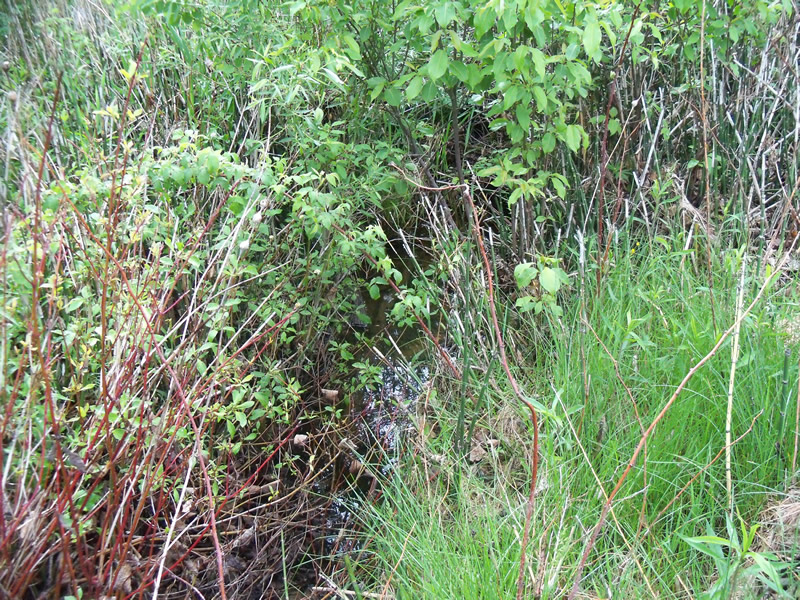

Downstream Conditions

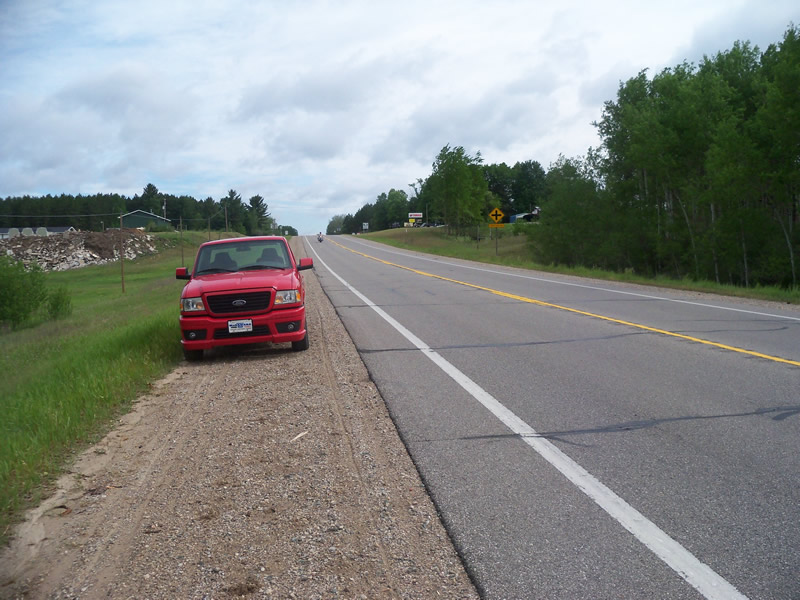

Road Approach - Left

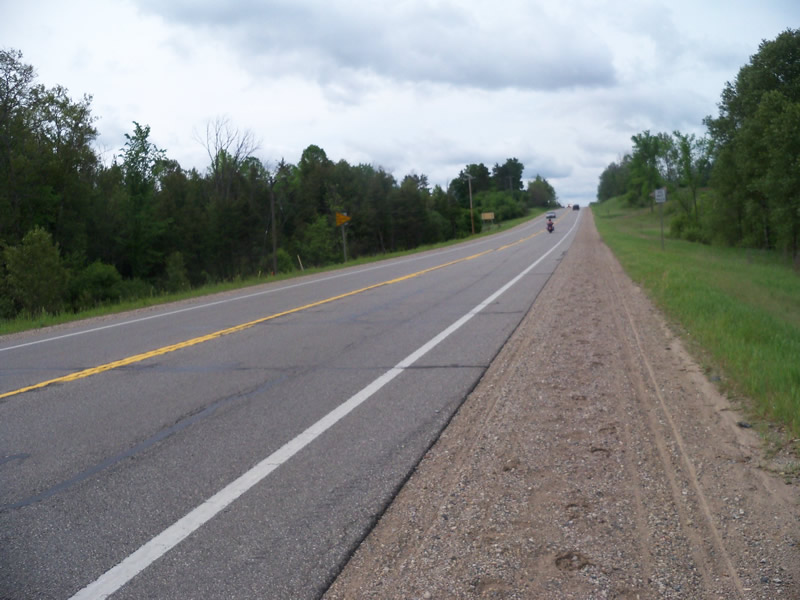

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Wingwall 10-30 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: None
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 112.3 ft.
, Width 5 ft.
, Height 5 ft.
Structure is NOT Perched
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Stream Information
Stream Flow: None
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
(Measured with Meter)
Road Information
Paved
State Road
Road Condition: Good
Road Width at Culvert: 44.5 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 5.2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 5.2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.8385 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.8385 tons/year
Summary Information
Fish Passability 0.5
Fish Passage is an area of concern for this site.
No, the culvert is too long and could impede fish movement. However, there is no water in the stream.
A future visit to this site is recommended. To determine if there is ever more water in the stream so that the culvert could be acting as a fish passage barrier.
These non-native species were observerd at this site: Mullein
