Road Stream Crossing Site AUS_OS186
Au Sable River Watershed, Tributary of Wright Creek
Townline Rd
Elmer Twp,
Oscoda County
Information collected by:
Site Location
GPS Coordinates: 44.78054
, -84.25203
T28N
R02E
Sec 31,36
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 3.767 tons/year
Severity: Severe
Year Inventoried: 2013

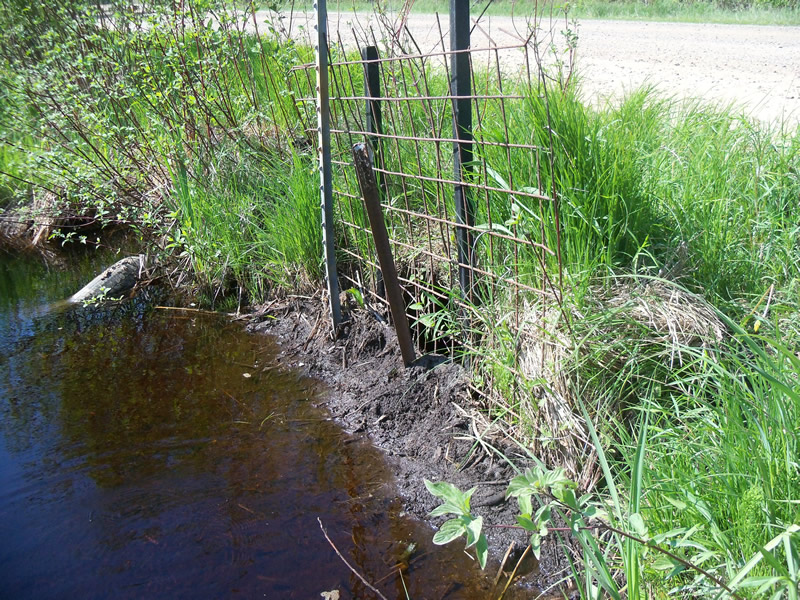

Inlet
Outlet
Upstream Conditions
Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Trash Rack
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 43.5 ft.
, Width 2 ft.
, Height 2 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 81 ft.
, Width 30 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 32.8 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 0.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 0.4 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 355.1 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.471
Erosion: 1.5113 tons/year
Right Approach
Length: 499.4 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 2.2557 tons/year
Erosion Information
Total Erosion at Crossing: 3.767 tons/year
Summary Information
Fish Passability 0.9
Fish Passage is an area of concern for this site.
Yes, the water is being held up by a mud dam against the trash rack so that water isn't flowing through and the water level is elevated on that side.
A future visit to this site is recommended. The water flow is blocked.
These non-native species were observerd at this site: Queen Anne's Lace
