Road Stream Crossing Site AUS_PR093
Au Sable River Watershed, Surface Drain
Cruzen Rd
Mikado Twp,
Alcona County
Information collected by:
Site Location
GPS Coordinates: 44.57859
, -83.46299
T25N
R08E
Sec 9,10
Owned by Federal
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.4805 tons/year
Severity: Minor
Year Inventoried: 2013

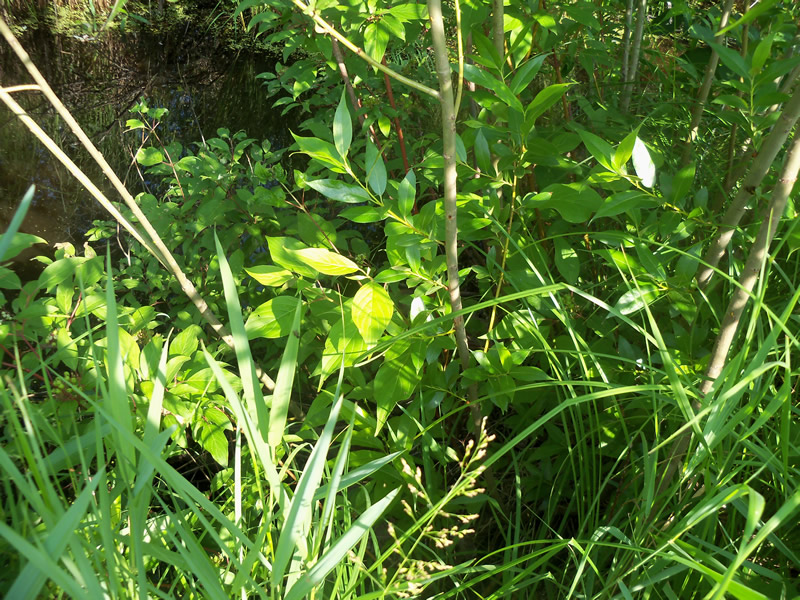

Inlet

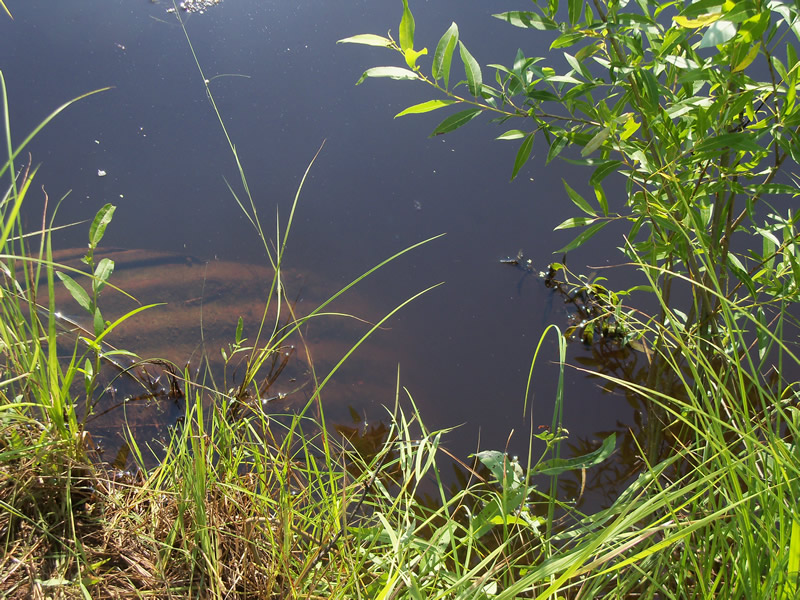

Outlet

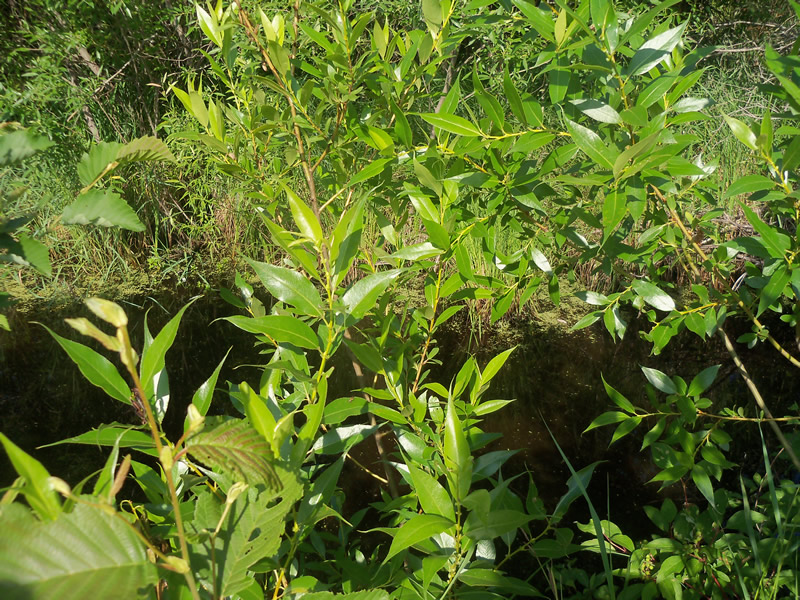

Upstream Conditions

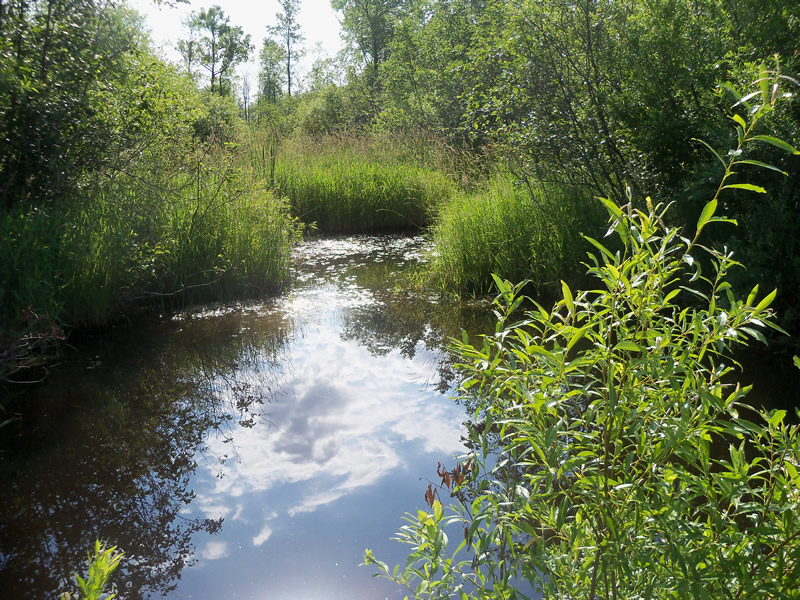

Downstream Conditions

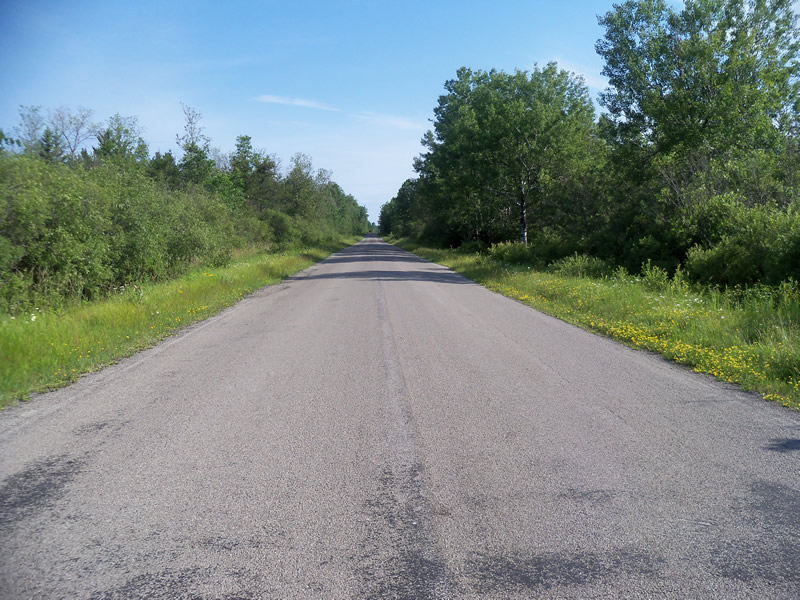

Road Approach - Left

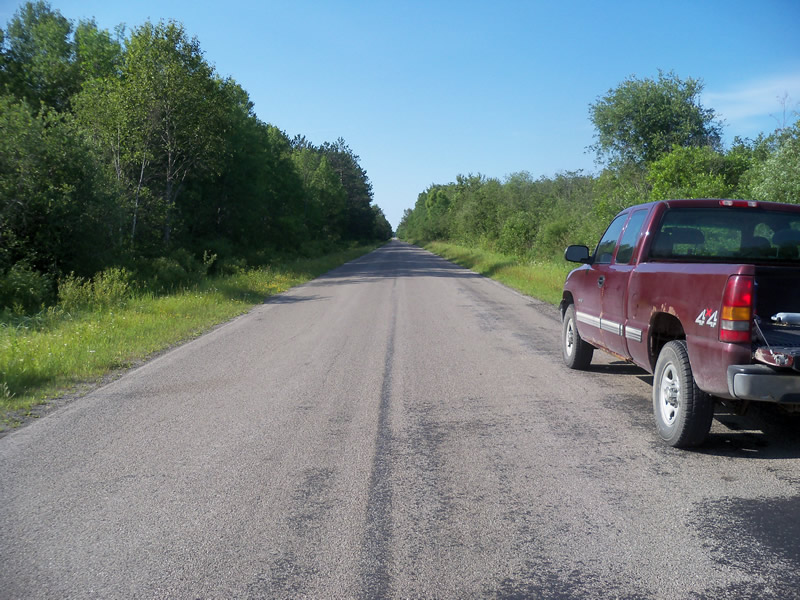

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Gravel
General Conditions: Poor
Structure Interior: corrugated
Dimensions of Structure: Length 47 ft.
, Width 3 ft.
, Height 3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 3 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 1.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Meter)
Additional Comments
The inlet, outlet, and/or in pipe may be crushed or plugged and the culvert may be rusted through, but the culvert was completely underwater so we couldn't tell. Also there is no riffle as the stream becomes a marsh, and the channel is blocked by grass.
Stream Information
Stream Flow: More than Bankfull
Scour Pool: Length 20 ft.
, Width 26 ft.
, Depth 3.5 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 25.5 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.8 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.4805 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.4805 tons/year
Summary Information
Fish Passability 0.9
Erosion is an area of concern for this site.
Yes, there is a large scour pool, and the culverts are completely underwater-the area is flooded.
A future visit to this site is recommended. To see what the water level is at other times of the year and to see if the culverts are often underwater.
These non-native species were observerd at this site: White Sweet Clover, Reed Canarygrass?
