Road Stream Crossing Site AUS_PR095

Au Sable River Watershed, Surface Drain
Vandercook Rd
Mikado Twp, Alcona County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.55462 , -83.47585
T25N R08E Sec 16,21
Owned by Private
Fish Passability 0
Perch Height: 0.3 ft.
Total Erosion: 0.0388 tons/year
Severity: Severe
Year Inventoried: 2012

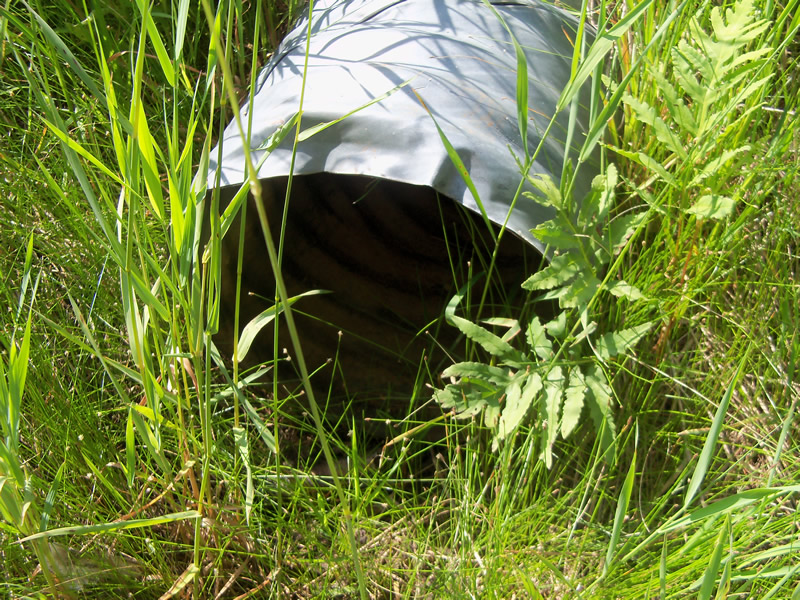

Inlet

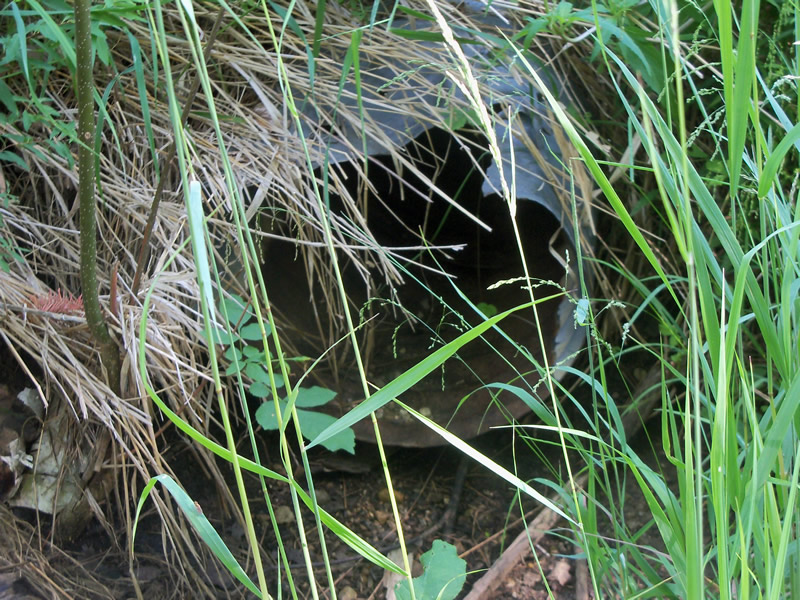

Outlet

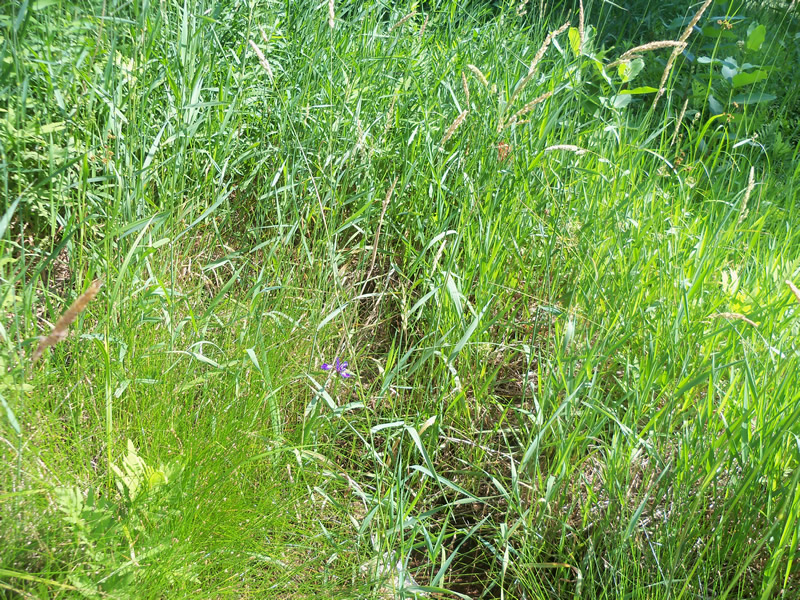

Upstream Conditions

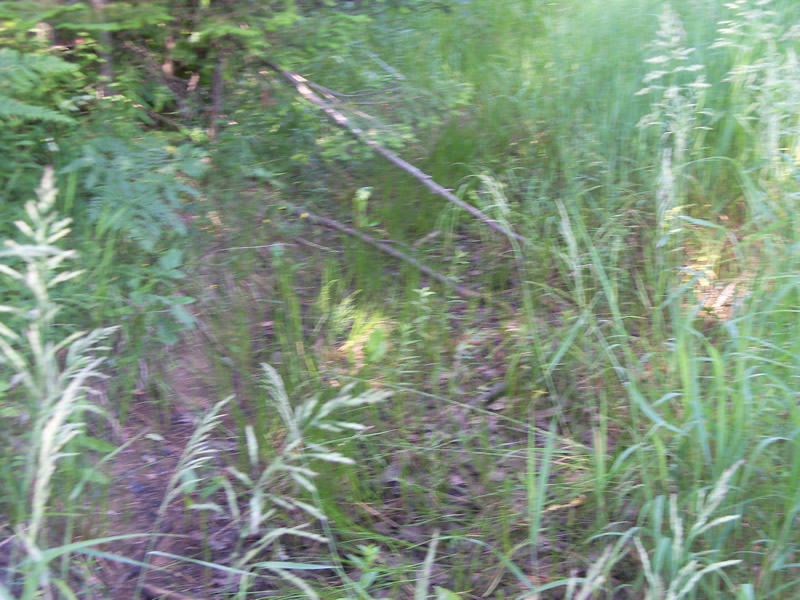

Downstream Conditions

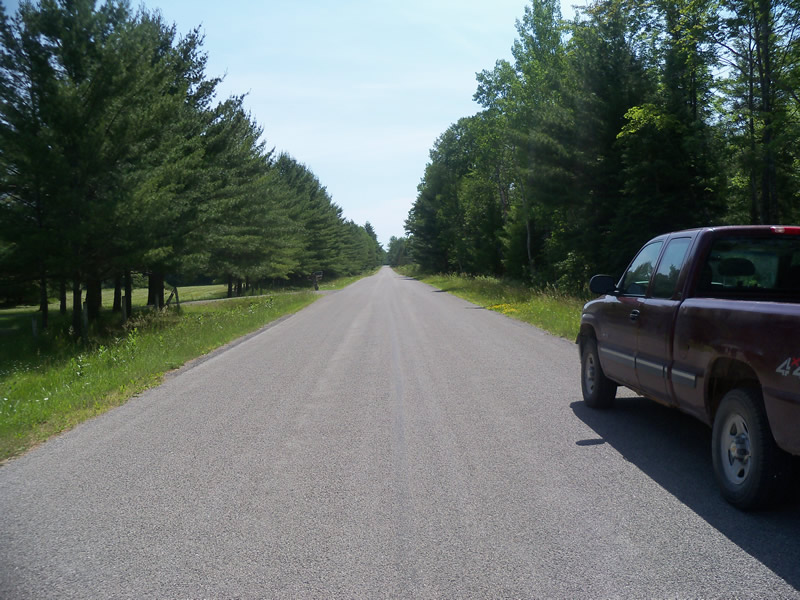

Road Approach - Left

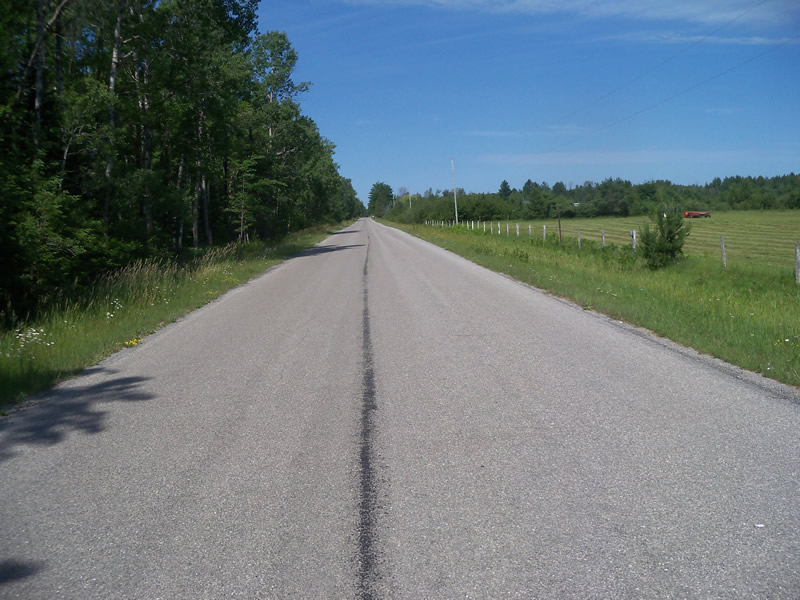

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 48 ft. , Width 1.5 ft. , Height 1.5 ft.
Percentage Crushed: Inlet: 1% to 25% Outlet: 1% to 25% In Pipe: 0%
Perch Height: 0.3 ft.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Stream Information
Stream Flow: None
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 23.5 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2.1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.1 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0388 tons/year
Erosion Information
Total Erosion at Crossing: 0.0388 tons/year
Summary Information
Fish Passability 0
A future visit to this site is recommended. To see how the culvert behaves when there is water.
These non-native species were observerd at this site: Bittersweet Nightshade, Reed Canarygrass?
