Road Stream Crossing Site AUS_PR092

Au Sable River Watershed, Surface Drain
London Rd
Mikado Twp, Alcona County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.55675 , -83.48276
T25N R08E Sec 16,17
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 2.1619 tons/year
Severity: Moderate
Year Inventoried: 2013

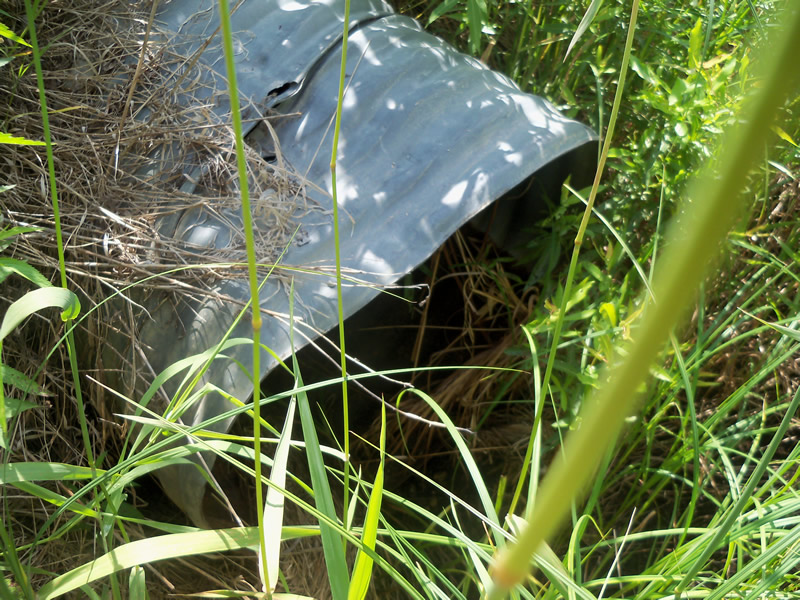

Inlet

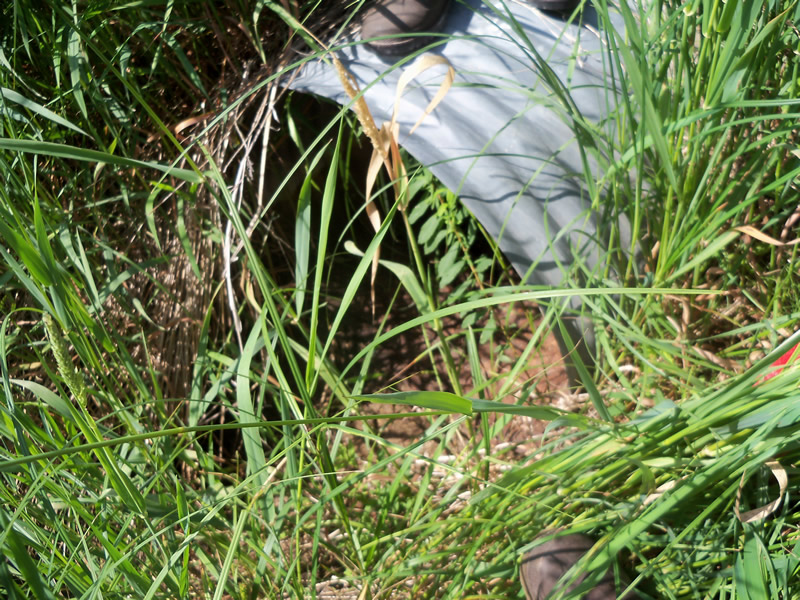

Outlet

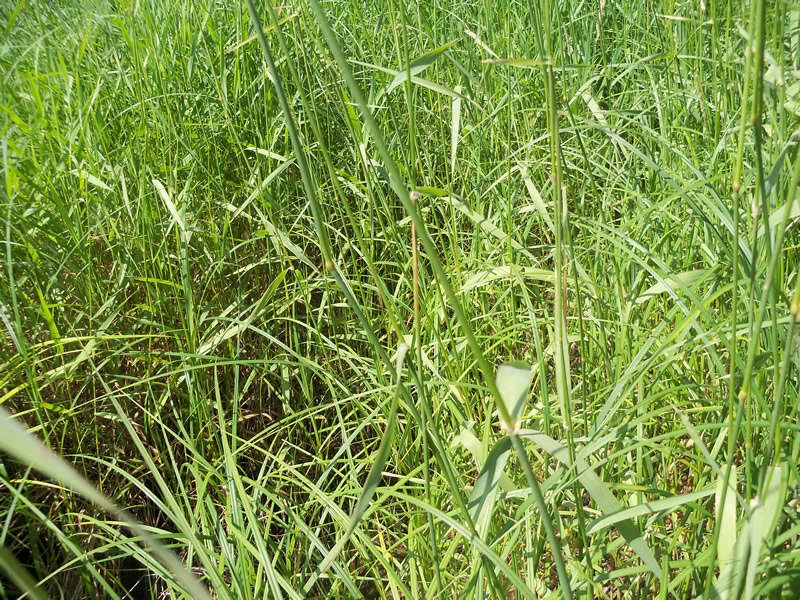

Upstream Conditions

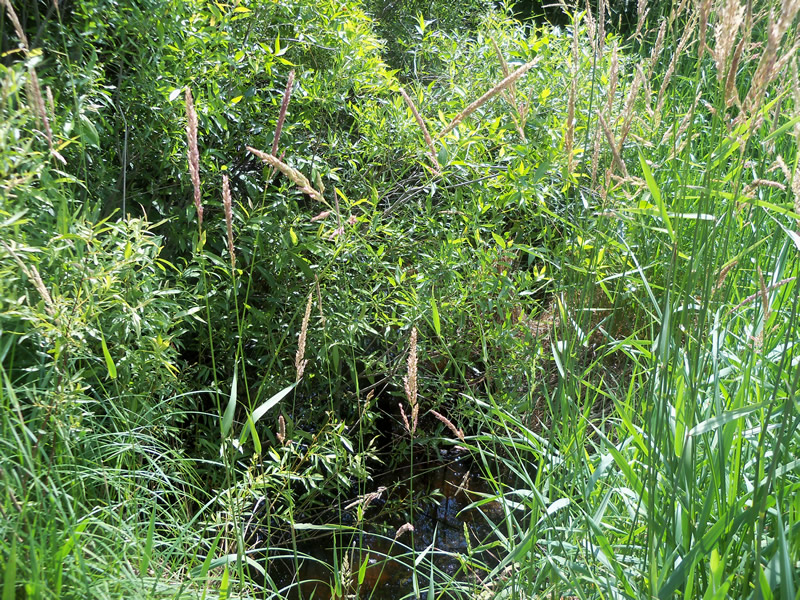

Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 30 ft. , Width 2.5 ft. , Height 2.5 ft.
Percentage Crushed: Inlet: 1% to 25% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Additional Comments
There is no water in the culvert. There is no riffle or scour pool, but there is a pond of water downstream of the culvert. The water ends in the pond.
Stream Information
Stream Flow: None
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 18 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 0.2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 0.2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 794 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.549
Erosion: 2.1619 tons/year
Erosion Information
Total Erosion at Crossing: 2.1619 tons/year
Summary Information
Fish Passability 0.5
A future visit to this site is recommended. To check water levels at other times of the year.
These non-native species were observerd at this site: Reed Canarygrass?
