Road Stream Crossing Site AUS_OS165
Au Sable River Watershed, Tributary of Comins Creek
Abbe Rd
Comins Twp,
Oscoda County
Information collected by:
Site Location
GPS Coordinates: 44.70547
, -84.0506
T27N
R03E
Sec 27,26
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 0.036 tons/year
Severity: Moderate
Year Inventoried: 2012

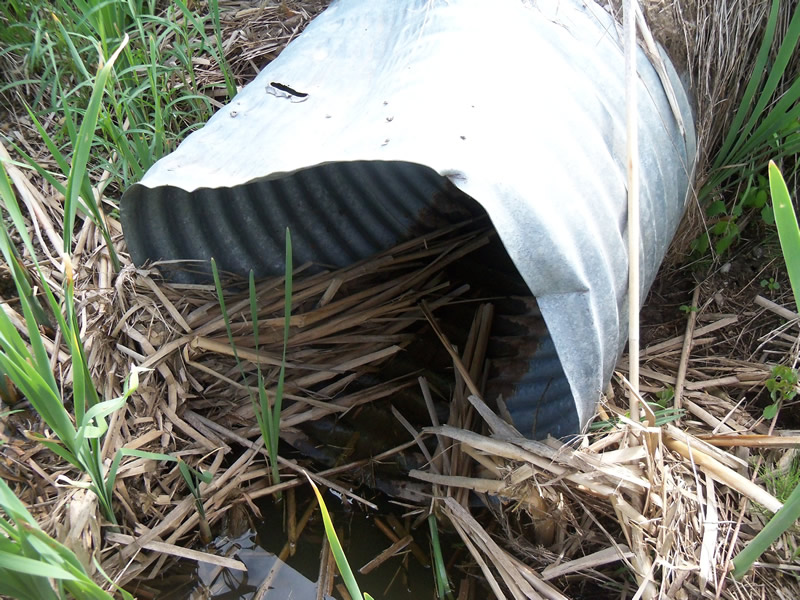

Inlet
Outlet

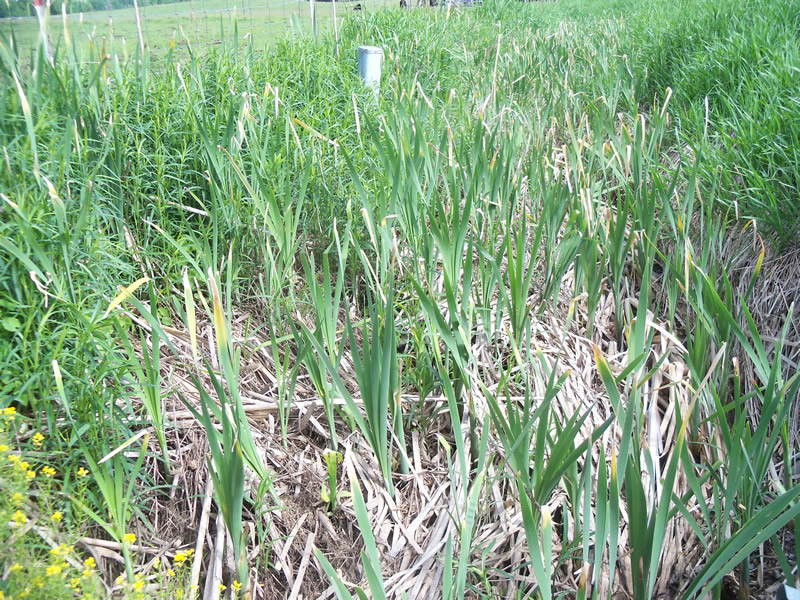

Upstream Conditions

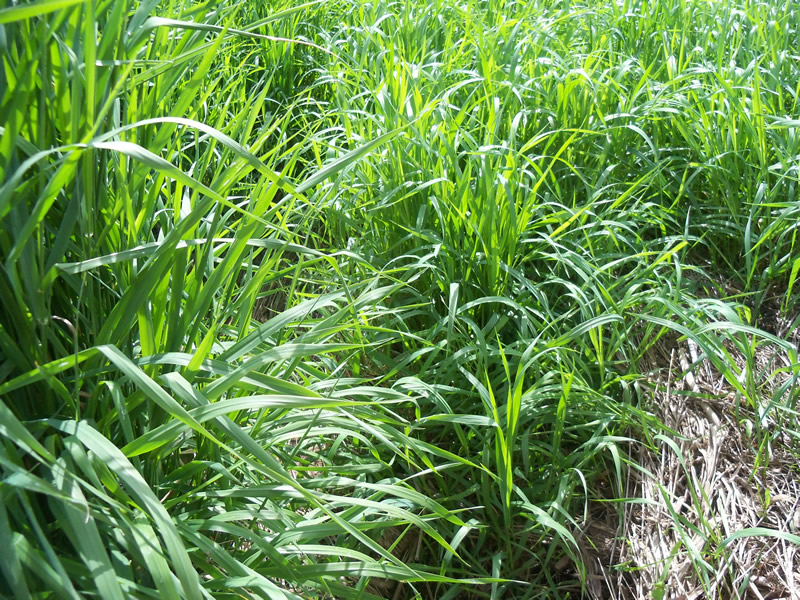

Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 61 ft.
, Width 2.6 ft.
, Height 2.6 ft.
Structure is NOT Perched
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.

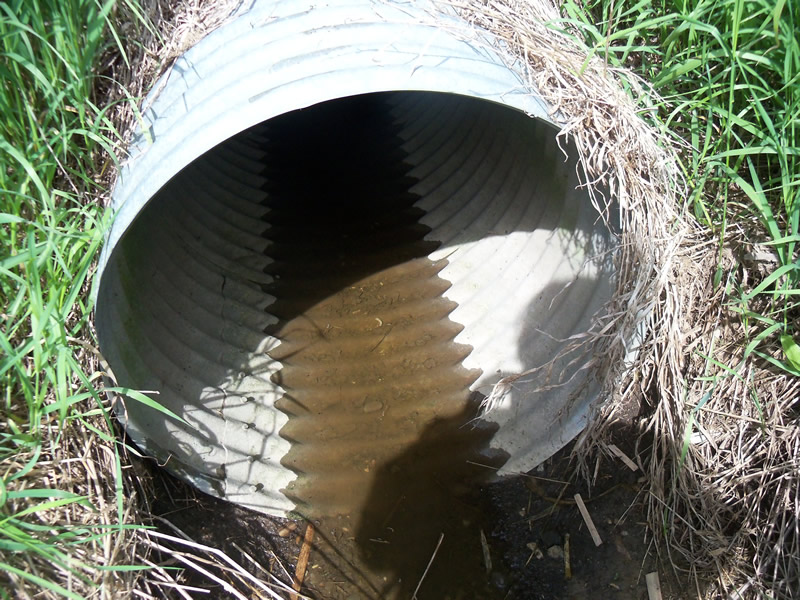

Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Additional Comments
There was no water in the stream at the time of the visit, except a little above the inlet in a small pond and some inside the culvert, which was not moving at all. It was difficult to determine the inlet and outlet because of low streamflow. Cow pastures closely obrdered the stream on the west side of the road.
Stream Information
Stream Flow: None
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 2.3 ft.
, Width 2.5 ft.
, Depth 0.6 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 30.9 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.4 ft.
Slope: More than 1:2
Approaches

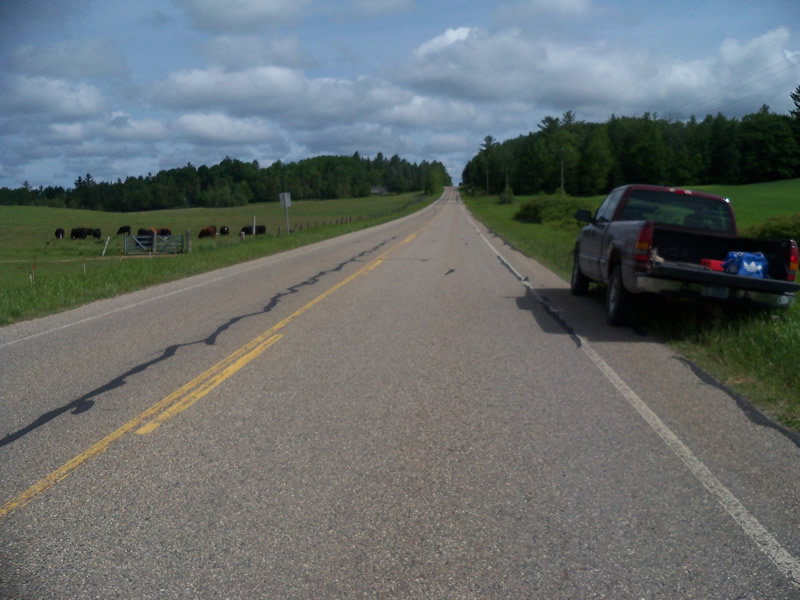

Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year

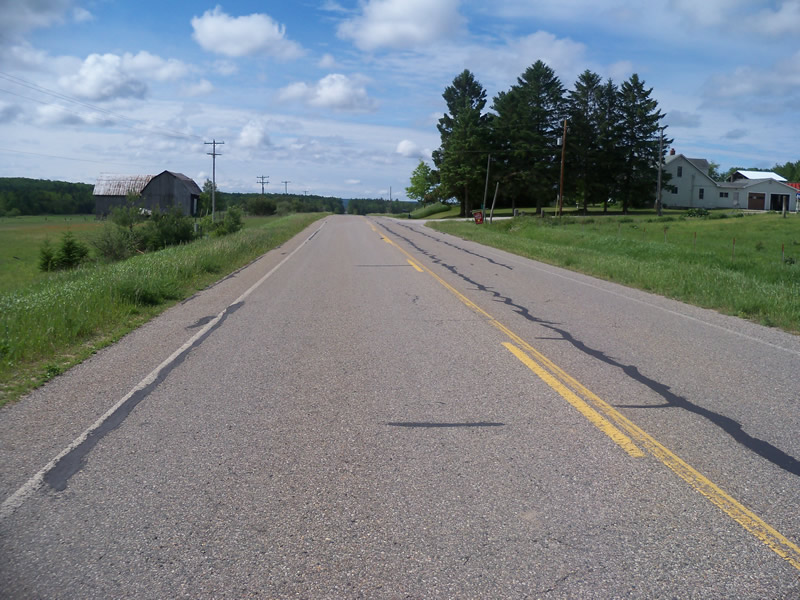

Right Approach
Length: 705 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.036 tons/year
Erosion Information
Total Erosion at Crossing: 0.036 tons/year
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Spotted Knapweed, Mullein
