Road Stream Crossing Site AUS_PR126

Au Sable River Watershed, Surface Drain
Walker Rd
Millen Twp, Alcona County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.66883 , -83.60004
T26N R07E Sec 3,10
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 6.281 tons/year
Severity: Severe
Year Inventoried: 2012

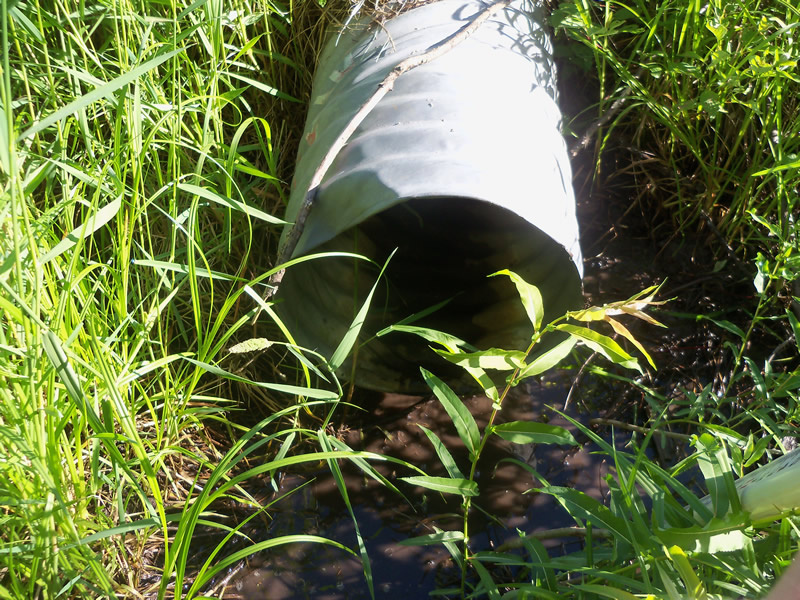

Inlet

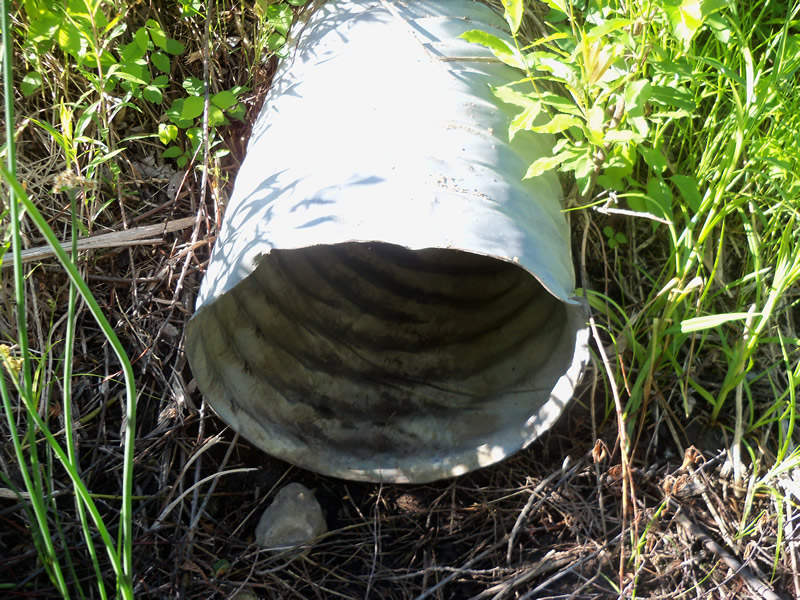

Outlet

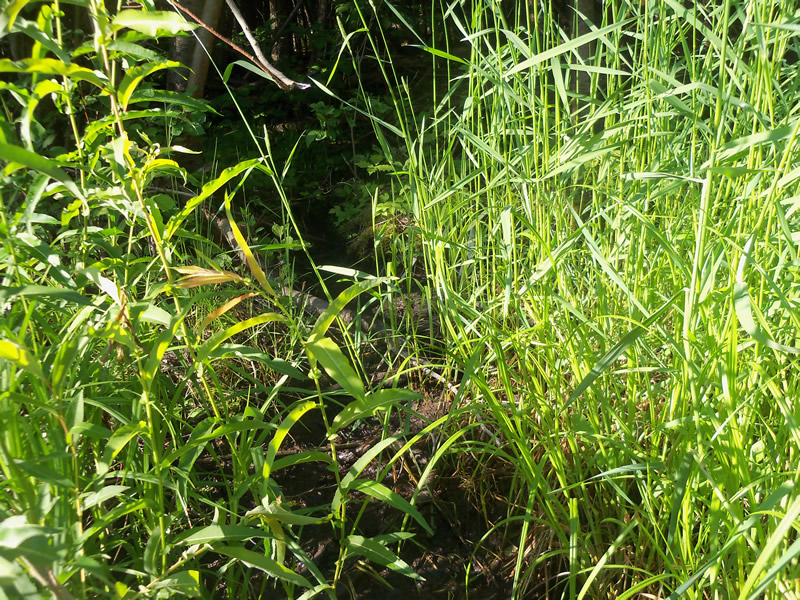

Upstream Conditions

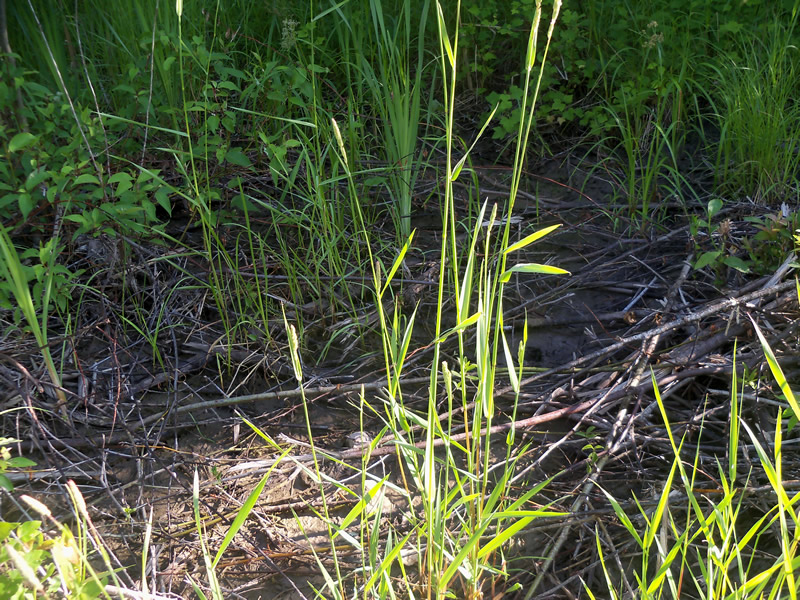

Downstream Conditions

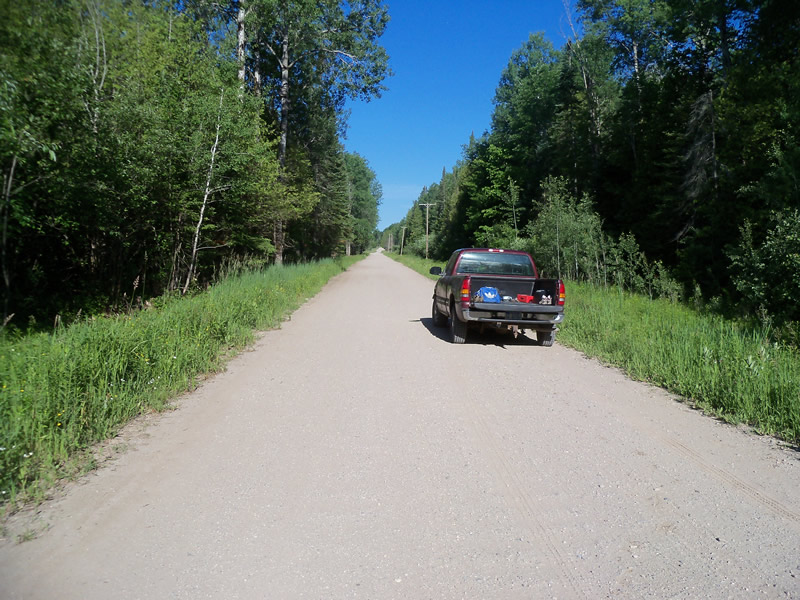

Road Approach - Left

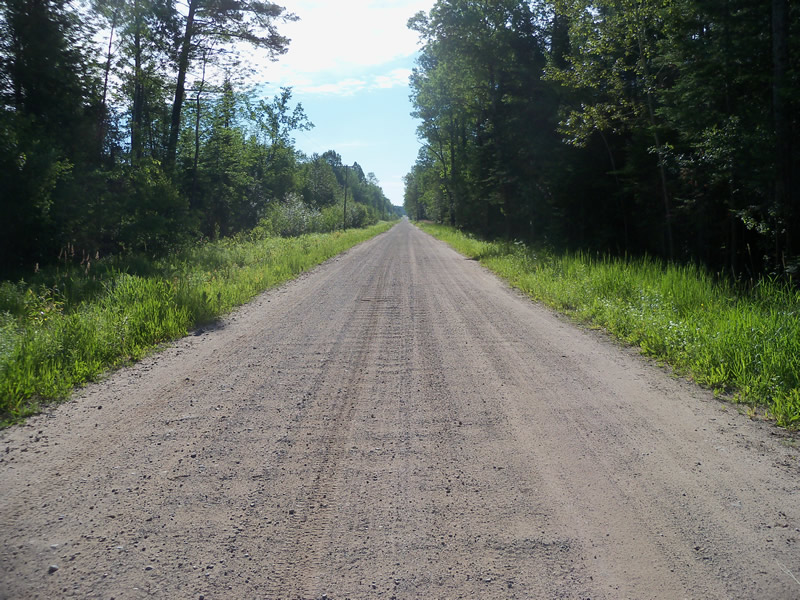

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 34.5 ft. , Width 1.5 ft. , Height 1.5 ft.
Percentage Crushed: Inlet: 1% to 25% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface (with Meter)
Additional Comments
Looks like there's a dried up stream leading to this culvert.
Stream Information
Stream Flow: None
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 2.5 ft. , Width 2.5 ft. , Depth 0.1 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Sand County Road
Road Condition: Good
Road Width at Culvert: 20 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 0.2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 0.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 3.1405 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 3.1405 tons/year
Erosion Information
Total Erosion at Crossing: 6.281 tons/year
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Sweet Clover
