Road Stream Crossing Site AUS_OS185
Au Sable River Watershed, Robins Creek
Caldwell Rd
Comins Twp,
Oscoda County
Information collected by:
Site Location
GPS Coordinates: 44.69626
, -84.1157
T27N
R03E
Sec 31,32
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.0434 tons/year
Severity: Minor
Year Inventoried: 2013
Inlet

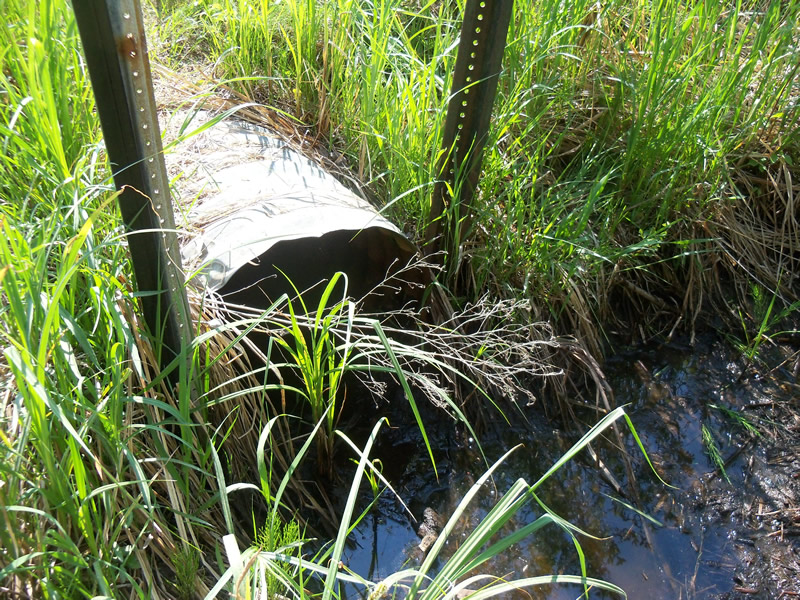

Outlet

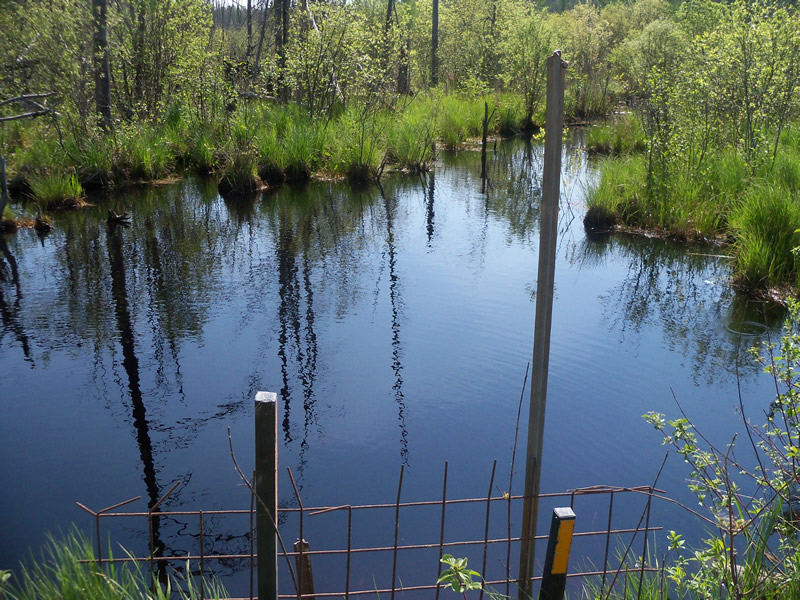

Upstream Conditions

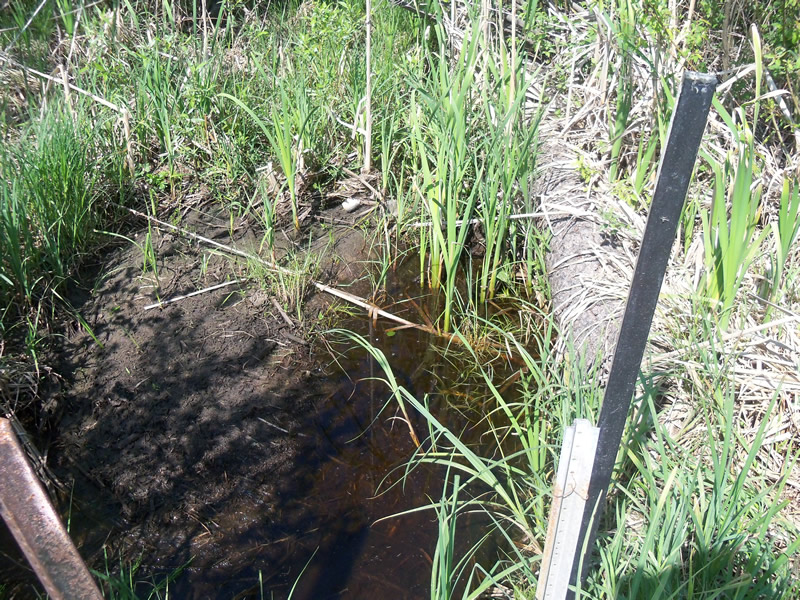

Downstream Conditions

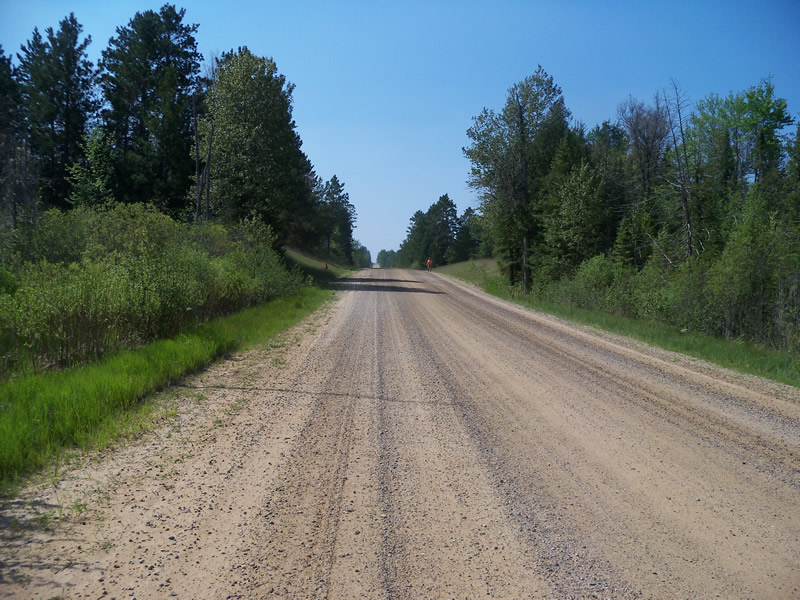

Road Approach - Left

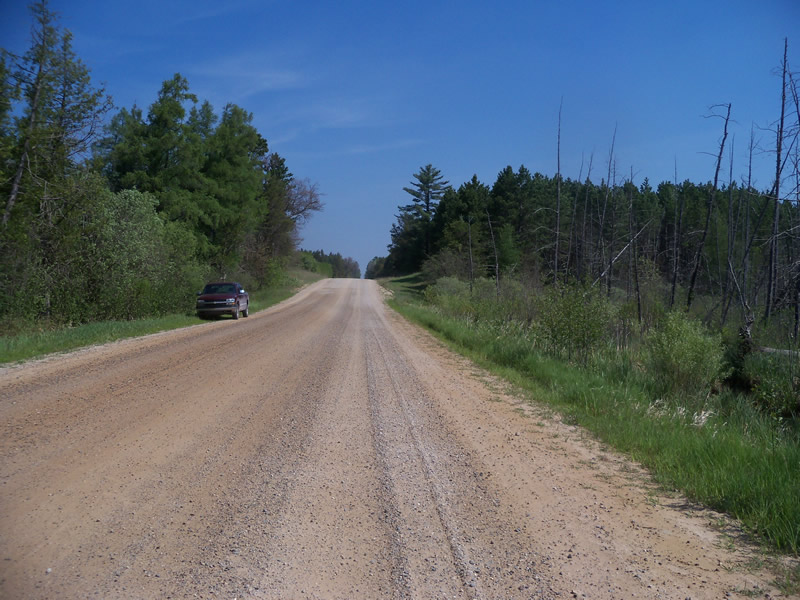

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Fair
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
3 ft. |
31 ft. |
3 ft. |
Metal |
2 |
2 ft. |
44 ft. |
2 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 41 ft.
, Width 3 ft.
, Height 3 ft.
Percentage Crushed:
Inlet: 26% to 50%
Structure is NOT Perched
Structure Inlet
Water Depth: 1.25 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: None
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 25 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 126 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0434 tons/year
Erosion Information
Total Erosion at Crossing: 0.0434 tons/year
Summary Information
Fish Passability 0.9
