Road Stream Crossing Site AUS_OS024
Au Sable River Watershed, Tributary of Beaver Creek
Hanson Rd
Greenwood Twp,
Oscoda County
Information collected by:
Site Location
GPS Coordinates: 44.70331
, -84.30098
T27N
R01E
Sec 27
Owned by Private
Structure is NOT Perched
Total Erosion: 24.0579 tons/year
Severity: Severe
Year Inventoried: 2013

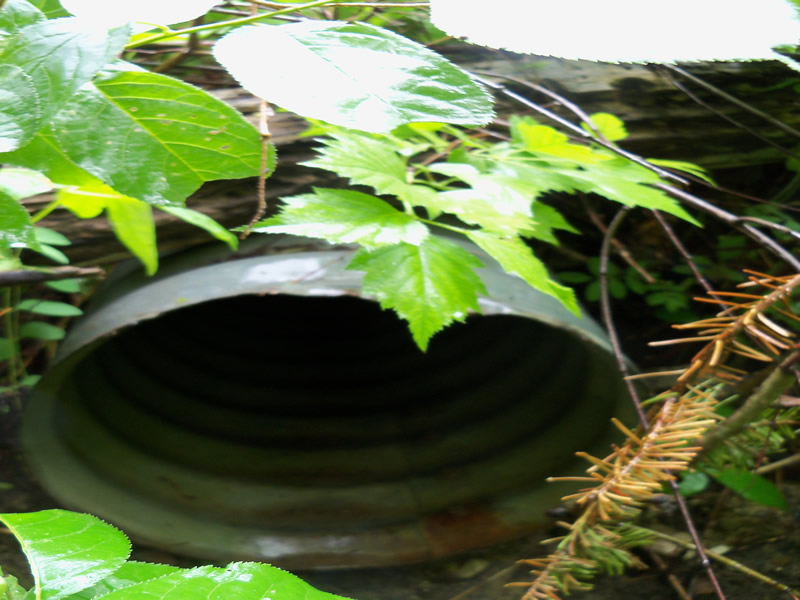

Inlet

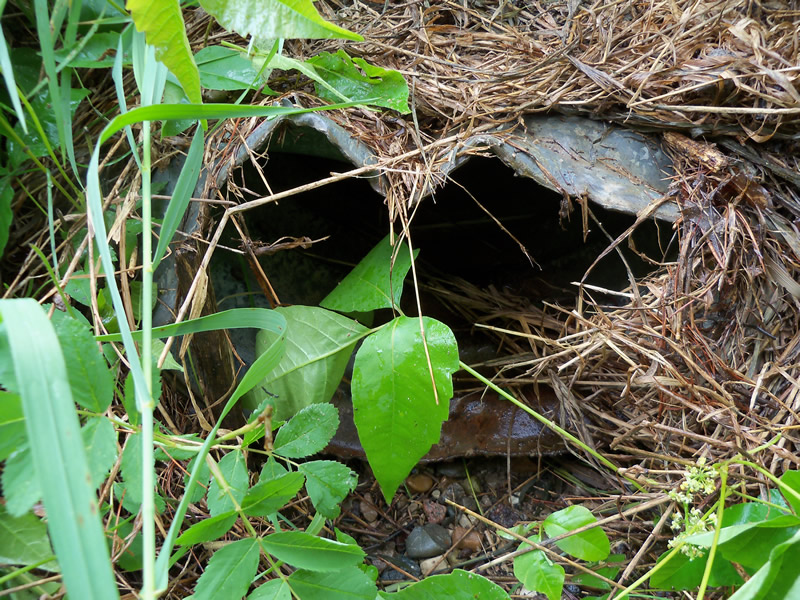

Outlet

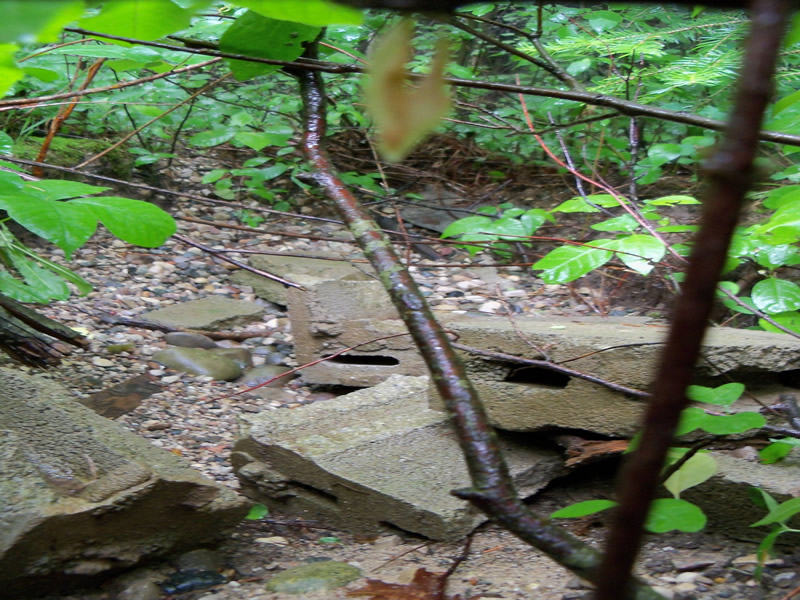

Upstream Conditions

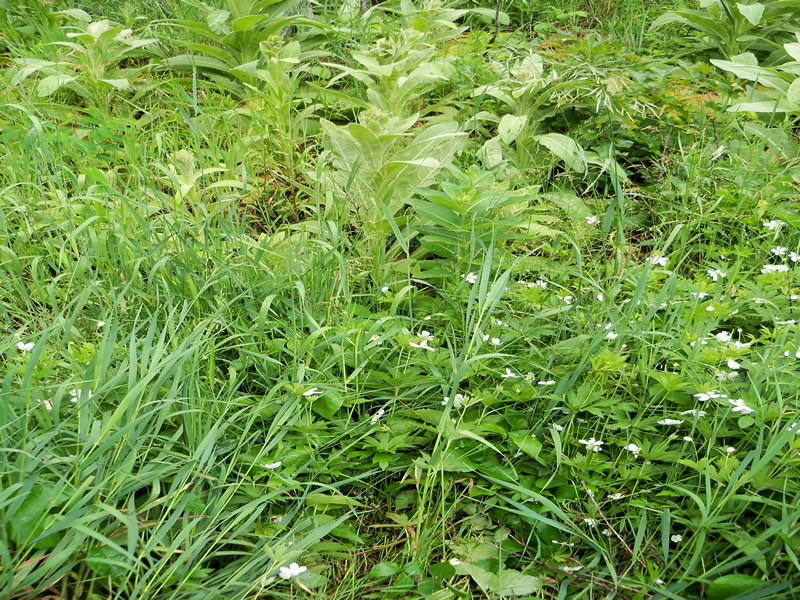

Downstream Conditions

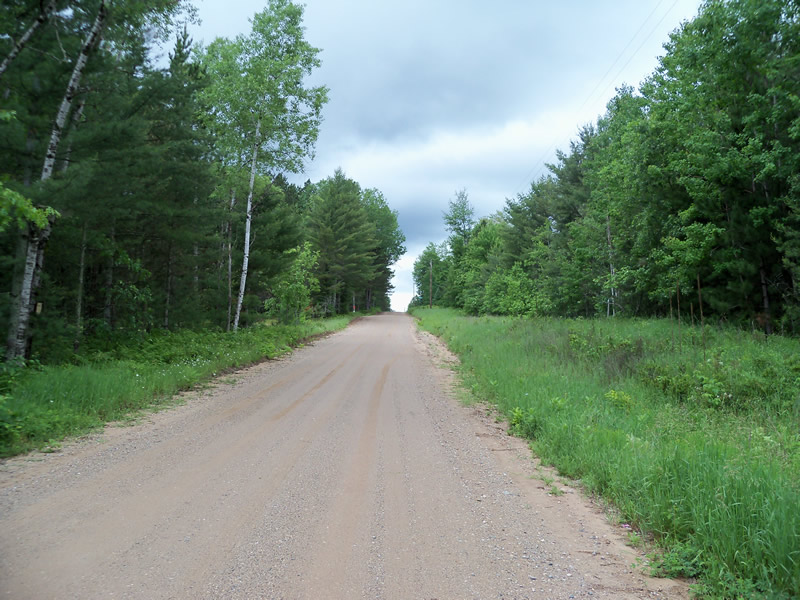

Road Approach - Left

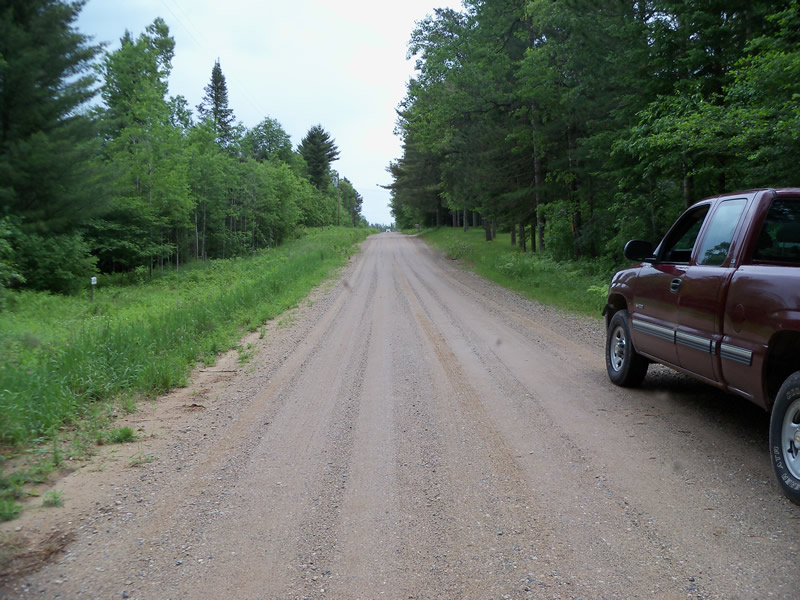

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Poor
Structure Interior: corrugated
Dimensions of Structure: Length 34 ft.
, Width 1 ft.
, Height 1 ft.
Structure is NOT Perched
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface
(with Float Test)
Stream Information
Stream Flow: None
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 21.3 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 1.3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 2.05
Erosion: 12.0289 tons/year
Right Approach
Length: 1000 ft.
Slope: 6% to 10%
Vegetation: Heavy
LS Factor: 2.05
Erosion: 12.0289 tons/year
Erosion Information
Total Erosion at Crossing: 24.0579 tons/year
Extent of Erosion: Minor
Summary Information
A future visit to this site is recommended. Culvert in bad condition
These non-native species were observerd at this site: Spotted Knapweed
