Road Stream Crossing Site EBIO048

Au Gres River Watershed, Tributary of Smith Creek
Slosser Rd
Plainfield Twp, Iosco County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.43765 , -83.79294
T24N R5E Sec 26 + 25
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 3.0391 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID

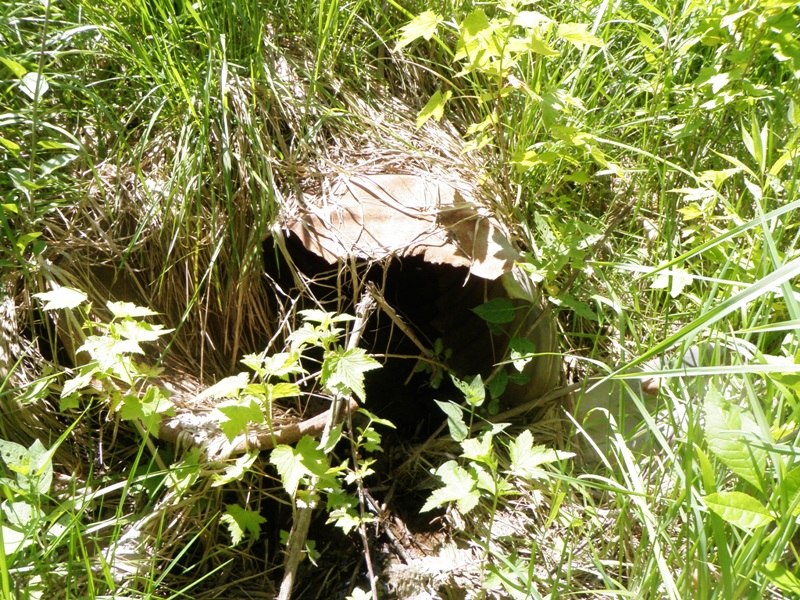

Inlet

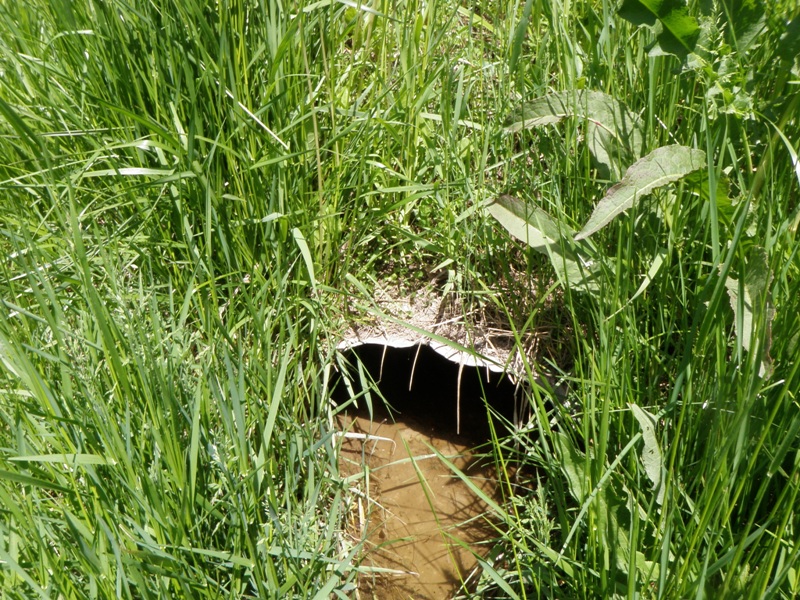

Outlet

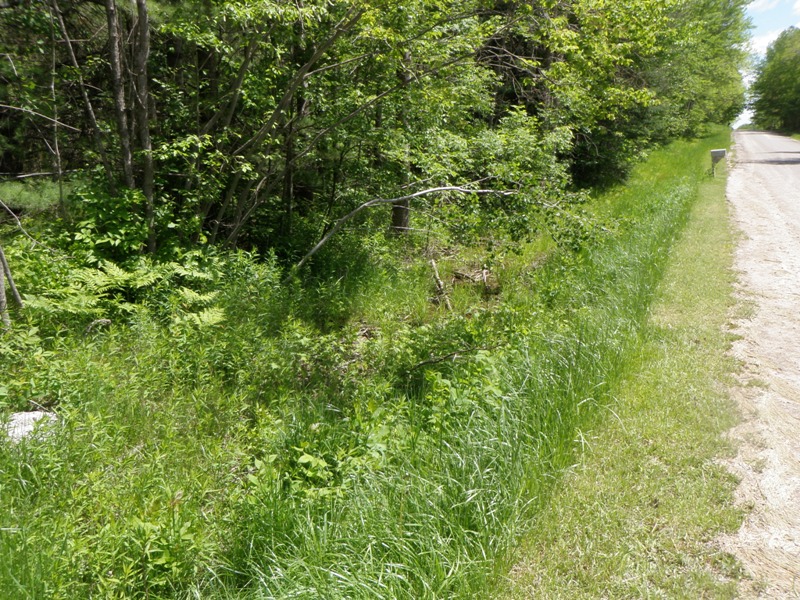

Upstream Conditions
Downstream Conditions

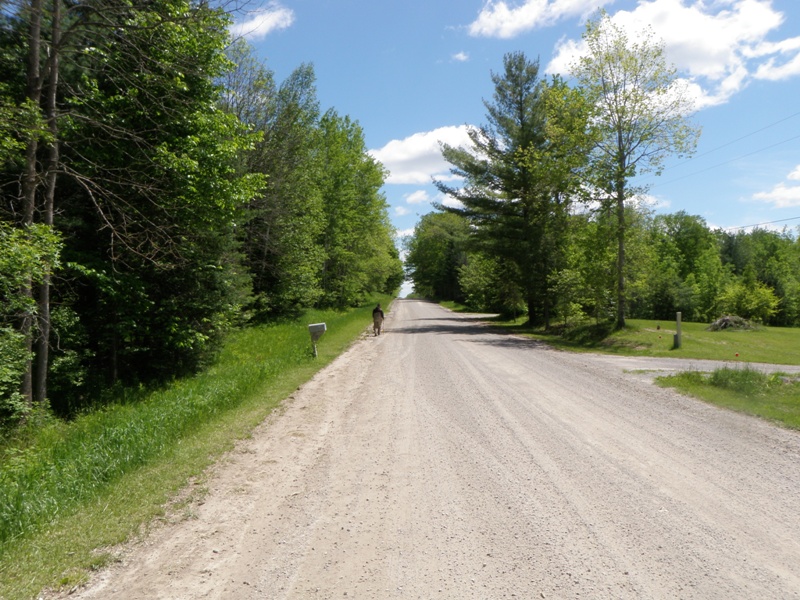

Road Approach - Left

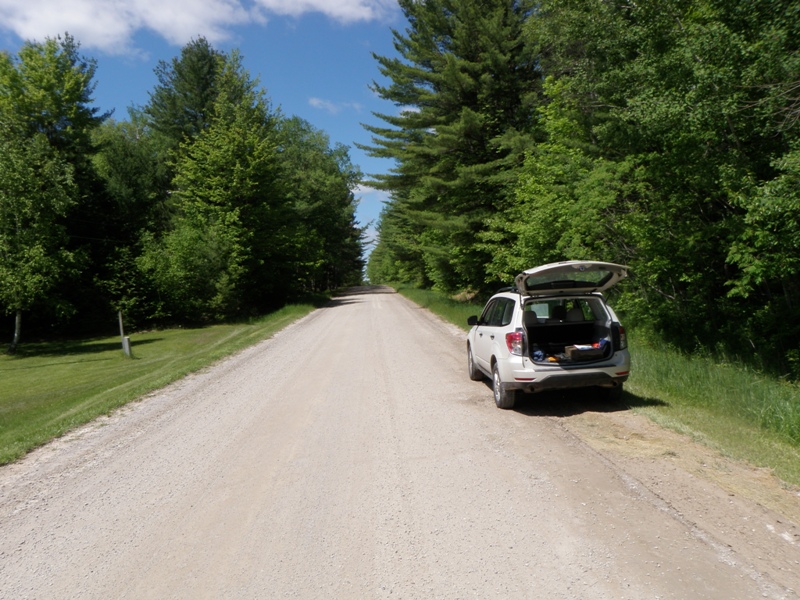

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Poor
Structure Interior: corrugated
Dimensions of Structure: Length 33 ft. , Width 1.3 ft. , Height 1.3 ft.
Percentage Crushed: Inlet: 26% to 50% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.1 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.8 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.3 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 467 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.493
Erosion: 1.5234 tons/year
Right Approach
Length: 465 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.493
Erosion: 1.5157 tons/year
Erosion Information
Total Erosion at Crossing: 3.0391 tons/year
Notes: None apparent.
Summary Information
Fish Passability 0.5
