Road Stream Crossing Site EBIO085
Au Gres River Watershed, Sand Creek
Sand Lake Rd
Grant Twp,
Iosco County
Information collected by:
Site Location
GPS Coordinates: 44.2495
, -83.68318
T22N
R6E
Sec 34 & 35
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.6149 tons/year
Severity: Minor
Year Inventoried: 2014
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 58 ft.
, Width 16 ft.
, Height 5.4 ft.
Structure is NOT Perched

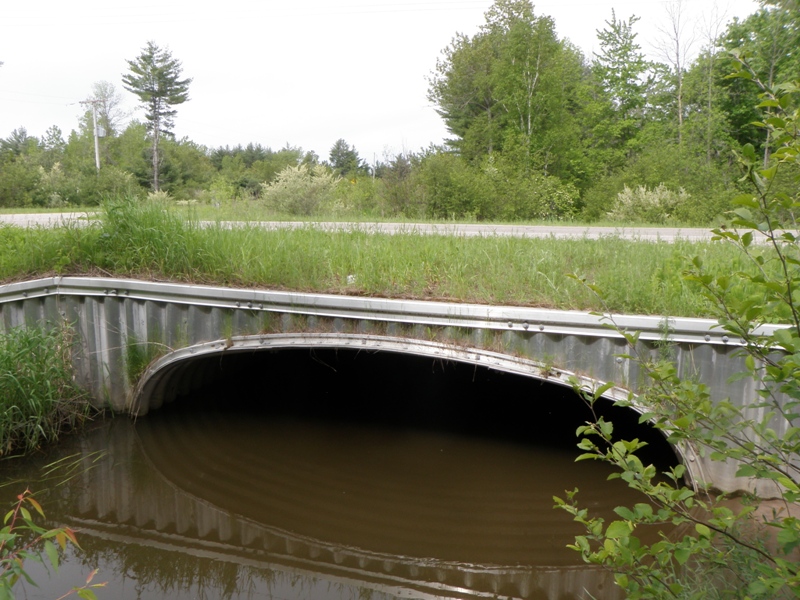

Structure Inlet
Water Depth: 1.9 ft.
Embedded Depth of Structure: 0.7 ft.
Water Velocity*: 1.2 ft./sec.

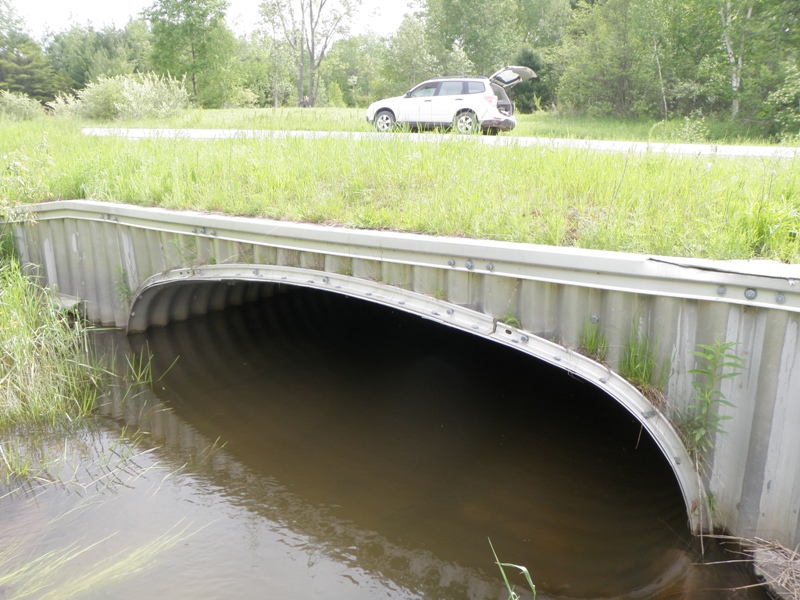

Structure Outlet
Water Depth: 1.8 ft.
Embedded Depth of Structure: 0.6 ft.
Water Velocity*: 0.5 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 1.5 ft.
Bankfull Width: 31 ft.
Wetted Width: 9.5 ft.
Water Velocity: 1.9 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 30 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments

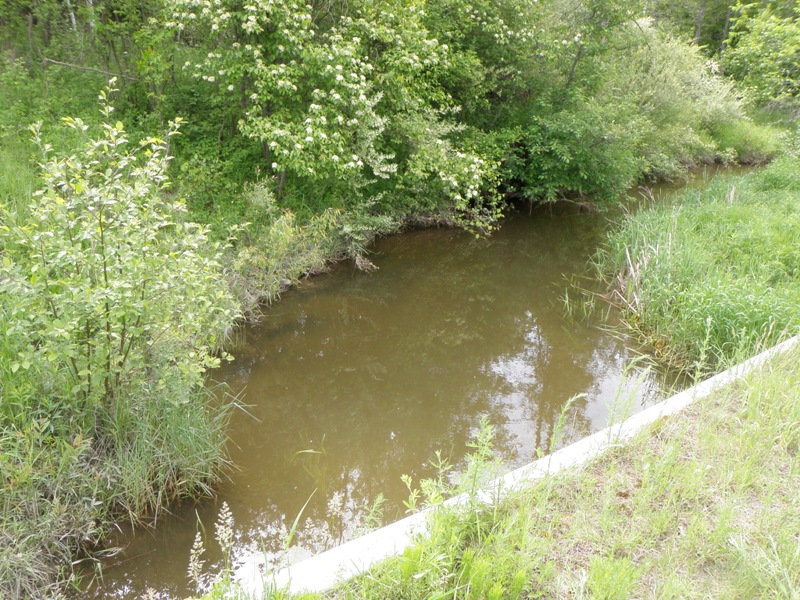

Upstream
Fill Depth: 0.8 ft.
Slope: More than 1:2

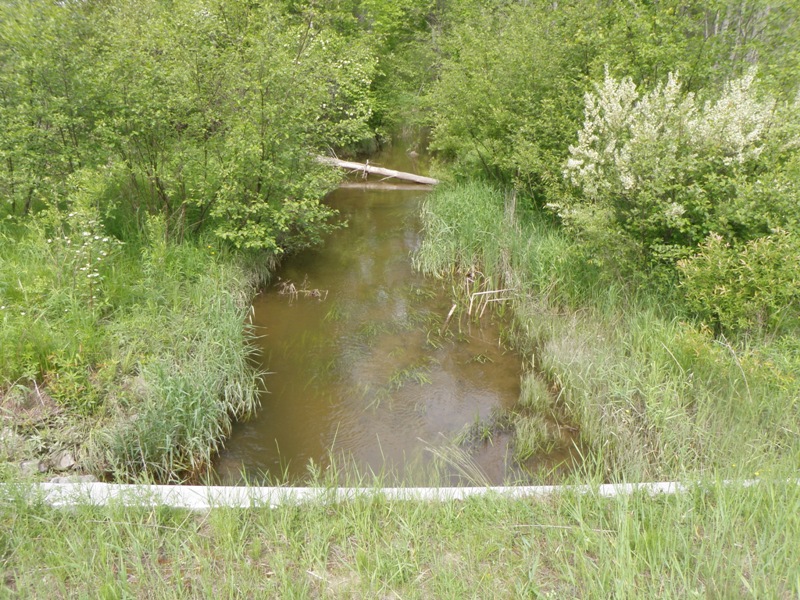

Downstream
Fill Depth: 0.6 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.5653 tons/year

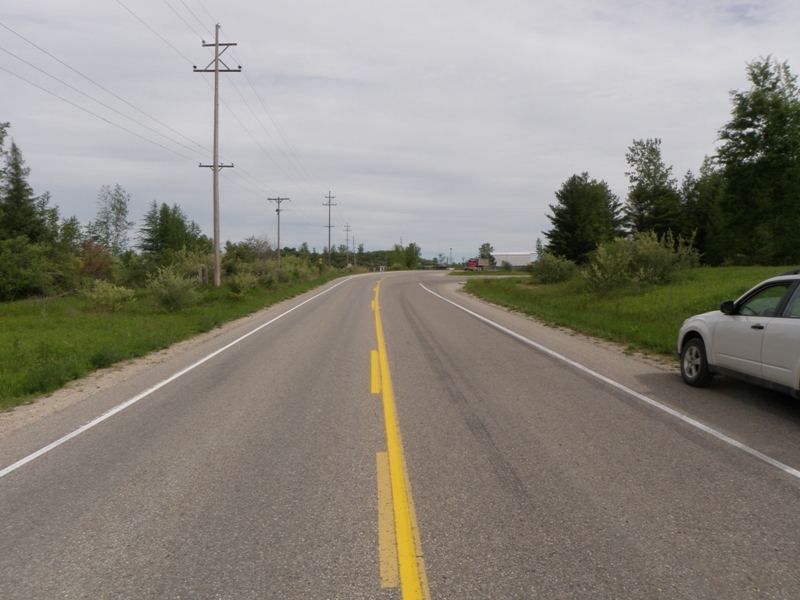

Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0496 tons/year
Erosion Information
Total Erosion at Crossing: 0.6149 tons/year
Notes: None.
Summary Information
Fish Passability 1
These non-native species were observerd at this site: Phragmites, Spotted Knapweed, Autumn Olive
