Road Stream Crossing Site AGAR007

Au Gres River Watershed, Au Gres River
Twining Rd
Turner Twp, Arenac County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.1134 , -83.70104
T20N R6E Sec 24 & 25
Owned by Private
Fish Passability 0
Perch Height: 8.5 ft.
Total Erosion: 0 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID

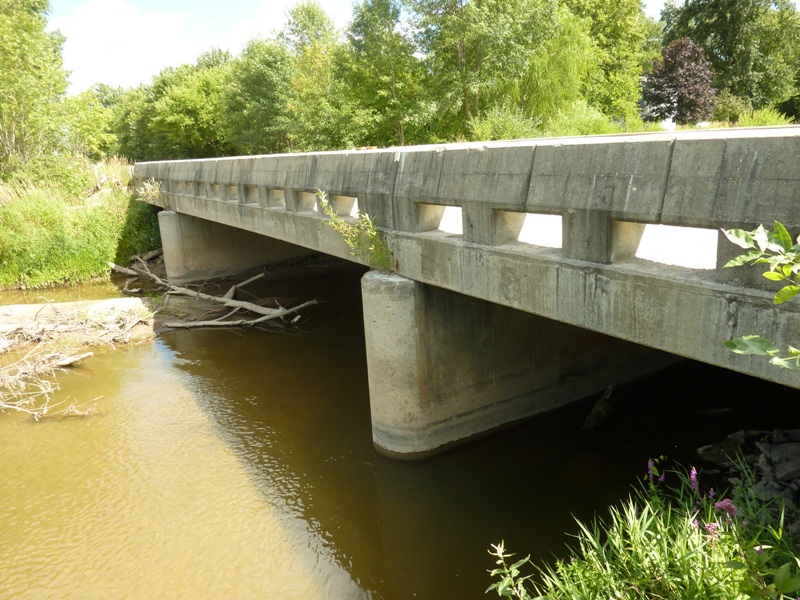

Inlet

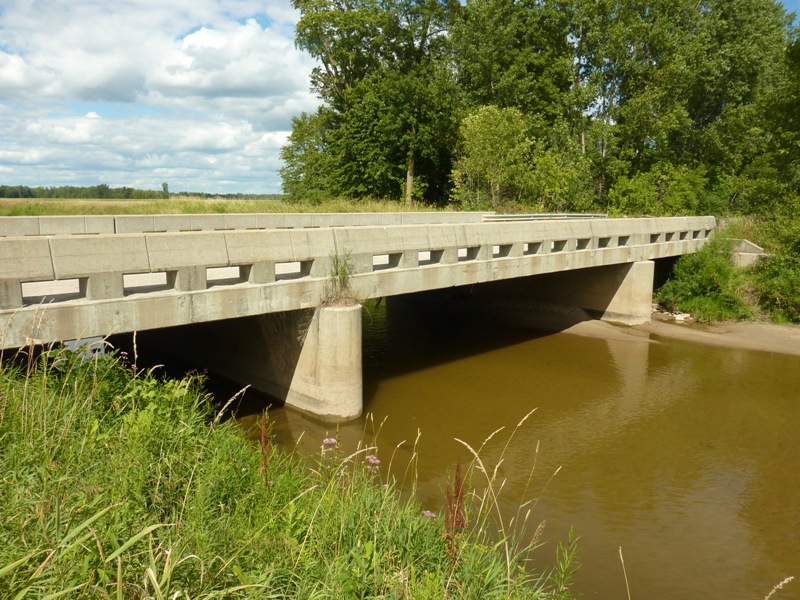

Outlet

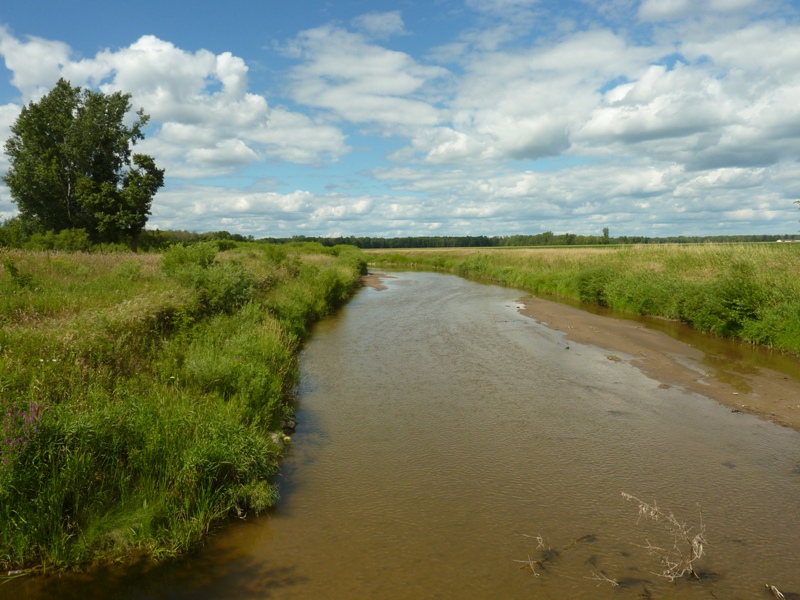

Upstream Conditions

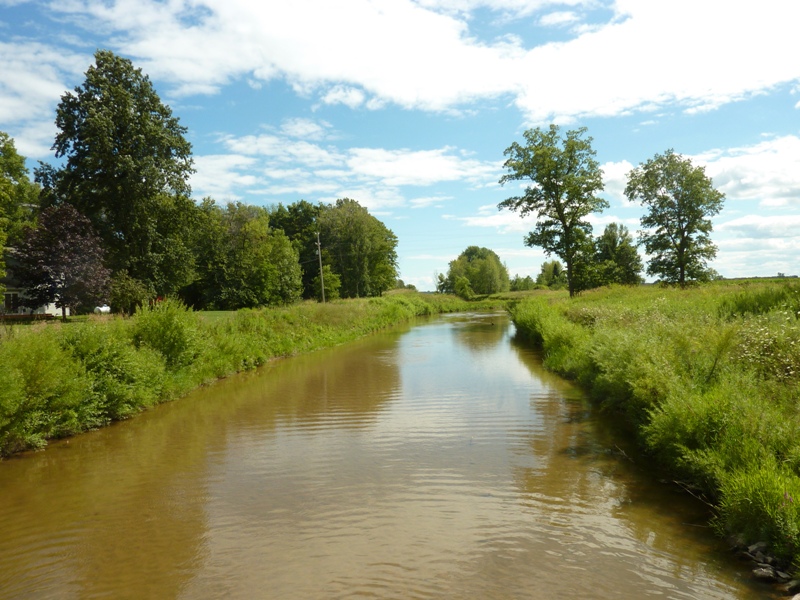

Downstream Conditions

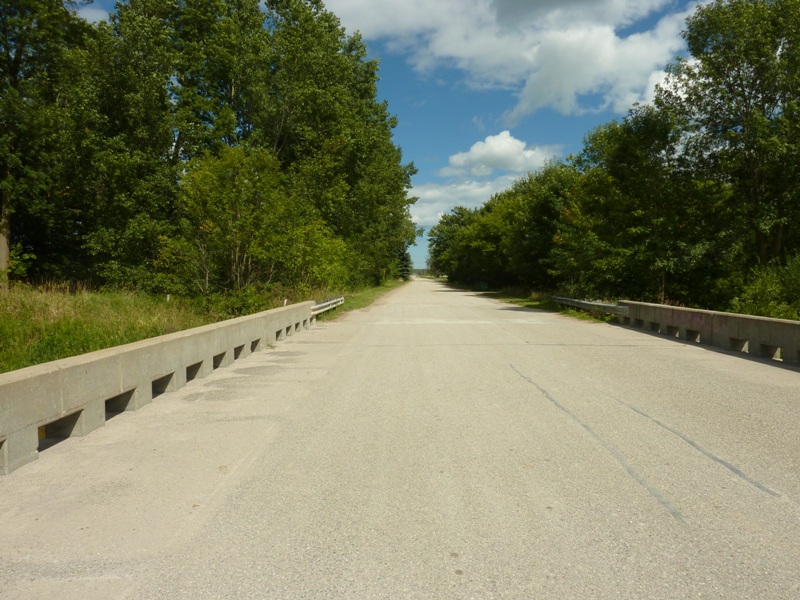

Road Approach - Left

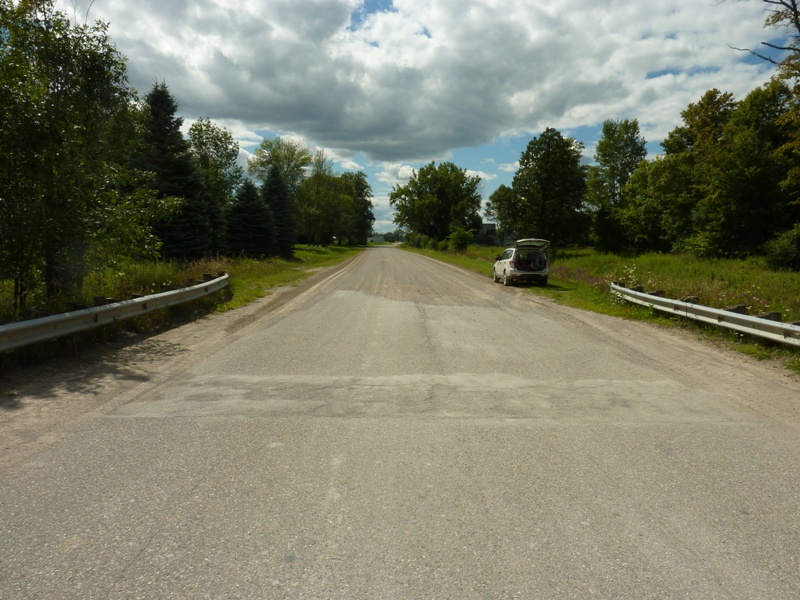

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Other
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: None
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 36 ft. , Width 82 ft. , Height 8.5 ft.
Perch Height: 8.5 ft.
Structure Inlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.6 ft./sec.
Structure Outlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 73 ft.
Wetted Width: 59 ft.
Water Velocity: 0.5 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 34 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0 tons/year
Notes: None.
Summary Information
Fish Passability 0
These non-native species were observerd at this site: Purple Loosestrife, Mullien
