Road Stream Crossing Site EBIO009

Au Gres River Watershed, Tributary of Smith Creek
M-65
Plainfield Twp, Iosco County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.42312 , -83.80476
T24N R5E Sec 34 & 35
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.6053 tons/year
Severity: Moderate
Year Inventoried: 2014

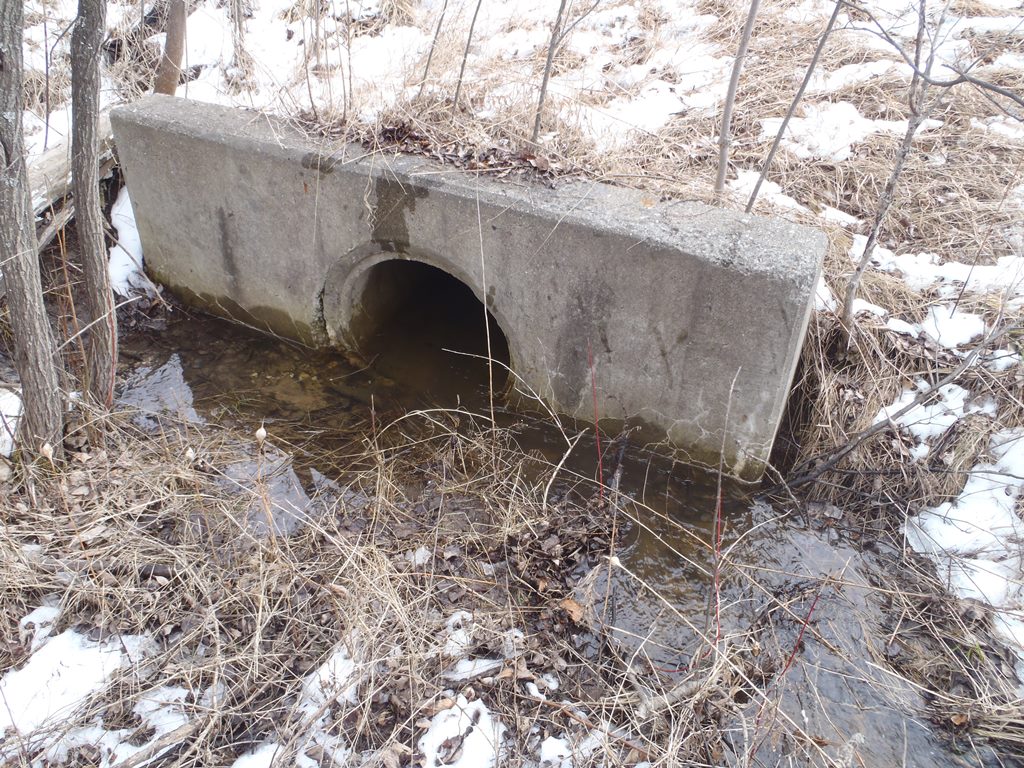

Inlet

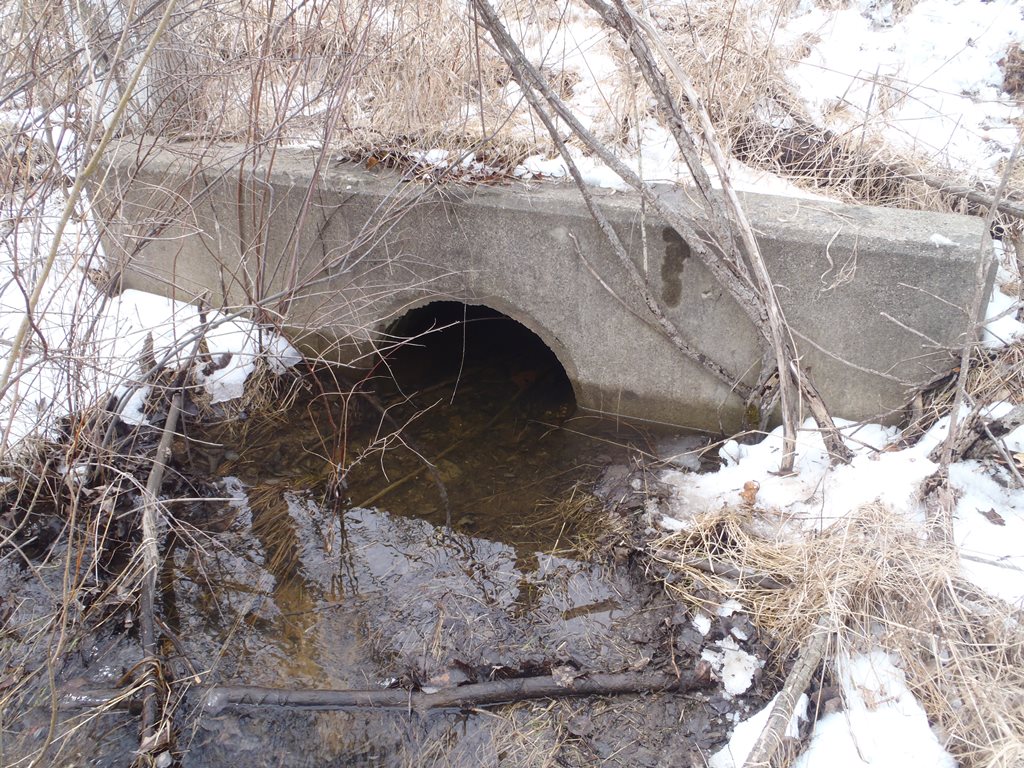

Outlet

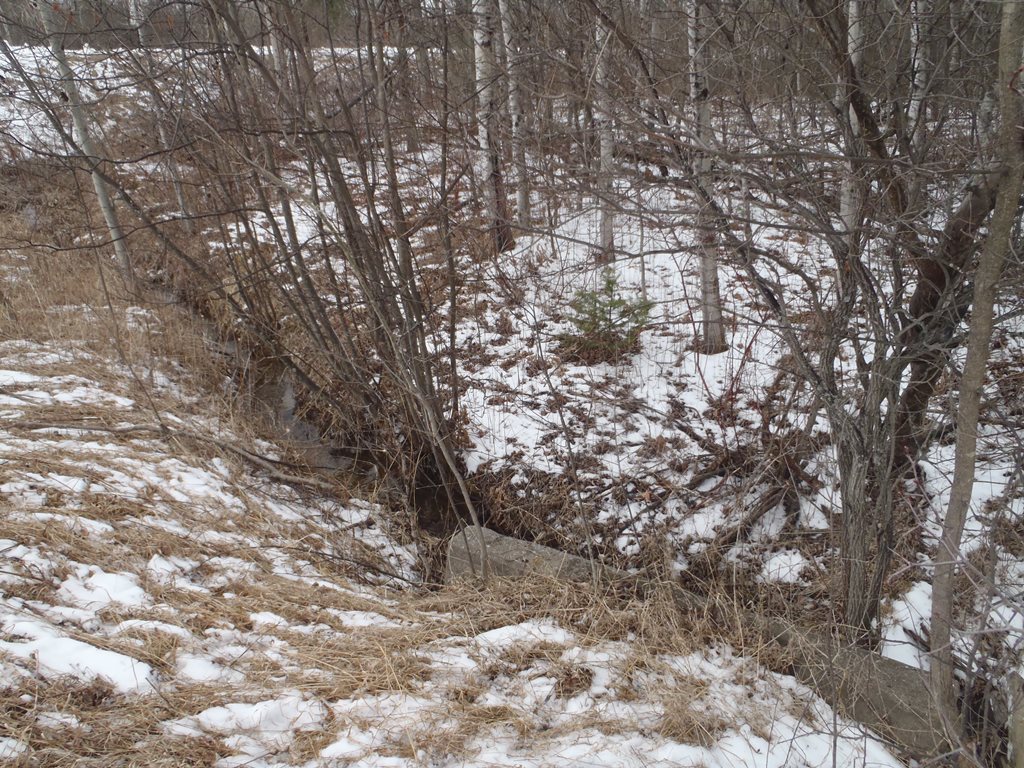

Upstream Conditions
Downstream Conditions

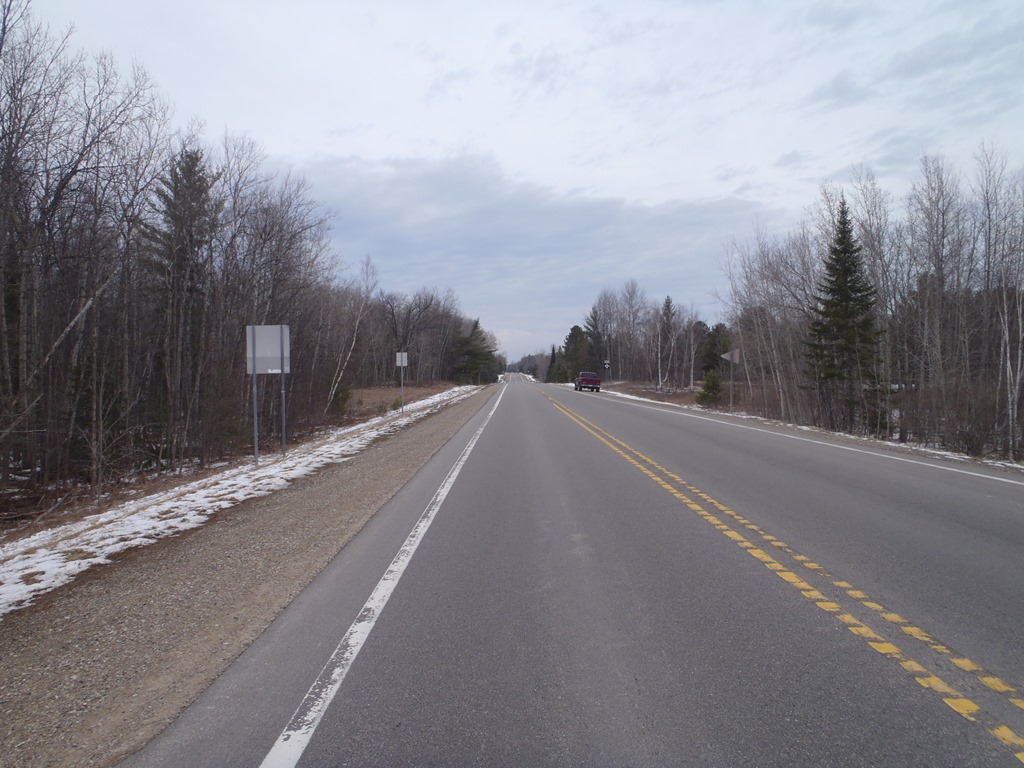

Road Approach - Left

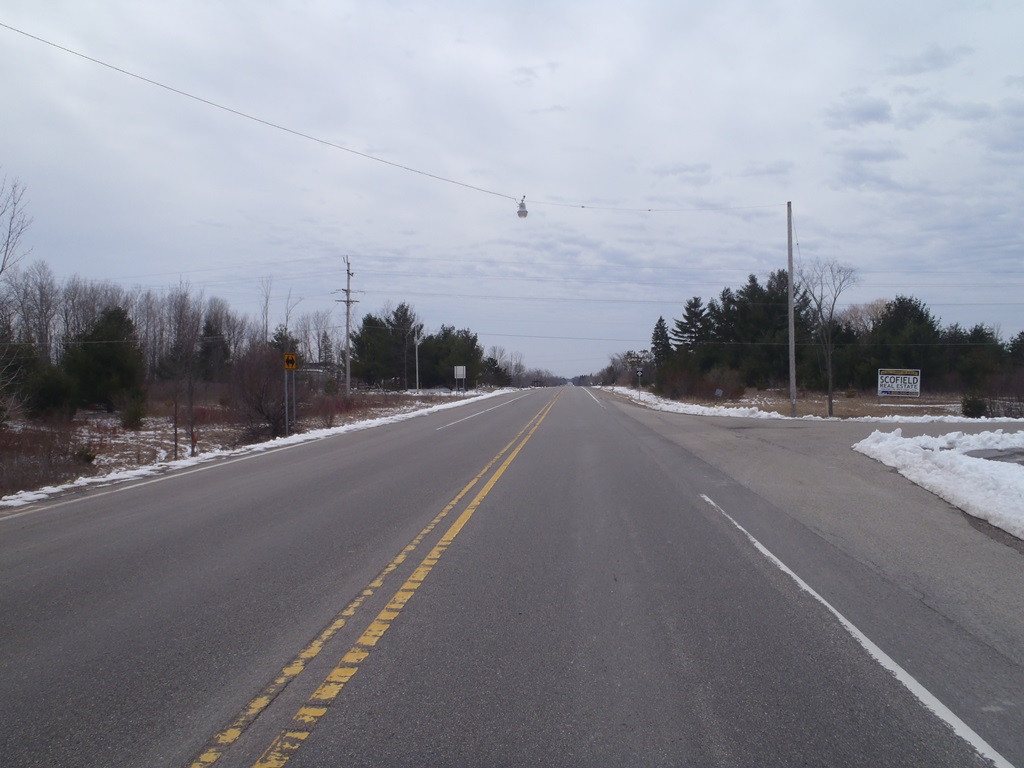

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 112 ft. , Width 2 ft. , Height 1.6 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.3 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 0.2 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 13.5 ft.
Wetted Width: 7.5 ft.
Water Velocity: 0.9 ft./sec. (Measured with Meter)
Dominant Substrate: Organics
Road Information
Paved State Road
Road Condition: Good
Road Width at Culvert: 45 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 7 ft.
Slope: More than 1:2
Downstream
Fill Depth: 6.2 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.26
Erosion: 0 tons/year
Right Approach
Length: 750 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.543
Erosion: 0.6053 tons/year
Erosion Information
Total Erosion at Crossing: 0.6053 tons/year
Notes: No apparent erosion.
Summary Information
Fish Passability 0.9
