Road Stream Crossing Site EBIO021

Au Gres River Watershed, Drainage Ditch
Esmond Rd
Plainfield Twp, Iosco County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.377833 , -83.856056
T23N R5E Sec 17 & 20
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.0793 tons/year
Severity: Minor
Year Inventoried: 2014

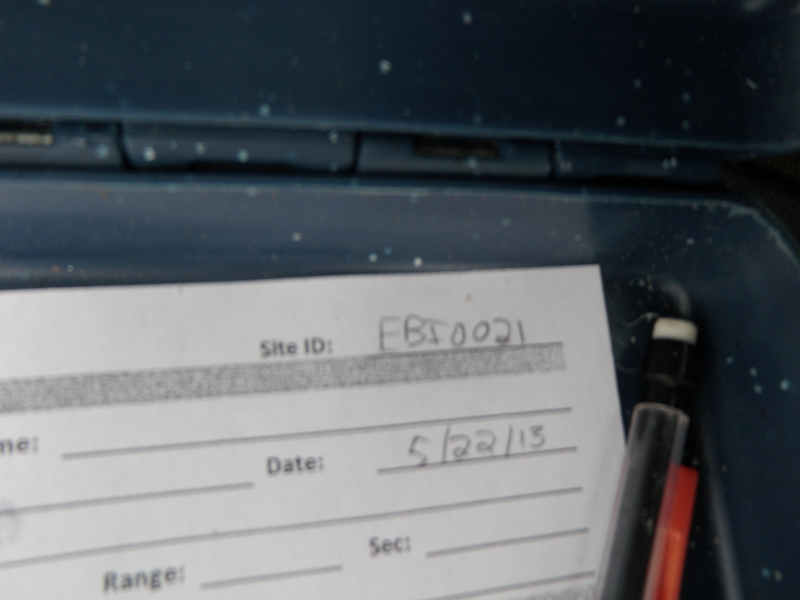

Site ID

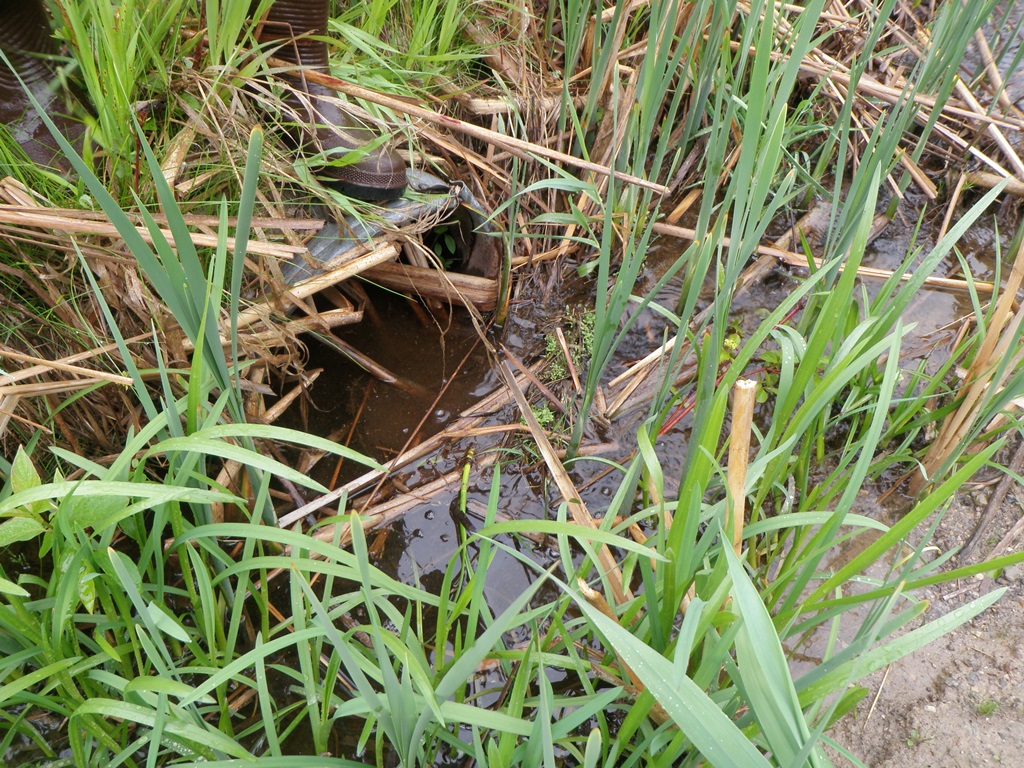

Inlet

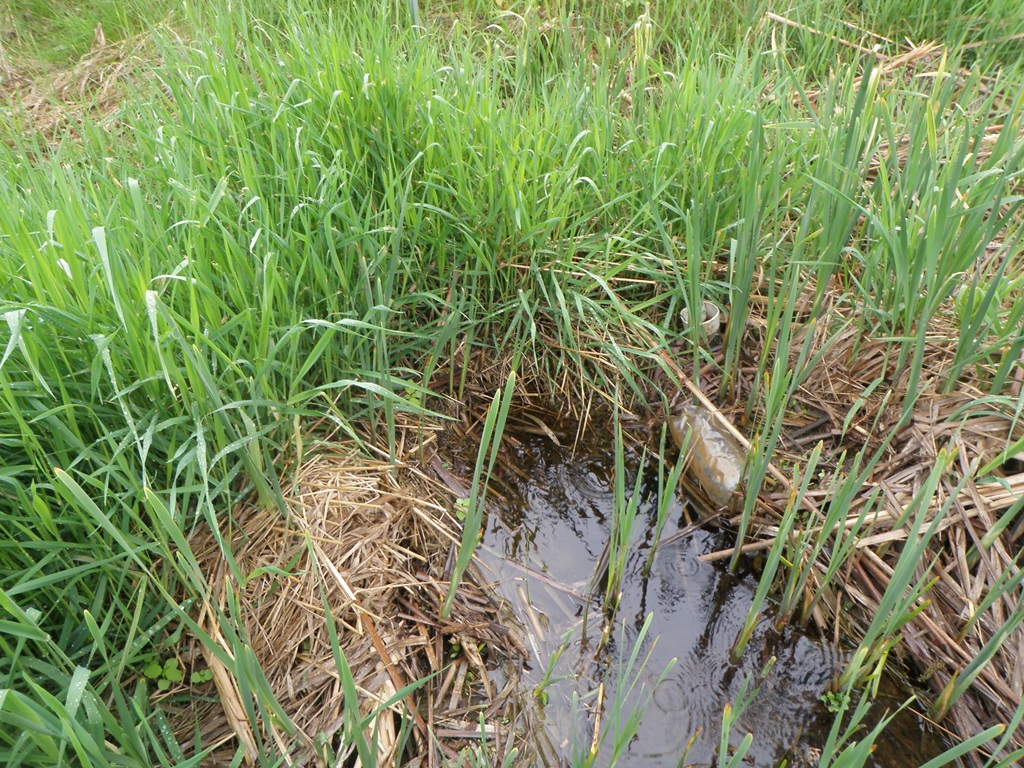

Outlet

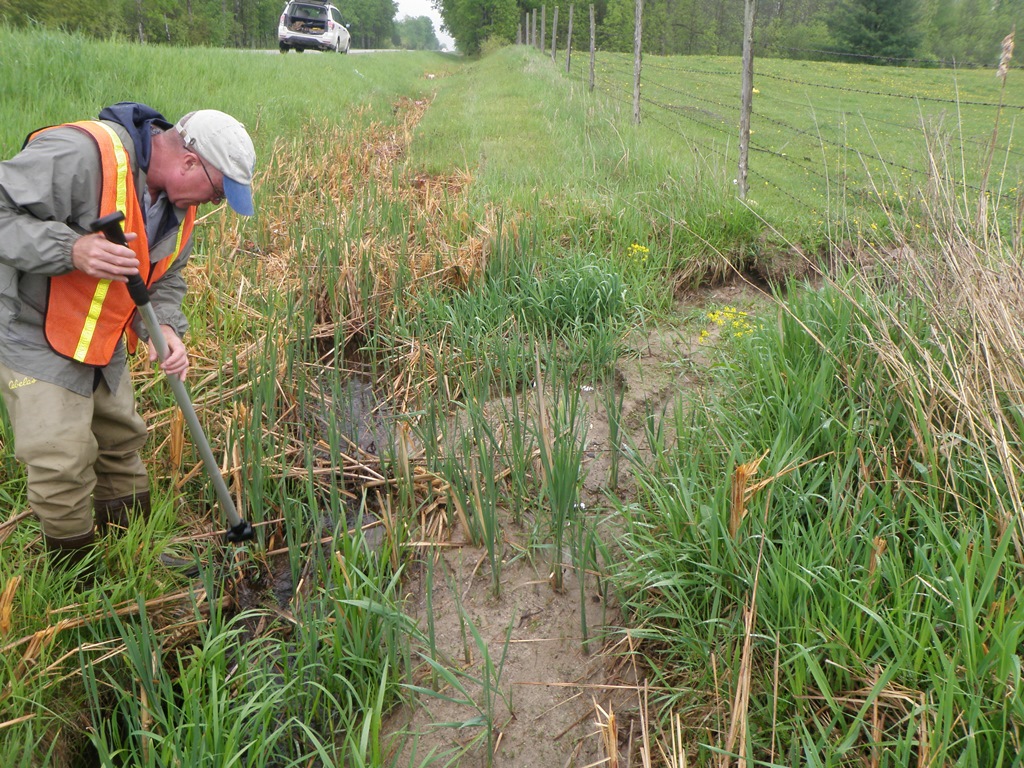

Upstream Conditions

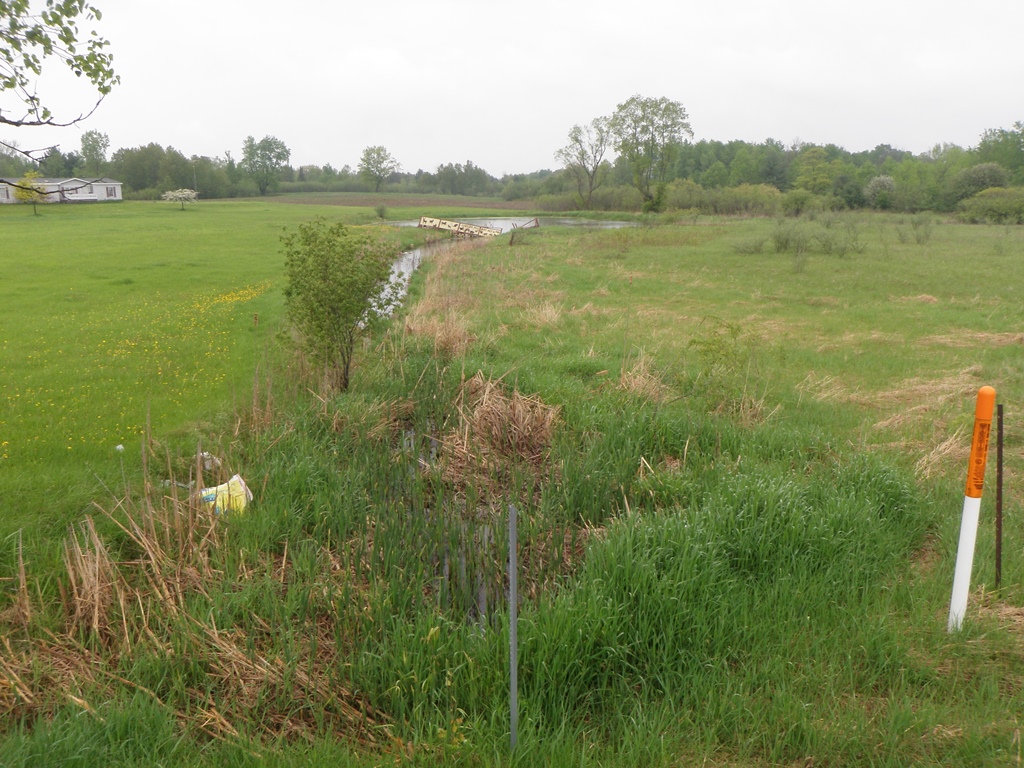

Downstream Conditions

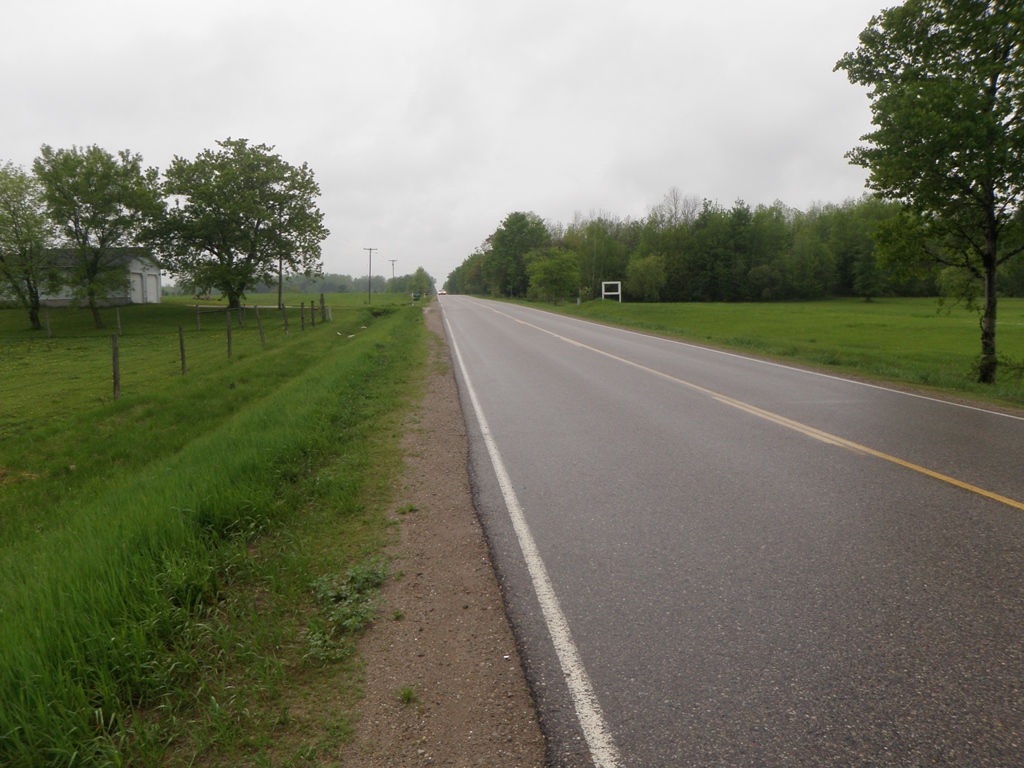

Road Approach - Left

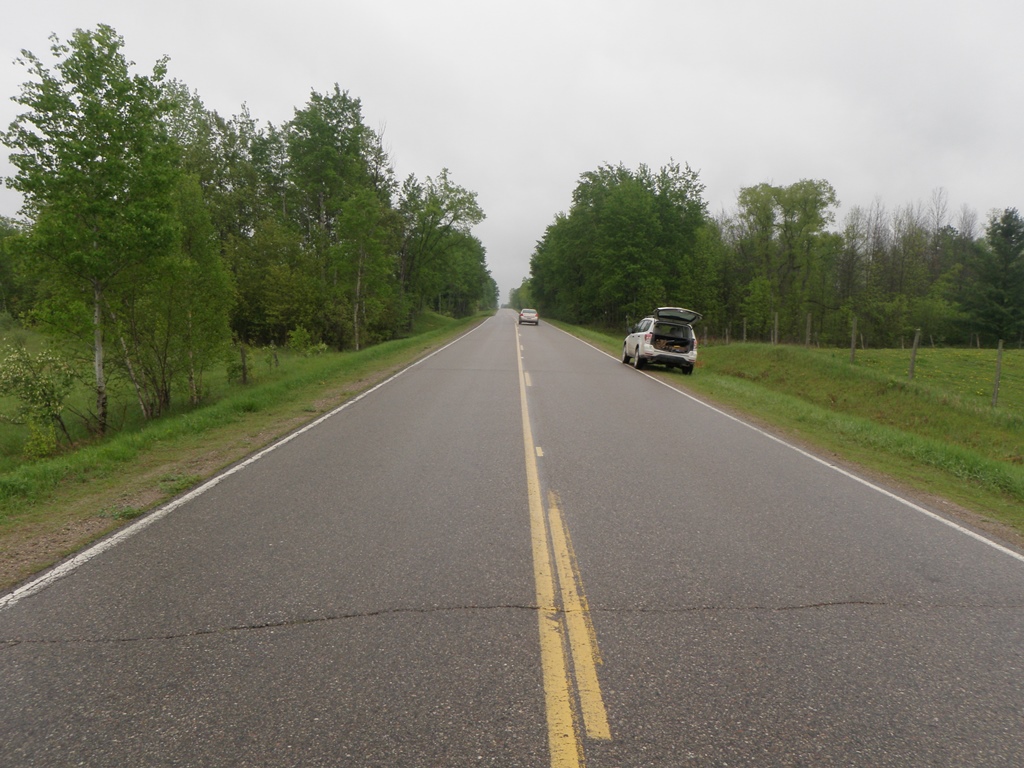

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 60 ft. , Width 2.1 ft. , Height 2.1 ft.
Percentage Plugged: Inlet: 0% Outlet: 76% to 100% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0.5 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 13 ft.
Wetted Width: 3 ft.
Water Velocity: 0.1 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 5.4 ft.
Slope: More than 1:2
Downstream
Fill Depth: 5.9 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0397 tons/year
Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0397 tons/year
Erosion Information
Total Erosion at Crossing: 0.0793 tons/year
Notes: No apparent erosion.
Summary Information
Fish Passability 0.9
These non-native species were observerd at this site: Mullien, Autumn Olive
