Road Stream Crossing Site EBIO029
Au Gres River Watershed, Addy Drain
Wilson Creek Rd
Plainfield Twp,
Iosco County
Information collected by:
Site Location
GPS Coordinates: 44.357472
, -83.844861
T23N
R5E
Sec 28 & 29
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.6336 tons/year
Severity: Moderate
Year Inventoried: 2014
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 47 ft.
, Width 4.9 ft.
, Height 4.9 ft.
Percentage Crushed:
Inlet: 0%
Outlet: 0%
In Pipe: 1% to 25%
Structure is NOT Perched

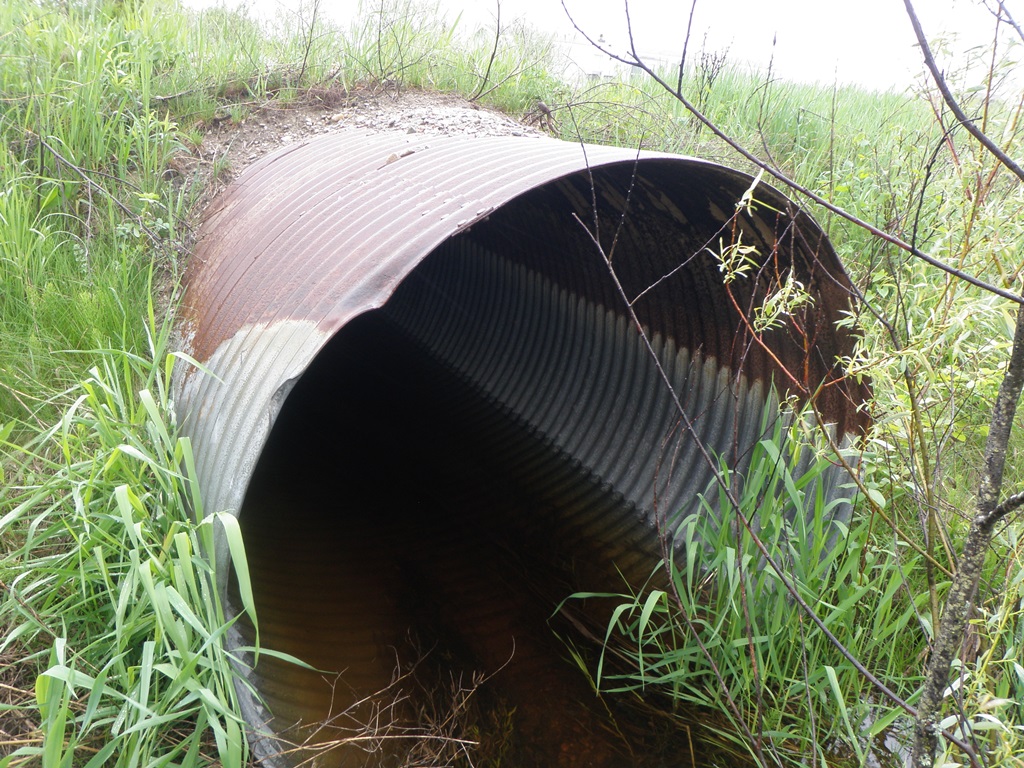

Structure Inlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.6 ft./sec.

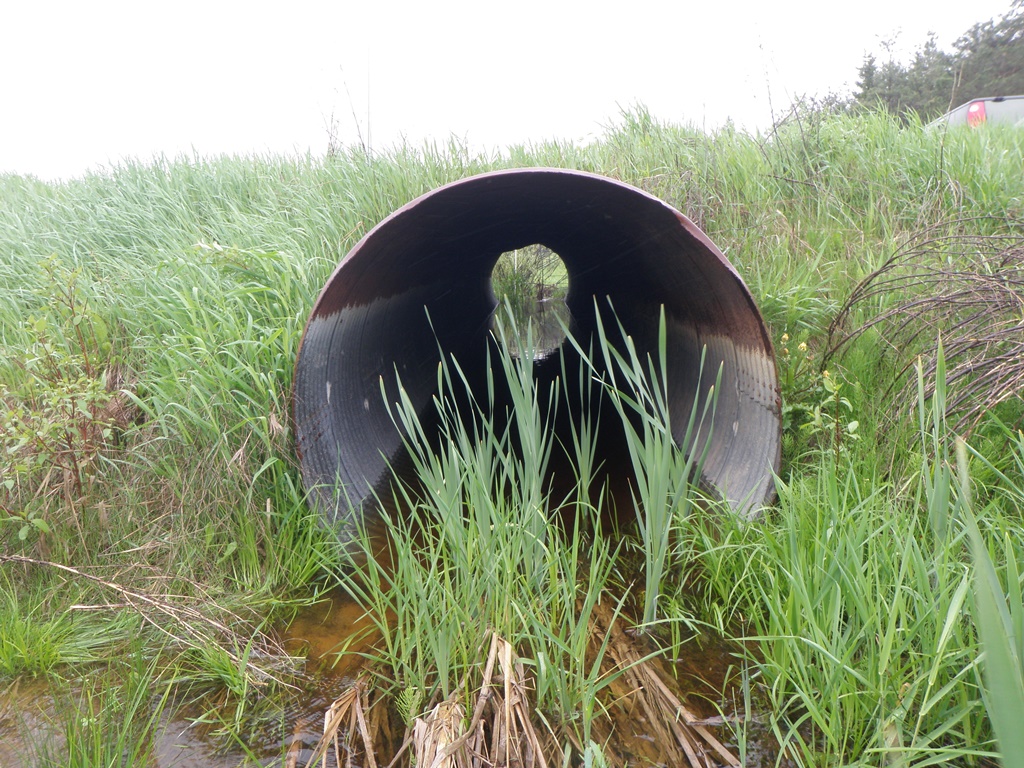

Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.5 ft.
Water Velocity*: 0.5 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 1 ft.
Bankfull Width: 10 ft.
Wetted Width: 8 ft.
Water Velocity: 0.4 ft./sec.
(Measured with Meter)
Dominant Substrate: Organics
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 23 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments

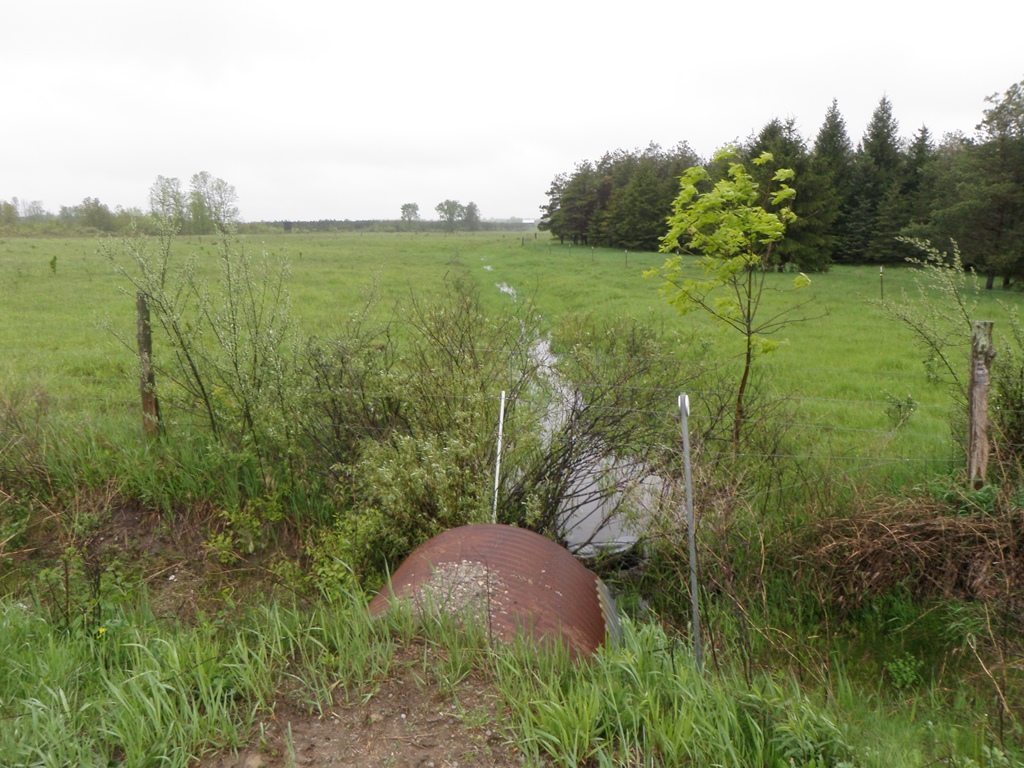

Upstream
Fill Depth: 0.2 ft.
Slope: More than 1:2

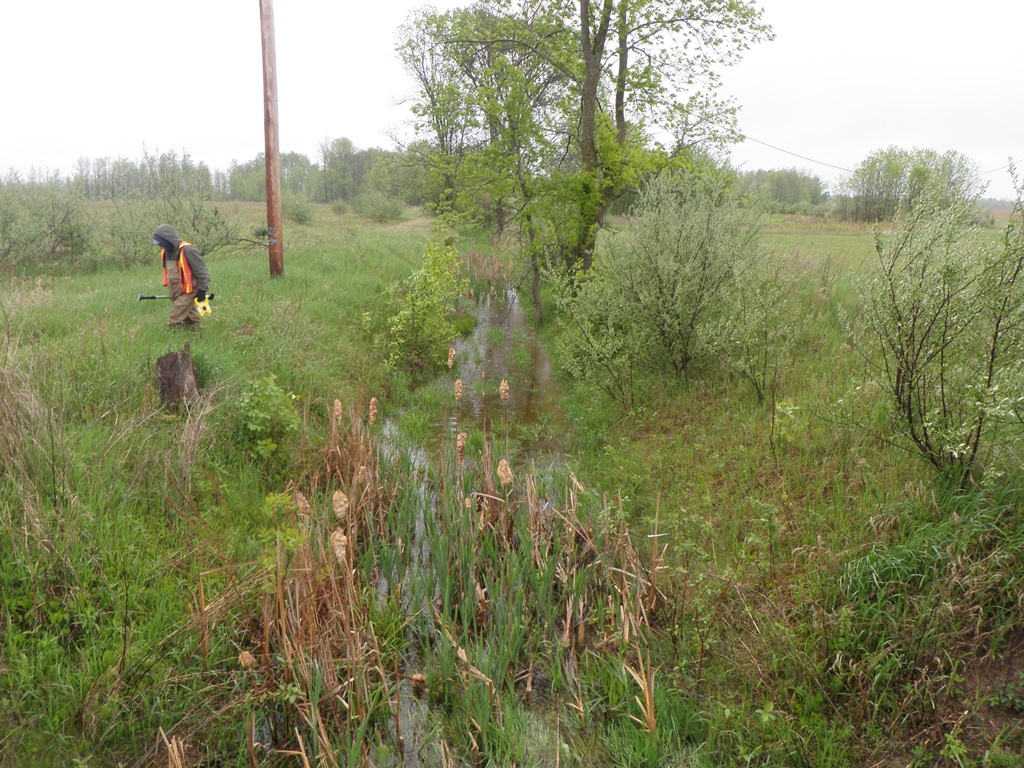

Downstream
Fill Depth: 0.3 ft.
Slope: More than 1:2
Approaches

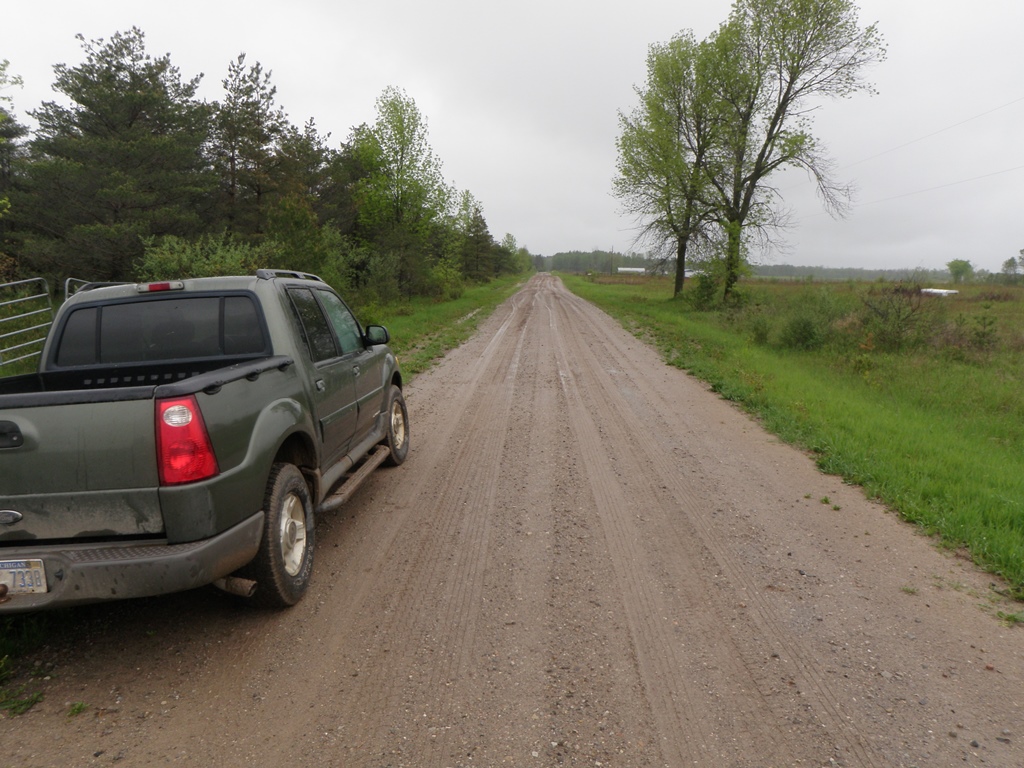

Left Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.3168 tons/year

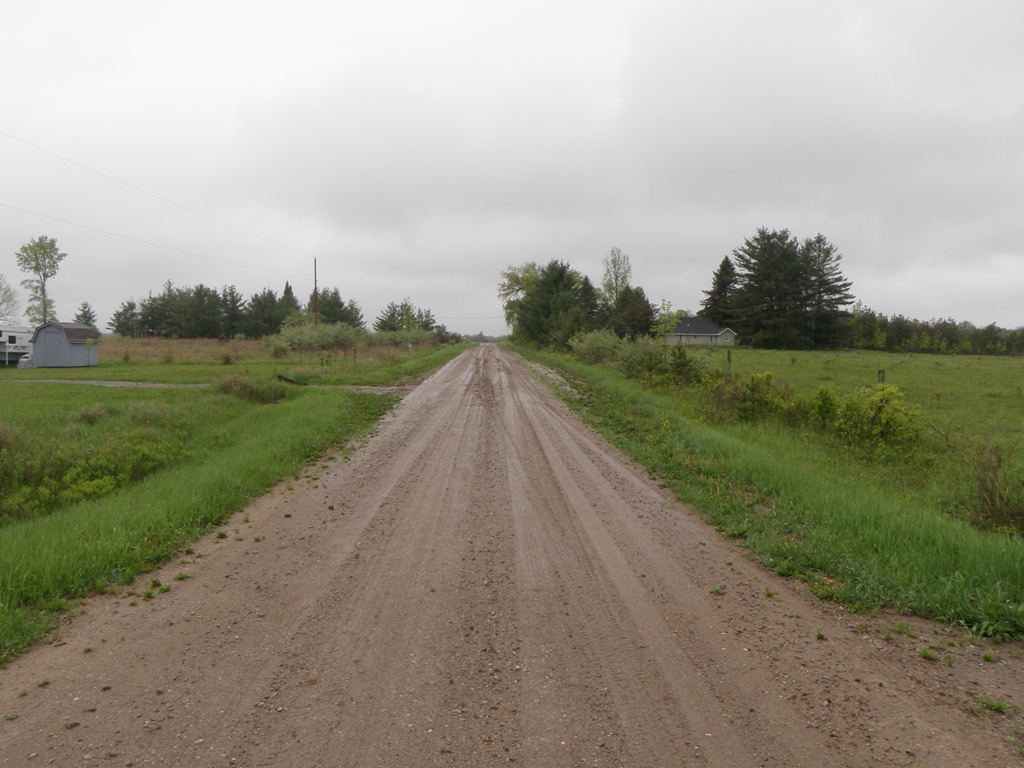

Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.3168 tons/year
Erosion Information
Total Erosion at Crossing: 0.6336 tons/year
Notes: No erosion apparent.
Summary Information
Fish Passability 0.9
These non-native species were observerd at this site: Autumn Olive, Spotted Knapweed
