Road Stream Crossing Site EBIO030
Au Gres River Watershed, Addy Drain
Curtis Rd
Plainfield Twp,
Iosco County
Information collected by:
Site Location
GPS Coordinates: 44.363
, -83.853083
T23N
R5E
Sec 20 & 29
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 0.3436 tons/year
Severity: Minor
Year Inventoried: 2014
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Apron
Outlet Type: Outlet Apron
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 60 ft.
, Width 8.8 ft.
, Height 3.3 ft.
Percentage Plugged:
Inlet: 0%
Outlet: 1% to 25%
In Pipe: 0%
Structure is NOT Perched

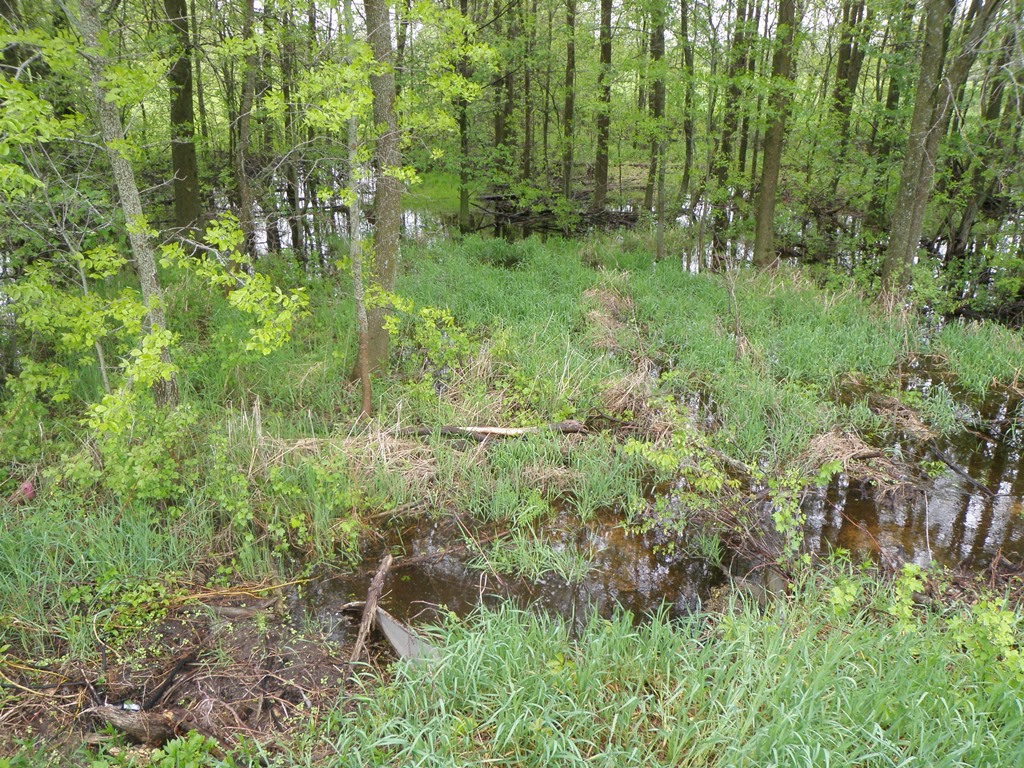

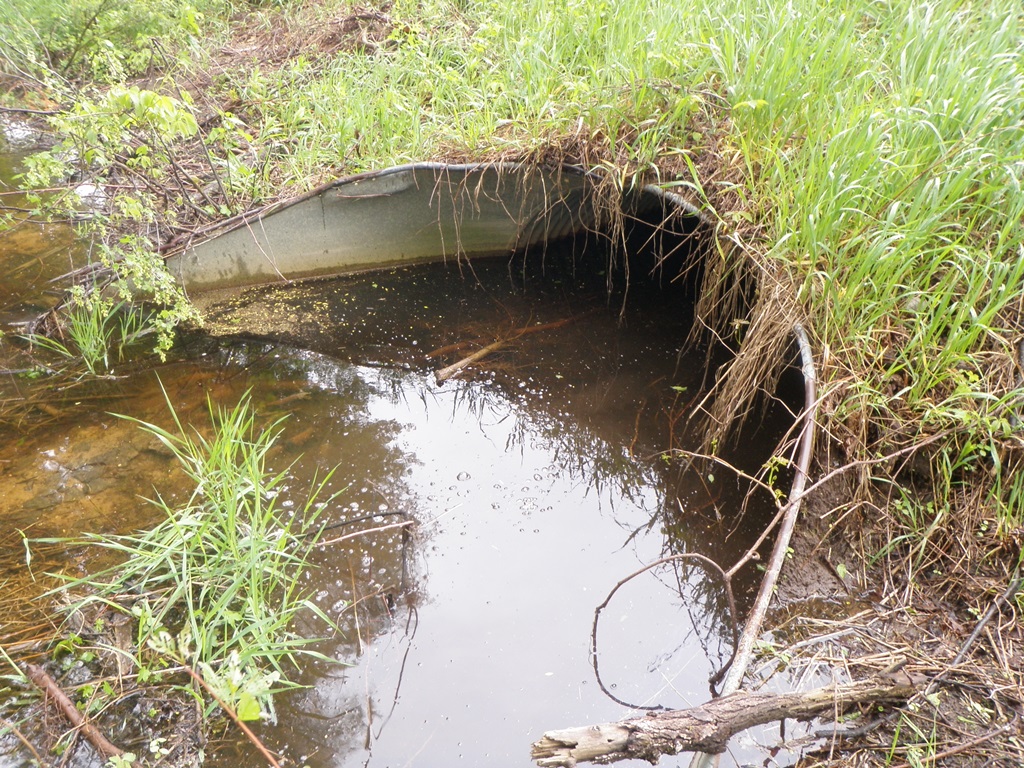

Structure Inlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0.5 ft.
Water Velocity*: 0 ft./sec.

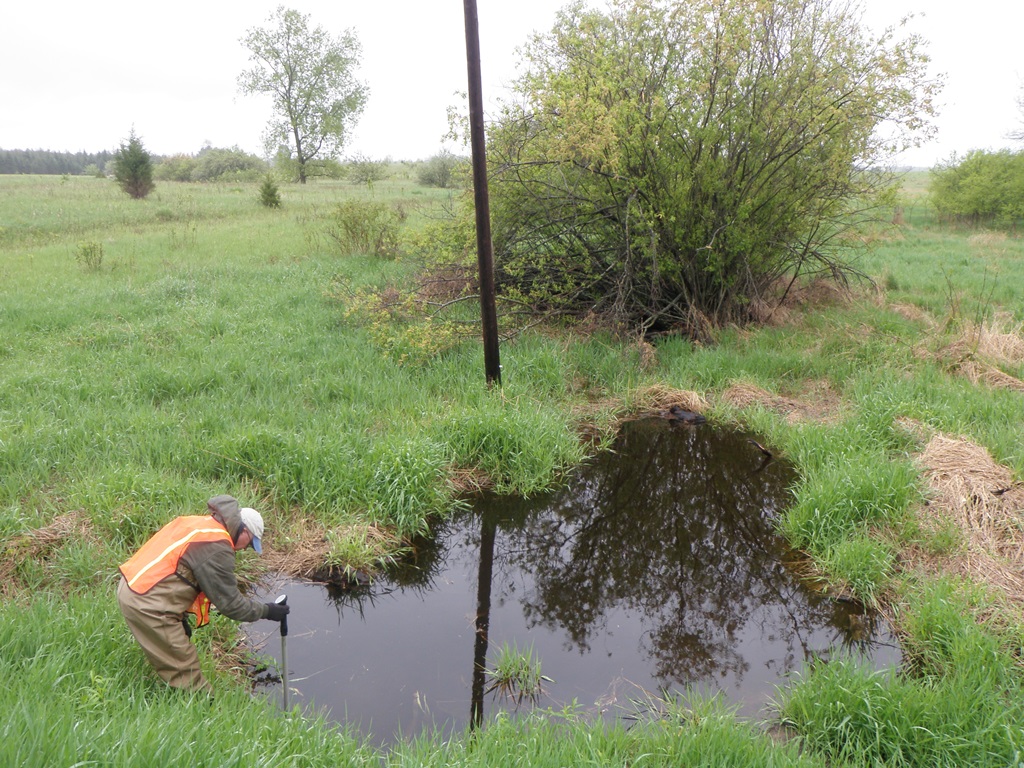

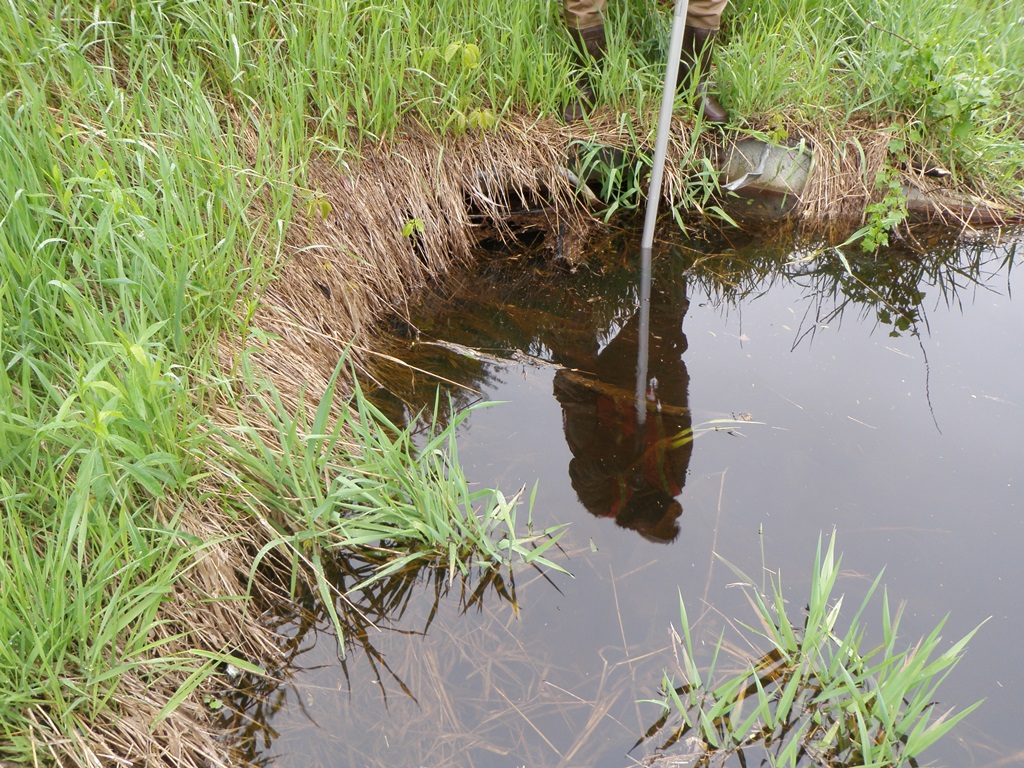

Structure Outlet
Water Depth: 1 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3.6 ft.
Slope: More than 1:2
Downstream
Fill Depth: 5 ft.
Slope: More than 1:2
Approaches

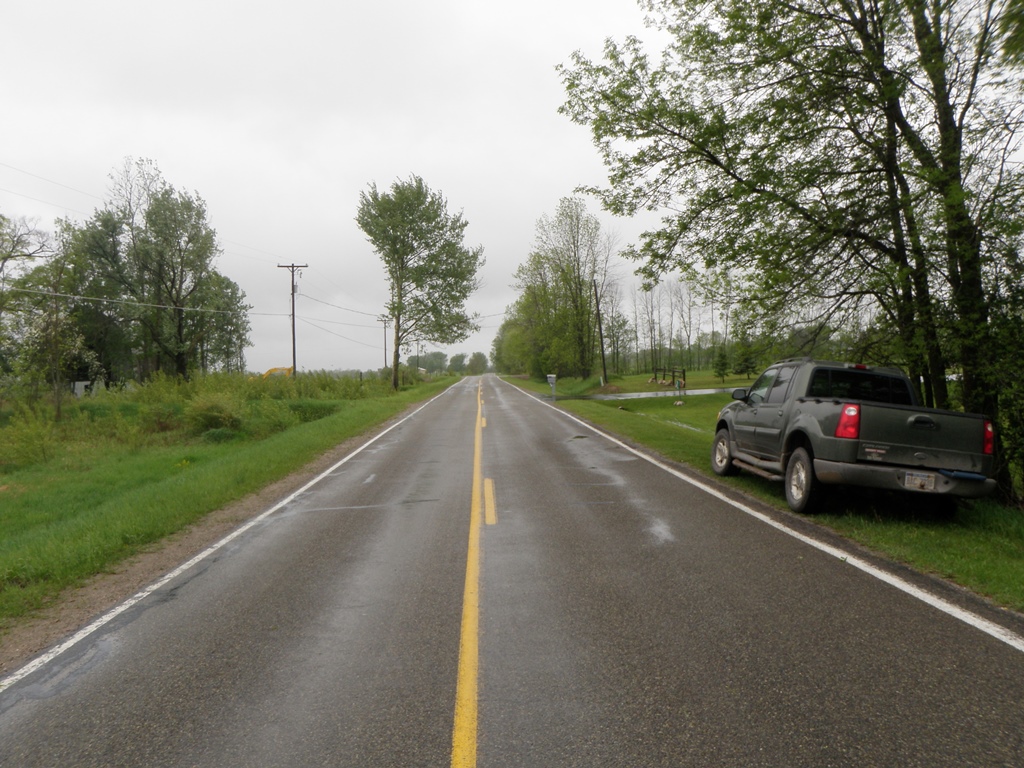

Left Approach
Length: 400 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.48
Erosion: 0.1396 tons/year

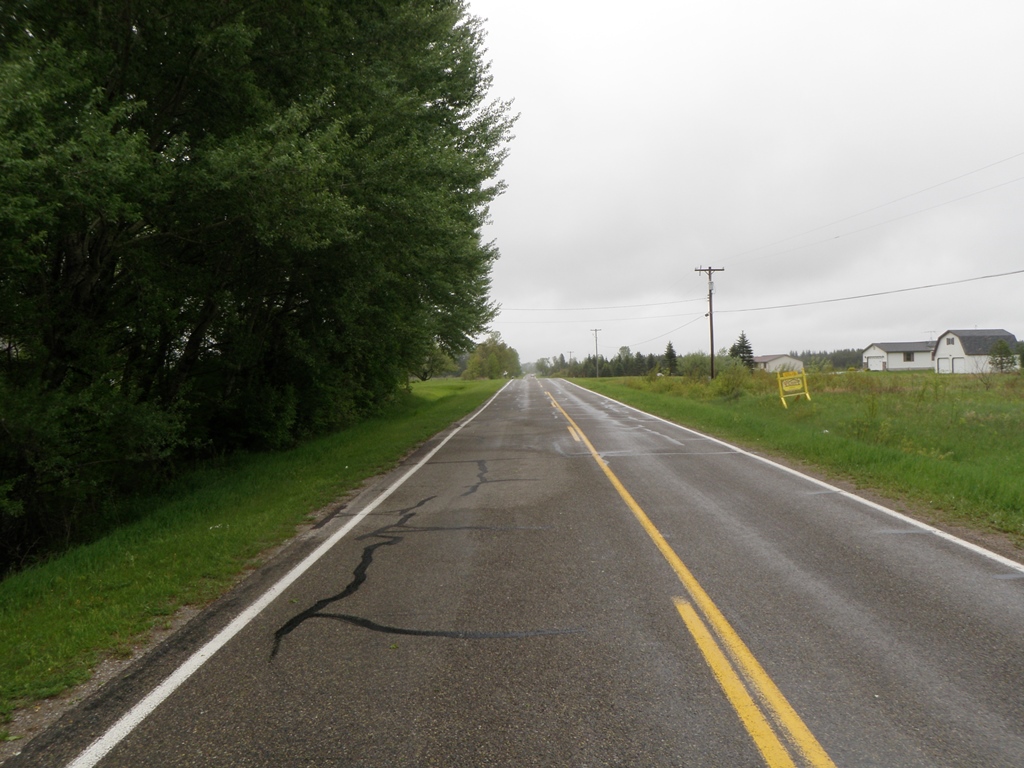

Right Approach
Length: 550 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.51
Erosion: 0.204 tons/year
Erosion Information
Total Erosion at Crossing: 0.3436 tons/year
Notes: No erosion apparent.
Summary Information
Fish Passability 0.9
