Road Stream Crossing Site EBIO070
Au Gres River Watershed, East Branch Au Gres River tributary
Old State Rd
Grant Twp,
Iosco County
Information collected by:
Site Location
GPS Coordinates: 44.31349
, -83.70492
T22N
R6E
Sec 9
Owned by Private
Fish Passability 0
Perch Height: 0.8 ft.
Total Erosion: 1.5074 tons/year
Severity: Severe
Year Inventoried: 2014
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Plastic
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 125 ft.
, Width 1.8 ft.
, Height 1.8 ft.
Perch Height: 0.8 ft.

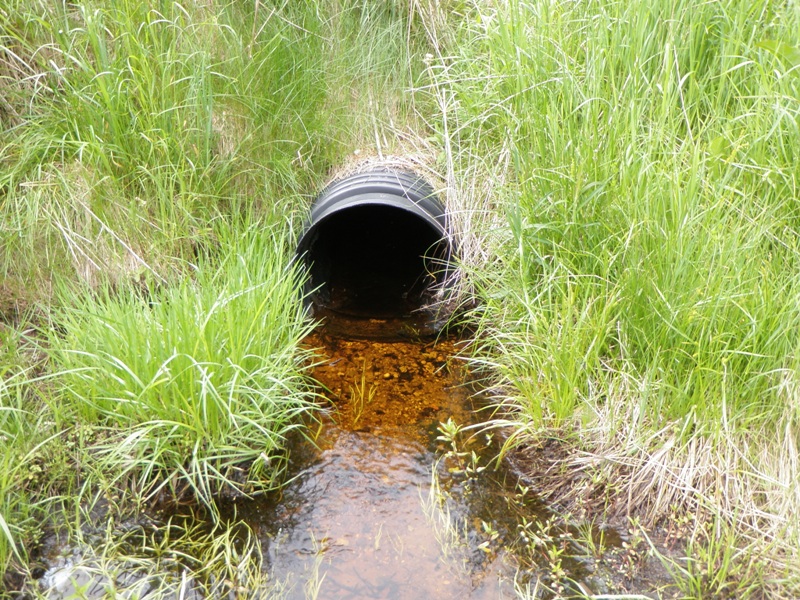

Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.7 ft./sec.

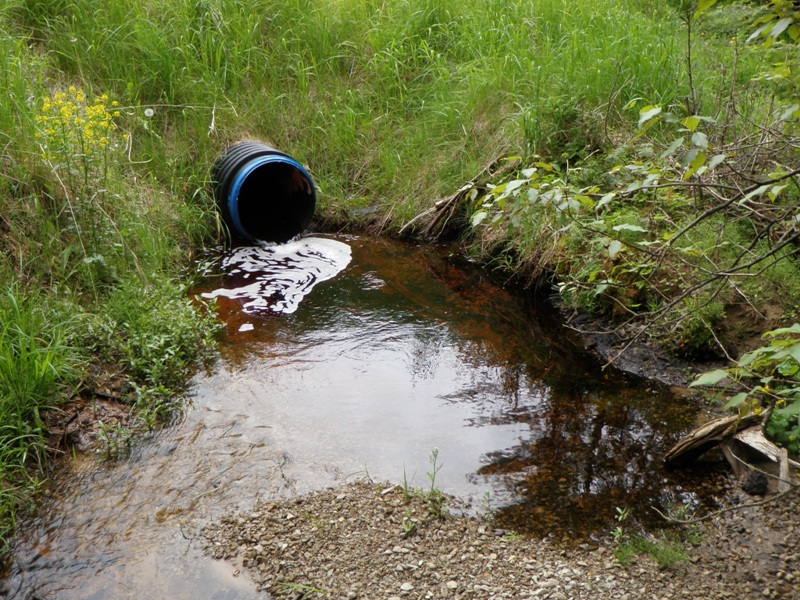

Structure Outlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.3 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 9 ft.
, Width 5.5 ft.
, Depth 1.4 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 13.4 ft.
Wetted Width: 4.5 ft.
Water Velocity: 0.4 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 40 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments

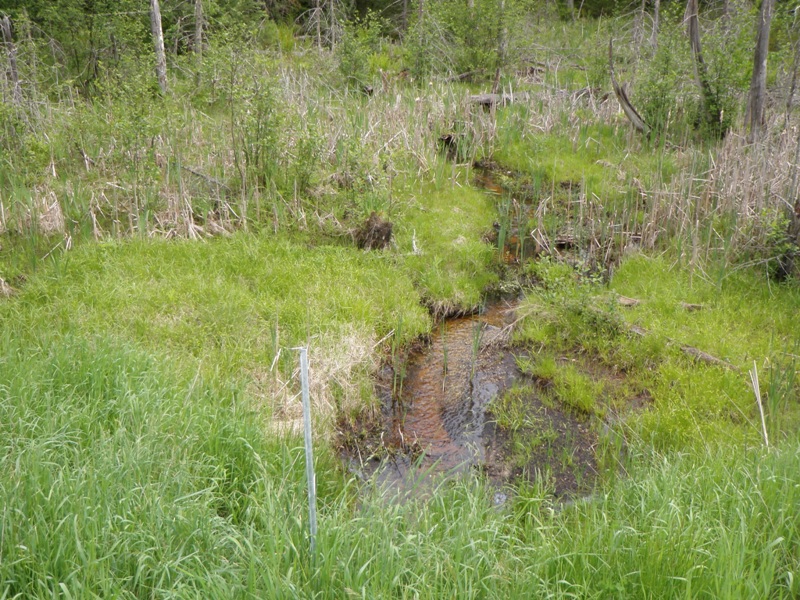

Upstream
Fill Depth: 6.7 ft.
Slope: More than 1:2

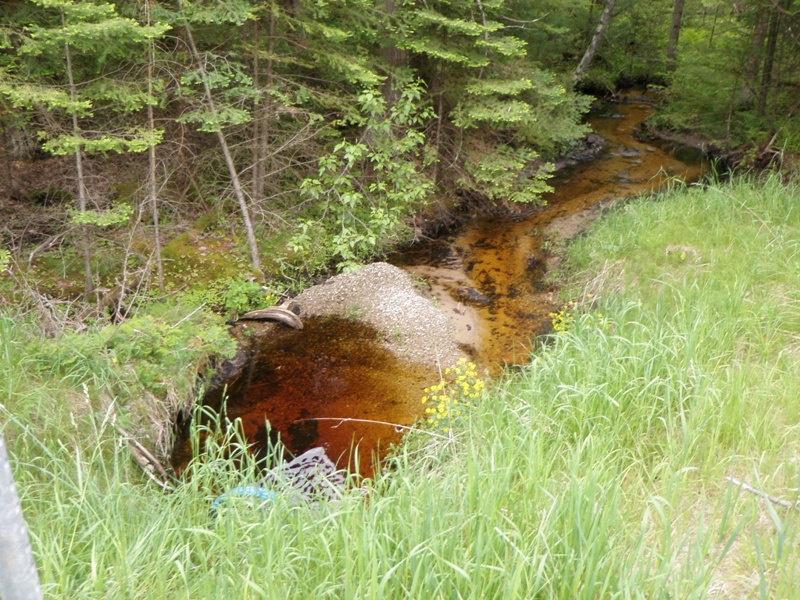

Downstream
Fill Depth: 7 ft.
Slope: More than 1:2
Approaches

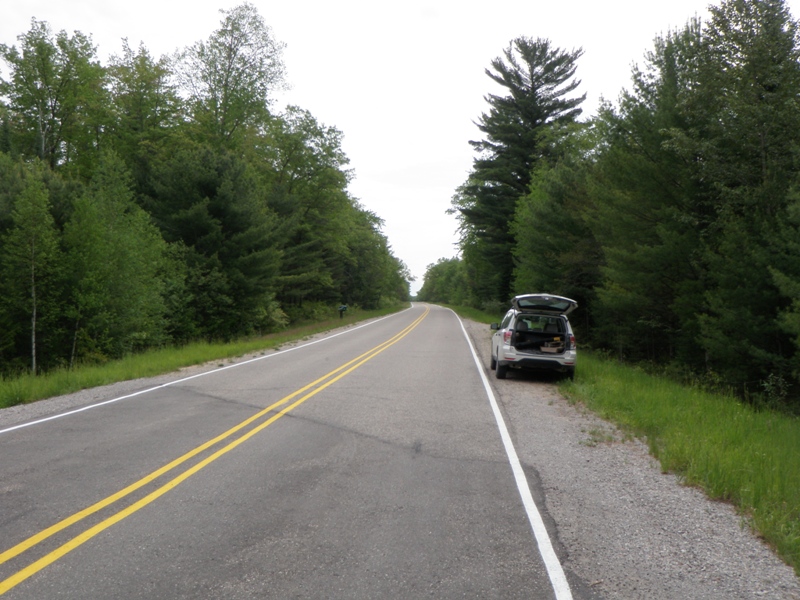

Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.7537 tons/year

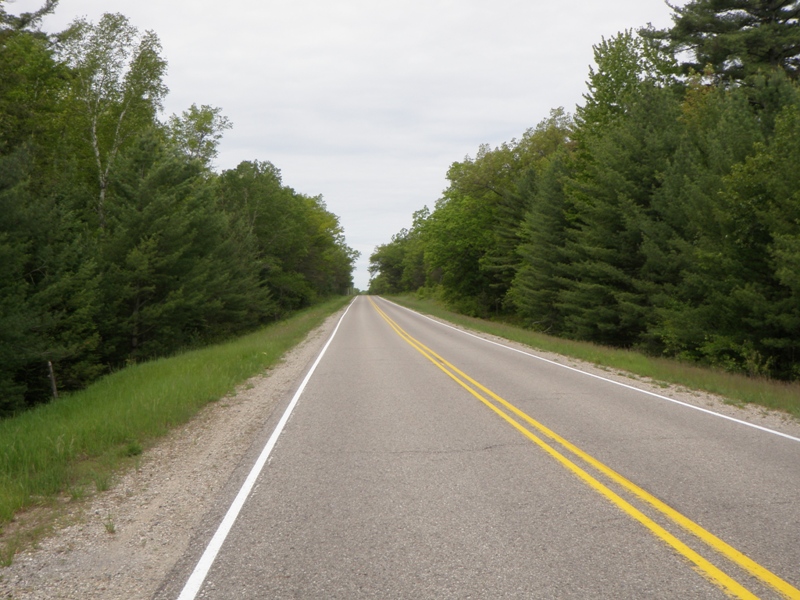

Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.7537 tons/year
Erosion Information
Total Erosion at Crossing: 1.5074 tons/year
Notes: None.
Summary Information
Fish Passability 0
These non-native species were observerd at this site: Mullien
