Road Stream Crossing Site AGIO011

Au Gres River Watershed, Latter Creek
Carpenter Rd
Reno Twp, Iosco County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.28456 , -83.78454
T22N R5E Sec 23
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 7.8423 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID
Inlet

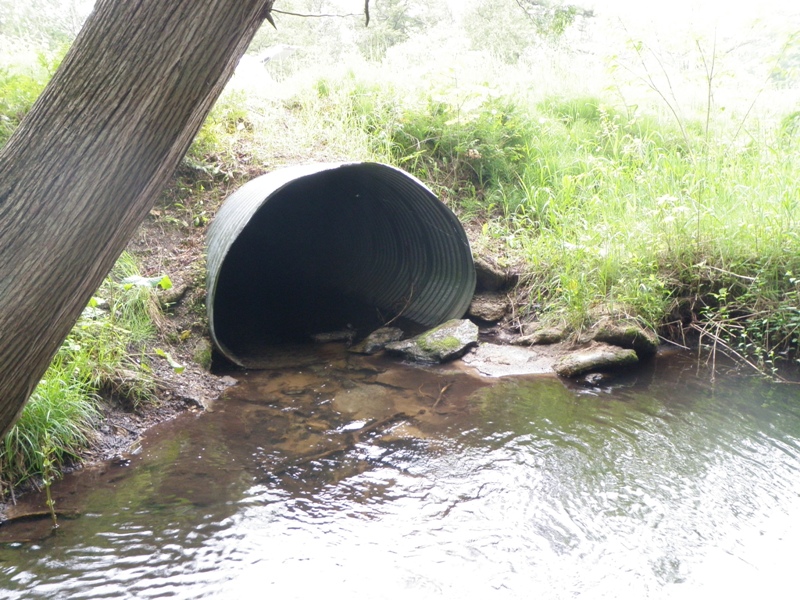

Outlet

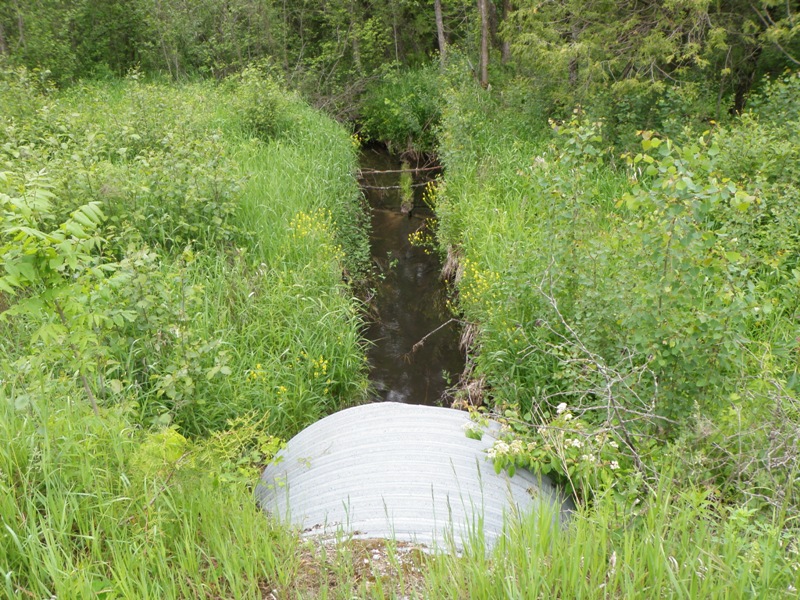

Upstream Conditions

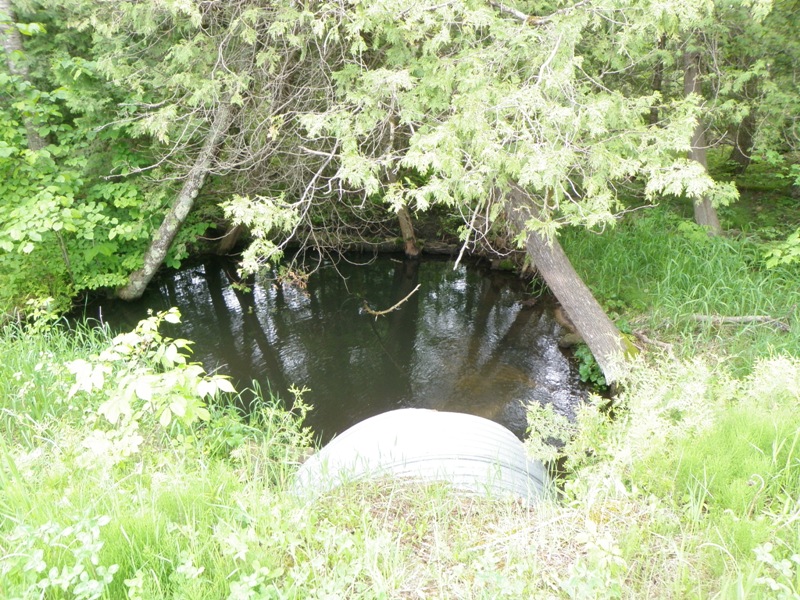

Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 60 ft. , Width 6.2 ft. , Height 4.8 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.8 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.8 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 30 ft. , Width 24 ft. , Depth 2.6 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 17 ft.
Wetted Width: 4.5 ft.
Water Velocity: 1.3 ft./sec. (Measured with Meter)
Dominant Substrate: Cobble
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 26 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.7 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 4.0826 tons/year
Right Approach
Length: 932 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.563
Erosion: 3.7596 tons/year
Erosion Information
Total Erosion at Crossing: 7.8423 tons/year
Notes: None.
Summary Information
Fish Passability 0.9
These non-native species were observerd at this site: Spotted Knapweed
