Road Stream Crossing Site AGIO020

Au Gres River Watershed, Tributary of Au Gres River
M-55
Reno Twp, Iosco County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.27703 , -83.8515
T22N R5E Sec 20 & 29
Owned by Private
Fish Passability 0
Perch Height: 1.4 ft.
Total Erosion: 0.1617 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID

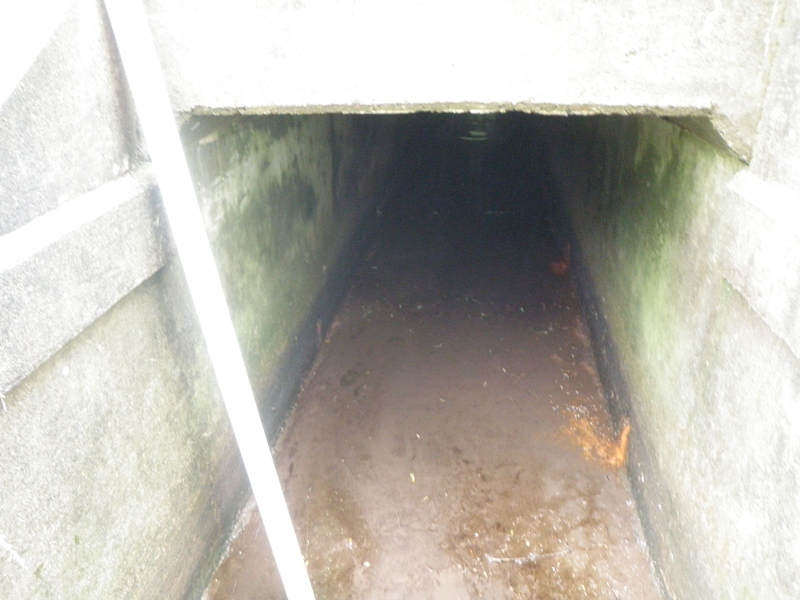

Inlet

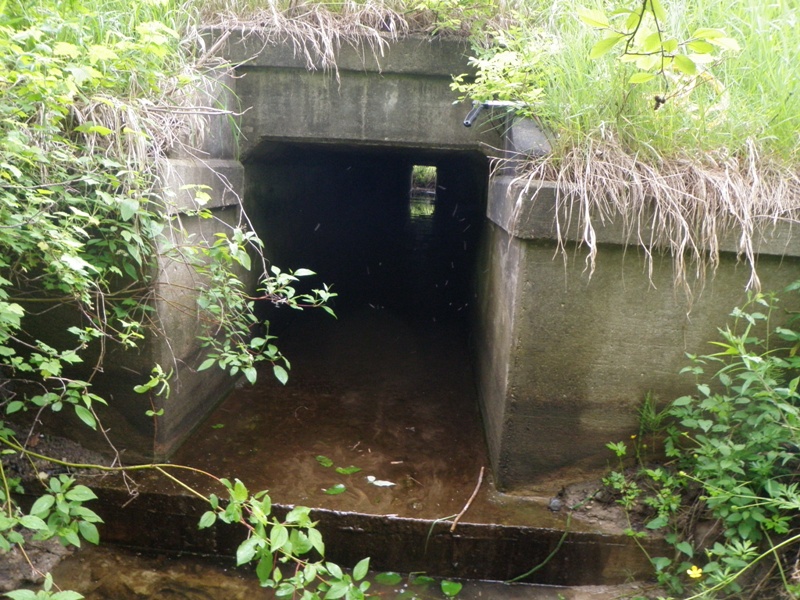

Outlet

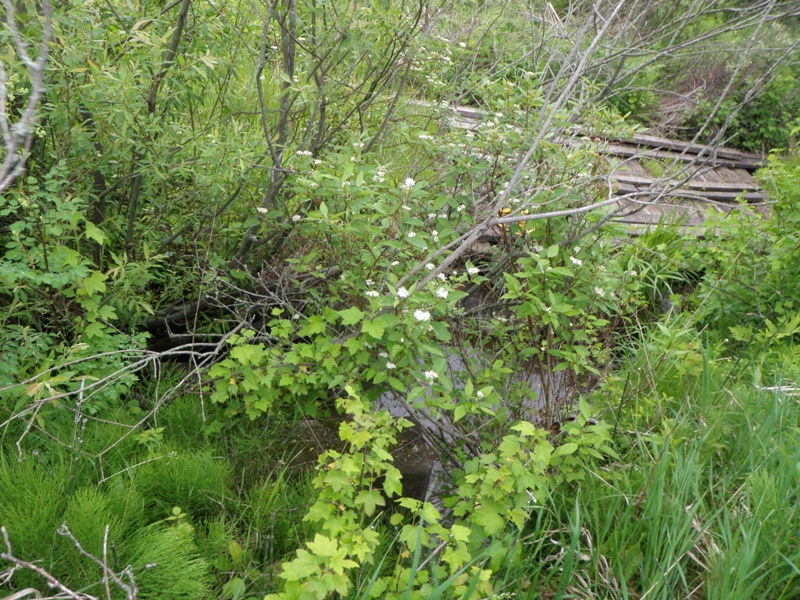

Upstream Conditions

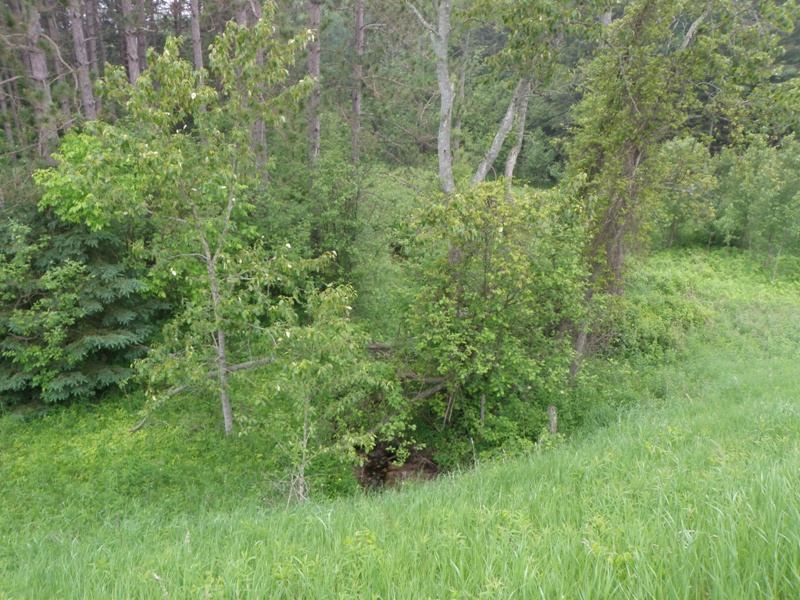

Downstream Conditions

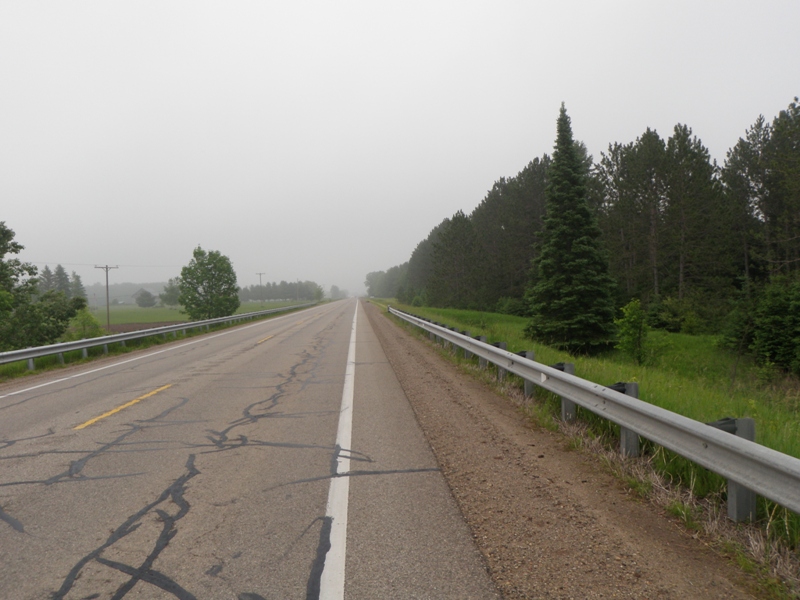

Road Approach - Left

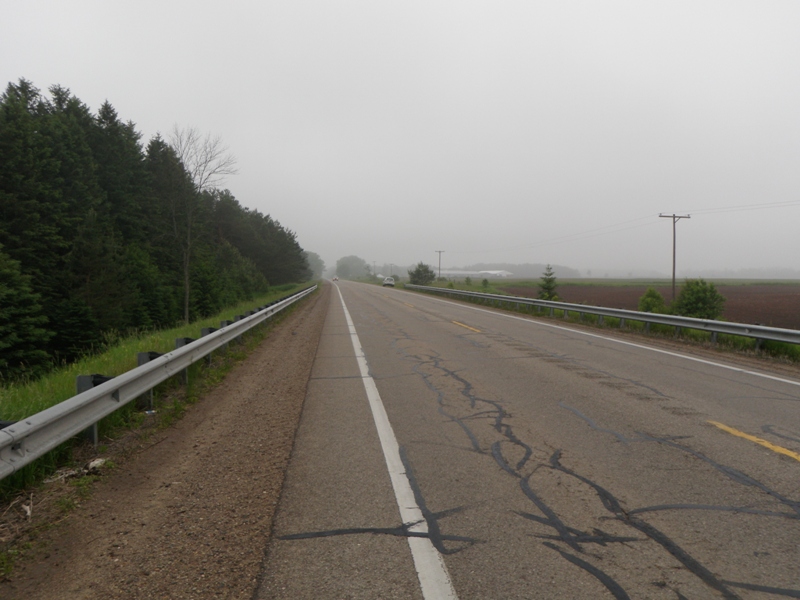

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Square/Rectangle
Inlet Type: Headwall
Outlet Type: Freefall into Pool
Structure Material: Concrete
Structure Substrate: None
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 104 ft. , Width 3.8 ft. , Height 1.2 ft.
Perch Height: 1.4 ft.
Structure Inlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.1 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 5 ft. , Width 6.5 ft. , Depth 0.5 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.1 ft.
Bankfull Width: 9 ft.
Wetted Width: 4 ft.
Water Velocity: 0.2 ft./sec. (Measured with Meter)
Dominant Substrate: Clay
Road Information
Paved State Road
Road Condition: Good
Road Width at Culvert: 28 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 12.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 13 ft.
Slope: 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0463 tons/year
Right Approach
Length: 1000 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0463 tons/year
Erosion Information
Total Erosion at Crossing: 0.1617 tons/year
Extent of Erosion: Minor
Notes: Bank undercutting at right downstream streambank.
Location of Erosion
Erosion Dimensions
Eroded Material
Material Eroded
Total Erosion
facing downstream
Length
Width
Depth
Reaching Stream?
(tons/year)
Right Downstream Streambank
36 ft.
2 ft.
2 ft.
yes
Sandy Loam
0.0691
Summary Information
Fish Passability 0
These non-native species were observerd at this site: Mullien
