Road Stream Crossing Site AGIO039

Au Gres River Watershed, Johnson Creek
Alabaster Rd
Burleigh Twp, Iosco County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.20494 , -83.85952
T21N R5E Sec 16 & 21
Owned by Private
Fish Passability 0.9
Structure is NOT Perched
Total Erosion: 3.9499 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID

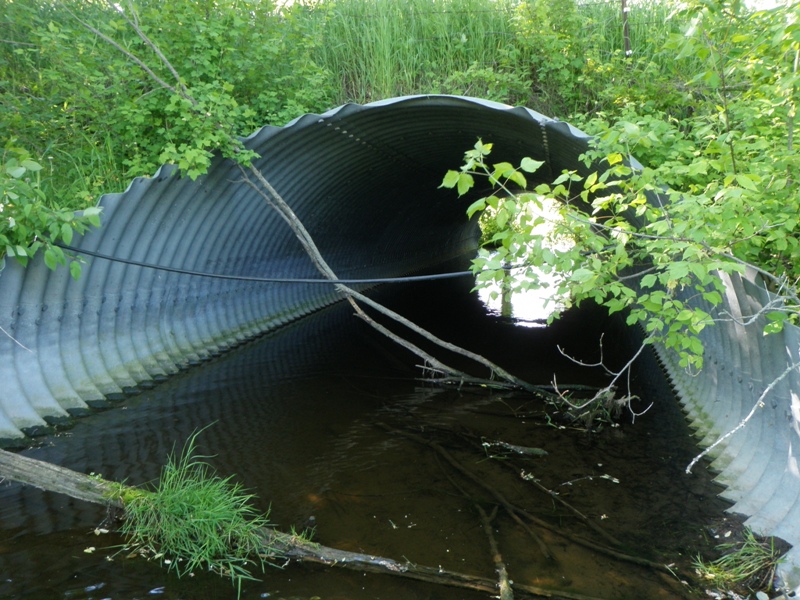

Inlet

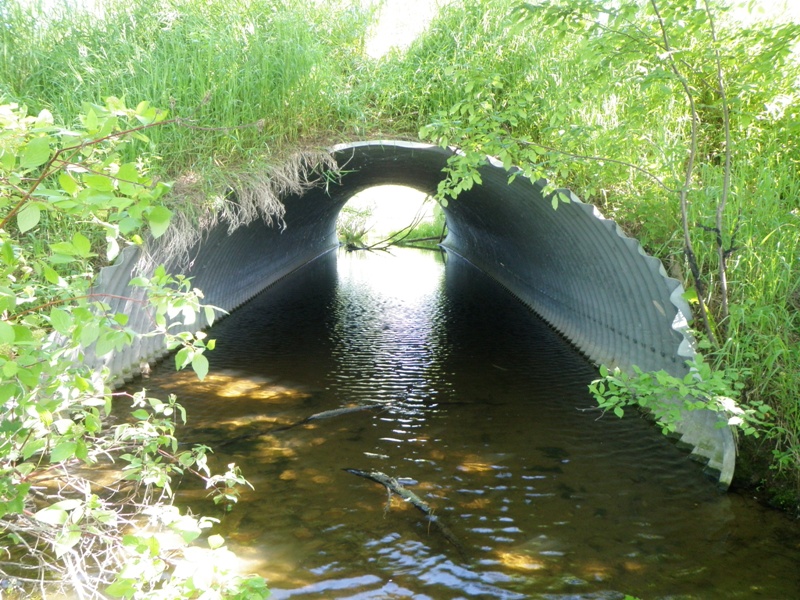

Outlet

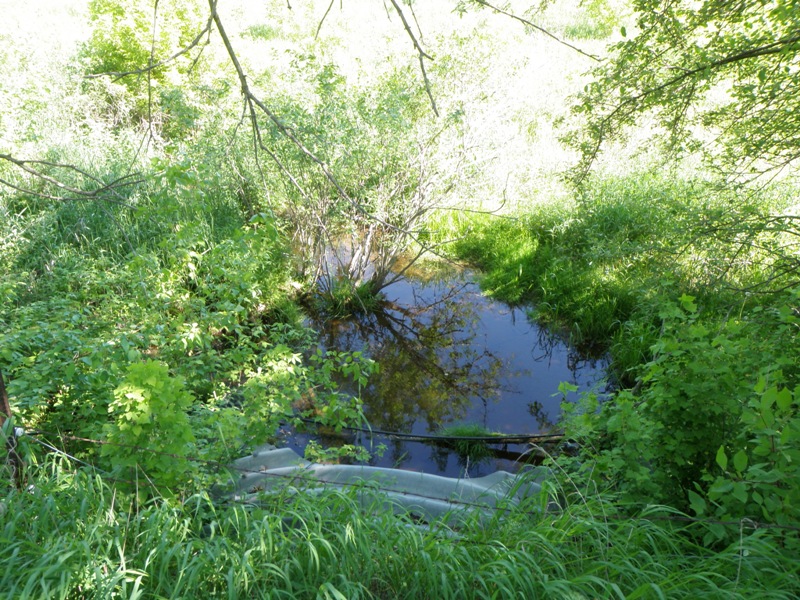

Upstream Conditions
Downstream Conditions

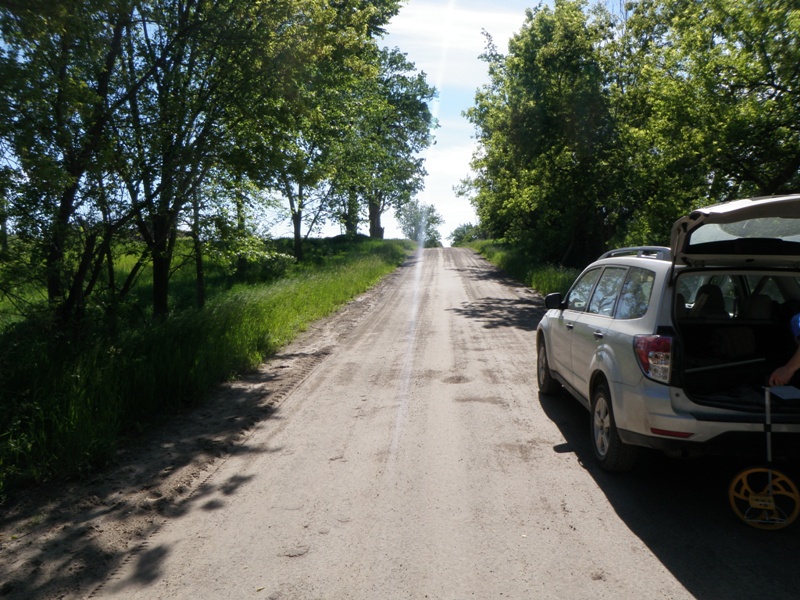

Road Approach - Left

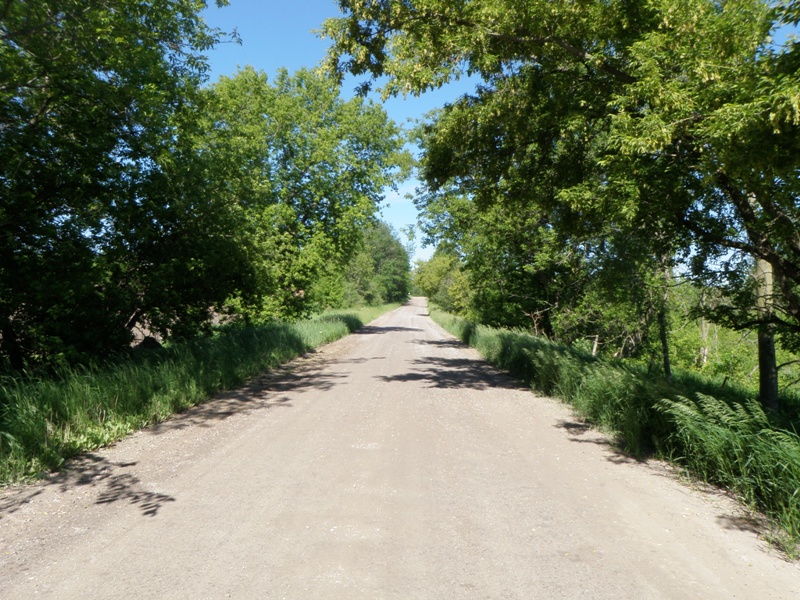

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 44 ft. , Width 11.2 ft. , Height 7.5 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.2 ft.
Embedded Depth of Structure: 0.6 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 20 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.8 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 317 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.463
Erosion: 0.8094 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 3.1405 tons/year
Erosion Information
Total Erosion at Crossing: 3.9499 tons/year
Notes: None.
Summary Information
Fish Passability 0.9
