Road Stream Crossing Site AGIO042

Au Gres River Watershed, Tributary of Crainer Creek
Siegrist Rd
Burleigh Twp, Iosco County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.18614 , -83.88406
T21N R5E Sec 30
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 7.5372 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID
Inlet
Outlet

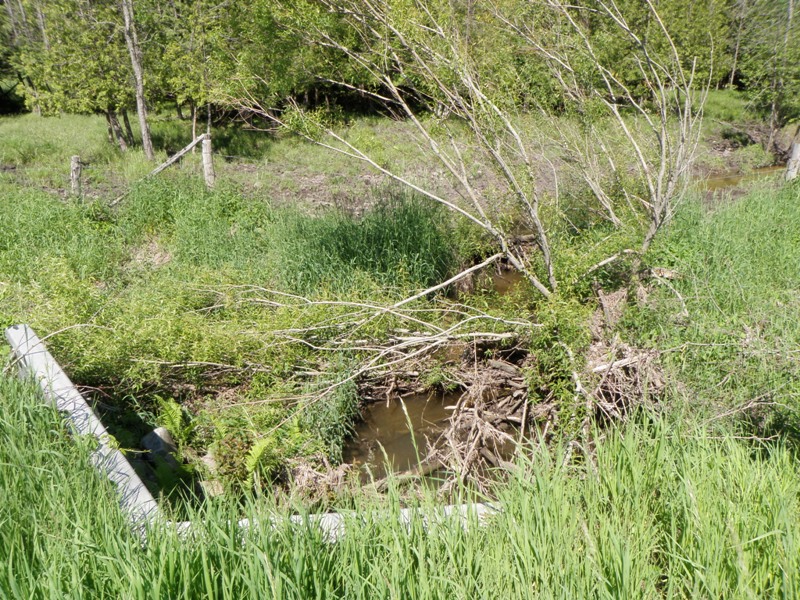

Upstream Conditions

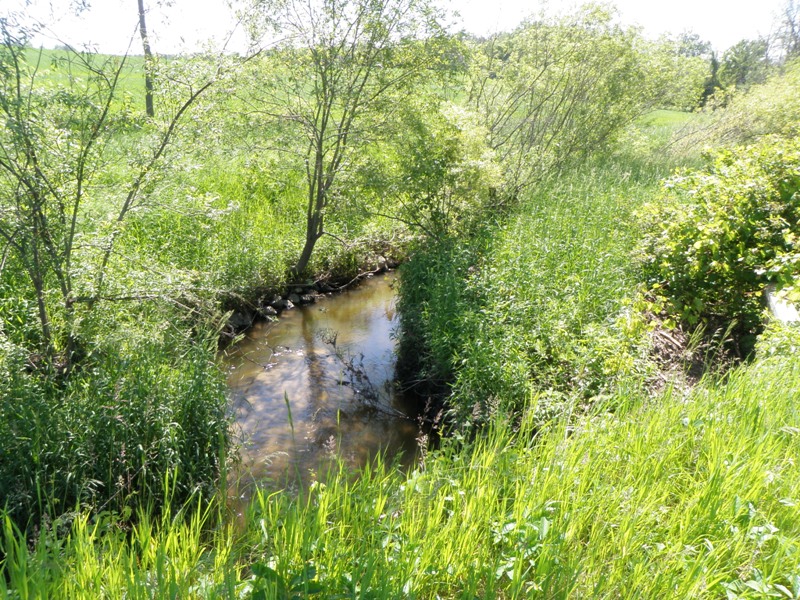

Downstream Conditions

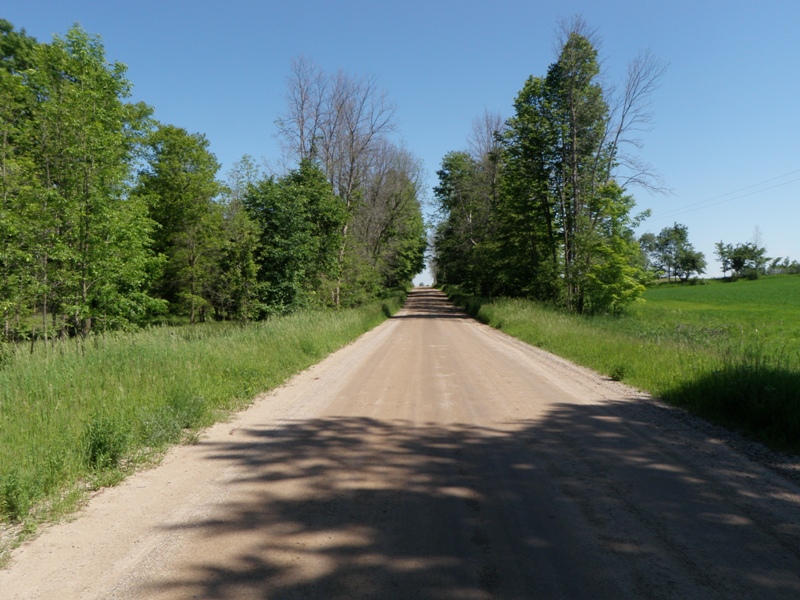

Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 50 ft. , Width 18 ft. , Height 5.8 ft.
Percentage Plugged: Inlet: 1% to 25% Outlet: 0% In Pipe: 0%
Structure is NOT Perched

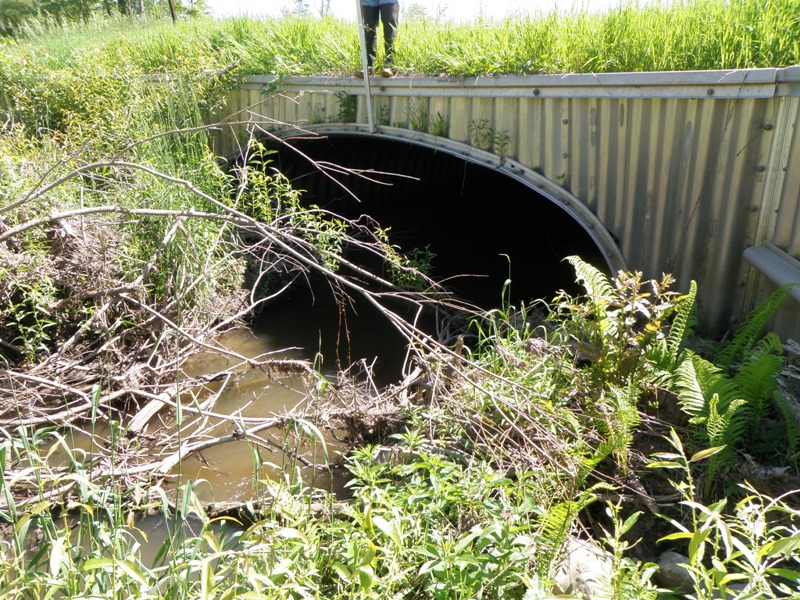

Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 1.2 ft./sec.

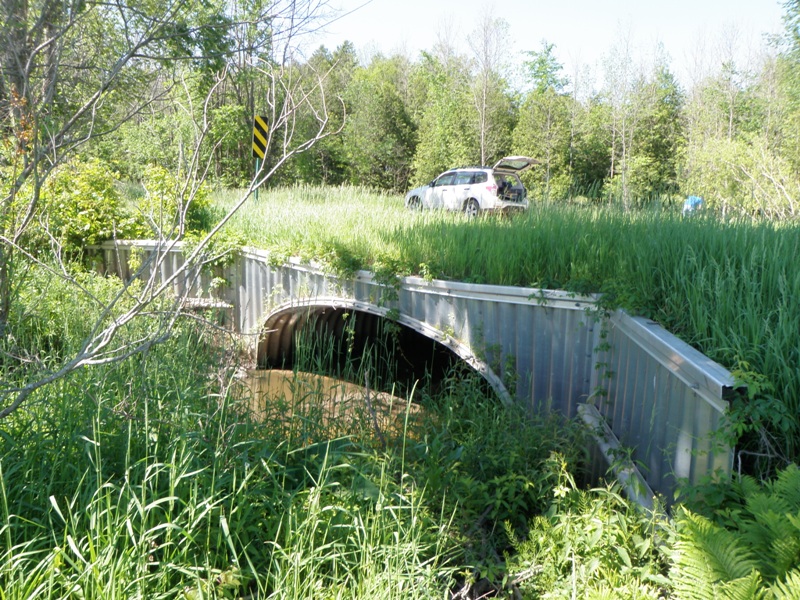

Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.3 ft.
Water Velocity*: 0.7 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.9 ft.
Bankfull Width: 12 ft.
Wetted Width: 7.7 ft.
Water Velocity: 0.6 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 24 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 0.3 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 3.7686 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 3.7686 tons/year
Erosion Information
Total Erosion at Crossing: 7.5372 tons/year
Notes: None.
Summary Information
Fish Passability 1
