Road Stream Crossing Site AGIO046

Au Gres River Watershed, Whitney Creek
Prescott Rd
Burleigh Twp, Iosco County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.22679 , -83.87025
T21N R5E Sec 7
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 1.5828 tons/year
Severity: Moderate
Year Inventoried: 2014

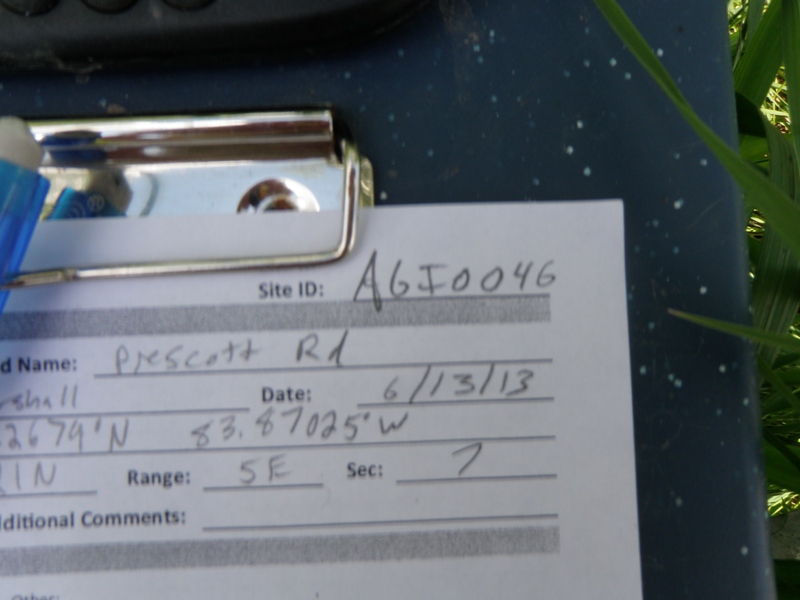

Site ID

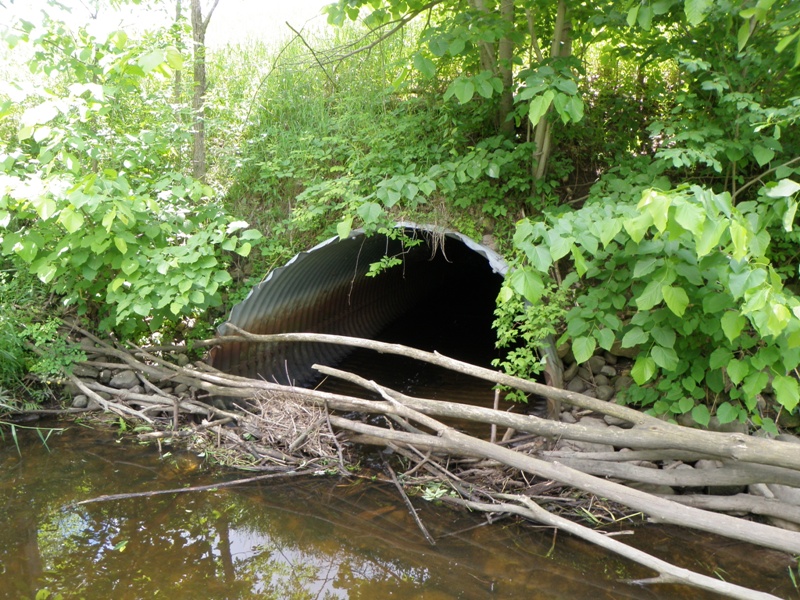

Inlet

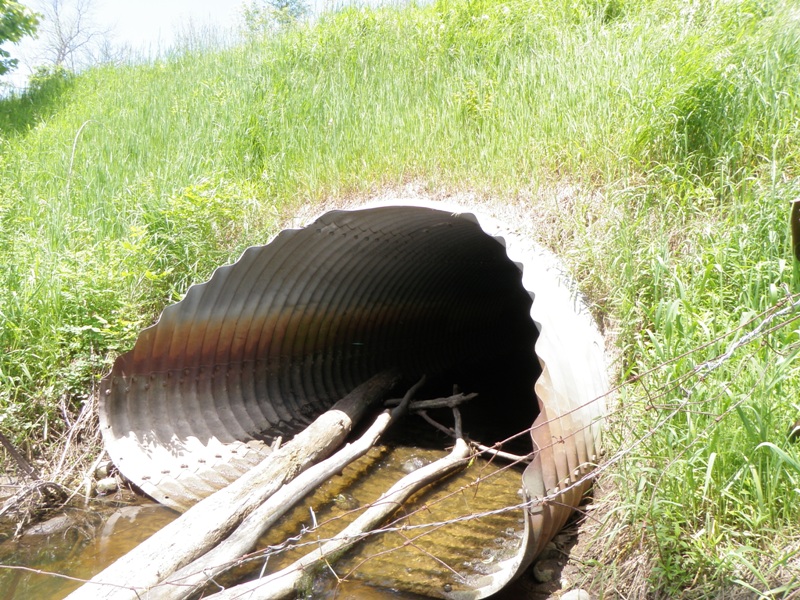

Outlet

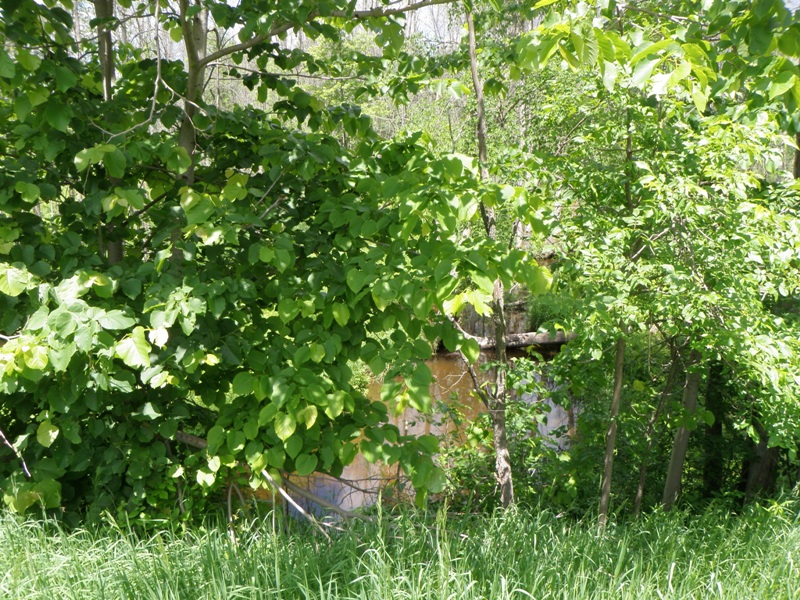

Upstream Conditions

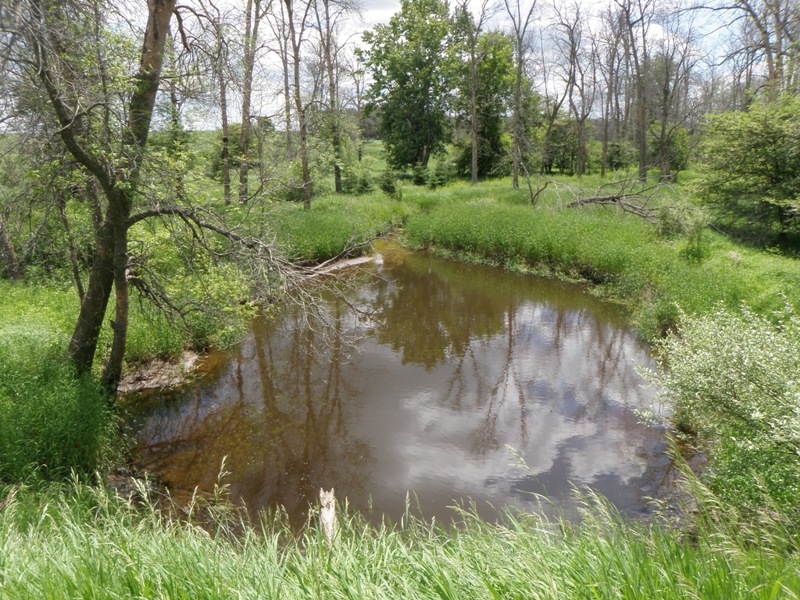

Downstream Conditions

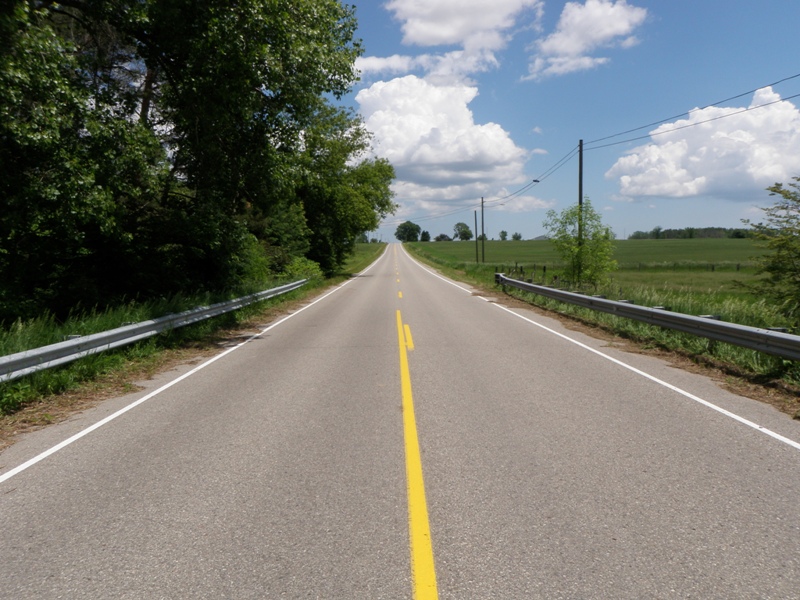

Road Approach - Left

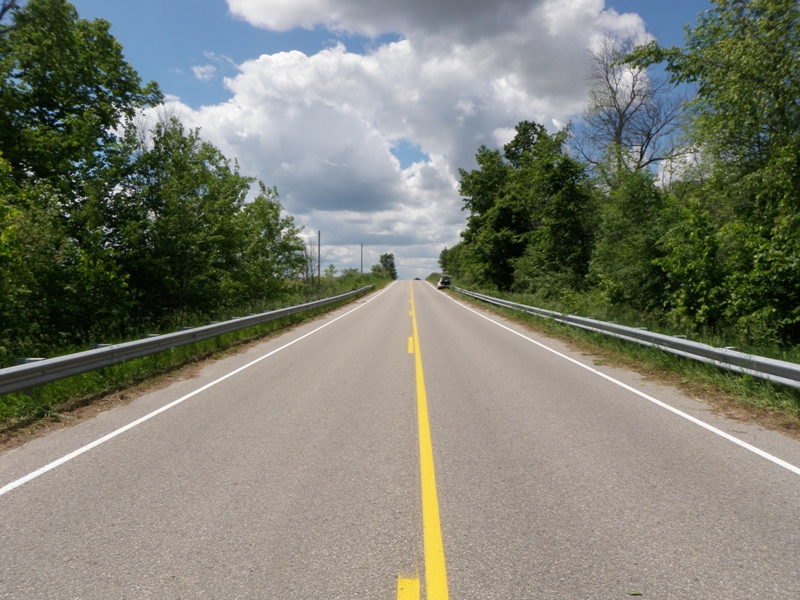

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Mitered
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 75 ft. , Width 9.5 ft. , Height 6.4 ft.
Percentage Plugged: Inlet: 26% to 50% Outlet: 0% In Pipe: 0%
Structure is NOT Perched
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.2 ft./sec.
Structure Outlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.6 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 90 ft. , Width 43 ft. , Depth 5.5 ft.
Upstream Pond: Length 39 ft. , Width 17 ft. , Depth 1.4 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 16.9 ft.
Wetted Width: 5.8 ft.
Water Velocity: 1.9 ft./sec. (Measured with Meter)
Dominant Substrate: Gravel
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 42 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 7.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 7.1 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.7914 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.7914 tons/year
Erosion Information
Total Erosion at Crossing: 1.5828 tons/year
Notes: None.
Summary Information
Fish Passability 0.5
A future visit to this site is recommended. Remove large woody debris from culvert inlet and monitor for future blockage and remove as necessary.
