Road Stream Crossing Site AGOG007
Au Gres River Watershed, Nester Creek
Stahlbush Rd
Logan Twp,
Ogemaw County
Information collected by:
Site Location
GPS Coordinates: 44.306
, -83.9843
T22N
R4E
Sec 7 & 18
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 3.1611 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID
Inlet

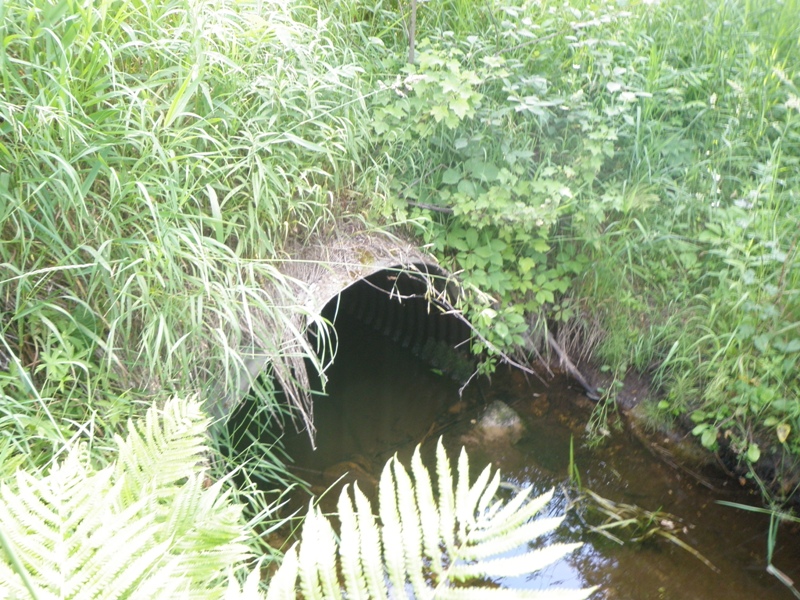

Outlet

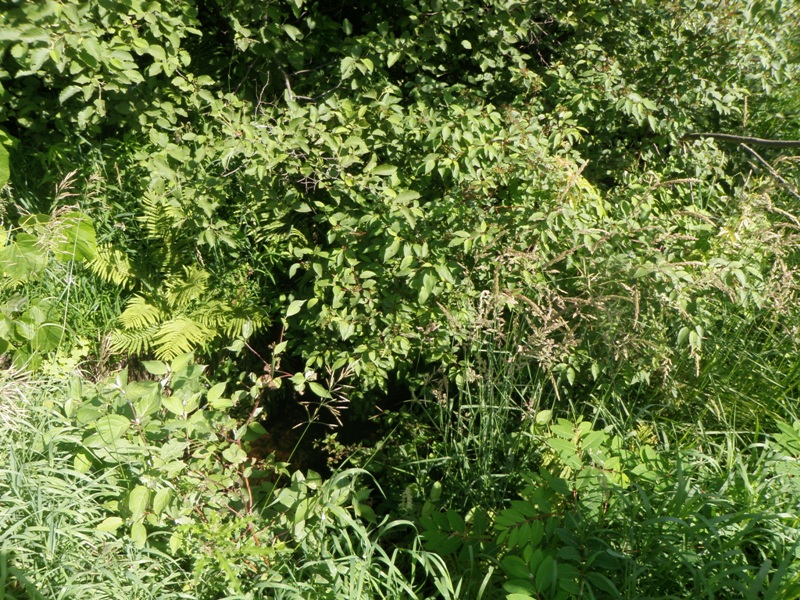

Upstream Conditions

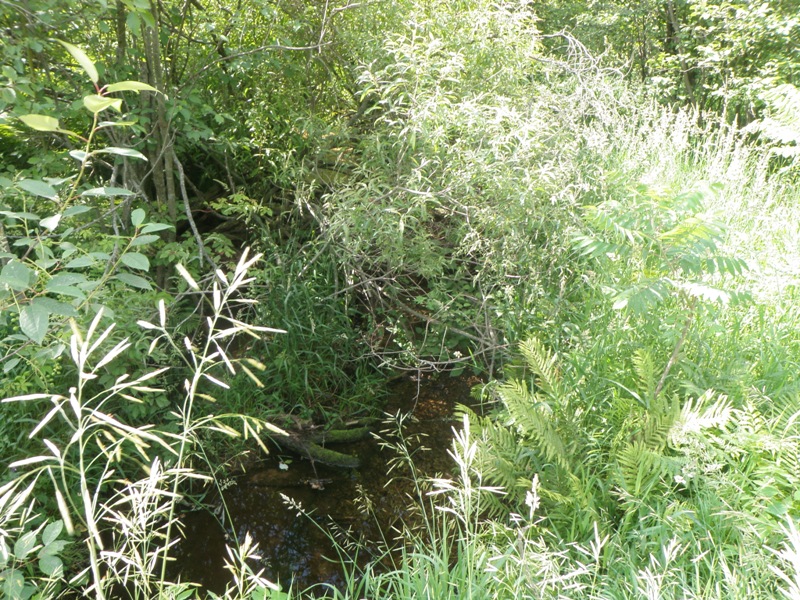

Downstream Conditions

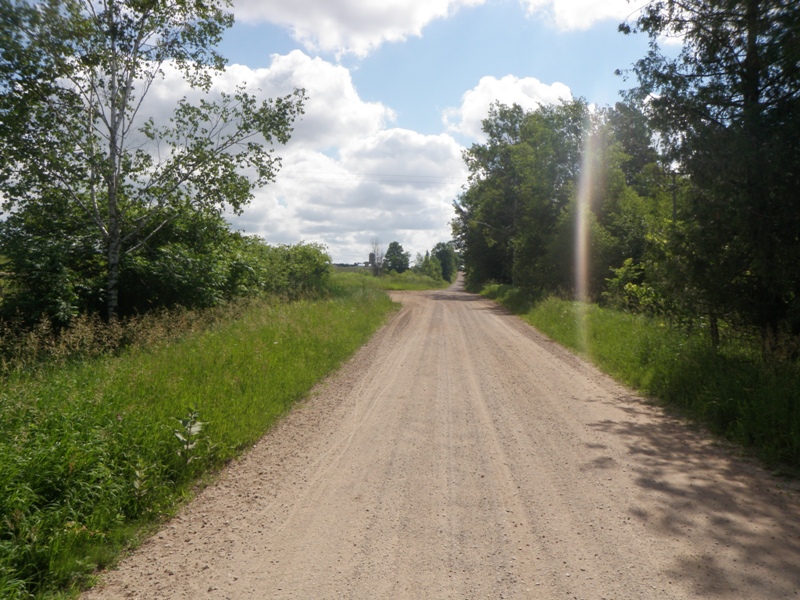

Road Approach - Left

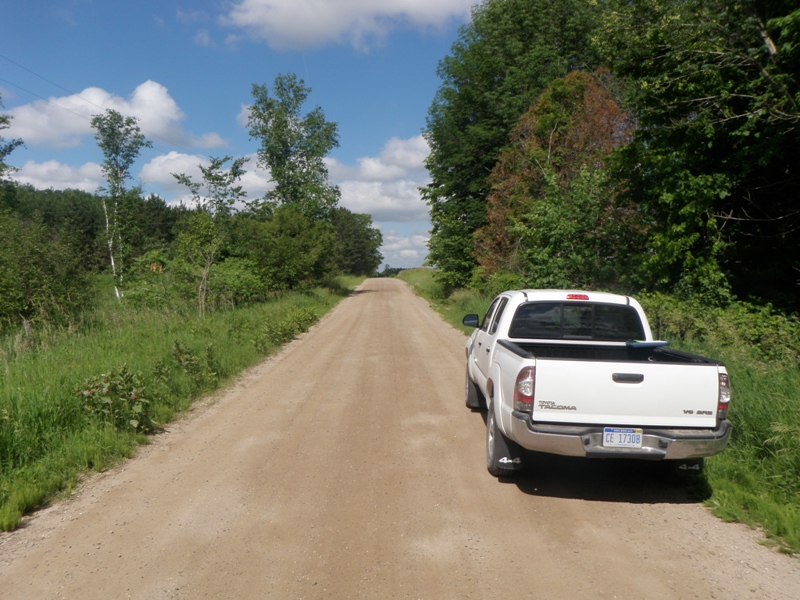

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 30 ft.
, Width 4.9 ft.
, Height 3.3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 9 ft.
, Width 7.5 ft.
, Depth 0.7 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.2 ft.
Bankfull Width: 9.5 ft.
Wetted Width: 9 ft.
Water Velocity: 0.6 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 18 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2 ft.
Slope: 1:2
Downstream
Fill Depth: 2.4 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 165 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.409
Erosion: 0.3346 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 2.8264 tons/year
Erosion Information
Total Erosion at Crossing: 3.1611 tons/year
Notes: None.
Summary Information
Fish Passability 0.5
