Road Stream Crossing Site AGOG009
Au Gres River Watershed, Nester Creek
Clark Rd
Logan Twp,
Ogemaw County
Information collected by:
Site Location
GPS Coordinates: 44.28007
, -83.94353
T22N
R4E
Sec 21 & 22
Owned by Private
Fish Passability 0.5
Structure is NOT Perched
Total Erosion: 6.9091 tons/year
Severity: Severe
Year Inventoried: 2014
Site ID

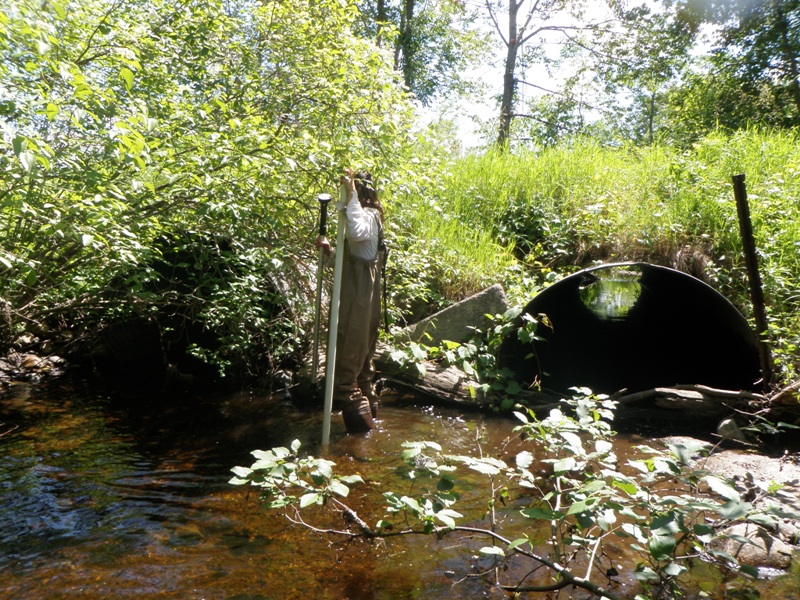

Inlet

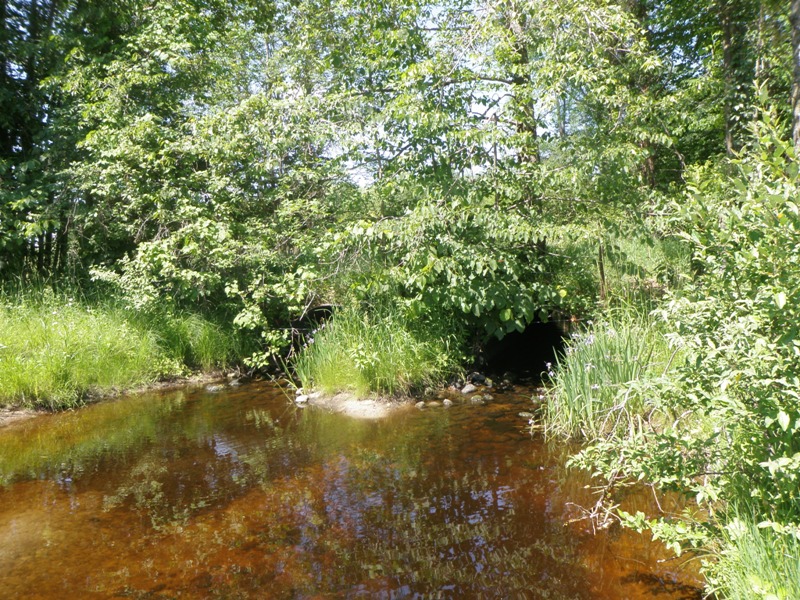

Outlet

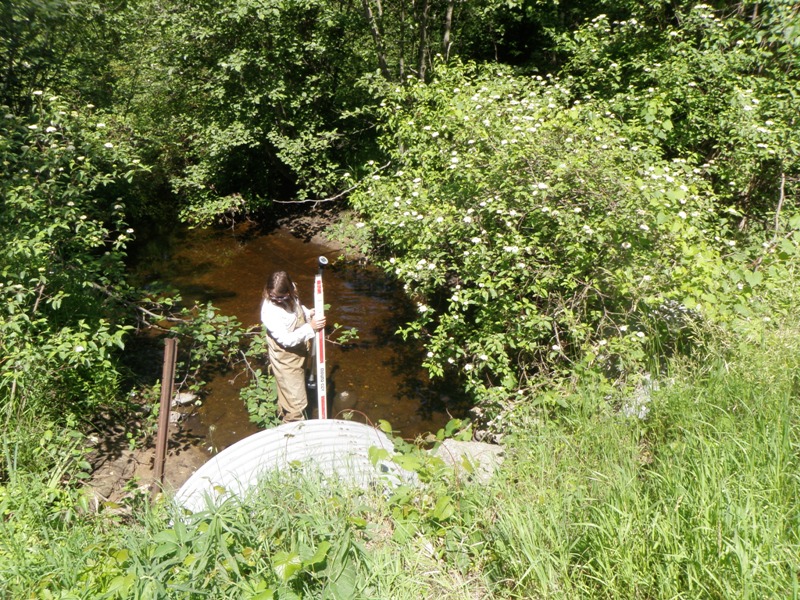

Upstream Conditions

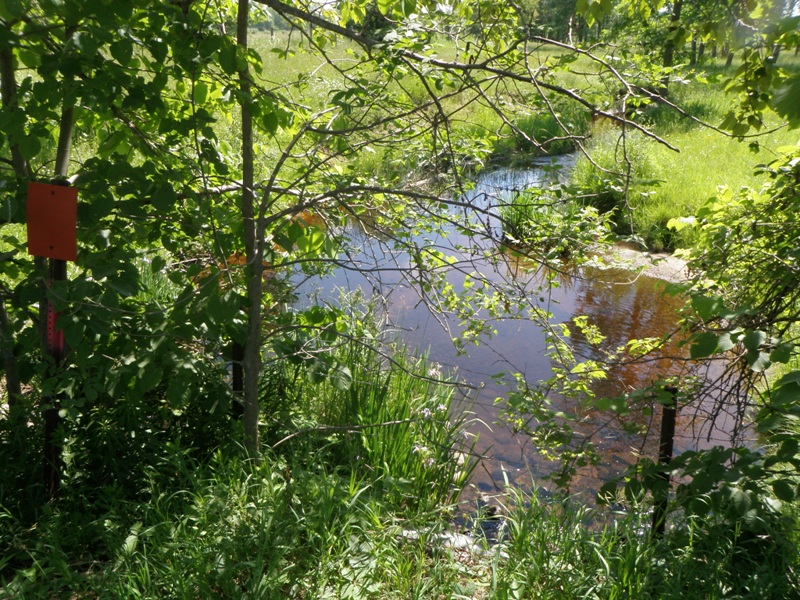

Downstream Conditions

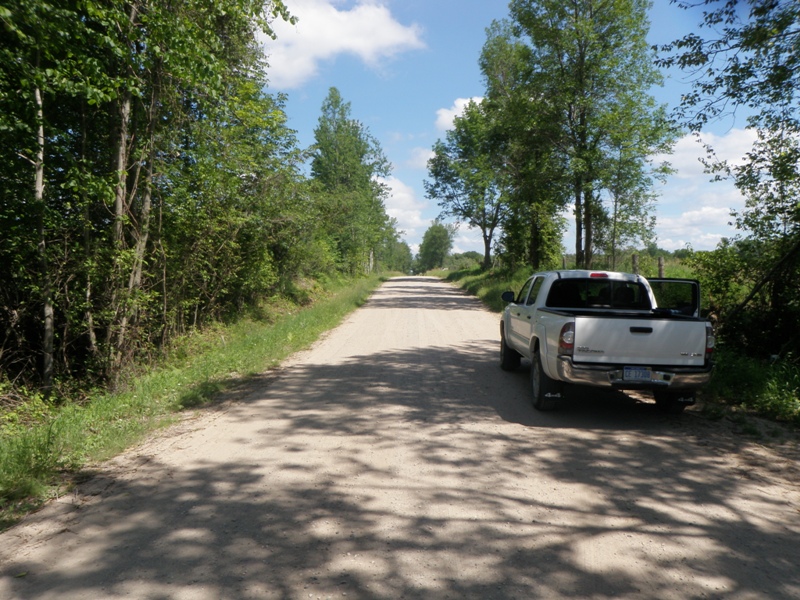

Road Approach - Left

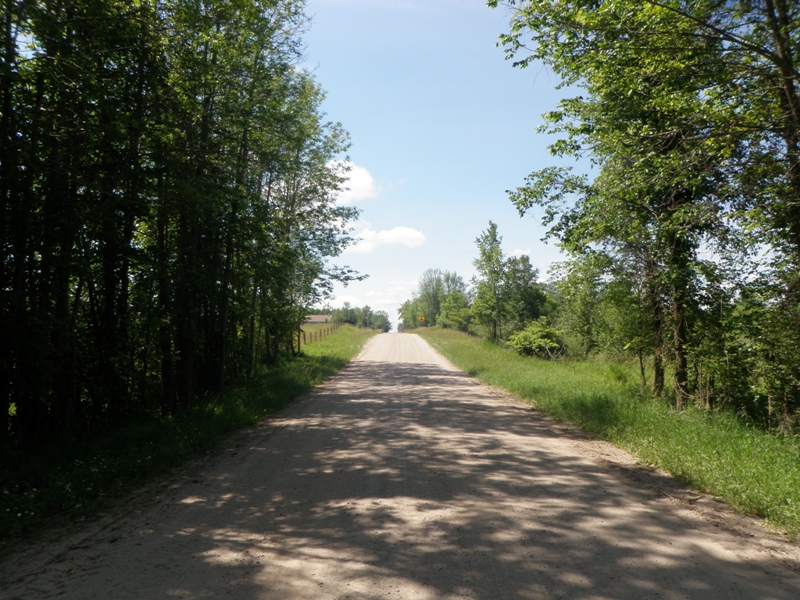

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Pipe Arch
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
4.3 ft. |
52 ft. |
5.6 ft. |
Metal |
2 |
4.3 ft. |
52 ft. |
5.6 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 52 ft.
, Width 5.6 ft.
, Height 4.3 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.8 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 30 ft.
, Width 23.5 ft.
, Depth 1.5 ft.
Upstream Pond: Length 0 ft.
, Width 0 ft.
, Depth 0 ft.
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 18 ft.
Wetted Width: 7.3 ft.
Water Velocity: 1.4 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel
County Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2.3 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.1 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 3.4545 tons/year
Right Approach
Length: 1000 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 3.4545 tons/year
Erosion Information
Total Erosion at Crossing: 6.9091 tons/year
Notes: None.
Summary Information
Fish Passability 0.5
These non-native species were observerd at this site: Autumn Olive
