Road Stream Crossing Site AGAR019

Au Gres River Watershed, Cedar Creek drain
Santiago Rd
Turner Twp, Arenac County
Information collected by:
Huron Pines
Site Location
GPS Coordinates: 44.11953 , -83.70639
T20N R6E Sec 11 & 12
Owned by Private
Fish Passability 1
Structure is NOT Perched
Total Erosion: 0.0661 tons/year
Severity: Minor
Year Inventoried: 2014
Site ID

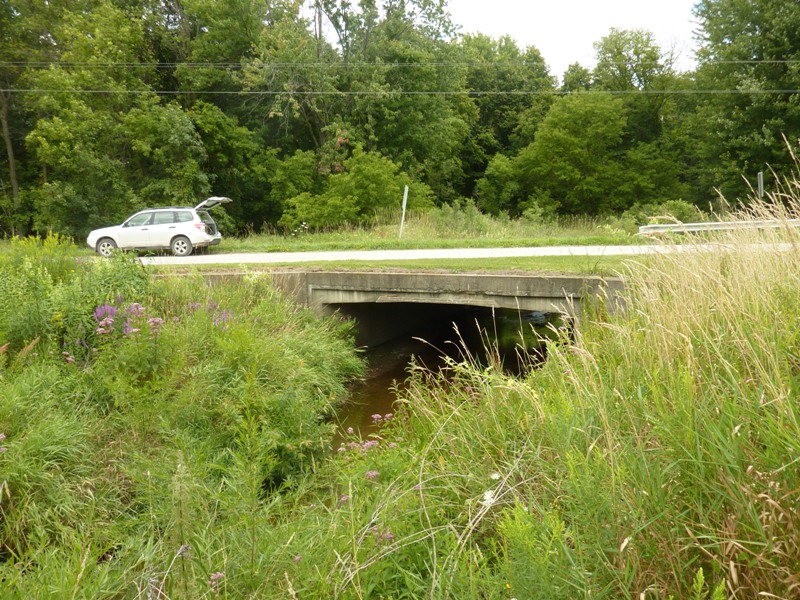

Inlet

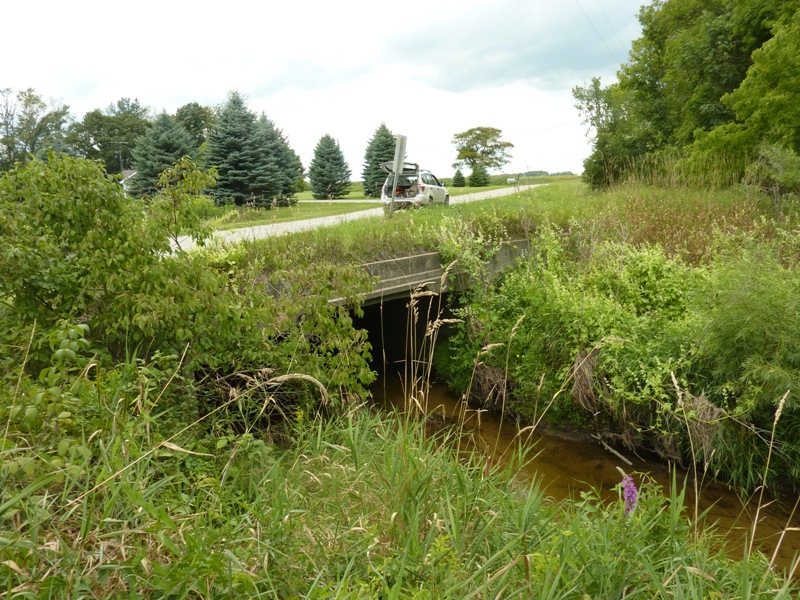

Outlet

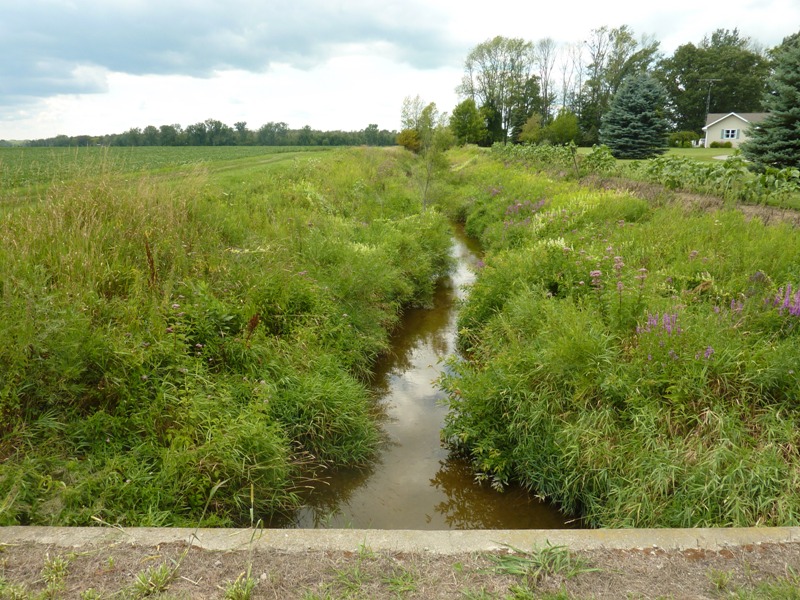

Upstream Conditions

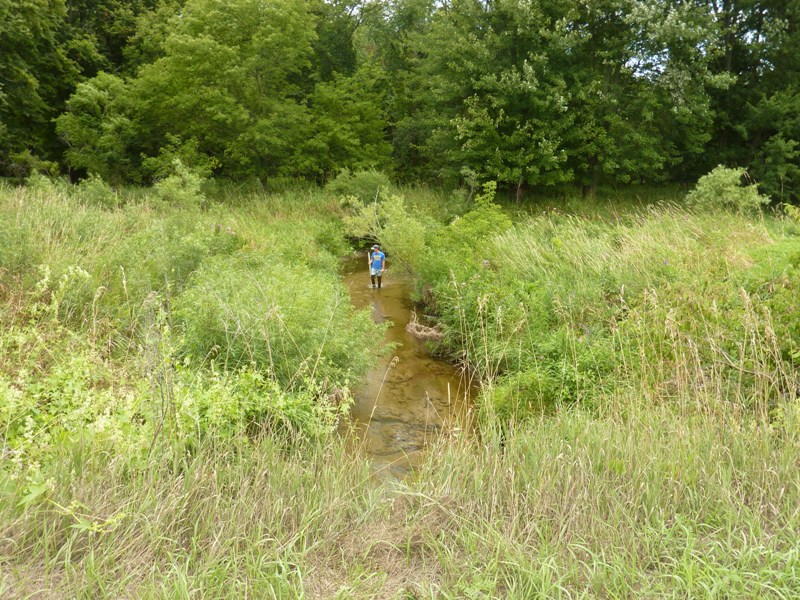

Downstream Conditions

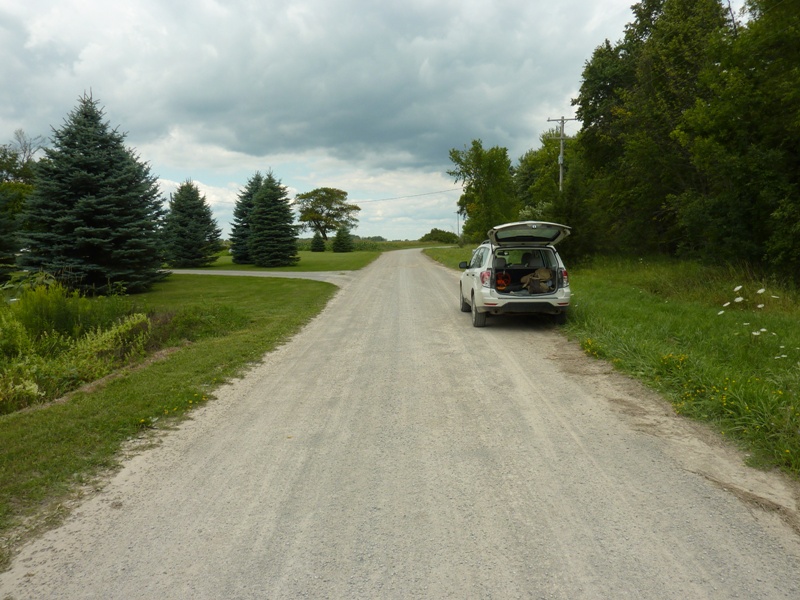

Road Approach - Left

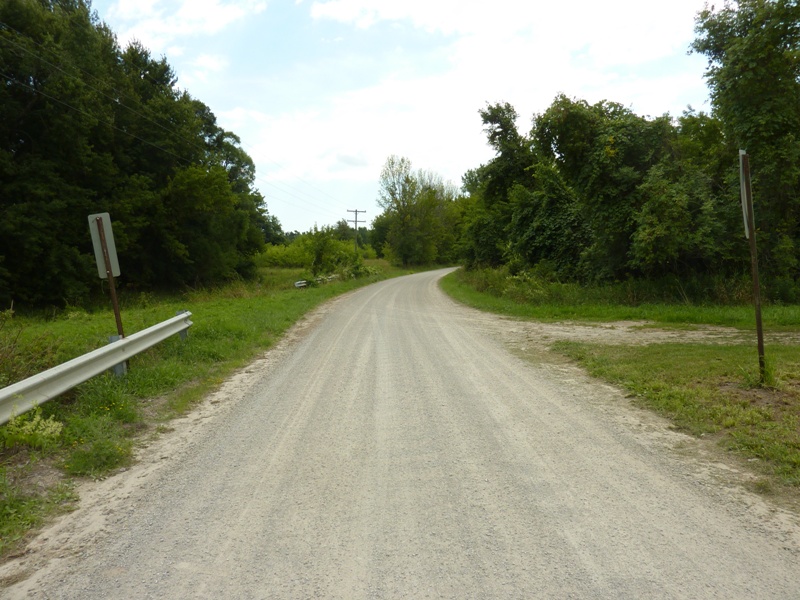

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Square/Rectangle
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 38 ft. , Width 22 ft. , Height 6.9 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 0.6 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0.4 ft.
Water Velocity*: 1.2 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 17.5 ft.
Wetted Width: 12.4 ft.
Water Velocity: 1.1 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel County Road
Road Condition: Good
Road Width at Culvert: 16 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: More than 1:2
Fill Depth: 0.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 200 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0441 tons/year
Right Approach
Length: 100 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.022 tons/year
Erosion Information
Total Erosion at Crossing: 0.0661 tons/year
Notes: None.
Summary Information
Fish Passability 1
These non-native species were observerd at this site: Purple Loosestrife
