Road Stream Crossing Site LTB-120

Little Traverse Bay Watershed, Unknown tributary of Bear River
Click Rd
Bear Creek Twp, Emmet County
Information collected by:
Tip of the Mitt Watershed Council
Site Location
GPS Coordinates: 45.33388224 , -84.90323711
Owned by Private
Fish Passability 0
Perch Height: 1.1 ft.
Total Erosion: 0.1236 tons/year
Severity: Severe
Year Inventoried: 2014

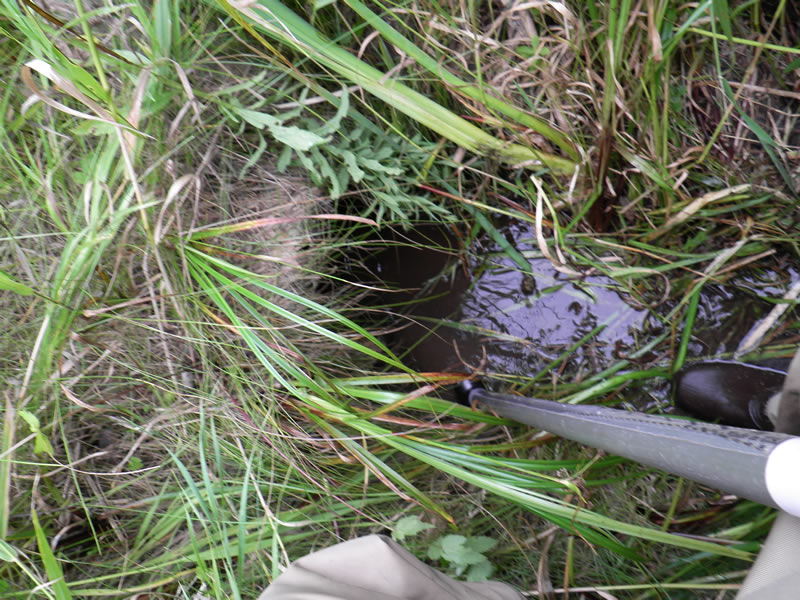

Inlet

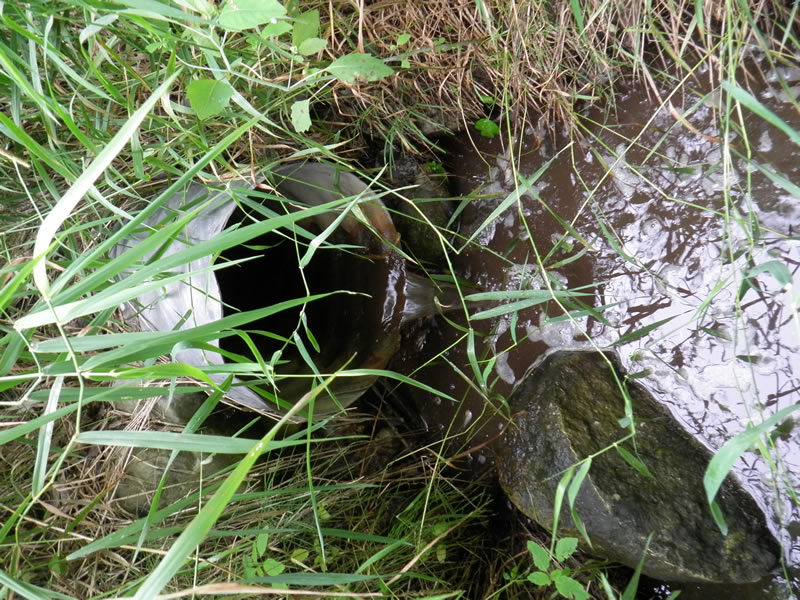

Outlet

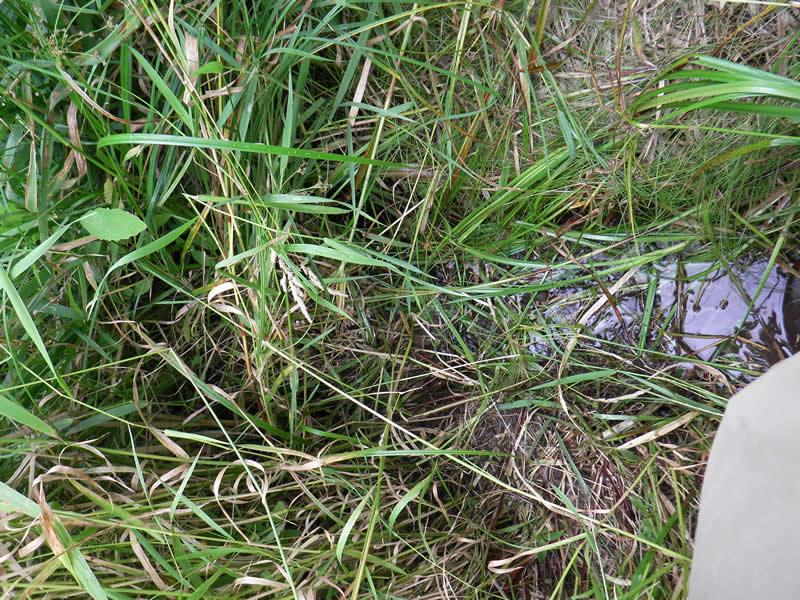

Upstream Conditions

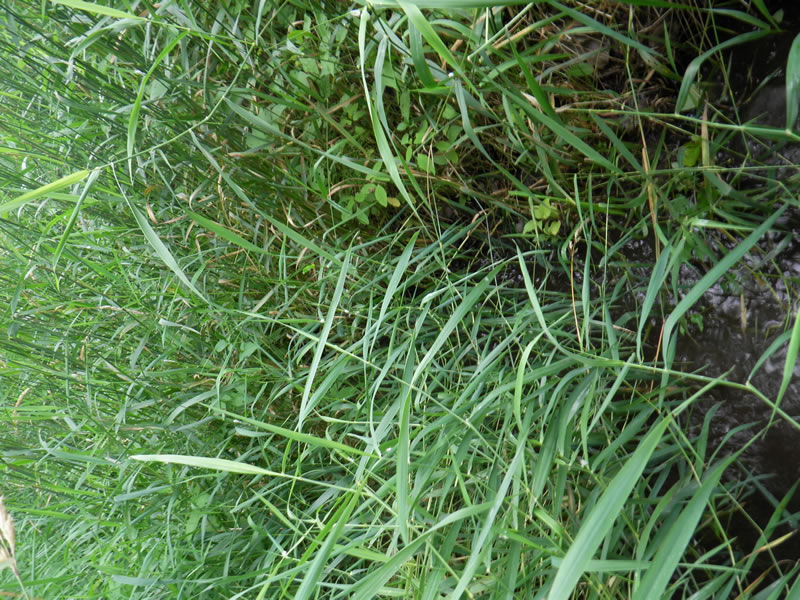

Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Freefall into Pool
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Structure Interior: corrugated
Structure is Rusted through
Dimensions of Structure: Length 60 ft. , Width 1.6 ft. , Height 1.6 ft.
Percentage Plugged: Inlet: 1% to 25%
Perch Height: 1.1 ft.
Structure Inlet
Water Depth: 0.04 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
Structure Outlet
Water Depth: 0.02 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.4 ft./sec.
*Water Velocities were measured 0.02 ft. below Surface (with Meter)
Additional Comments
3233 Click Rd. Old site ID: UT-10.
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 8 ft. , Width 4 ft. , Depth 0.7 ft.
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 4.167 ft.
Wetted Width: 2.75 ft.
Water Velocity: 0.05 ft./sec. (Measured with Meter)
Dominant Substrate: Cobble
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 34 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 5 ft.
Slope: 1:2
Downstream
Fill Depth: 7 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 250 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.44
Erosion: 0.1236 tons/year
Right Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Erosion Information
Total Erosion at Crossing: 0.1236 tons/year
Extent of Erosion: Stabilized
Summary Information
Fish Passability 0
