Road Stream Crossing Site LTB-262
Little Traverse Bay Watershed, Gimlet Creek
Fraley Rd
Melrose Twp,
Charlevoix County
Information collected by:
Site Location
GPS Coordinates: 45.22566719
, -84.8755151
T32 N
R05 W
Sec 25
Fish Passability 0.5
Total Erosion: 1.8248 tons/year
Severity: Moderate
Year Inventoried: 2014

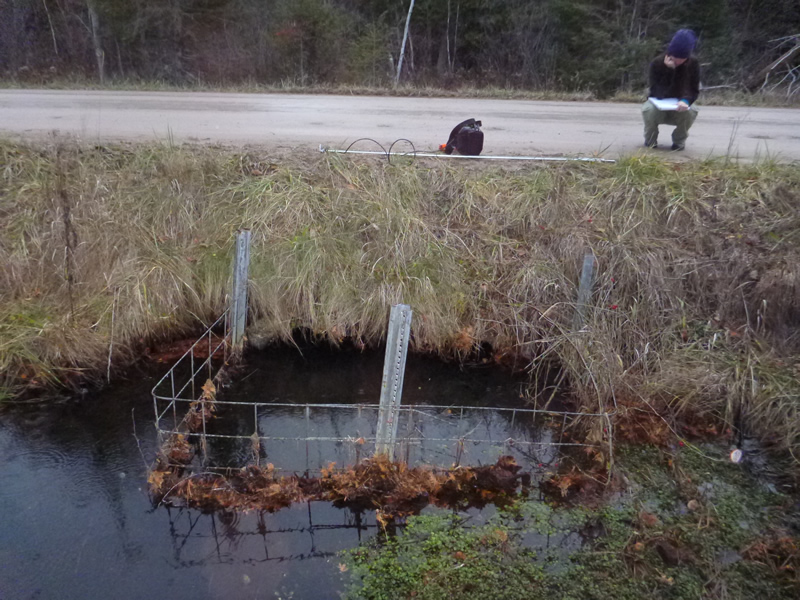

Inlet

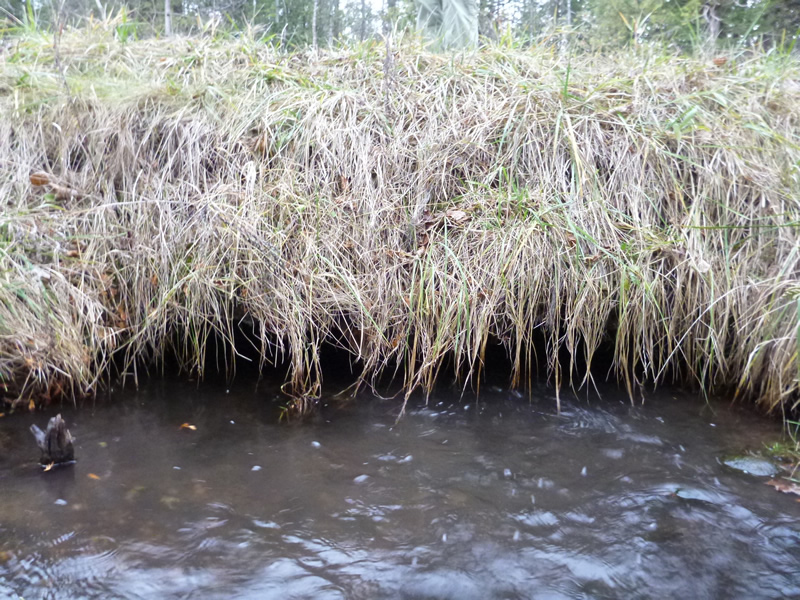

Outlet

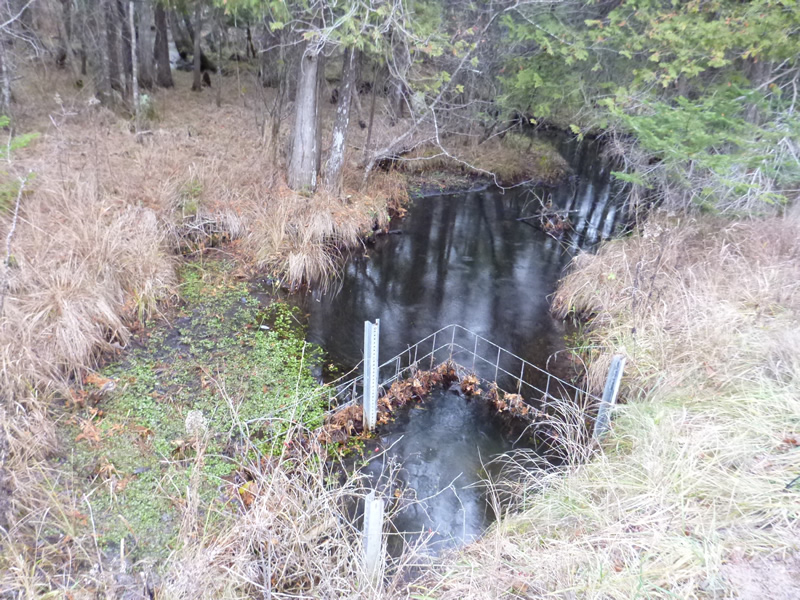

Upstream Conditions

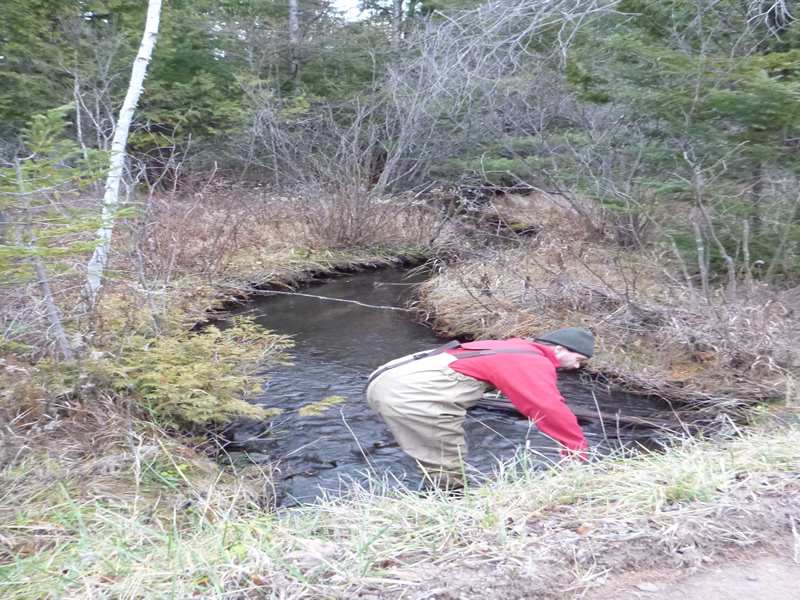

Downstream Conditions

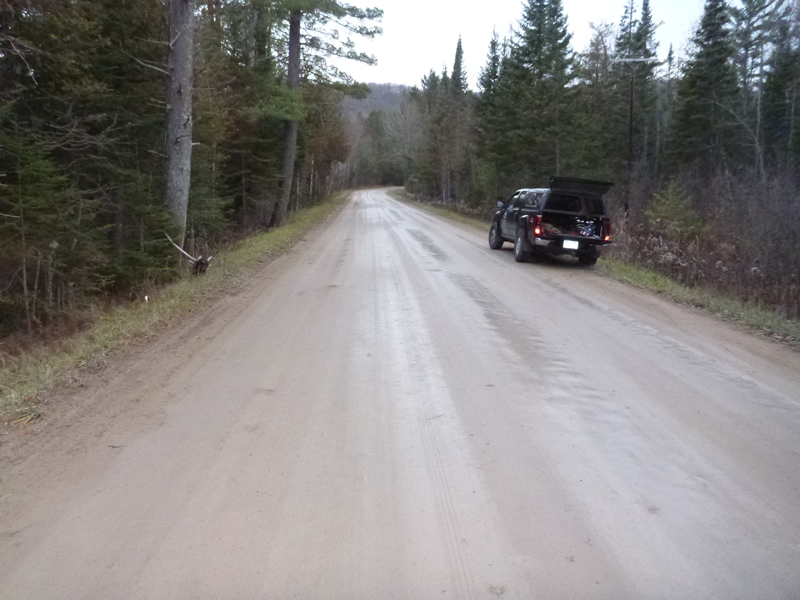

Road Approach - Left

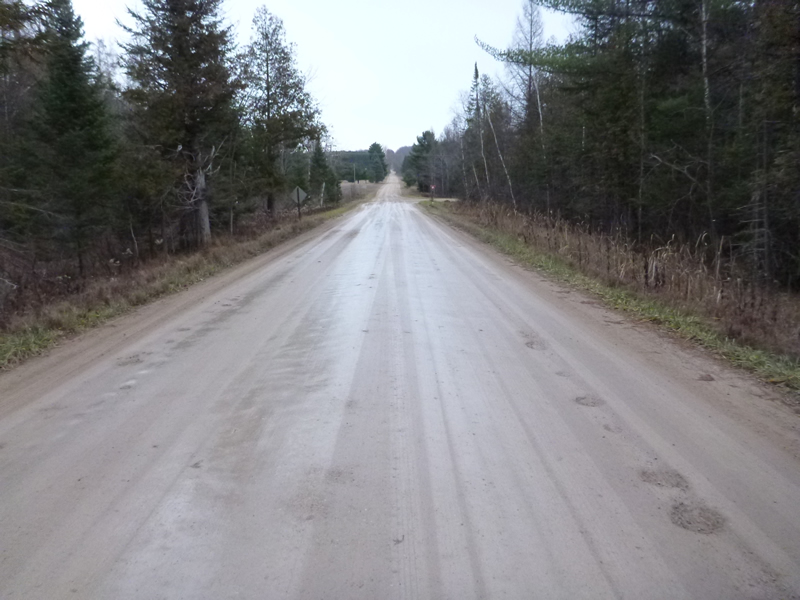

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Ellipse
Inlet Type: Trash Rack
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Fair
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
2.5 ft. |
30 ft. |
1.5 ft. |
Metal |
2 |
2.5 ft. |
30 ft. |
1.5 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 30 ft.
Percentage Plugged:
In Pipe: 76% to 100%
Percentage Crushed:
Inlet: 0%
Outlet: 0%
In Pipe: 0%
Structure Inlet
Water Depth: 1.35 ft.
Water Velocity*: 0.13 ft./sec.
Structure Outlet
Water Depth: 0.45 ft.
Water Velocity*: 0.85 ft./sec.
*Water Velocities were measured 0.6 ft. below Surface
(with Meter)
Additional Comments
Old site ID: C-26.
Stream Information
Stream Flow: Less than 1/2 Bankfull
Scour Pool: Length 8 ft.
, Width 8 ft.
Riffle Information
Water Depth: 0.45 ft.
Water Velocity: 0.774 ft./sec.
(Measured with Meter)
Dominant Substrate: sand/organics
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 24 ft.
Location of Low Point: Other
Embankments
Upstream
Fill Depth: 3 ft.
Slope: Vertical
Downstream
Fill Depth: 3 ft.
Slope: Vertical
Approaches
Left Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.9124 tons/year
Right Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.9124 tons/year
Erosion Information
Total Erosion at Crossing: 1.8248 tons/year
Summary Information
Fish Passability 0.5
Fish Passage is an area of concern for this site.
Yes, because culverts too short. Should be replaced with one larger culvert that is longer. Culvert R2 is also blocked so there is no flow through it. Plus alignment is not great.
A future visit to this site is recommended. Blocked
