Road Stream Crossing Site BT_B037A

Betsie River Watershed, Dair Creek
Weldon Rd
Weldon Twp, Benzie County
Information collected by:
GPS Coordinates: 44.5717 , -85.97765
T25N R14W Sec 15
Owned by State
Fish Passability 0.5
Total Erosion: 0.2073 tons/year
Severity: Moderate
Year Inventoried: 2014
Site Location

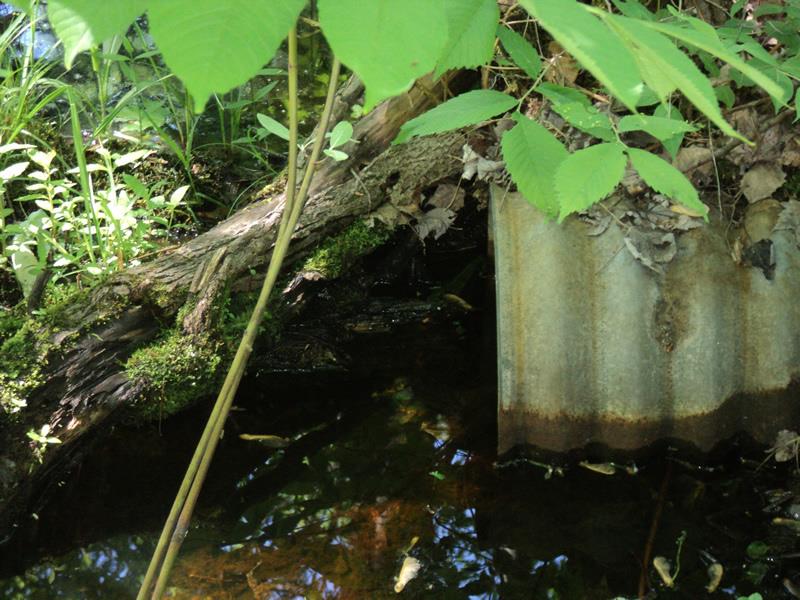

Inlet

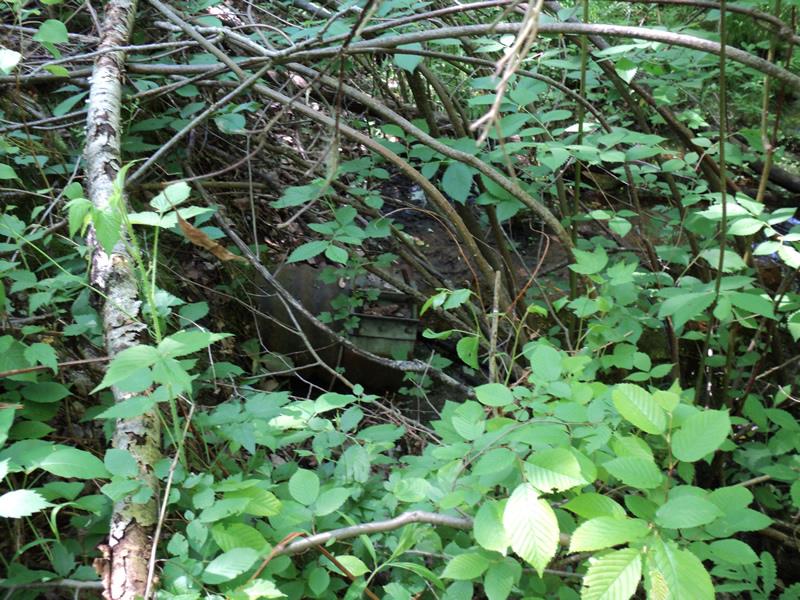

Outlet

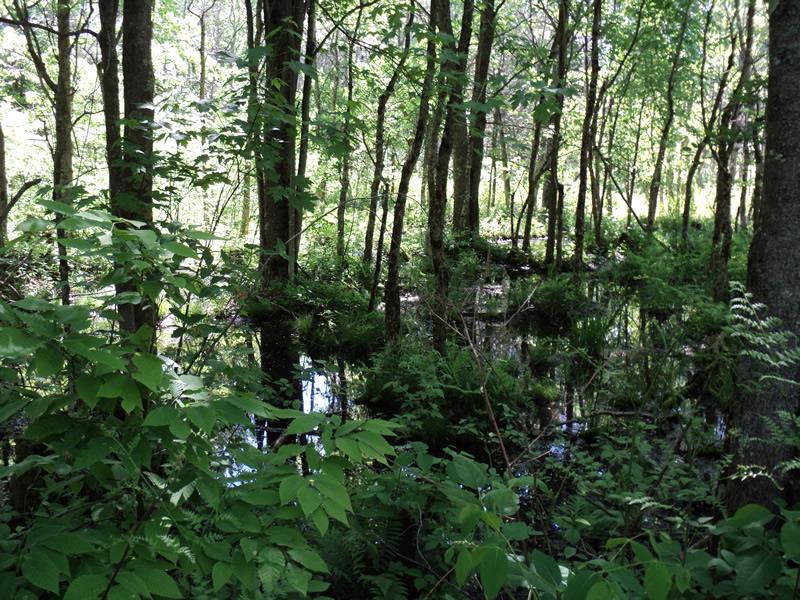

Upstream Conditions

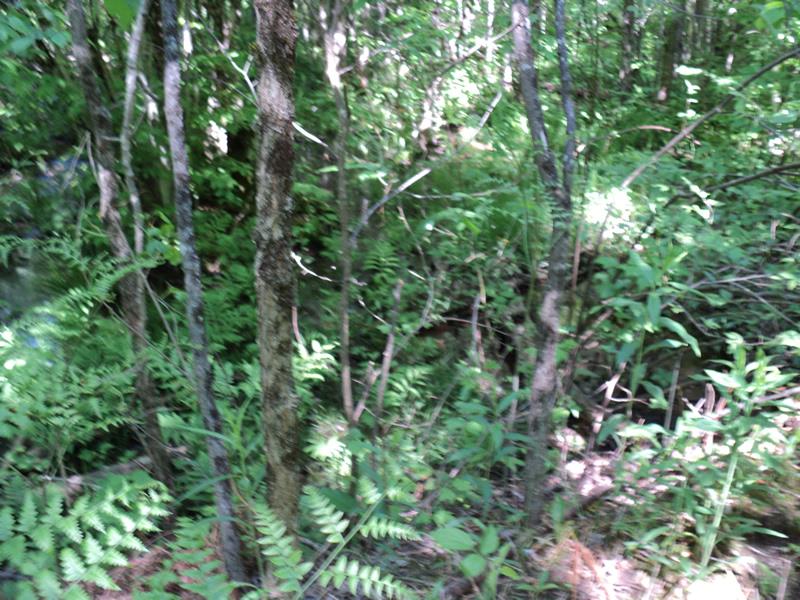

Downstream Conditions

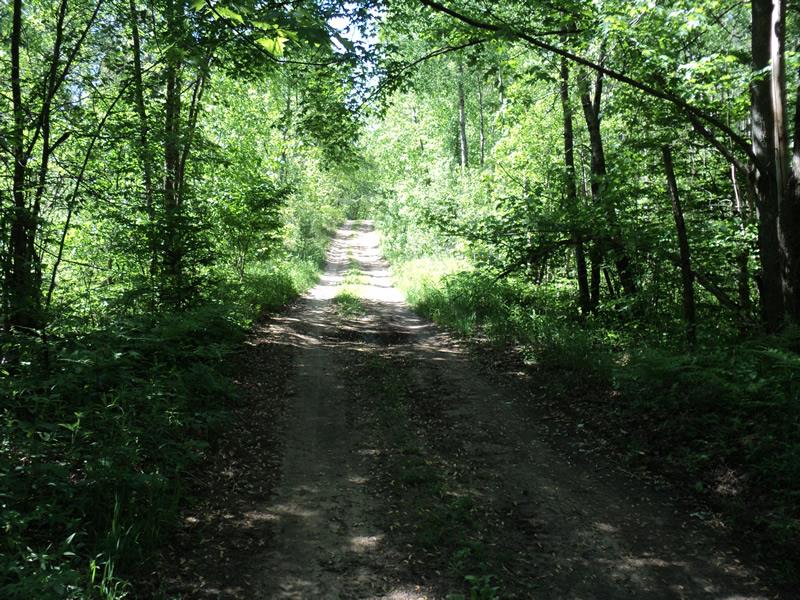

Road Approach - Left

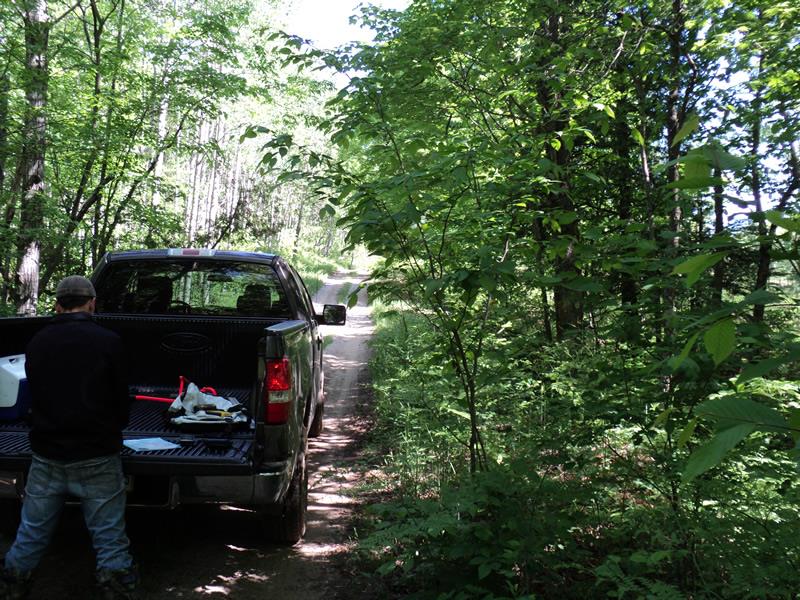

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Culverts: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Poor
Structure Interior: corrugated
Dimensions of Structure: Length 28.5 ft. , Width 1 ft. , Height 1 ft.
Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.1 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0.1 ft.
Water Velocity*: 0.1 ft./sec.
*Water Velocities were measured at the Surface (with Meter)
Stream Information
Stream Flow: Bankfull
Scour Pool: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Upstream Pond: Length 0 ft. , Width 0 ft. , Depth 0 ft.
Riffle Information
Water Depth: 0 ft.
Bankfull Width: 0 ft.
Wetted Width: 0 ft.
Water Velocity: 0 ft./sec.
Dominant Substrate: Organics
Road Information
Sand Other Road (Seasonal)
Road Condition: Poor
Road Width at Culvert: 10 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 1.8 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.3 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0 tons/year
Right Approach
Length: 180 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.418
Erosion: 0.2073 tons/year
Erosion Information
Total Erosion at Crossing: 0.2073 tons/year
Summary Information
Fish Passability 0.5
