Road Stream Crossing Site PM_L052
Pere Marquette River Watershed, Baker Creek
Kings Highway
Yates Twp,
Lake County
Information collected by:
Site Location
GPS Coordinates: 43.88749
, -85.72199
T17N
R12W
Sec 10
Owned by Private
Total Erosion: 0.077 tons/year
Severity: Severe
Year Inventoried: 2014

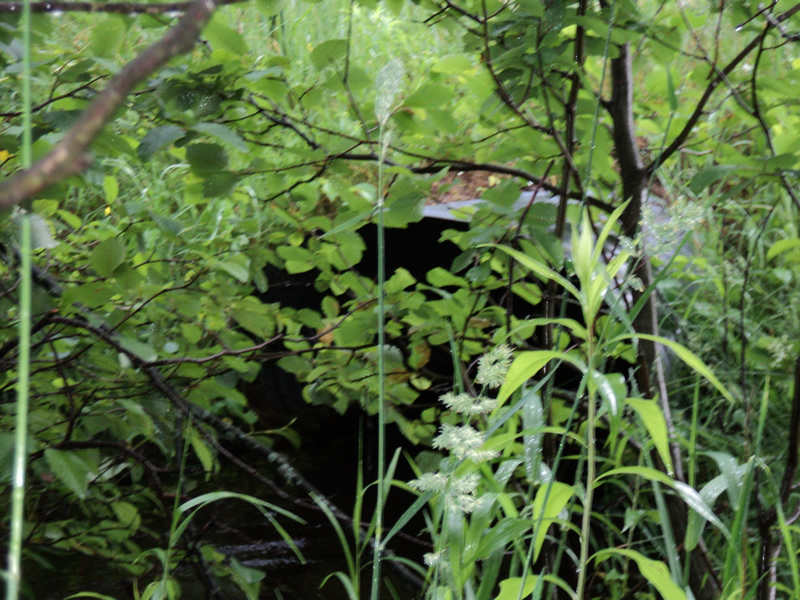

Inlet

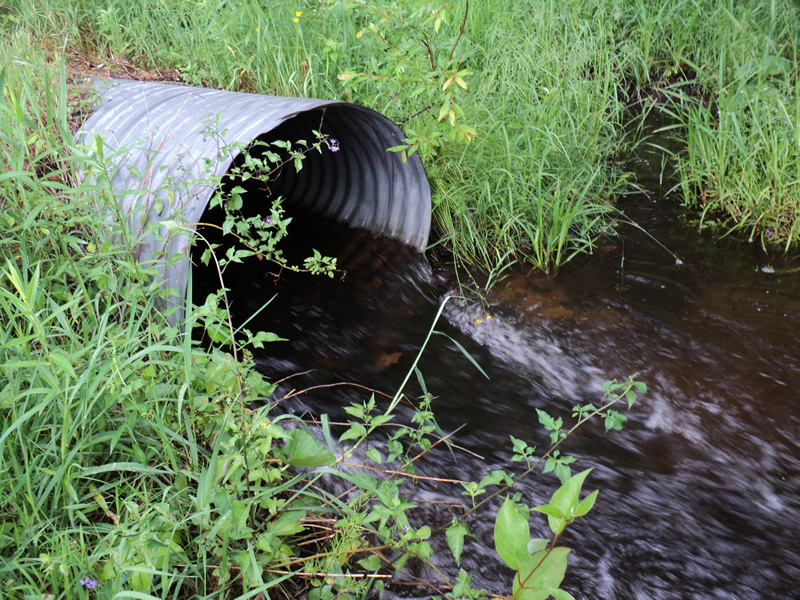

Outlet

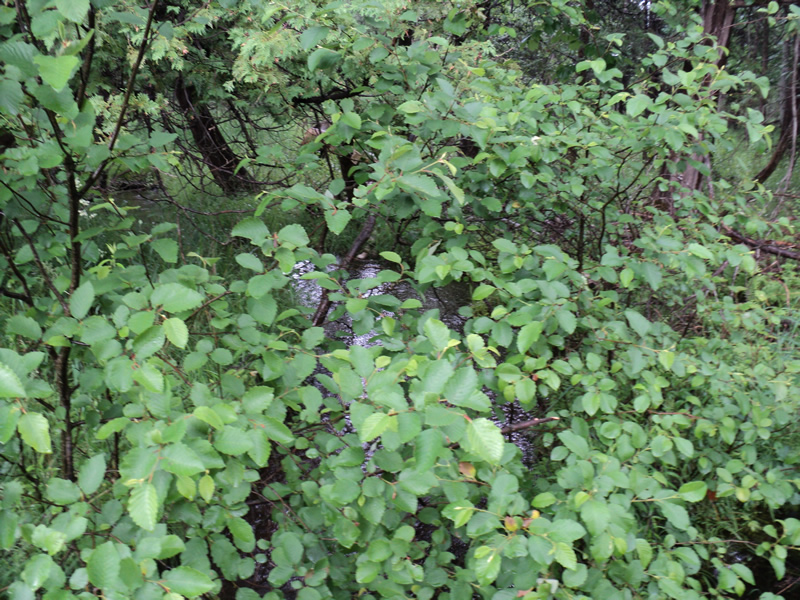

Upstream Conditions

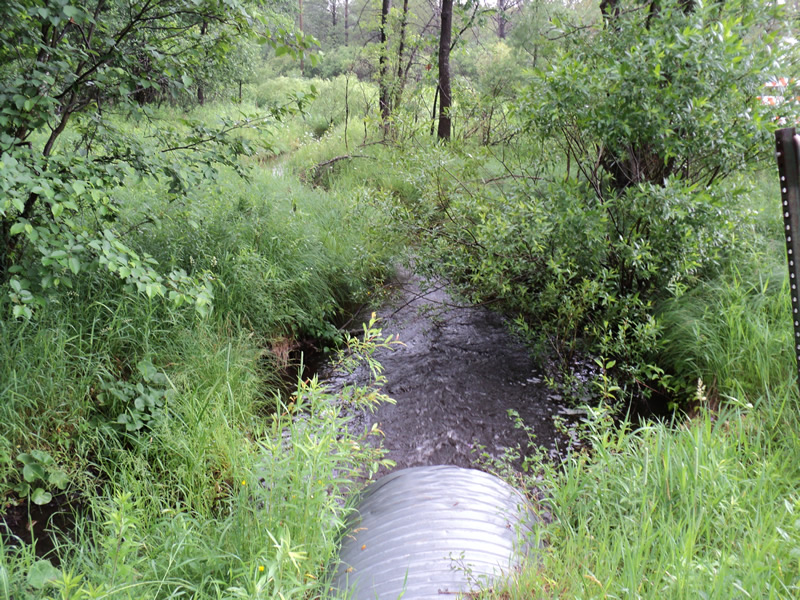

Downstream Conditions

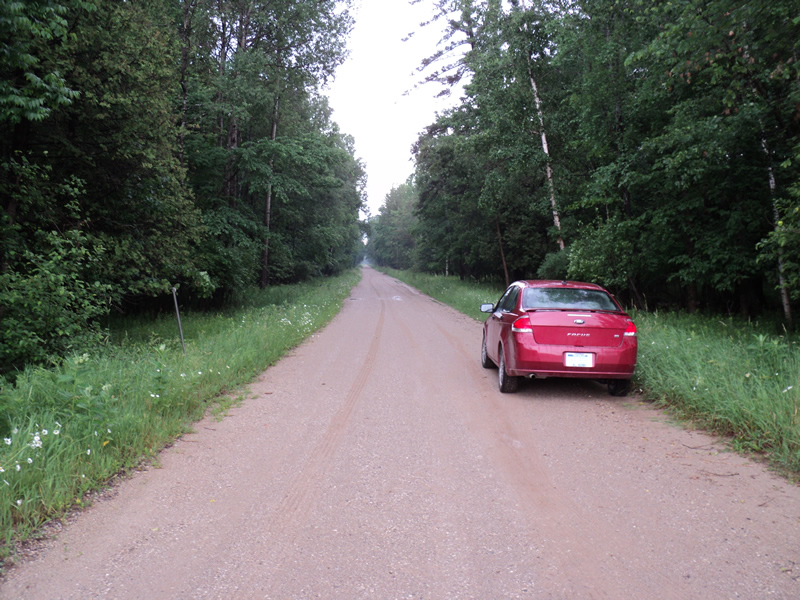

Road Approach - Left

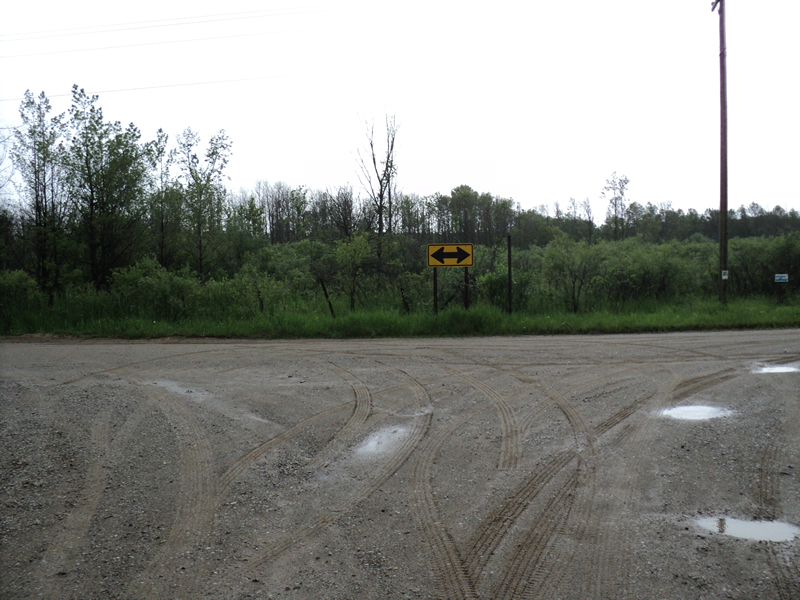

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Cascade over Riprap
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 44 ft.
, Width 2.5 ft.
, Height 2.5 ft.
Structure Inlet
Water Depth: 0.9 ft.
Water Velocity*: 2.5 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Water Velocity*: 4.9 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Additional Comments
recent rain event prior to survey
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 10 ft.
, Width 8 ft.
, Depth 2 ft.
Riffle Information
Water Depth: 0.5 ft.
Bankfull Width: 7 ft.
Wetted Width: 6 ft.
Water Velocity: 1.1 ft./sec.
(Measured with Meter)
Dominant Substrate: Gravel
Road Information
Gravel
County Road
Road Condition: Fair
Road Width at Culvert: 17 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 1 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 150 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0351 tons/year
Right Approach
Length: 30 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.298
Erosion: 0.0419 tons/year
Erosion Information
Total Erosion at Crossing: 0.077 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
