Road Stream Crossing Site PM_L085

Pere Marquette River Watershed, Baldwin River tributary
Kings Highway
Newkirk Twp, Lake County
Information collected by:
Site Location
GPS Coordinates: 44.013605 , -85.732123
T19N R12W Sec 27
Owned by Private
Total Erosion: 0.0097 tons/year
Severity: Minor
Year Inventoried: 2014

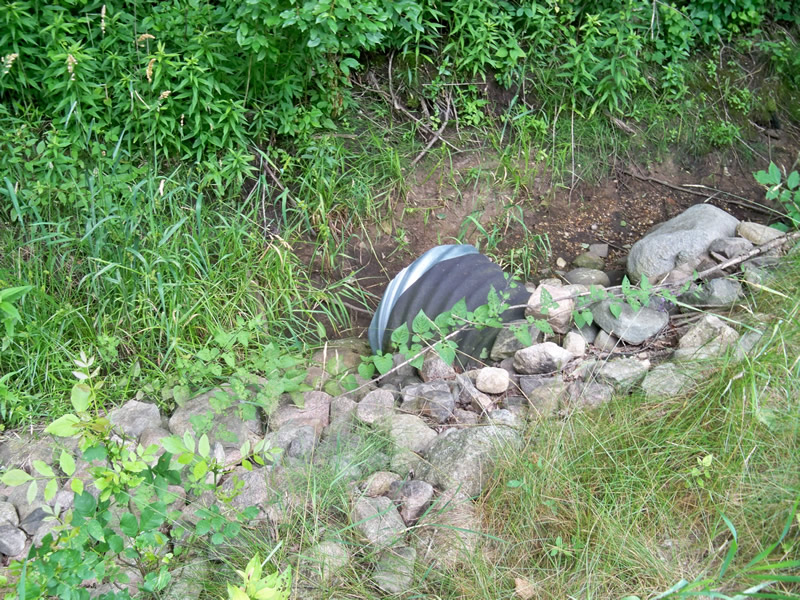

Inlet

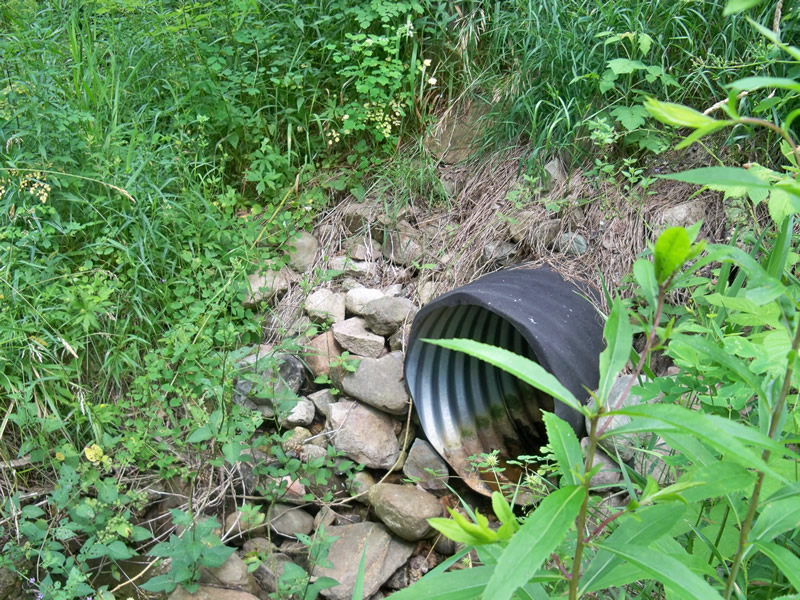

Outlet

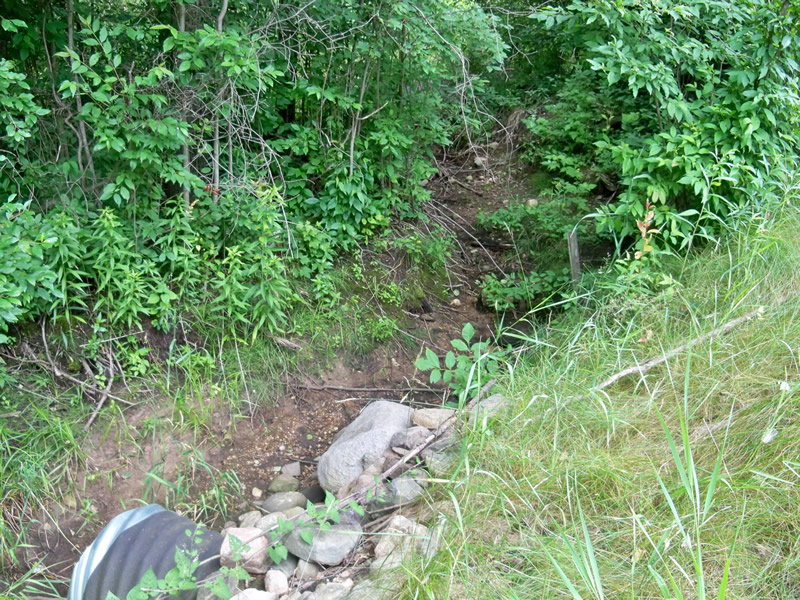

Upstream Conditions

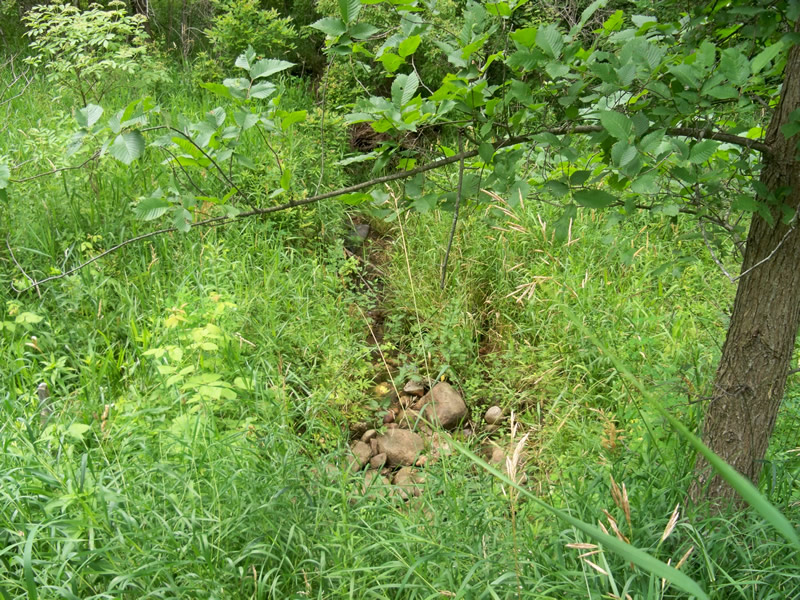

Downstream Conditions

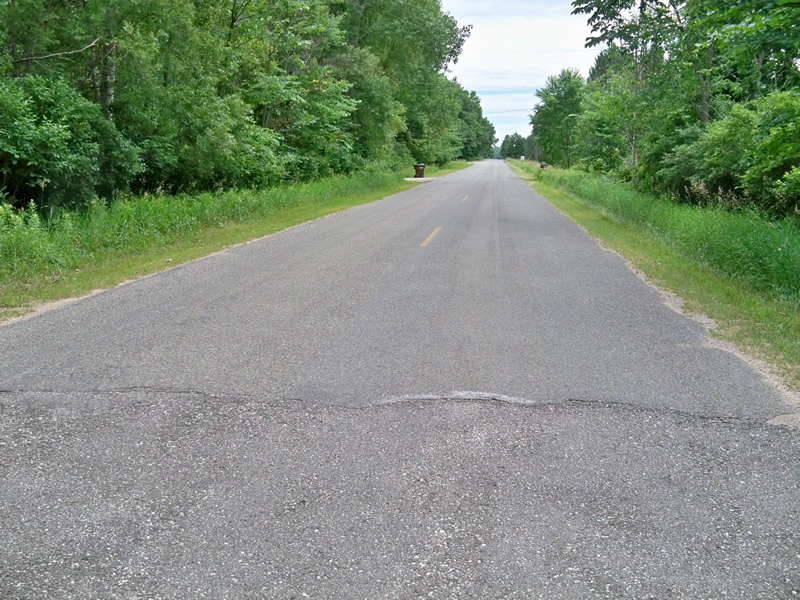

Road Approach - Left

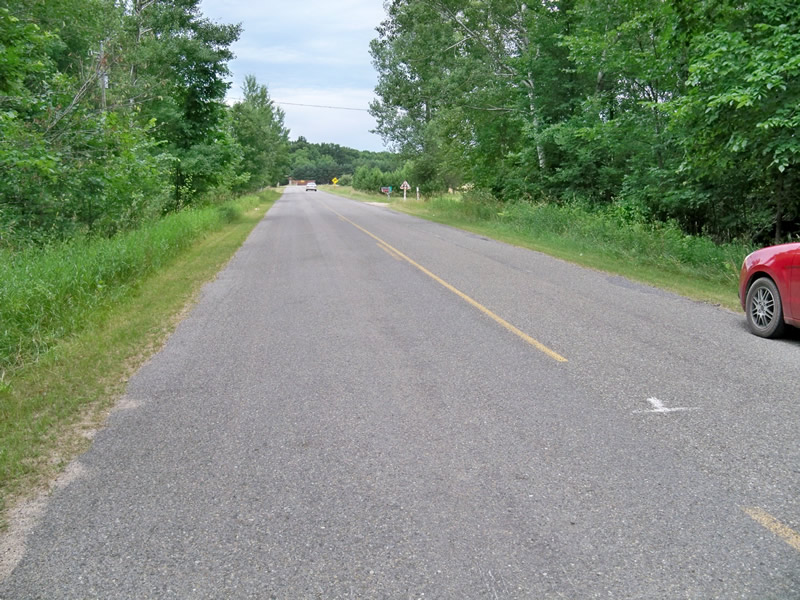

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Cascade over Riprap
Structure Material: Metal
Structure Substrate: None
General Conditions: New
Structure Interior: corrugated
Dimensions of Structure: Length 60 ft. , Width 2 ft. , Height 2 ft.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
(with Float Test)
Additional Comments

Seasonal flow crossing; stream channel dry but easily detected.

Stream Information
Stream Flow: None
(Measured with Meter)
Dominant Substrate: Organics
Road Information
Paved County Road
Road Condition: Fair
Road Width at Culvert: 21 ft.
Location of Low Point: At Stream
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 4 ft.
Slope: 1:2
Downstream
Fill Depth: 5 ft.
Slope: 1:2
Approaches
Left Approach
Length: 150 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0052 tons/year
Right Approach
Length: 130 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0045 tons/year
Erosion Information
Total Erosion at Crossing: 0.0097 tons/year
Extent of Erosion: Stabilized
Summary Information
Erosion is an area of concern for this site.
