Road Stream Crossing Site PM_L088

Pere Marquette River Watershed, Baldwin River
3 Mile Rd
Newkirk Twp, Lake County
Information collected by:
Site Location
GPS Coordinates: 44.031071 , -85.715632
T19N R12W Sec 23
Owned by Private
Fish Passability 0.9
Total Erosion: 0.0319 tons/year
Severity: Minor
Year Inventoried: 2014

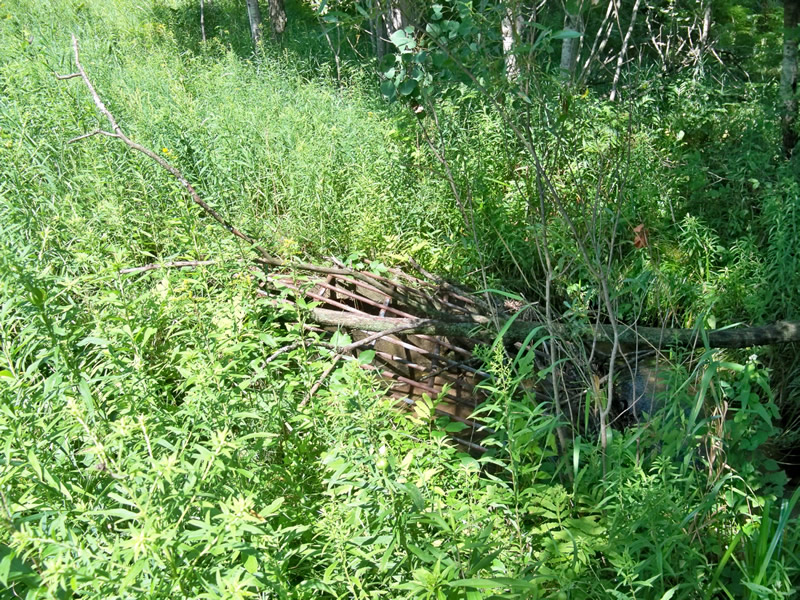

Inlet

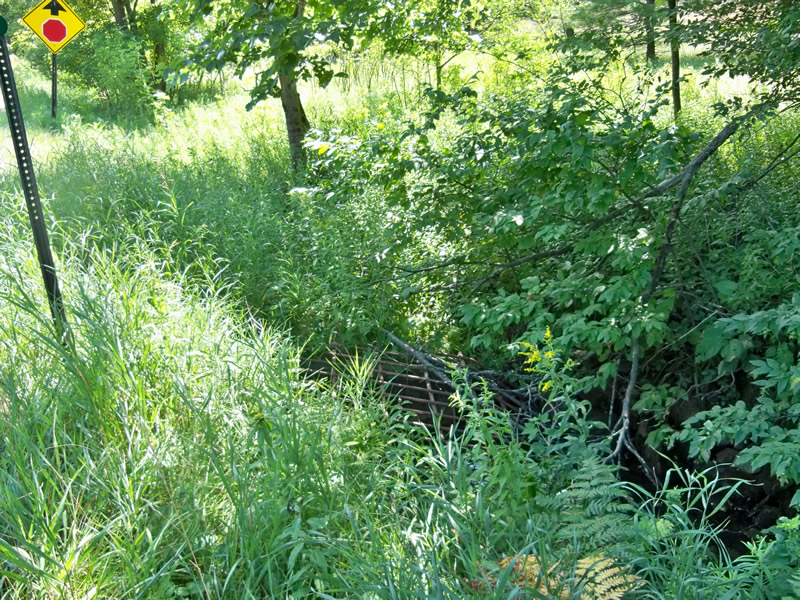

Outlet

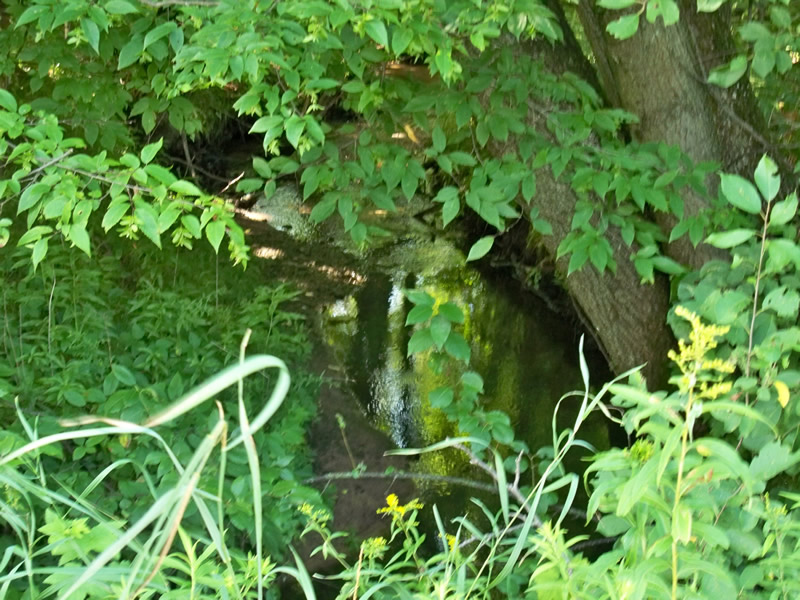

Upstream Conditions

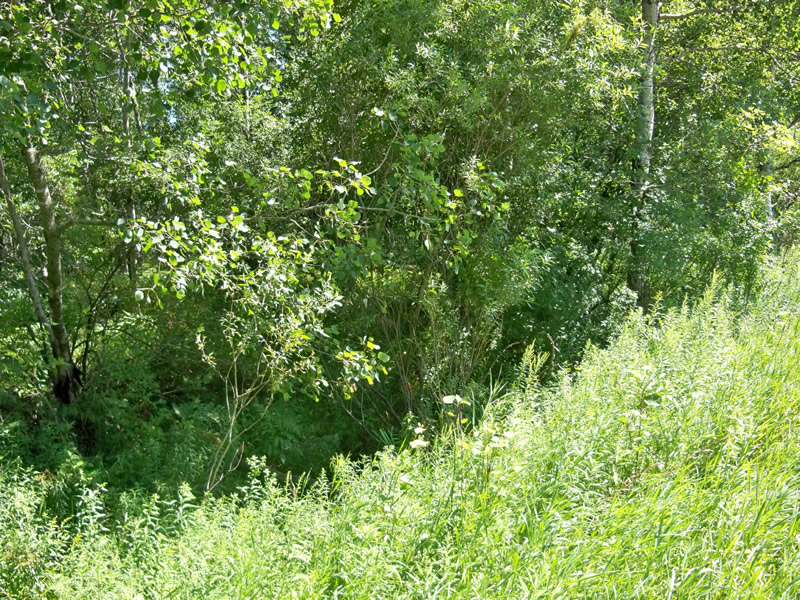

Downstream Conditions

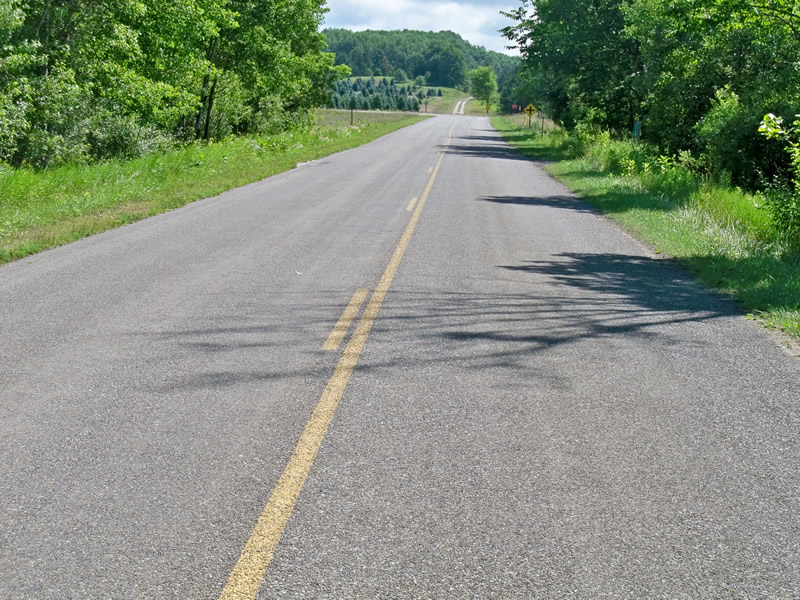

Road Approach - Left

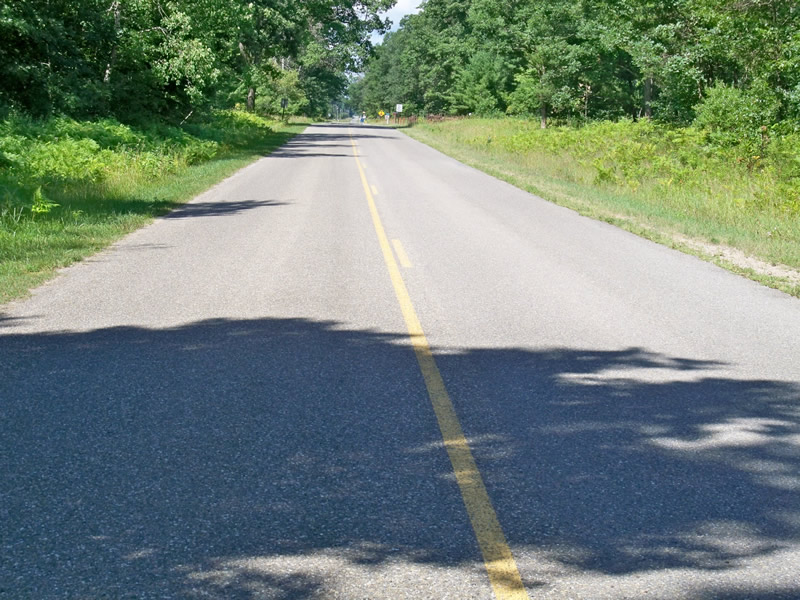

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Apron
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 45 ft. , Width 3 ft. , Height 3 ft.
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0.6 ft./sec.
Structure Outlet
Water Depth: 0.8 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0.5 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 6 ft.
Wetted Width: 5 ft.
Water Velocity: 0.4 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 23 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 3 ft.
Slope: 1:2
Downstream
Fill Depth: 3 ft.
Slope: 1:2
Approaches
Left Approach
Length: 100 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.38
Erosion: 0.0289 tons/year
Right Approach
Length: 80 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.003 tons/year
Erosion Information
Total Erosion at Crossing: 0.0319 tons/year
Extent of Erosion: Stabilized
Summary Information
Fish Passability 0.9
